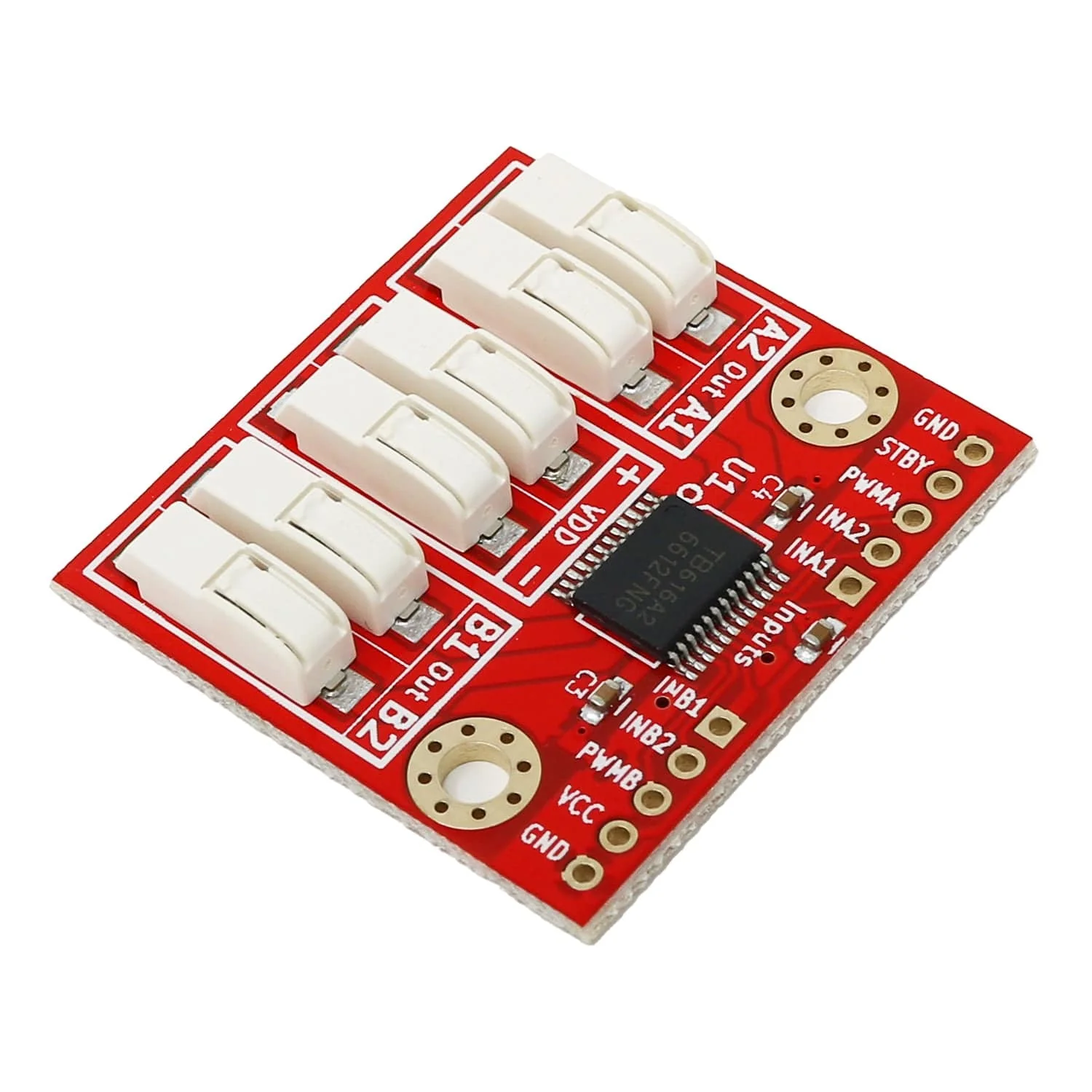

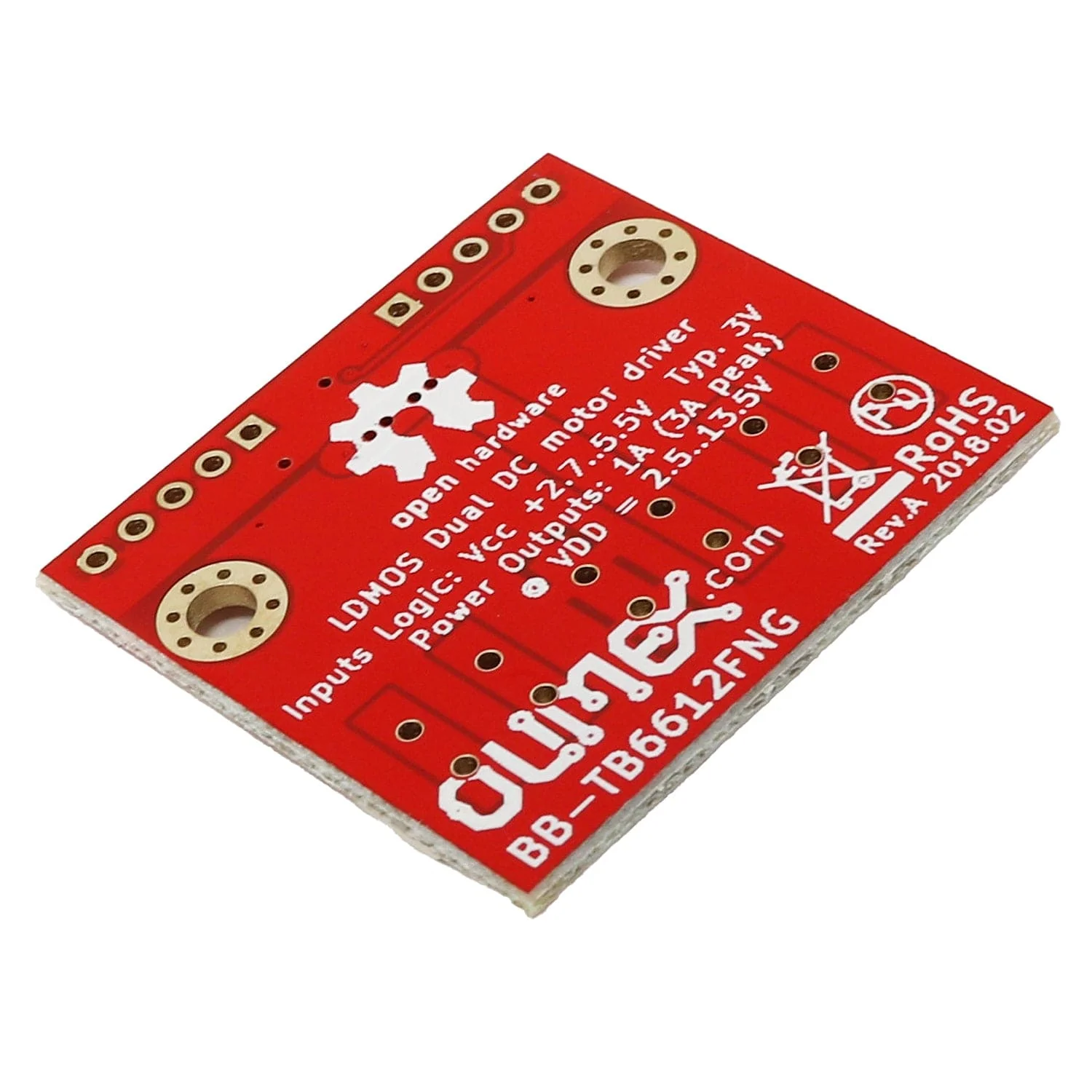

Olimex BB-TB6612 Dual Motor Driver with PWM

The Olimex BB-TB6612 is a dual DC motor driver with digital logic working from 2.7-5.5V and a motor voltage from 2.5-13.5V.

It's perfect for driving small robot cars with 6V/12V motors and a 12V battery source. Combined it with one of our robot chassis kits and your own microcontroller of choice.

Features

• Digital logic power supply: 2.7-5.5V
• Motor Power supply: 2.5-13.5V
• Output current 1.2 (3A max)
• Output ON resistance 0.5ohm
• Power save mode
• CW/CCW motor rotation
• Short brake and stop states
• Thermal shut-down
• Operating temperature -20 to 85C
• Dimensions: 34 x 34 mm

Resources

Documents

• User manual
• EU Declaration of Conformity
• UKCA Declaration of Conformity

Hardware

• Schematic
• CAD files in KiCAD format

Package Contents

• BB-TB6612 Dual DC Motor Driver (12V)
• 1x Header strip
