Serial Bus Servo Driver Board

This driver board has a servo power supply and a control circuit and it is made to connect directly to a host or MCU, providing control over the serial bus servos.

It supports the simultaneous management of up to 253 ST/SC series serial bus servos, provided there is a sufficient power supply. The board has a voltage input ranging from 9 to 12.6V, which must match the servo voltage to provide optimal performance. Also, there's a USB-C port to provide power to the board. This driver board is an ideal choice if you are looking to create robotic systems with multiple servos.

Features

• Supports connecting to a host or MCU to control the serial bus servos
• Allows controlling up to 253 ST/SC series serial bus servos at the same time (sufficient power supply required)
• 9~12.6V voltage input (the input voltage and the servo voltage must be matched)
• Provides convenient serial bus servo control solutions
• Integrates control circuit to ensure the stable operation of serial bus servo
• Compact size and space-saving, suitable for integration into sorts of space-limited projects

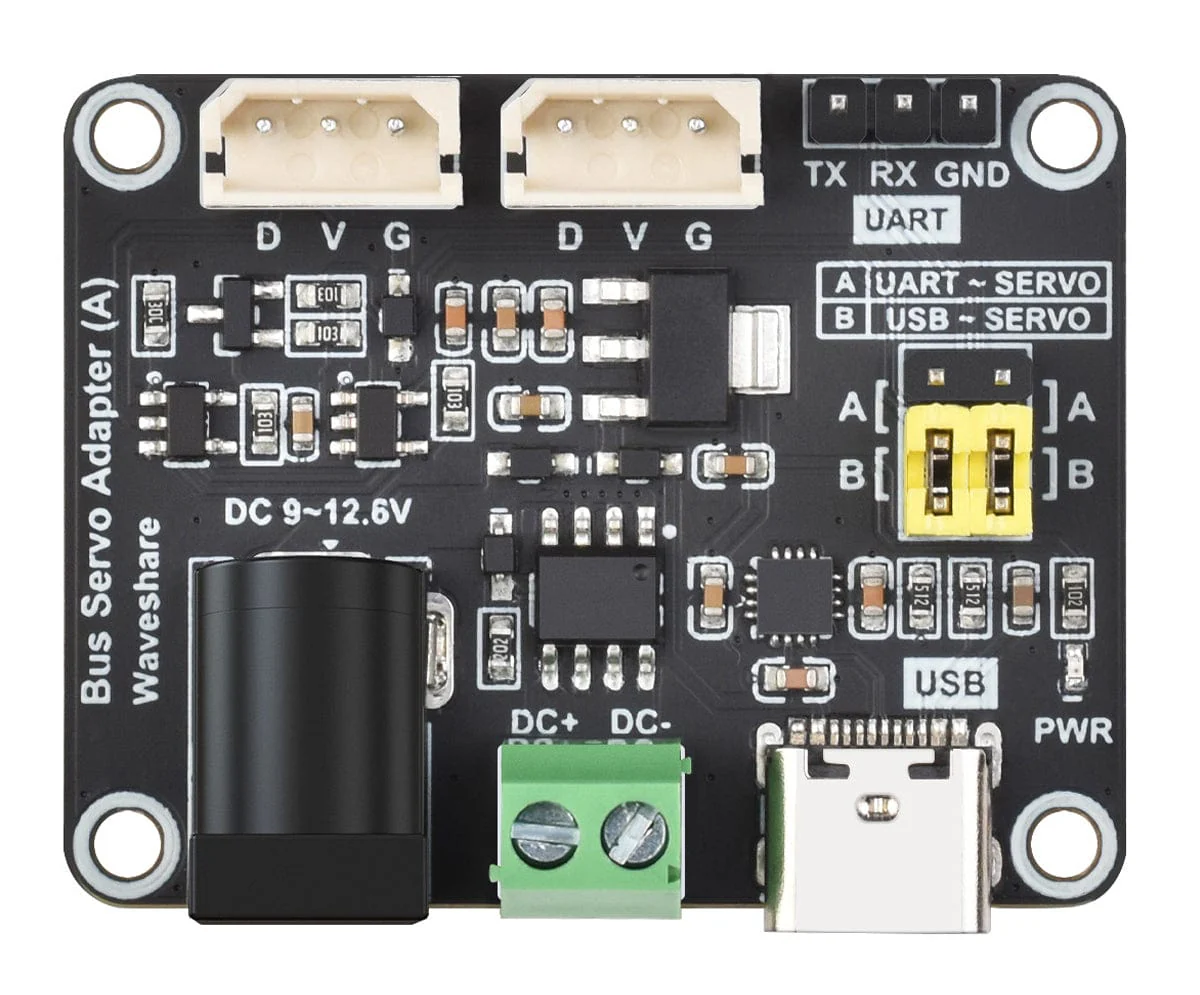

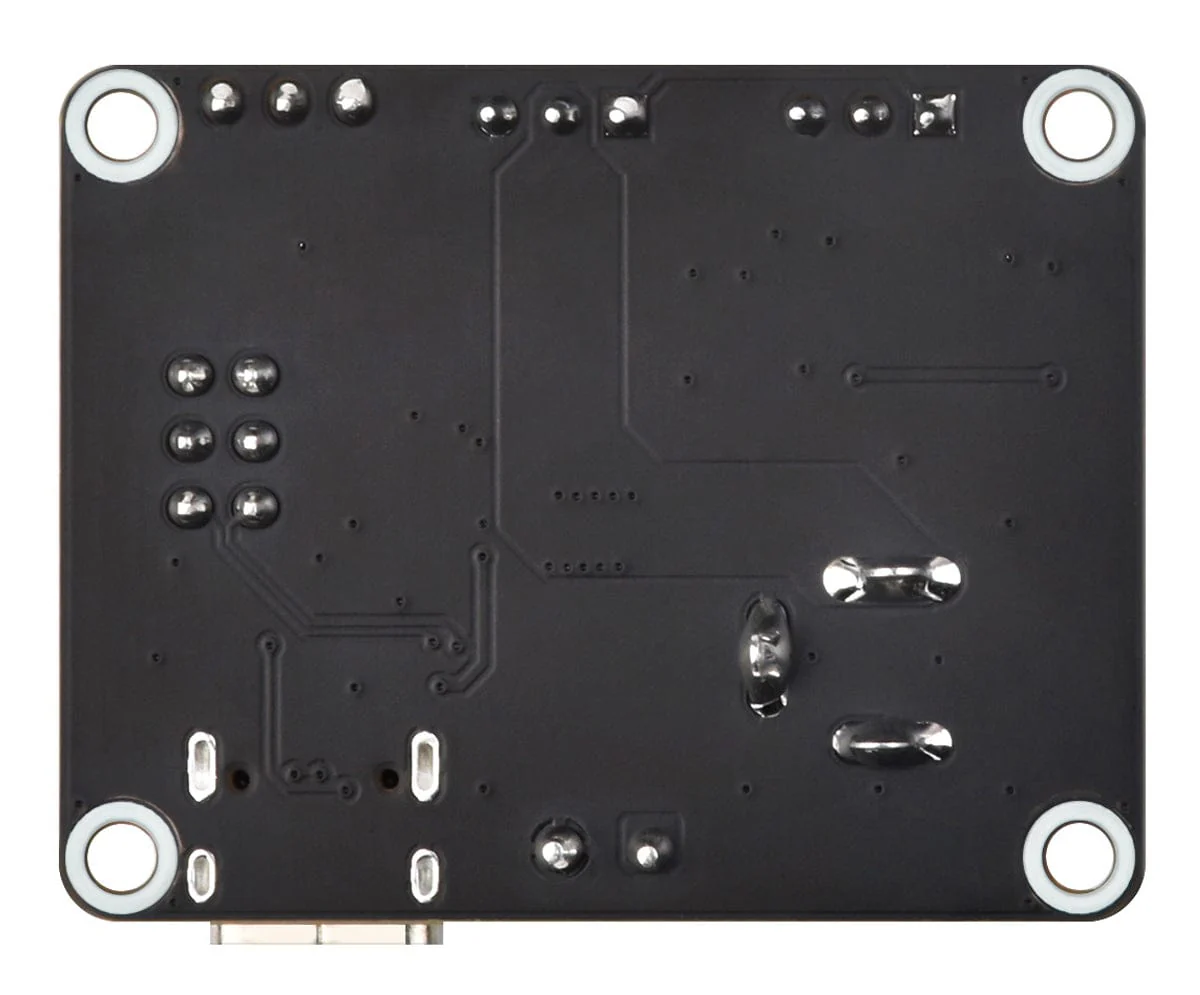

What's on Board

1. 2.1 DC power jack
2. Power supply screw terminal
3. USB Type-C connector
4. Control mode switch jumper
5. Serial bus servo control interface
6. UART communication interface

Specifications

Power Supply	DC 9~12.6V (ST series servo)
Power Supply Connector	5.5 x 2.1mm DC
Communication Interface	UART

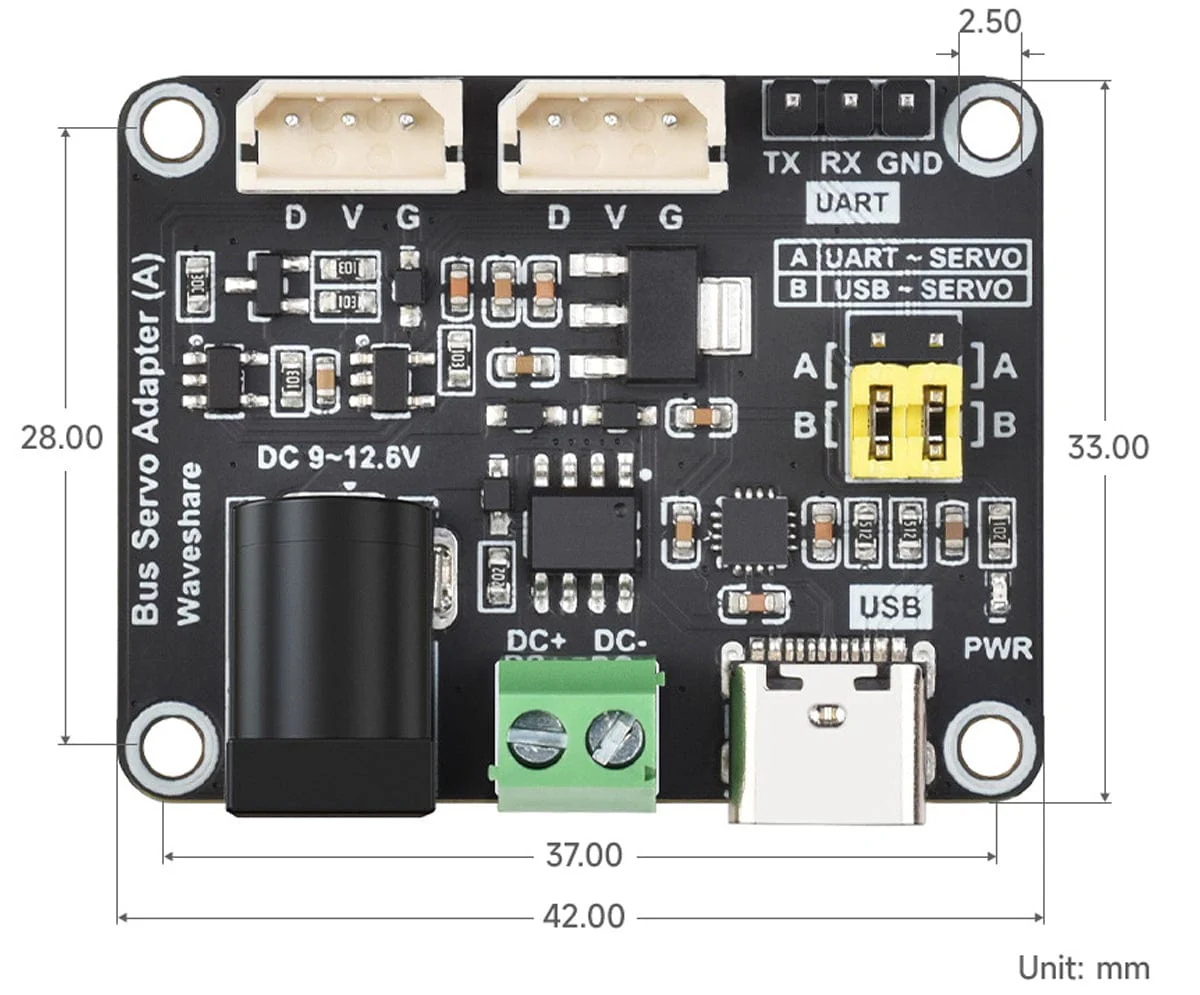

Dimensions	42.00 x 33.00mm
Mounting Hole Size	2.50mm
Mounting Hole Spacing	37.00 x 28.00mm

Resources

• Product Wiki
• Schematic

Package Contents

• 1x Serial Bus Servo Driver Board
