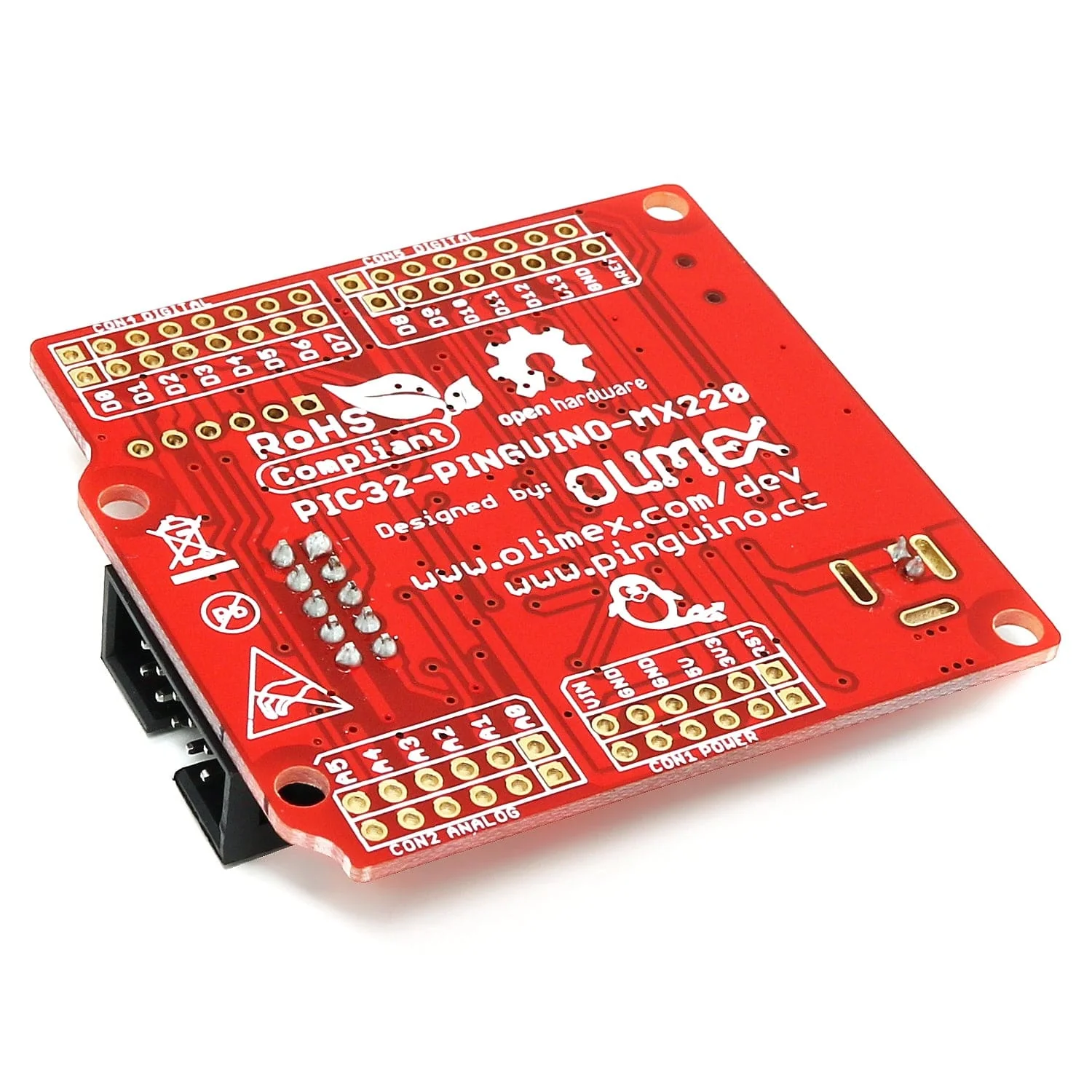

Olimex PIC32-PINGUINO-MX220 32-Bit Pinguino Development Board

This development board from Olimex uses the familiar Arduino UNO form factor but offers vast hardware improvements over the original R3, notably the 32-bit PIC32 chip!

This board enables code development of applications running on the PIC32MX220F032D microcontroller, manufactured by Microchip technology, using the Pinguino IDE.

This board uses a Mini-USB connector, so be sure to pick up a matching Mini-USB USB cable!

Hardware Differences

Here is a table highlighting the hardware differences between this board and the classic Arduino UNO R3 (the software approach is also different as the Piguino IDE is used with this PIC32 board):

	PIC32-PINGUINO-MX220	Arduino UNO R3
CPU	32 bit	8 bit
CLOCK	40 MHz	20 MHz
FLASH	32 KB	32 KB
RAM	8 KB	1 KB
USB	YES	NO*
LOW PWR	YES**	NO
GPIO MAX	40 MHz	5 MHz
ADC	1.1 MSPS	15 KSPS
DMA	YES 4 CH	NO
UEXT	YES	NO

Features

• PIC32MX220F032D 32-bit, 40 Mhz microcontroller
• 32KB Flash
• 8KB RAM
• Pinguino IDE ready
• Ultra Low Power design
• Li-Po battery connector for hand-held applications
• Two LEDs
• User button
• RESET button
• Mini USB connector
• Olimex UEXT connector
• All PIC ports available on a 0.1" connector match the Arduino platform and the second row with the correct 0.1"step
• The ICSP signals are provided on a 0.1" step connector if you do not want to use Pinguino IDE and you want to program this board with PIC-KIT3

Resources

Documents

• User's manual
• European Declaration of Conformity

Hardware

• Schematic
• Schematic in Eagle format
• PIC32-PINGUINO-MX220-REV.A board in Eagle format released under Creative Commons Attribution-Share Alike 3.0 United States License

Software

• • Pinguino IDE official web-site

  • New demo code
  • PIC32-PINGUINO-MX220 and MOD-MP3-X demo code
  • Bluetooth Project with PIC32-PINGUINO-MX220 and MOD-BT (refer to the two .txt files in the main archive folder for more info)
  • PIC32-PINGUINO-OTG and MOD-MAG example
  • Call demo with MOD-GSM and PIC32-PINGUINO-MX220 for Pinguino IDE (refer to the two .txt files in the main archive folder for more info)
  • Send/Receive SMS demo with MOD-GSM and PIC32-PINGUINO-MX220 for Pinguino IDE for Pinguino IDE (refer to the two .txt files in the main archive folder for more info)

Package Contents

• 1x PIC32-PINGUINO-MX220 Development Board
