Pin Header and Socket for Teensy 4.1 Ethernet (6-pin 2mm Spacing)

Connect Teensy 4.1 Ethernet to a custom PCB with this pin and socket pair.

---

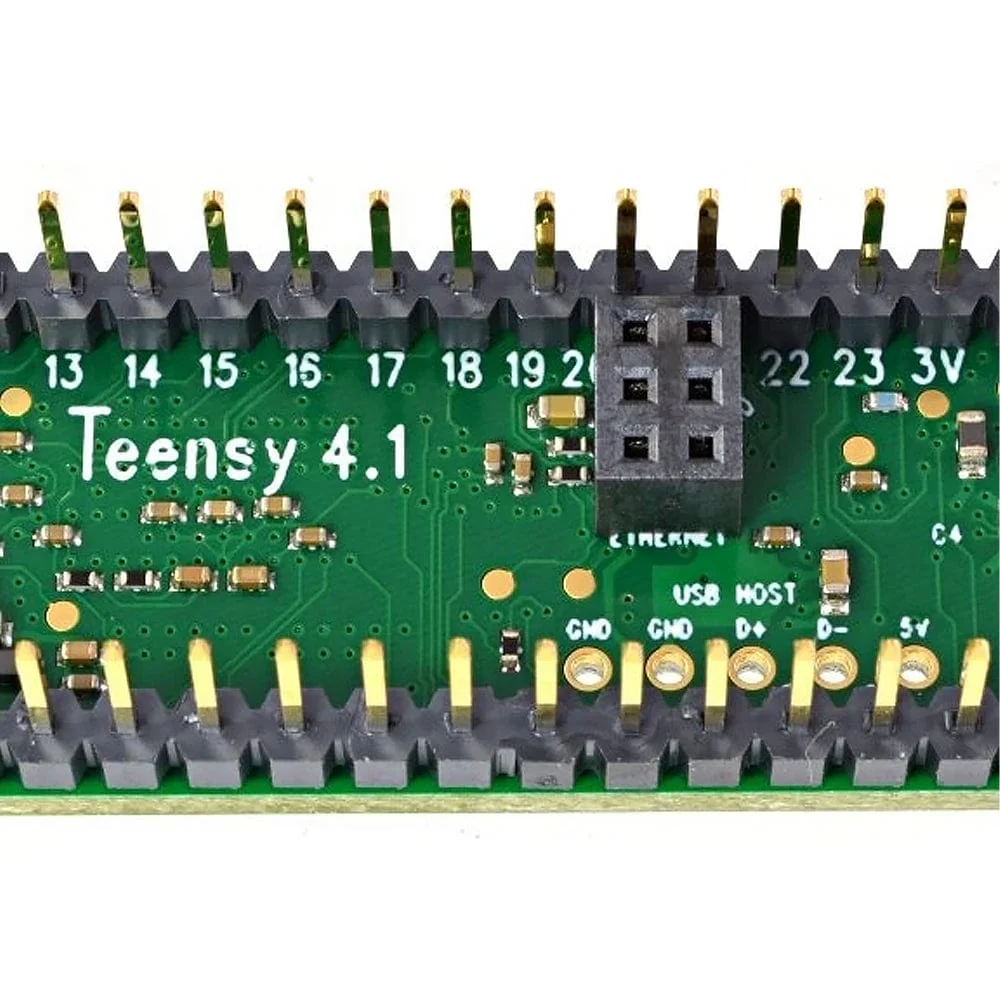

This pin and socket combo allows you to connect Teensy 4.1 ethernet to a custom circuit board. The socket is intended to solder to the bottom side of the Teensy, with the mating pin header soldered to your custom PCB.

When Teensy 4.1 is plugged into the sockets, these 6 pins for Ethernet mate properly. The distance between the boards is approximately 11 mm.

Features

• Pin and socket set for connecting Teensy 4.1 Ethernet to a custom PCB
  • Socket is soldered to the underside of the Teensy 4.1
  • Matching pin header is soldered to the custom circuit board
• Provides proper mating for all six Teensy 4.1 Ethernet signals
• Maintains an 11mm spacing between the Teensy and the custom board
• Ideal for clean, reliable Teensy 4.1 Ethernet integration

Package Contents

• 1x 6-pin socket
• 1x 6-pin mating header
