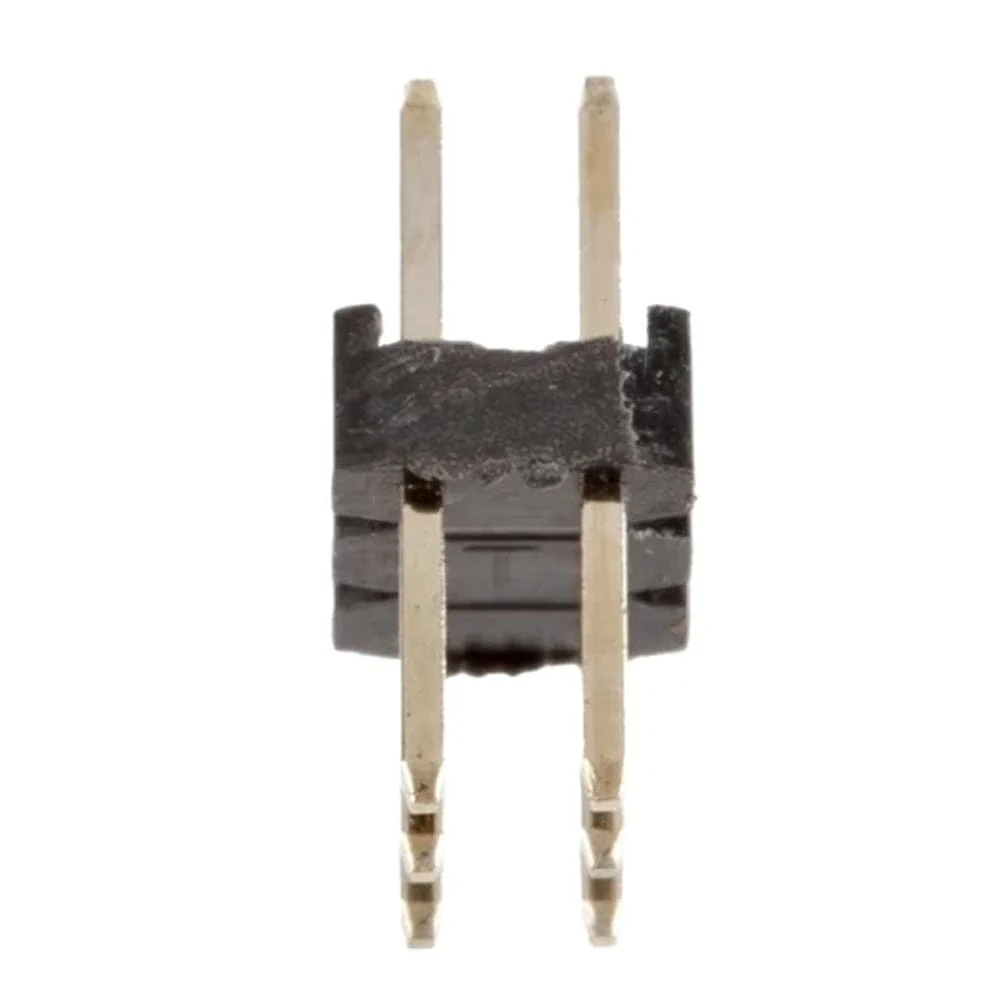

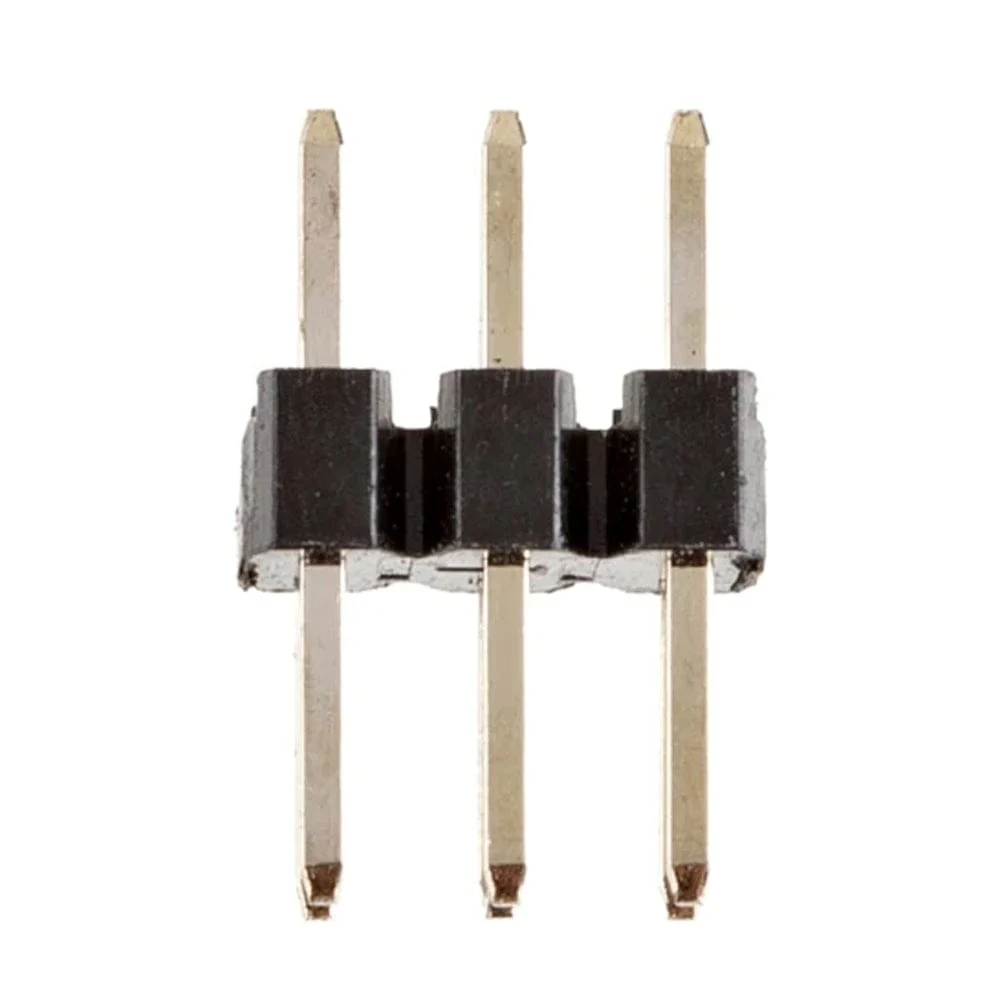

Straight Header - Male (PTH, 2mm, 2x3-Pin)

2×3 male PTH header with 2mm pin spacing, matching the header included with the Ethernet Kit for Teensy 4.1 — ideal as a spare or replacement for compatible builds.

---

This is a simple 2×3 male plated through-hole (PTH) header with 2mm pin spacing. It’s the same style of header included with the Ethernet Kit for Teensy 4.1, making it a handy replacement or spare for compatible projects.

Features

• Contact Type: Male Pin
• Pitch - Mating: 2mm (0.079")
• Number of Positions: 6
• Number of Rows: 2
• Row Spacing - Mating: 2mm (0.079")
• Shrouding: Unshrouded
• Mounting Type: Through Hole
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Length - Mating: 3.91mm (0.154")
• Contact Length - Post: 2.79mm (0.110")
• Overall Contact Length: 8.70mm (0.343")
• Insulation Height: 2mm (0.079")
• Contact Shape: Square
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: Flash
• Contact Finish - Post: Gold
• Contact Material: Brass
• Insulation Material: Polybutylene Terephthalate (PBT)
• Operating Temperature: -40°C ~ 105°C
• Material Flammability Rating: UL94 V-0
• Insulation Colour: Black
• Current Rating (Amps): 1A
• Voltage Rating: 250VAC

Resources

• Drawing

Package Contents

• 1x Straight Header - Male (PTH, 2mm, 2x3-Pin)
