Raspberry Pi 500+

Raspberry Pi 500+ is a premium version of the original Raspberry Pi 500, complete with 16GB RAM, pre-installed 256GB SSD, Gateron mechanical switches, low-profile changeable keycaps, programmable RGB LED backlighting and more!

---

Raspberry Pi 500+ is a premium computer built into a high-quality mechanical keyboard, redefining the compact PC experience for power users and enthusiasts.

Powered by the same quad-core 64-bit ARM processor and RP1 I/O controller found in Raspberry Pi 5, Raspberry Pi 500+ features 16GB RAM to handle the most memory-intensive workloads, and a pre-installed 256GB Raspberry Pi SSD for blazingly-fast I/O performance. Clicky Gateron KS-33 Blue mechanical keyboard switches are paired with ergonomic low-profile keycaps and individually addressable RGB LEDs.

The Raspberry Pi 500+ also integrates a one-piece aluminium heatsink for improved thermal performance, ensuring your Pi 500+ will run fast and smoothly even under heavy load, while delivering glorious dual 4K display output.

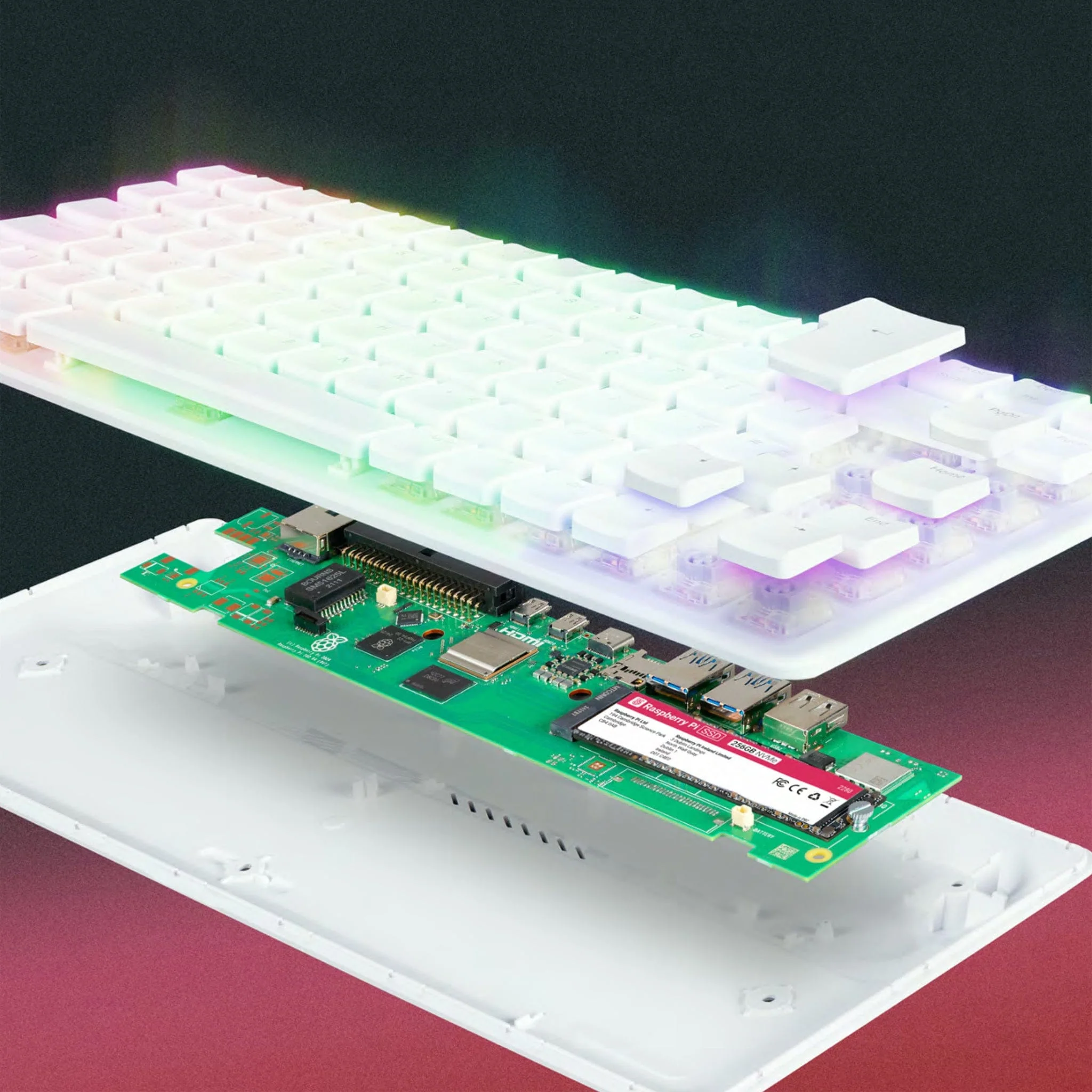

Tools are included for opening the case to replace the SSD and for swapping out the default keycaps. Comprehensive instructions are available over on Raspberry Pi's documentation website.

We also stock the Raspberry Pi 500+ Desktop Kit, which comes with a mouse, USB-C power supply and an HDMI cable, along with the Official Raspberry Pi Beginner’s Guide.

Important Notes

• Power supply not included (grab one here)
• Raspberry Pi 500+ is longer and taller than the original Raspberry Pi 500.
  • Most existing protective sleeves designed for Pi400/500 will not fit.
• Clicky mechanical keyboard - some love the sound and feel, some hate it!
  • Not for you? Consider a Raspberry Pi 500 instead.

Video

Features

• 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz (same as Raspberry Pi 5)
• 16GB RAM
• Pre-installed 256GB Raspberry Pi SSD
• Built-in high-quality mechanical keyboard
• Gateron KS-33 Blue mechanical switches
• Low-profile interchangeable keycaps
• Programmable RGB LED backlighting
• Aluminium one-piece heatsink
• Dual 4K display output
• Tools included

• Keyboard layout:
  • UK: ISO 85-key
  • USA: ANSI 84-key

Specifications

Processor	2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache
Memory	16GB LPDDR4X-4267 SDRAM
Connectivity	Dual-band (2.4GHz and 5.0GHz) IEEE 802.11b/g/n/ac Wi-Fi® Bluetooth 5.0, BLE Gigabit Ethernet 2 × USB 3.0 ports and 1 × USB 2.0 port 2 × micro HDMI ports
GPIO	Horizontal 40-pin GPIO header
Display output	Supports up to dual 4Kp60
Multimedia	H.265 (4Kp60 decode) OpenGL ES 3.0 graphics
Storage	256GB Raspberry Pi SSD pre-installed with Raspberry Pi OS Support for M.2 NVMe SSDs up to 2280 (22mm × 80mm) form factor microSD card slot for operating system and data storage
Keyboard	84-, 85- or 88-key mechanical keyboard (depending on regional variant) Gateron KS-33 Blue low-profile switches
Power	5V DC via USB connector
Operating temperature	0°C to +50°C

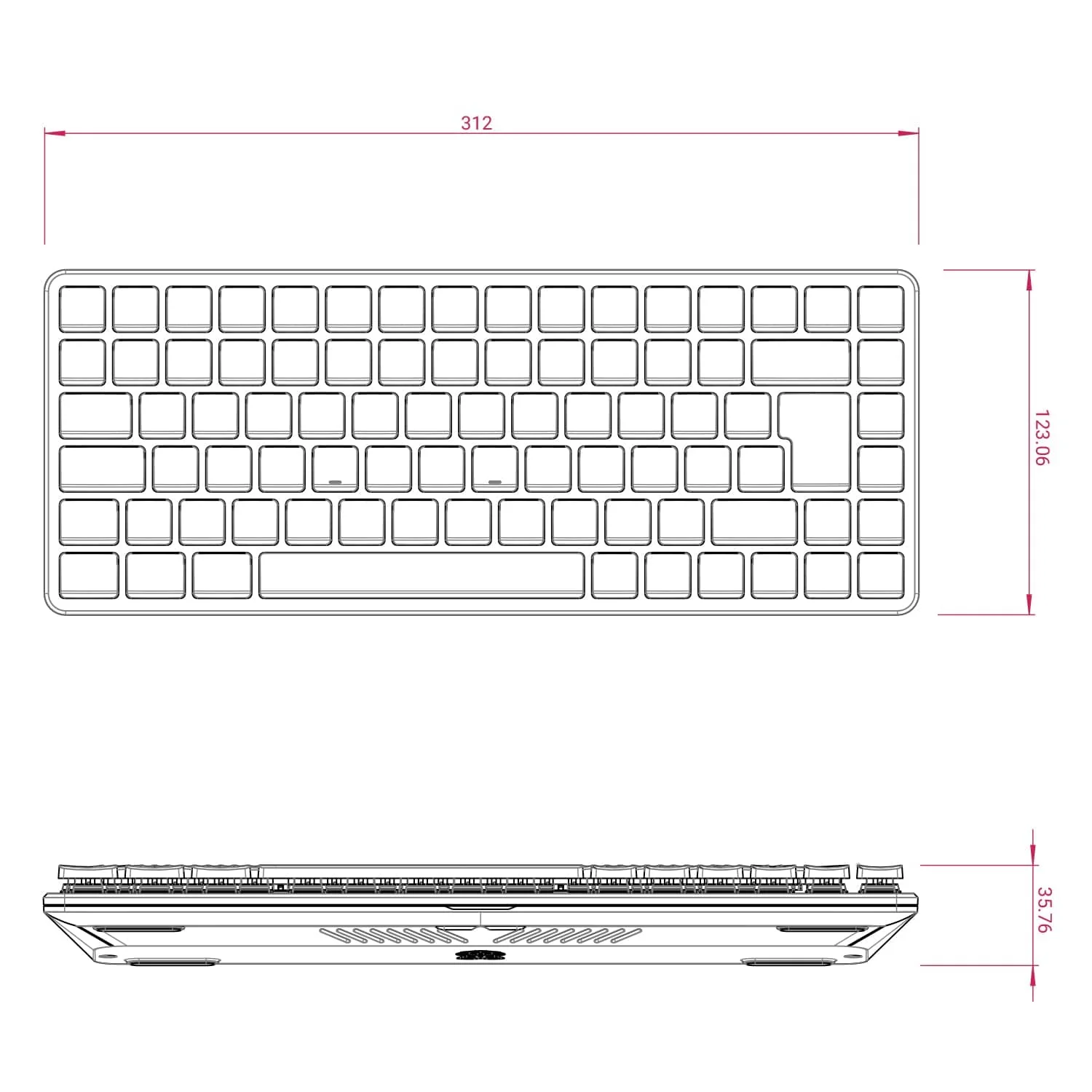

Dimensions	312mm × 123.06mm × 35.76mm

Resources

• Raspberry Pi 500+ Desktop Kit Product announcement

• Raspberry Pi 500+ Documentation
• SSD replacement instructions
• Raspberry Pi 500+ Product Brief
• Production lifetime: Raspberry Pi 500+ will remain in production until at least January 2035
• Compliance: For a full list of local and regional product approvals, please visit pip.raspberrypi.com
• Product number:
  • UK layout: Raspberry Pi SC1236
  • USA layout: Raspberry Pi SC1237
• EAN:
  • UK layout: 5056561804668
  • USA layout: 5056561804675

Package Contents

• 1x Raspberry Pi 500+ (select layout variant before adding to cart)

USB-C power supply not included
