Raspberry Pi 500+ Desktop Kit

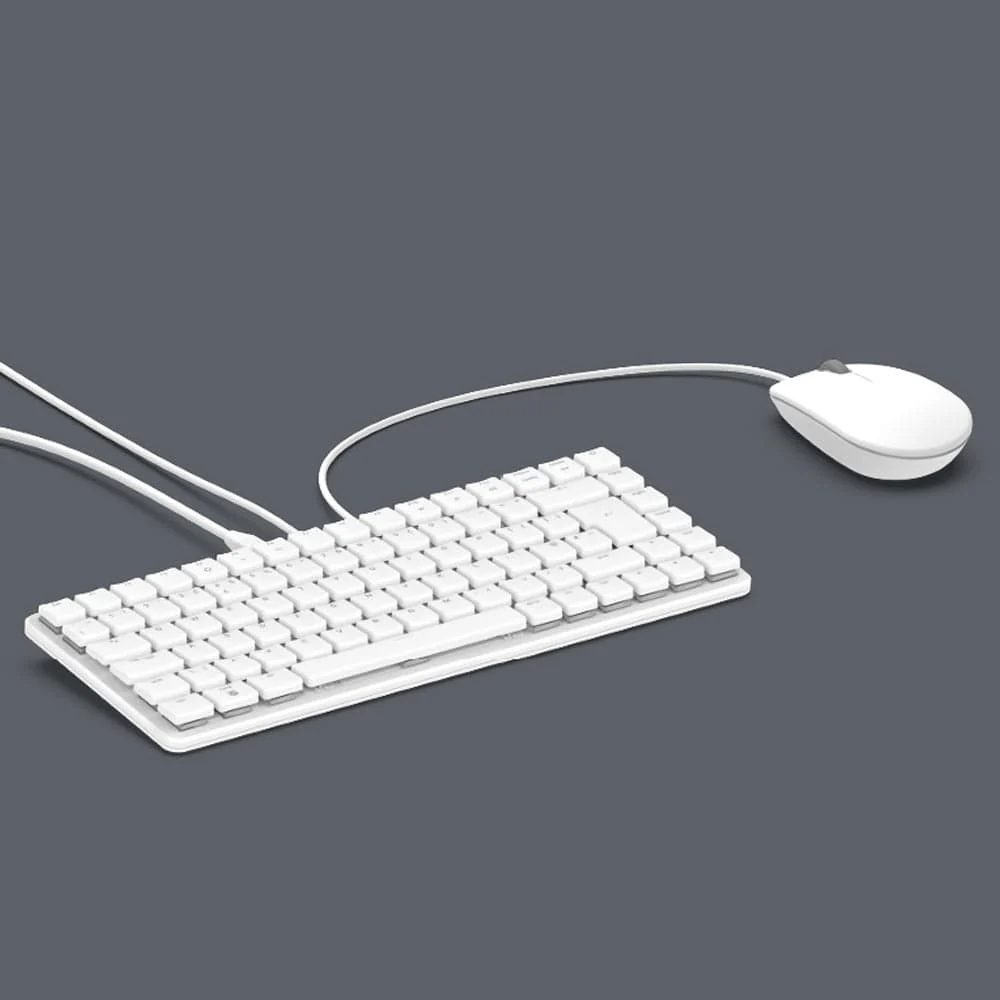

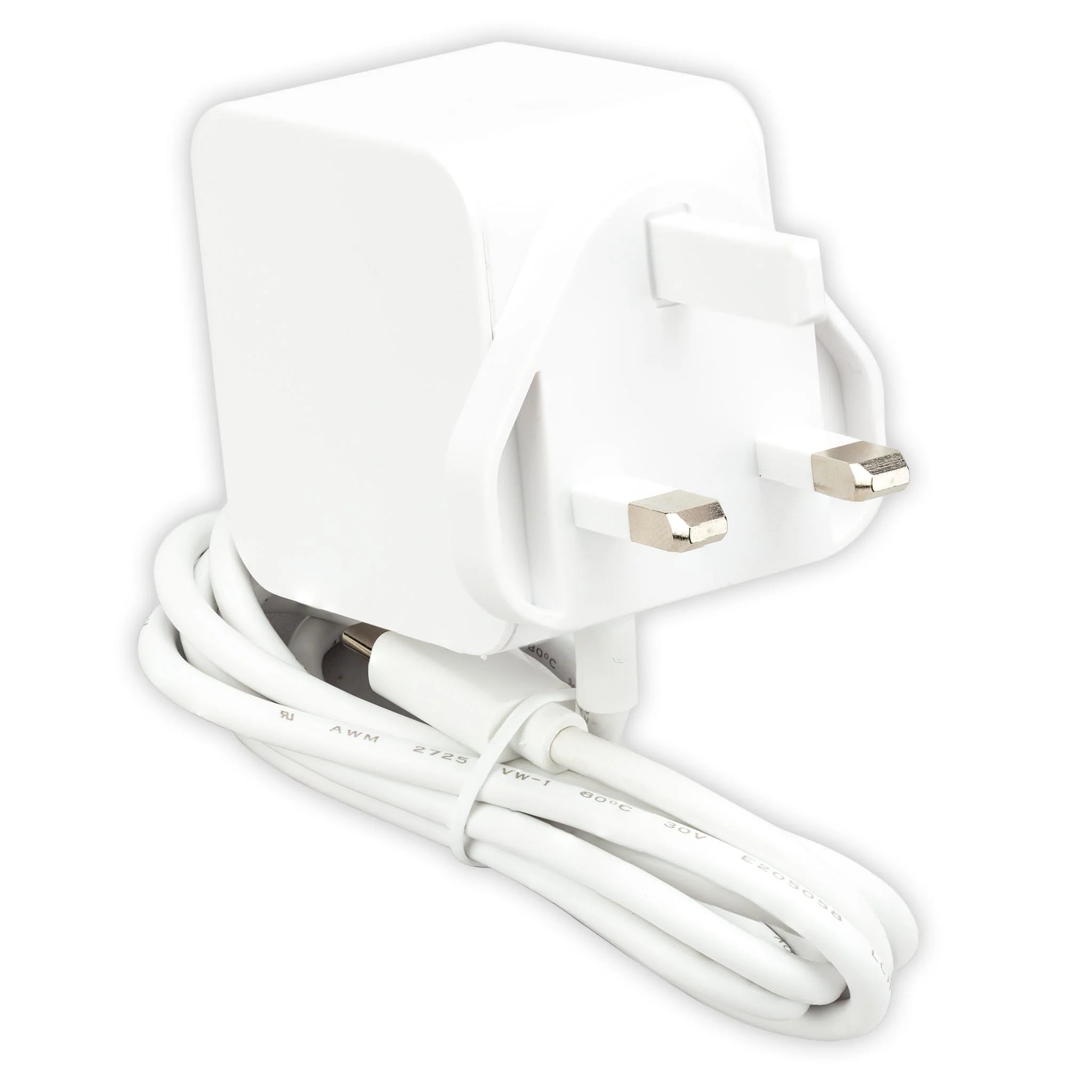

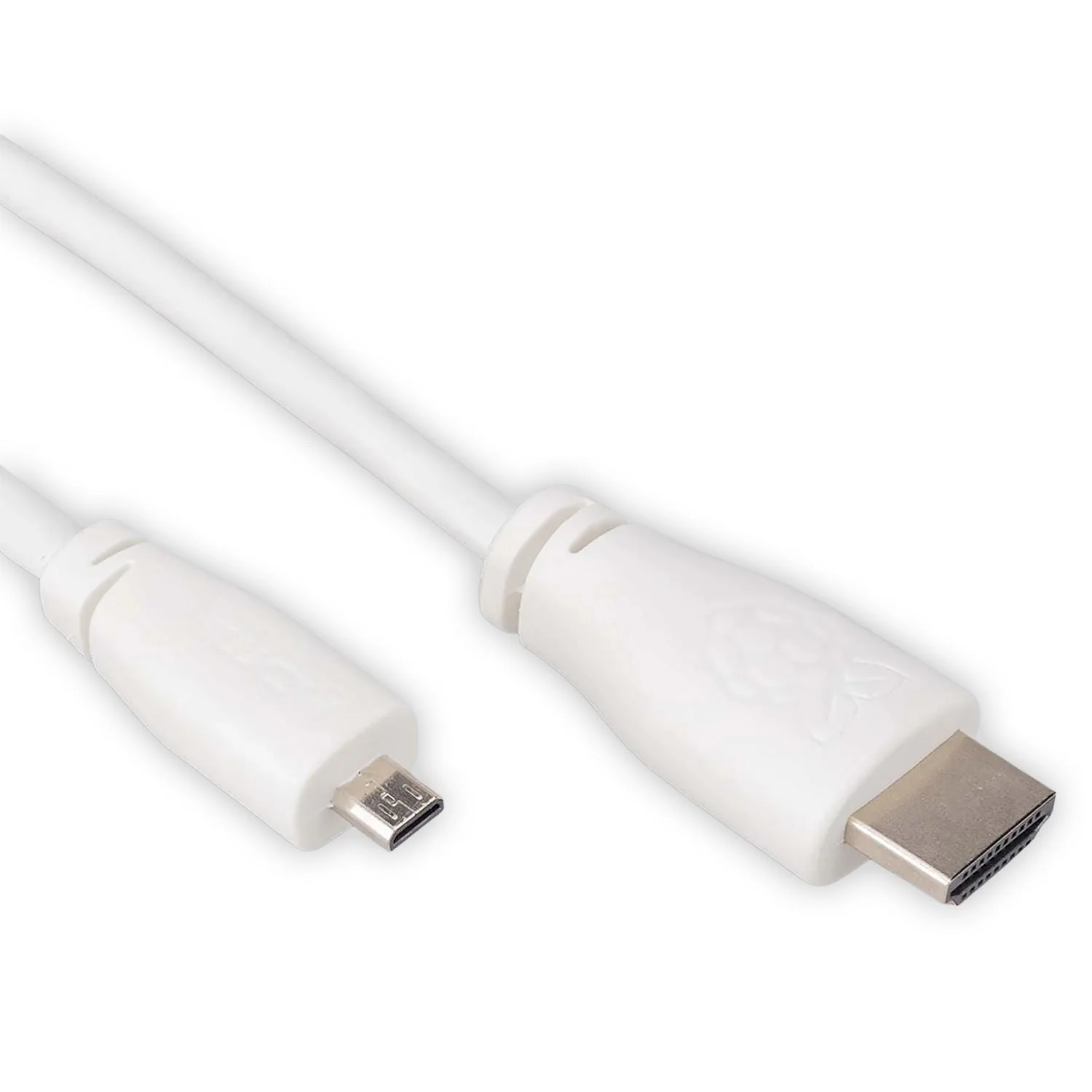

The Raspberry Pi 500+ Desktop Kit provides everything you need for a full Raspberry Pi 500+ setup - just add a monitor! Comes with a Raspberry Pi 500+, mouse, USB-C power supply, HDMI cable and the Official Raspberry Pi Beginner’s Guide.

---

This official desktop kit is the best way to get started with the Raspberry Pi 500+, including the main unit and all the official Raspberry Pi accessories you need to get up and running. All you need to add is a monitor, and you're ready to go!

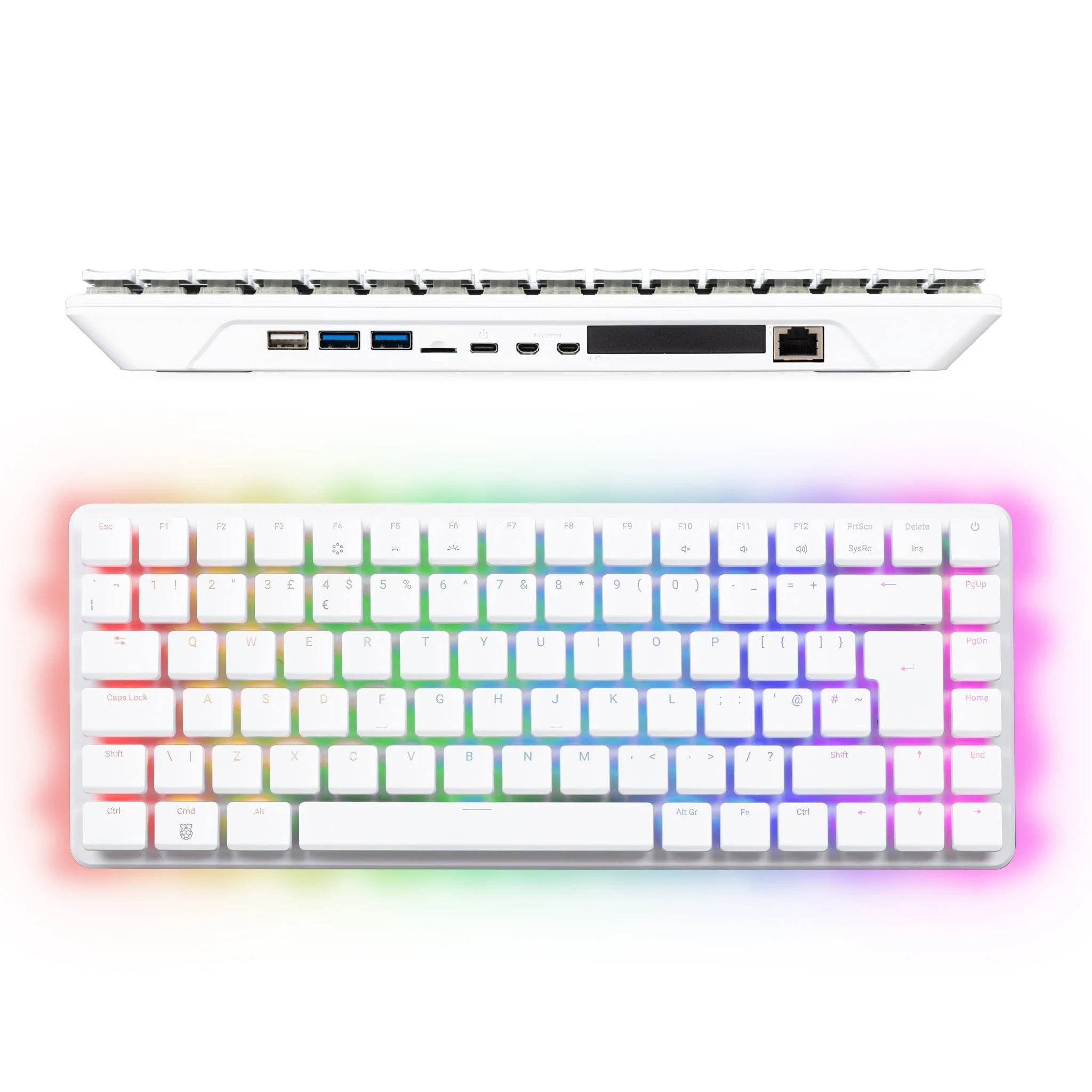

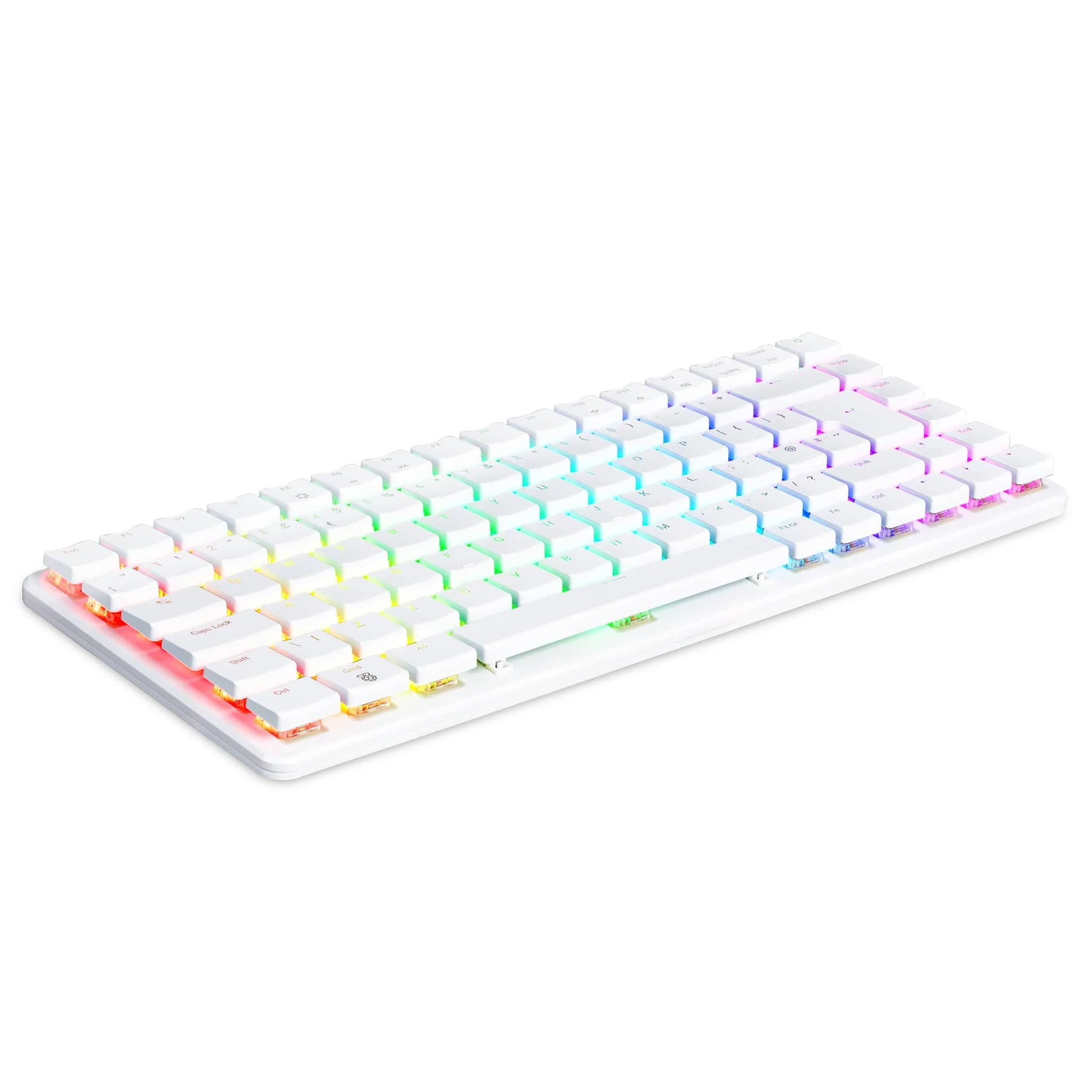

Raspberry Pi 500+ is a premium computer built into a high-quality mechanical keyboard. Powered by the same quad-core 64-bit ARM processor and RP1 I/O controller found in Raspberry Pi 5, Raspberry Pi 500+ features 16GB RAM and a pre-installed 256GB Raspberry Pi SSD. The keyboard uses Clicky Gateron KS-33 Blue mechanical keyboard switches and ergonomic low-profile keycaps, and has individually addressable backlight RGB LEDs.

An integrated one-piece aluminium heatsink provides improved thermal performance, ensuring your Pi 500+ will have no problem under load or displaying dual 4K display output.

Tools are included for opening the case, allowing you to replace the SSD and/or swap out the default keycaps. Instructions are available over on Raspberry Pi's documentation website.

We also stock the Raspberry Pi 500+ unit on its own, allowing you to use your existing accessories and peripherals.

Important Notes

• Raspberry Pi 500+ is longer and taller than the original Raspberry Pi 500.
  • Most existing protective sleeves designed for Pi400/500 will not fit.
• Clicky mechanical keyboard - some love the sound and feel, some hate it!
  • Not for you? Consider a Raspberry Pi 500 Desktop Kit instead.

Video

Features

• Desktop kit - includes Raspberry Pi 500+, Mouse, USB-C PSU, HDMI cable and Beginner's Guide
• Raspberry Pi 500+
  • 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz (same as Raspberry Pi 5)
  • 16GB RAM
  • Pre-installed 256GB Raspberry Pi SSD
  • Built-in high-quality mechanical keyboard
  • Gateron KS-33 Blue mechanical switches
  • Low-profile interchangeable keycaps

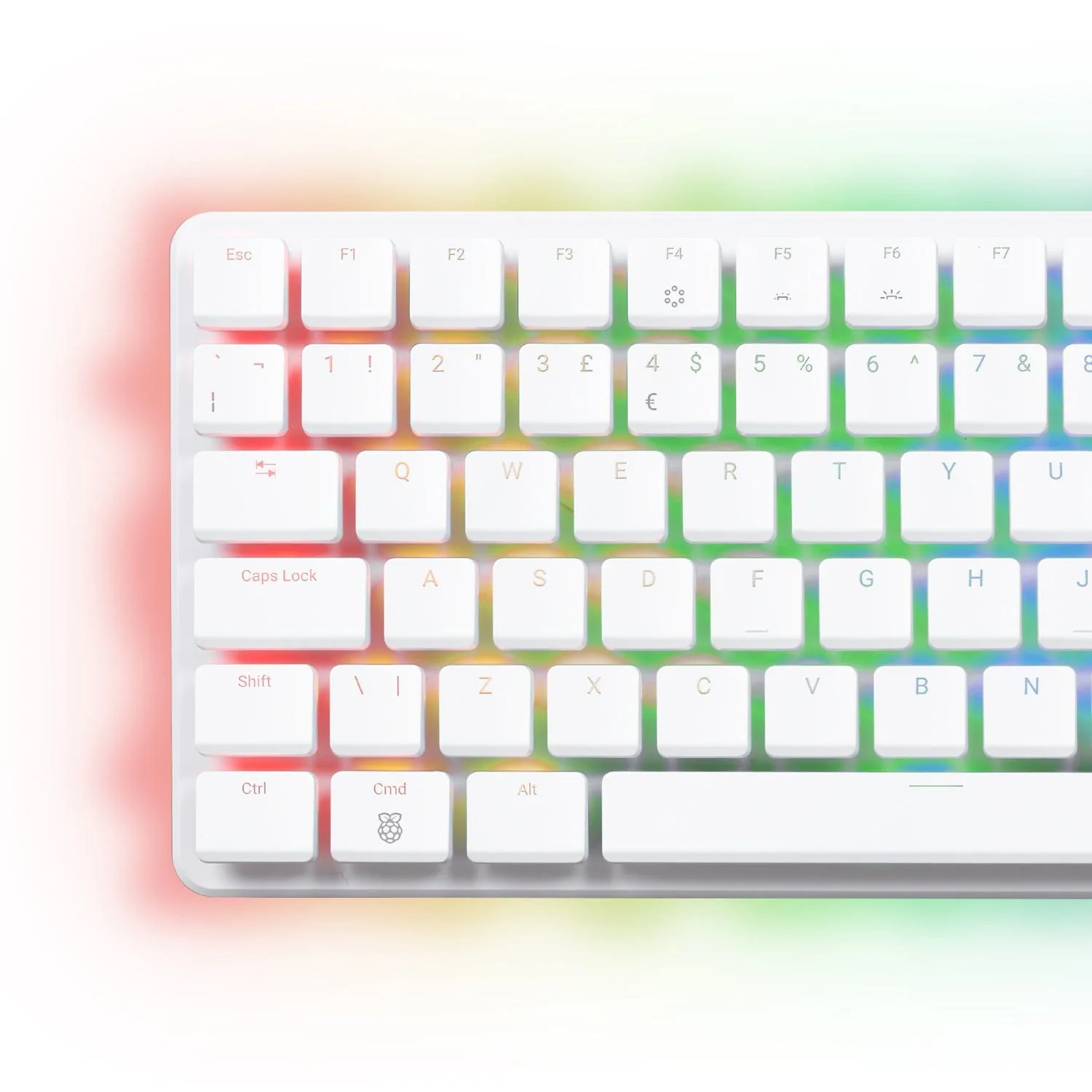

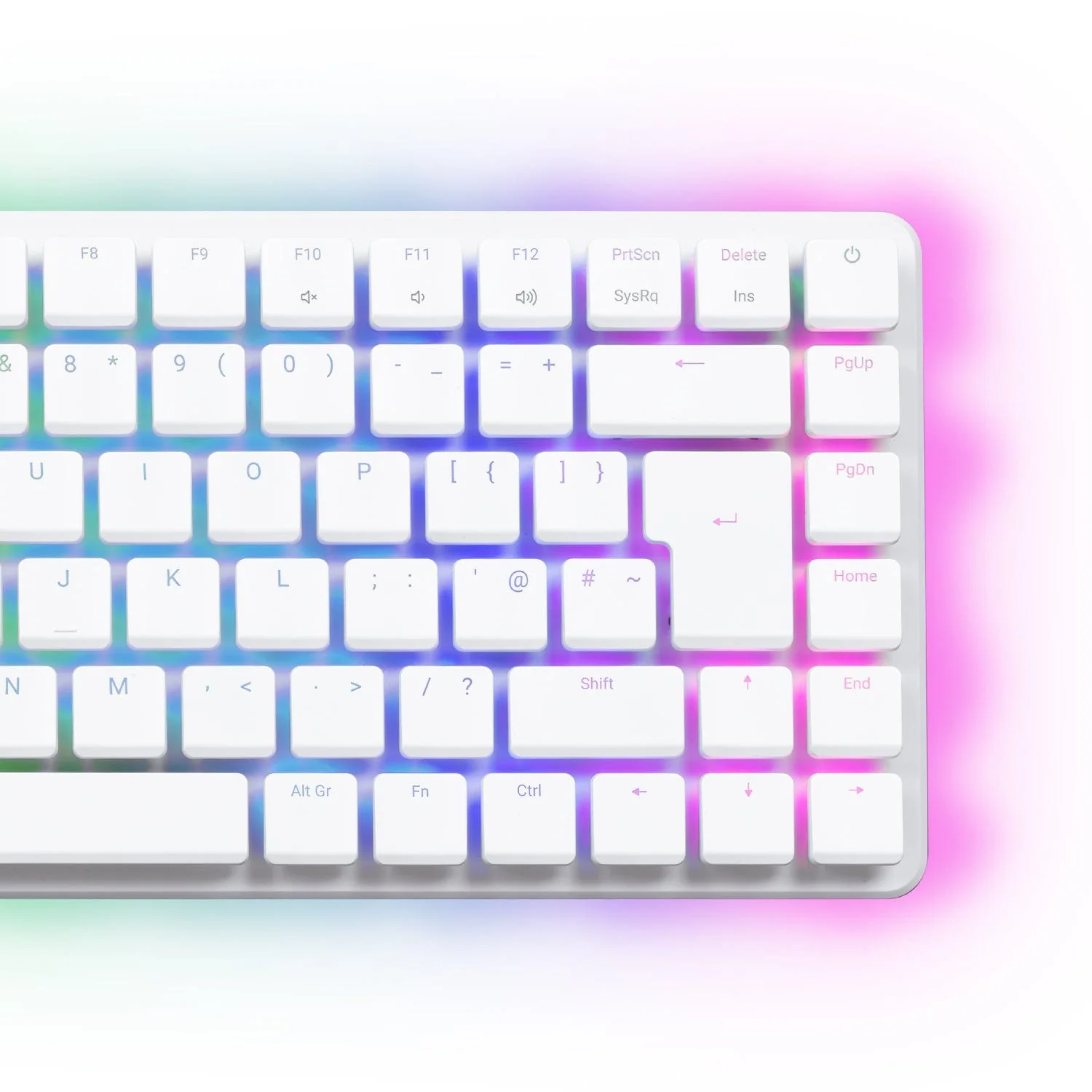

  • Programmable RGB LED backlighting
  • Aluminium one-piece heatsink
  • Dual 4K display output
• Tools included

Specifications

Processor	2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache
Memory	16GB LPDDR4X-4267 SDRAM

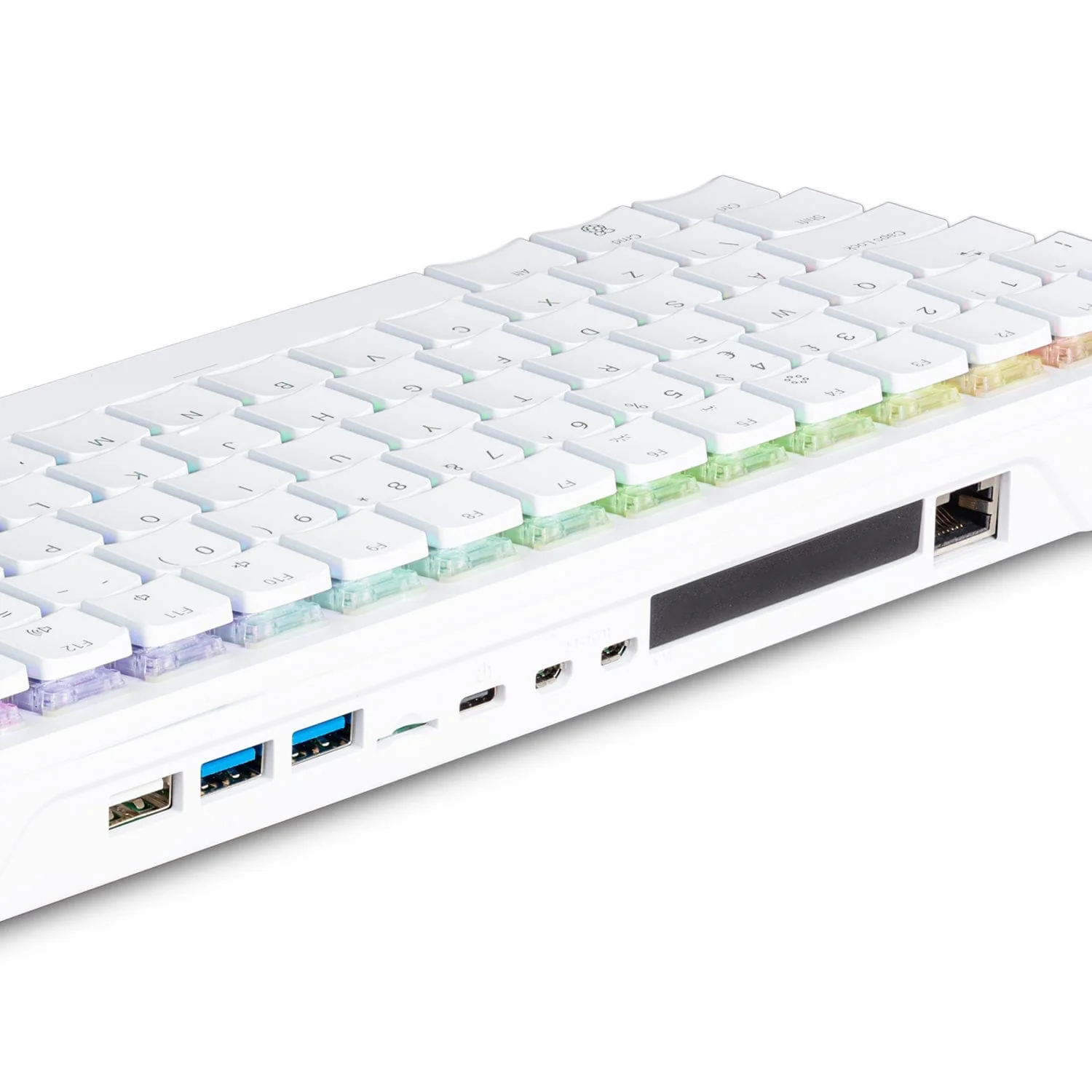

Connectivity	Dual-band (2.4GHz and 5.0GHz) IEEE 802.11b/g/n/ac Wi-Fi® Bluetooth 5.0, BLE Gigabit Ethernet 2 × USB 3.0 ports and 1 × USB 2.0 port 2 × micro HDMI ports
GPIO	Horizontal 40-pin GPIO header
Display output	Supports up to dual 4Kp60
Multimedia	H.265 (4Kp60 decode) OpenGL ES 3.0 graphics
Storage	256GB Raspberry Pi SSD pre-installed with Raspberry Pi OS Support for M.2 NVMe SSDs up to 2280 (22mm × 80mm) form factor microSD card slot for operating system and data storage
Keyboard	84-, 85- or 88-key mechanical keyboard (depending on regional variant) Gateron KS-33 Blue low-profile switches
Power	5V DC via USB connector
Operating temperature	0°C to +50°C
Dimensions	312mm × 123.06mm × 35.76mm

Resources

• Raspberry Pi 500+ Desktop Kit Product announcement
• Raspberry Pi 500+ Desktop Kit Documentation
• SSD replacement instructions
• Raspberry Pi 500+ Product Brief

• Production lifetime: Raspberry Pi 500+ will remain in production until at least January 2035
• Compliance: For a full list of local and regional product approvals, please visit pip.raspberrypi.com
• Product number: Raspberry Pi SC2094
• EAN: 5056561804767

Package Contents

• 1x Raspberry Pi 500+ Desktop Kit (UK version / UK plug)
