Raspberry Pi Compute Module 5 IO Board REV2

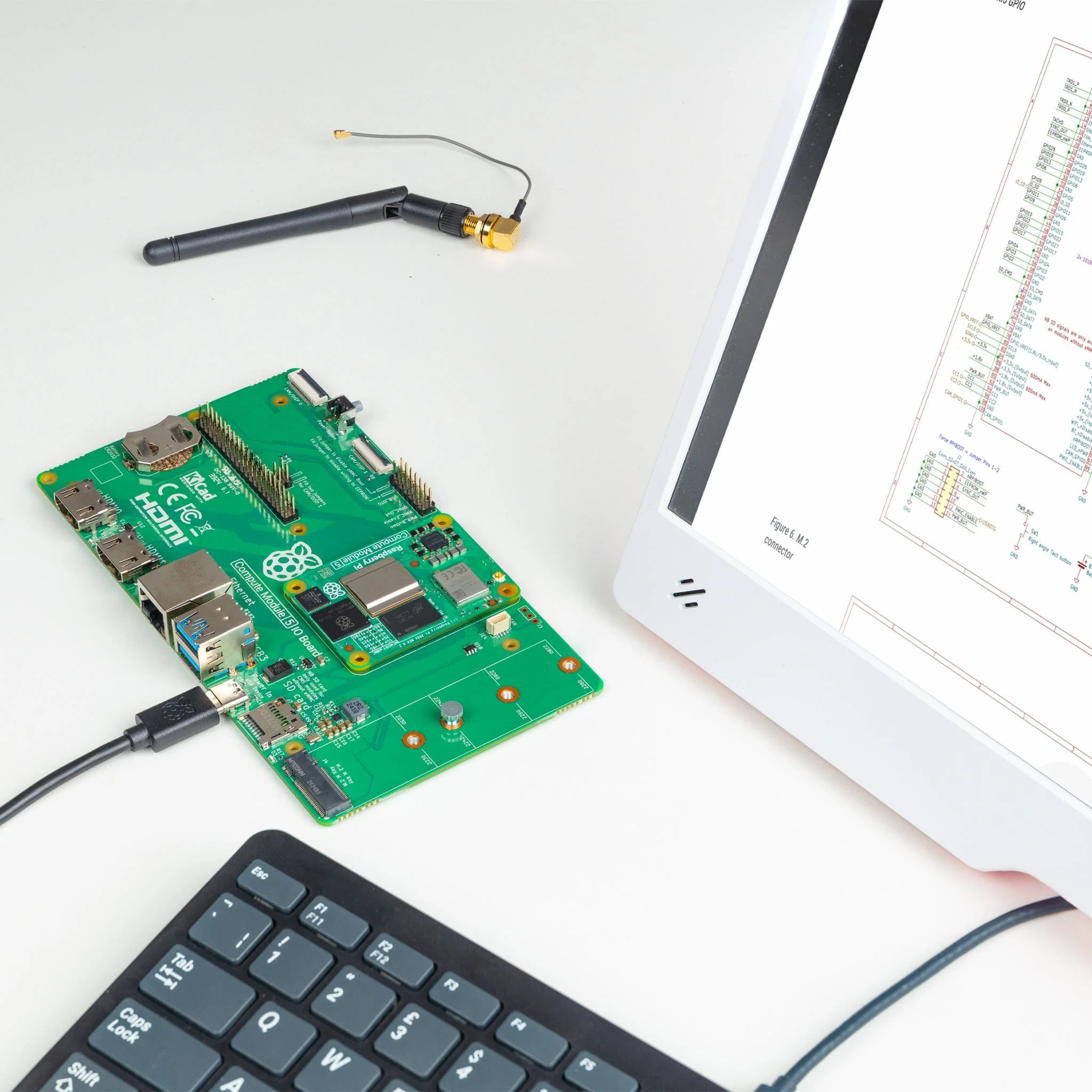

The Raspberry Pi Compute Module 5 IO Board provides a starting point for those wishing to integrate Raspberry Pi Compute Module 5 into products, while also serving as an alternative Raspberry Pi form factor for industrial applications.

---

REV2 Updated version! We are now shipping the updated REV2 version, which includes improved fan control and minor BOM improvements (no mechanical change).

See the PCN for more details. Please note that a new REV2 IO Case has been released alongside this. Images still show the REV1 version.

---

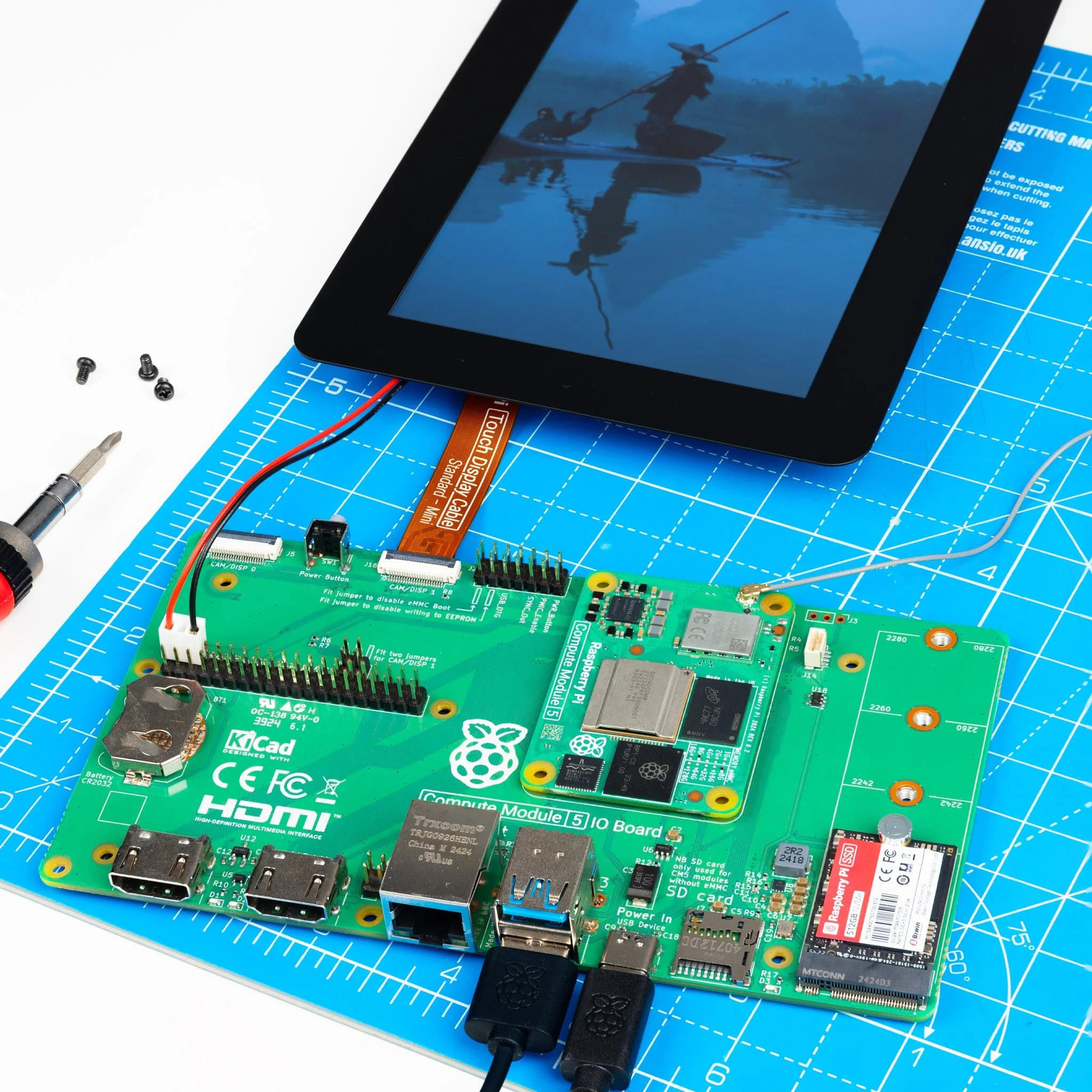

It breaks out the full set of peripheral interfaces provided by Compute Module 5 to the standard connectors used by Raspberry Pi 5 (with full-size HDMI in place of micro HDMI), enabling design engineers to take full advantage of the processing and interfacing capabilities of our flagship modular product - it even gets the famous power button!

The IO Board accepts the complete range of Compute Module 5 parts and is available as a reference design in KiCad format.

An optional Compute Module 5 IO Case is available to house the IO board.

IO board only - CM5, case and other accessories not included

Specifications

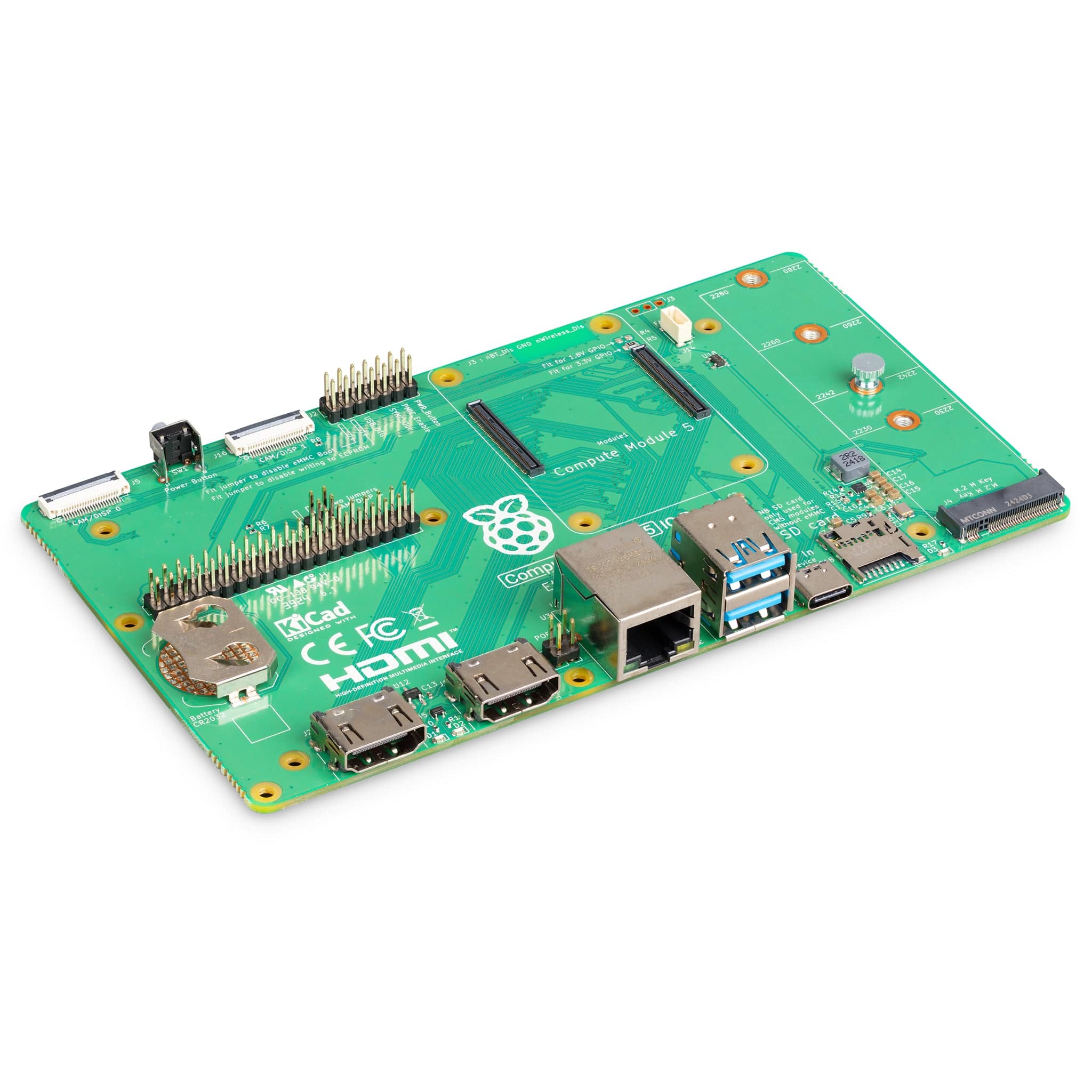

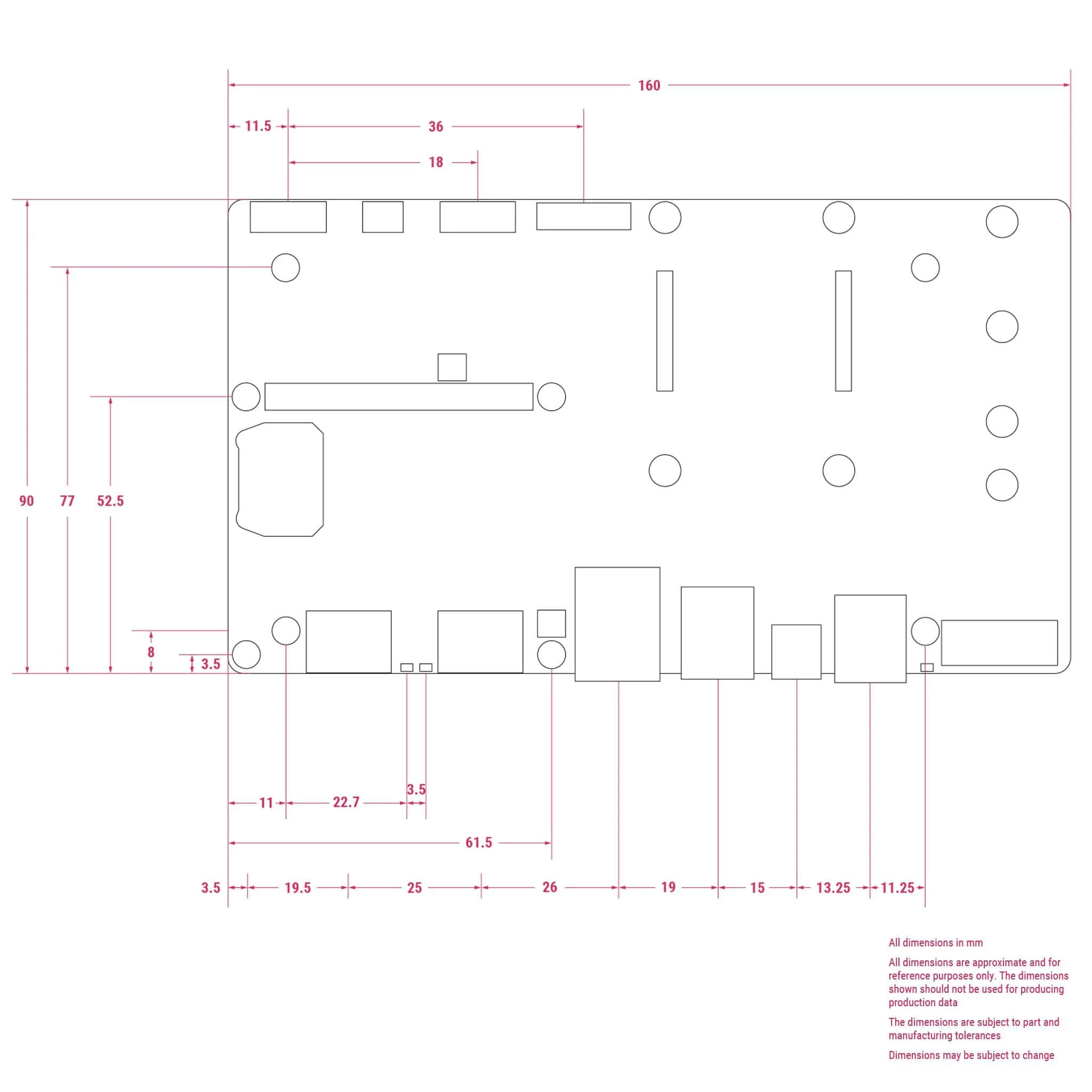

Form factor	160 mm × 90 mm
Connectivity	Standard 40-pin GPIO header
	Gigabit Ethernet RJ45 with PoE+ HAT+ support**
	2 × USB 3 sockets
	microSD card socket for Compute Module 5 Lite modules
	M.2 M key PCIe socket
	4-pin fan connector
	2 × MIPI DSI/CSI-2 FPC connectors (22-pin 0.5 mm pitch cable)
	Raspberry Pi HAT+ connector
	CR2032 battery socket for RTC
Video	2 × full-size HDMI 2.0 connectors
Input power	External +5V USB-C PSU (27W PSU recommended)
	Power button to wake and shut down Compute Module 5
MTBF Ground Benign	131000 hours
Production lifetime	The Raspberry Pi Compute Module 5 IO Board will remain in production until at least January 2028
Compliance	For a full list of local and regional product approvals, please visit pip.raspberrypi.com

Resources

• Raspberry Pi Compute Module 5 IO Board announcement
• Raspberry Pi Compute Module 5 IO Board Product Brief
• Raspberry Pi Compute Module 5 IO Board Datasheet

• Raspberry Pi Compute Module 5 IO Board Documentation
• Product number:
  • REV1: Raspberry Pi SC1751
  • REV2: Raspberry Pi SC1967
• EAN: 5056561805276

Package Contents

• 1x Raspberry Pi Compute Module 5 IO Board REV2

IO board only - CM5, case and other accessories not included

Revision History

• As of 12/09/2025 (possibly earlier!): we are now shipping the REV2 model.
