Raspberry Pi SSD

The Raspberry Pi NVMe SSD unlocks outstanding performance for I/O intensive applications on Raspberry Pi 5 and other devices, including super-fast startup when booting from the SSD.

They are reliable, responsive, high-performance PCIe Gen 3-compliant SSDs capable of fast data transfer, available with 256GB, 512GB or a whopping 1TB capacity.

They are capable of the following performance when accessed using a 1-lane PCI Express 2.0 bus on Raspberry Pi 5:

Capacity	IOPS (4KB random read)	IOPS5 (4KB random write)
256GB	40k	70k
512GB	50k	90k
1TB	TBC	TBC

You will need a compatible add-on board (HAT) to use this NVMe drive with a Raspberry Pi 5, such as the Raspberry Pi M.2 HAT+, M.2 HAT+ Compact...or one of the many other SSD HATs now available in the store!

...or pick up a great-value Raspberry Pi SSD kit with the Raspberry Pi M.2 HAT+ included!

You can also make use of these NVMe SSDs in popular NVMe cases, such as the Argon ONE V3 M.2 NVMe or Argon NEO 5 M.2 NVMe.

Raspberry Pi 5 and HAT not included

Features

• M.2 2230-format NVMe SSD for Raspberry Pi
• Official Raspberry Pi SSD
• Compatible with Raspberry Pi 5 (when used with a compatible SSD HAT)
• Complies with PCIe Gen 3 standard
• NVMe 1.4 register interface and command set
• Individually packaged in anti-static bags
• Choice of 256GB, 512GB or 1TB capacity
• Reliable and fast storage or boot drive for your Raspberry Pi 5
• Operating temperature: 0℃ to 70℃ (ambient)

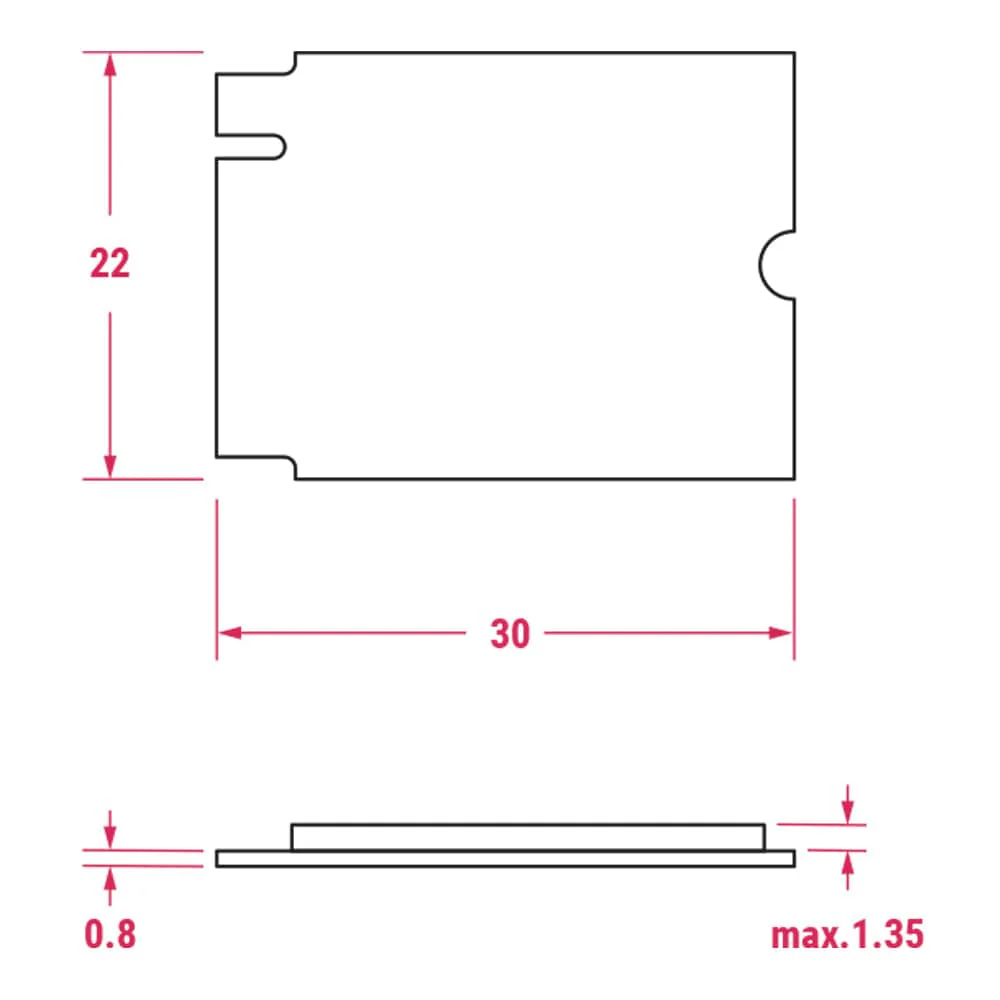

• Dimensions: 30mm x 22mm x 1.35mm (2230 format)

Resources

• Raspberry Pi SSD Product Brief
• Raspberry Pi SSD Announcement Blog Post

• Product codes:
  • 256GB = Raspberry Pi SC1439 (EAN: 5056561805009)
  • 512GB = Raspberry Pi SC1440 (EAN: 5056561805030)
  • 1TB = Raspberry Pi SC1984 (EAN: 5056561804996)

Package Contents

• 1x Raspberry Pi SSD (select capacity before adding to cart)

Raspberry Pi and HAT not included
