Shelly BLU Door/Window

The Shelly BLU Shelly BLU Door/Window sensor, with LUX and tilt angle measurement, is designed to detect openings and report them immediately, triggering home automation scenarios accordingly.

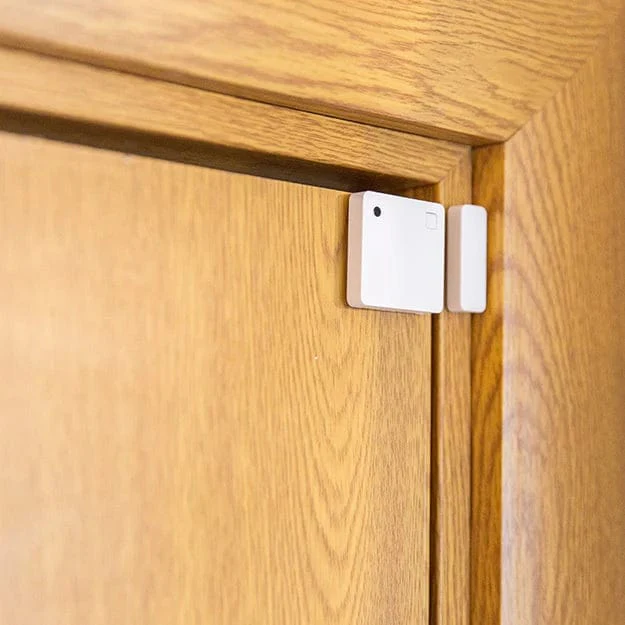

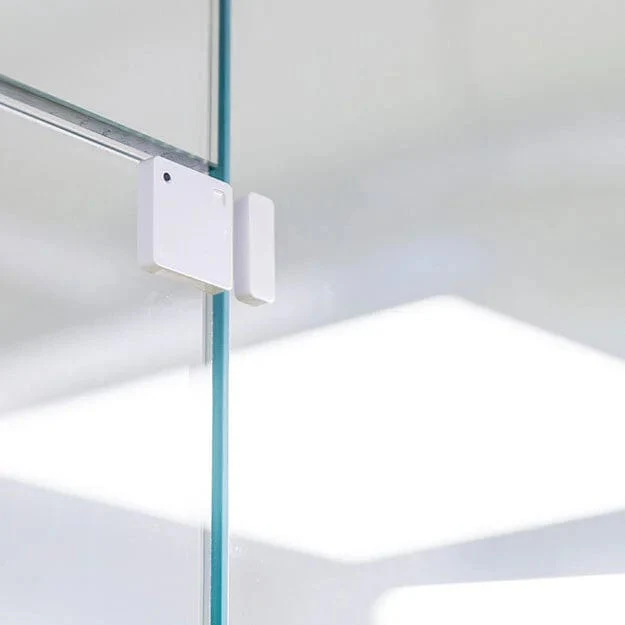

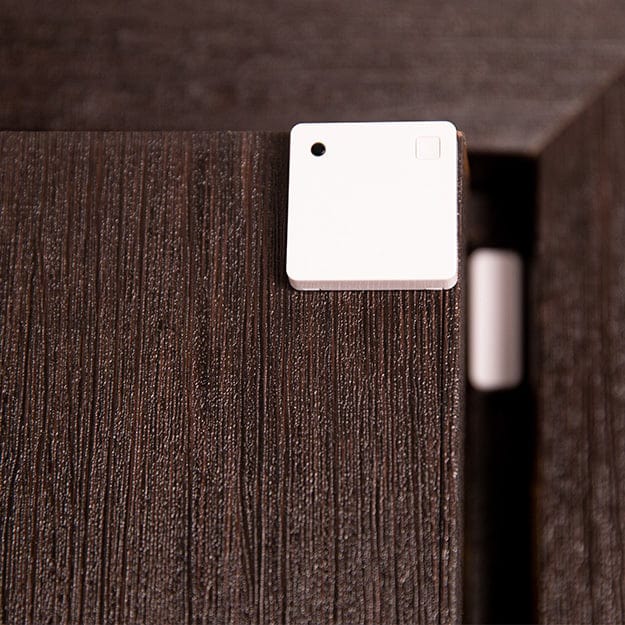

Whether you want to enhance home security, automate lighting, or monitor access, the Shelly BLU Door/Window sensor adapts to your unique needs. Its compact and stylish design allows for easy installation on doors, windows, safety gates, garage doors, and more. With its seamless integration into any interior, it effortlessly fits the aesthetics of your living space.

The sensor can also connect to your wider Shelly network over WiFi by using another Shelly WiFi-enabled device as a gateway, such as a Shelly BLU Gateway, or any Shelly Plus, Pro or Gen3 device (excluding sensors). Once connected to your Shelly network, you can use it with your Shelly smart home ecosystem, including the Shelly Smart Control app - or link it with a popular home automation software such as Home Assistant via a Raspberry Pi!

The sensor is powered by a single CR2032 lithium battery, which is included in the package.

---

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?

---

Features

• Detects and reports opening or closing of doors/windows
• Measures tilt angle and luminosity
• Battery: 1x 3V CR2032 (included)
• Battery life - up to 5 years
• Easy control through the Shelly Smart Control app, BTHome protocol or various platforms
• Can be integrated into automation scenarios and scenes
• To use this device with the Shelly Smart Control app, a gateway is necessary. Compatible gateways are Shelly BLU Gateway, or any Shelly Plus, Pro or Gen3 device (excluding sensors).

Specifications

Size (HxWxD)	35x35x7 mm ±0.5 mm (Sensor unit)
	35x12x7 ±0.5 mm (Magnet)
Weight	10 g ±1 g / 0.35 ±0.05 oz (Device with the battery)
	8 g ±1 g / 0.28 ±0.05 oz (Magnet)
Shell material	Plastic

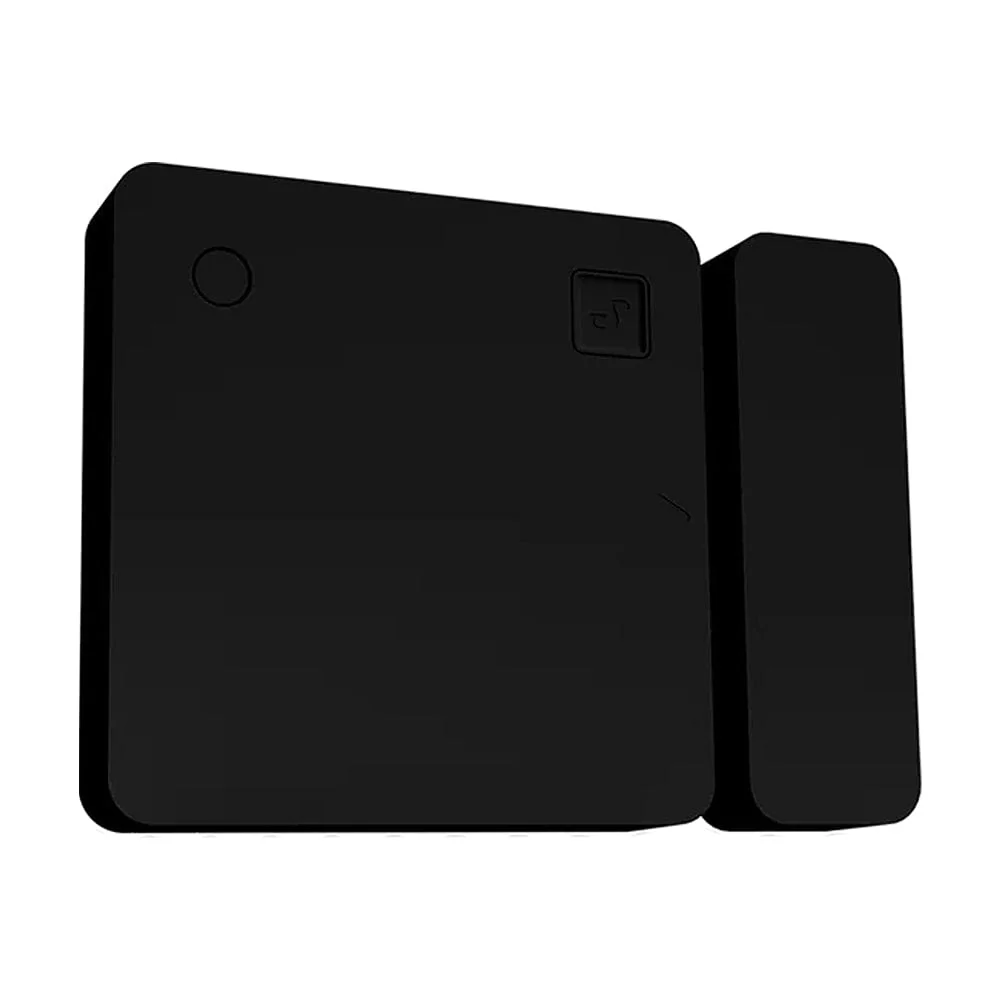

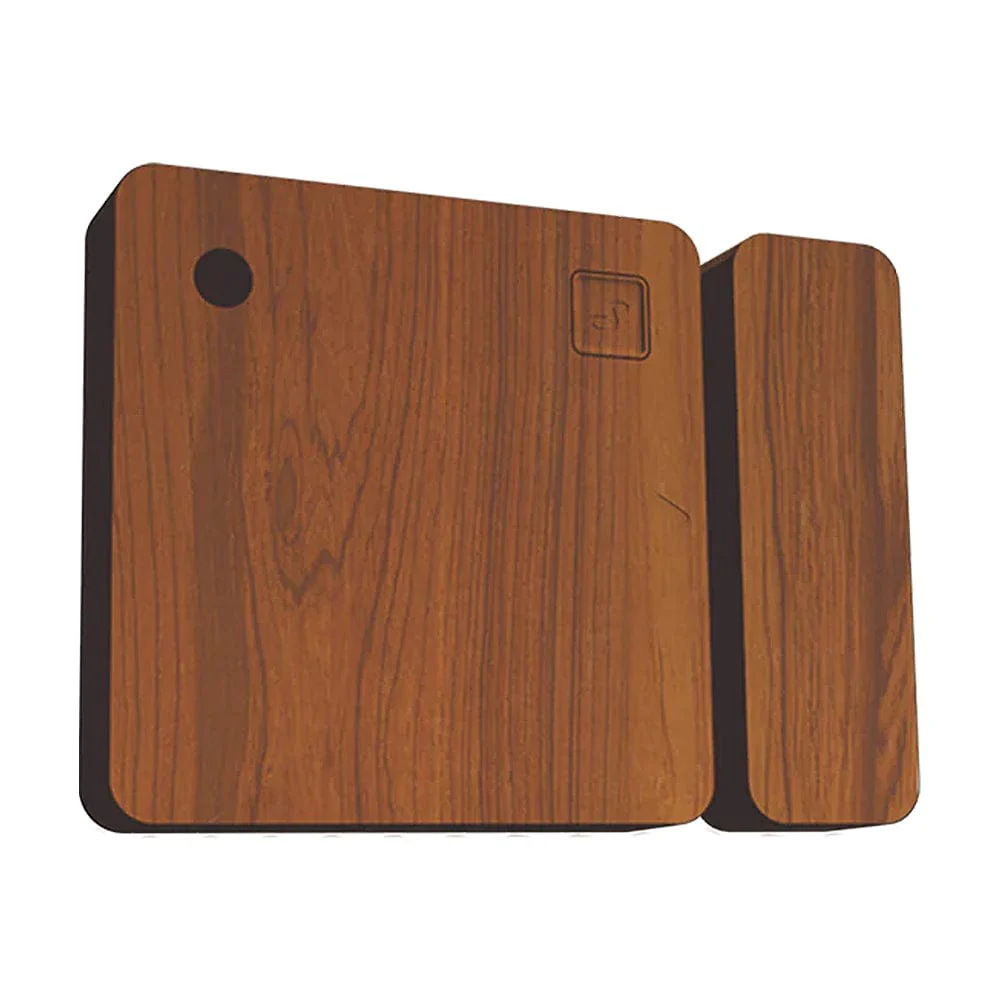

Colour	White, black, brown
Ambient temperature	-20 °C to 40 °C / -5 °F to 105 °F
Humidity	30 % to 70 % RH
Power supply	1x 3 V CR2032 battery (included)
Battery life	5 years
Reed switch	Yes
G-sensor	Yes
Light sensor	Yes
RF band	2400 - 2483.5 MHz
Max. RF power	<4 dBm
Bluetooth Protocol	4.2
Bluetooth Range	Up to 10 m / 33 ft indoors Up to 30 m / 100 ft outdoors
	(Depends on local conditions)
CPU	EFR32BG22C222F352GM32
Encryption	AES encryption (CCM mode)
Beacon mode	Yes

Resources

• Shelly Product Documentation
• Printed User Guide (as found within the package)
• Components and APIs
• Declaration of Conformity
• Device Identification
  • Device name: ShellyBLU Door/Window
  • Device model: SBDW-002C
• EAN:
  • White: 3800235266601
  • Black: 3800235266618
  • Brown: 3800235266649

Handy Shelly Resources

• Shelly Cloud
• Shelly App
  • Apple App Store
  • Google Play
  • Huawei AppGallery
• Home Assistant Shelly Integration
• Shelly Community Forum
• Shelly Facebook Support Group
• Shelly Knowledgebase
• Shelly Device Finder (easy-to-use software to find Shelly devices in the local network)
• Shelly Developer API

Package Contents

• 1 x Shelly BLU Door Window (white, black or brown, select before adding to cart)
• 1 x CR2032 3V Battery
• 1 x Installation Guide
