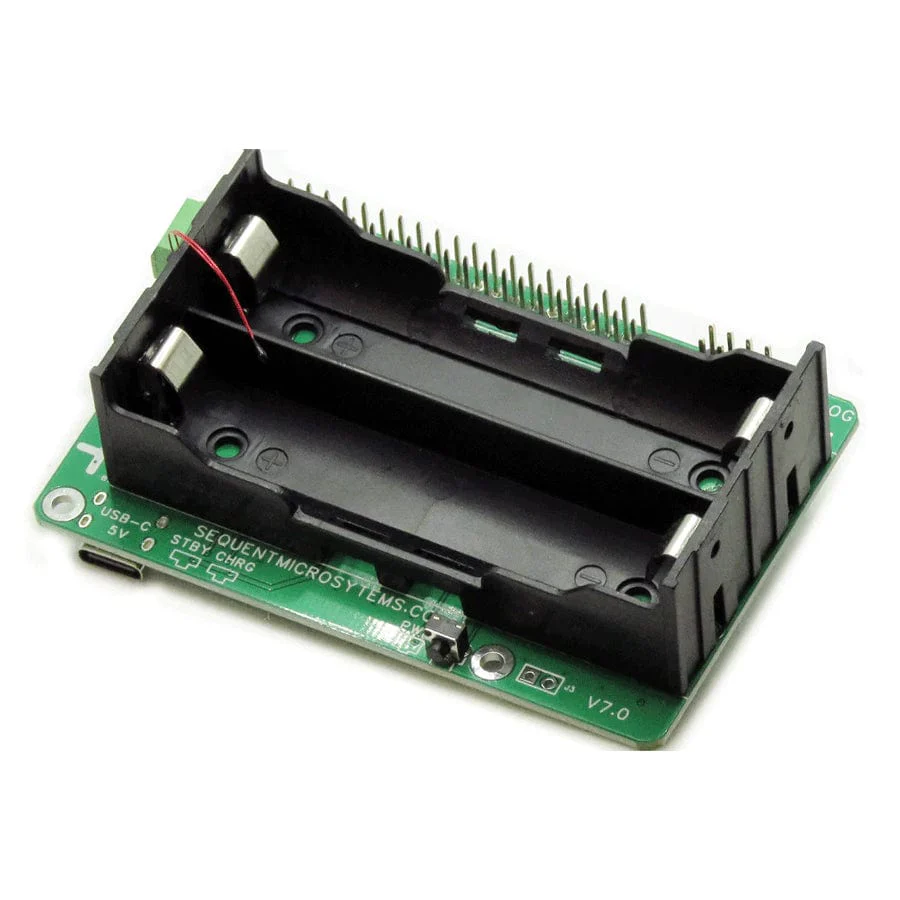

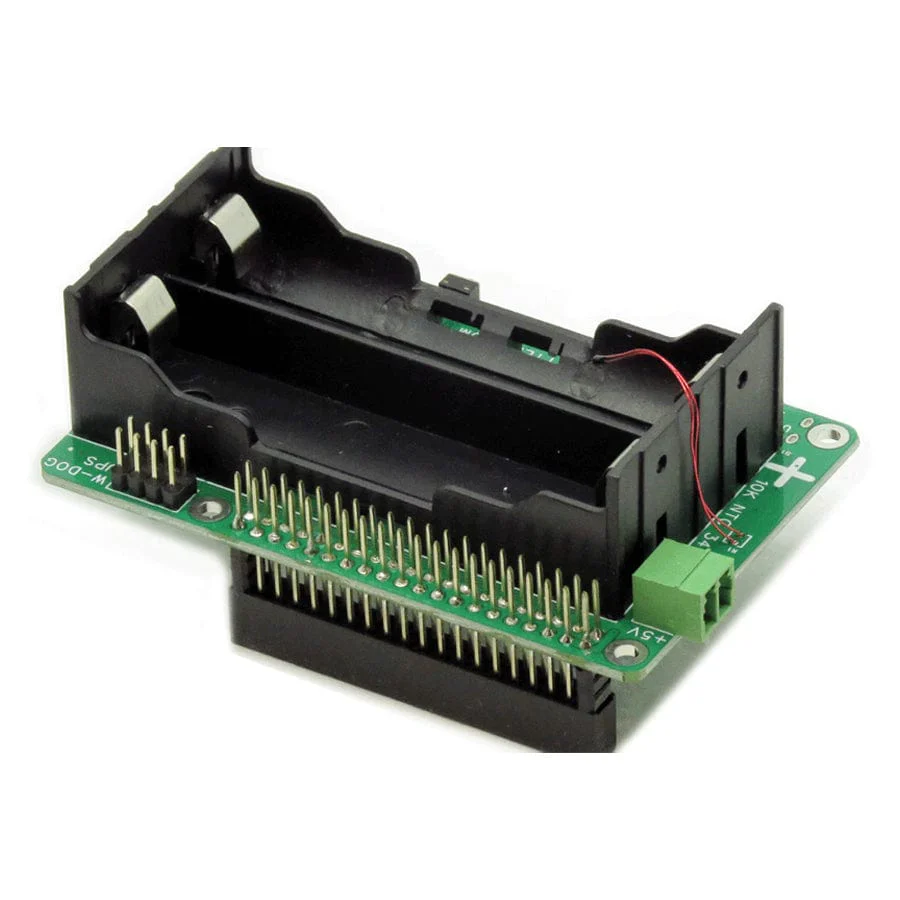

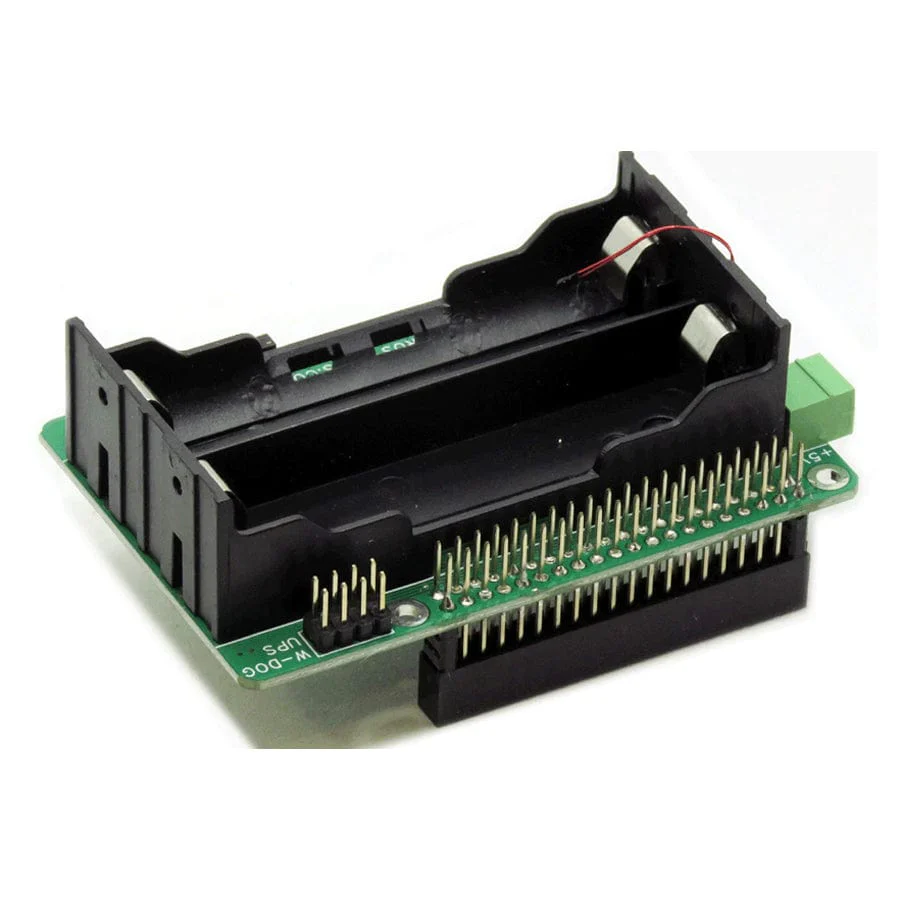

Super Watchdog V7 for Raspberry Pi

The Super Watchdog V7 is an efficient tool for safeguarding Raspberry Pi in all your projects.

It provides two key functions: power-cycling the Raspberry Pi during software lock-ups and preventing SD card failure during power loss.

The device has a default 120-second timer, cutting and restoring power if the Raspberry Pi doesn't issue a reset command. Compatible with Raspberry Pi models B+, 2, 3, 4, 5, and Zero, it uses minimal GPIO pins. The board supports various power connectors and can operate on a 18650 Li-Ion battery for continuous operation during power outages. Additionally, it features an onboard self-test for functionality assurance and a push-button for manual Raspberry Pi control.

Features

• Super Watchdog HAT with UPS Battery Backup for Raspberry Pi
• Enhanced battery charger provides up to 700mA charging current
• Charge and Standby status LEDs
• Battery overheating protection
• Socket for two Li-Ion 18650 batteries
• A must for all RPI mission critical installation
• Cycle RPI power after software lock-up
• Prevent SD Card damage during power outages
• On board battery charger, step-up converter and intelligent power monitor
• Double power supply jacks: USB-C and pluggable 3.5mm connector
• Provide up to 3A/5V power to Raspberry Pi from Li-Ion Battery
• Uses only I2C port (address 0x30) leaving all GPIO pins available
• On board resettable fuse
• On board reset pushbutton

Specifications

• Dimensions: L: 88mm x W: 28mm

Resources

• Command Line Interface
• Python Library
• User's Guide V6.0
• Open Source Hardware Schematic
• Command Line
• Python Libraries
• 2D CAD drawing
• Line Power Monitor Example
• 3D-STEP-MODEL
• RoHS and REACH Compliance Declaration

Package Contents

• 1x Super Watchdog V7
• 2x M2.5 x 18mm Male-Female Brass Standoffs
• 2x M2.5 x 5mm Brass Screws
• 2x M2.5 Brass Nuts
• 1x 2-pin plug for the power supply connector

Revision History

As of January 19th, the following has been added to the upgraded V7 version

• A dual socket to allow 2x 18650 batteries
• A battery overheating circuit which cuts charging if the battery temperature increases
• A faster charging circuit
