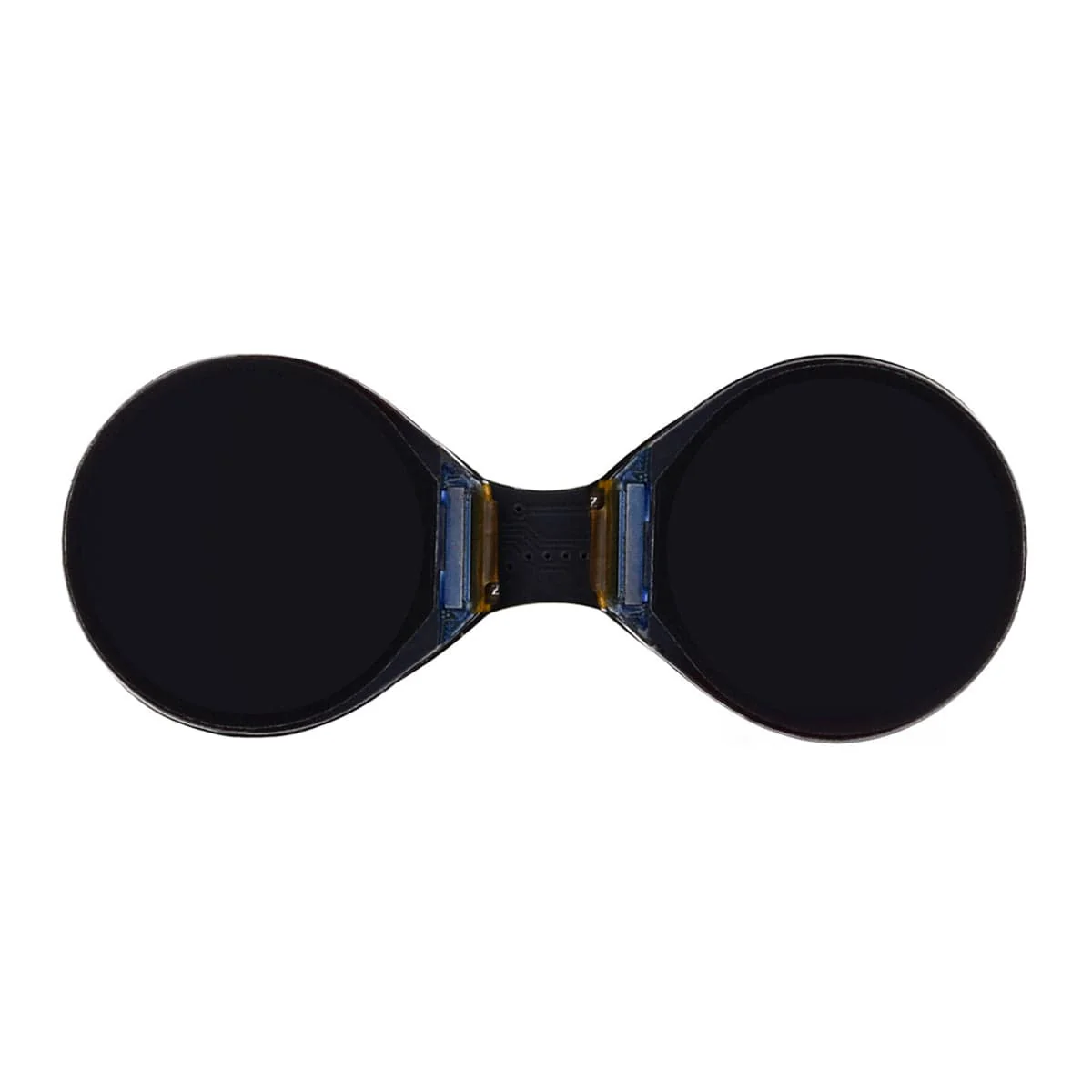

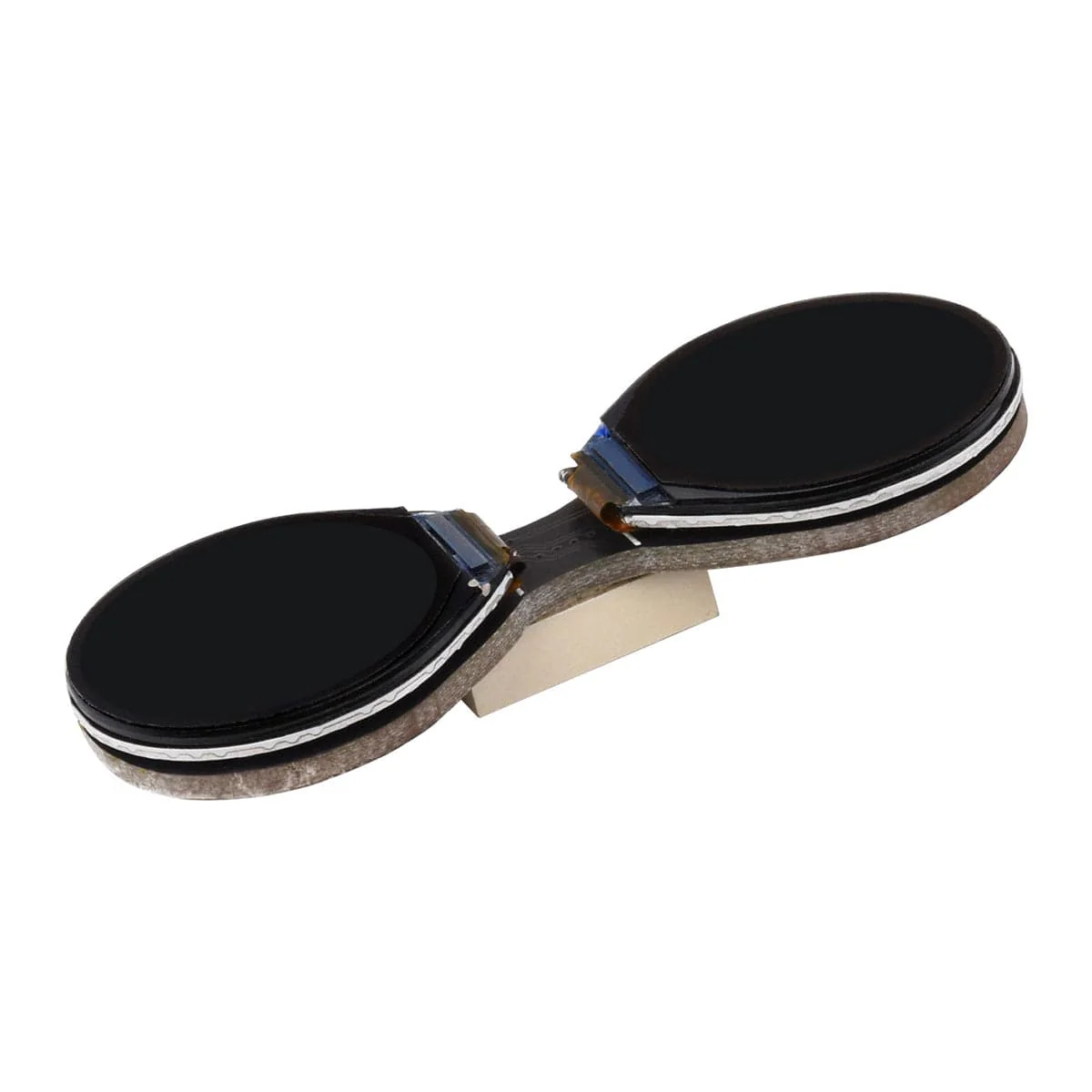

0.71" Double Eye Round IPS LCD Display (160 x 160)

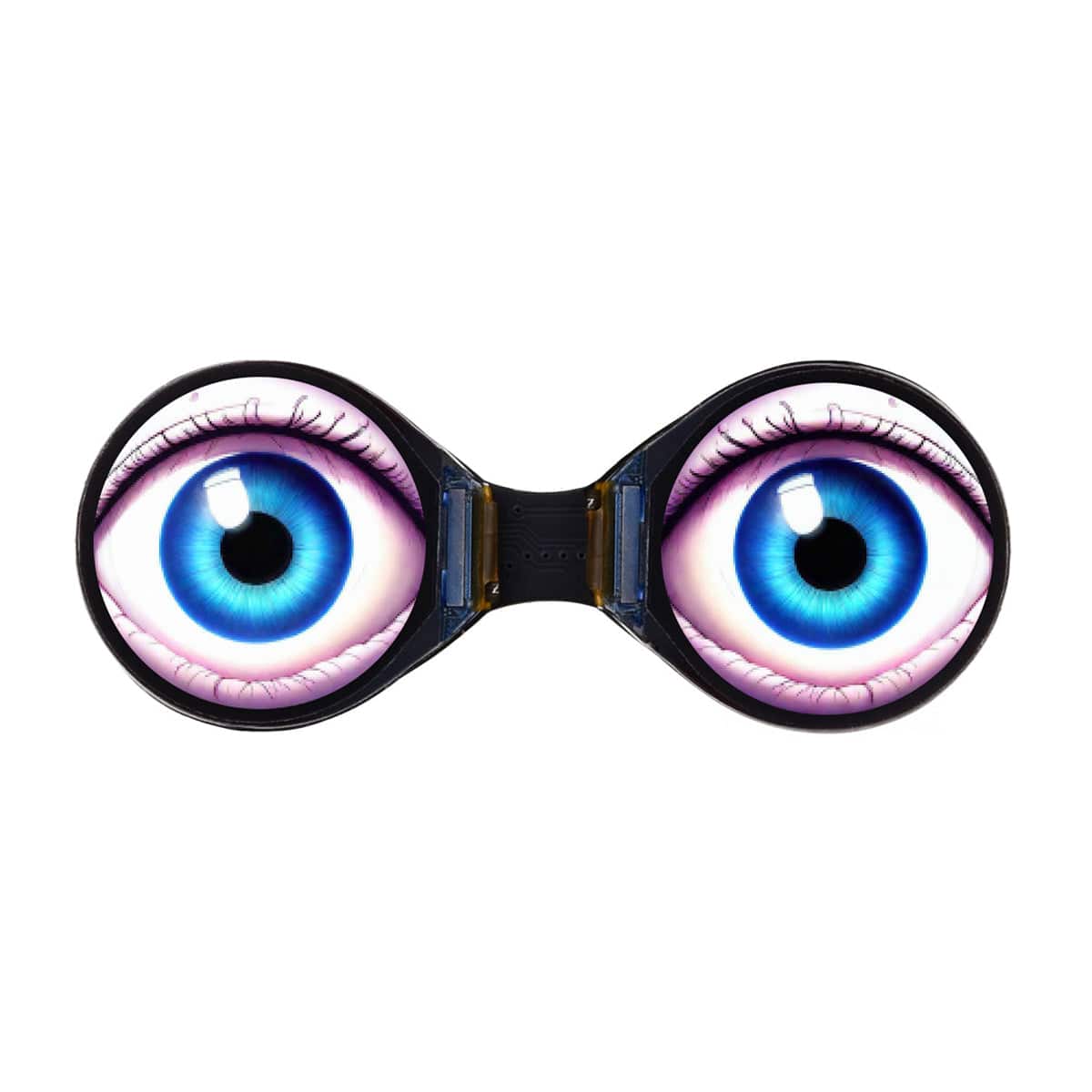

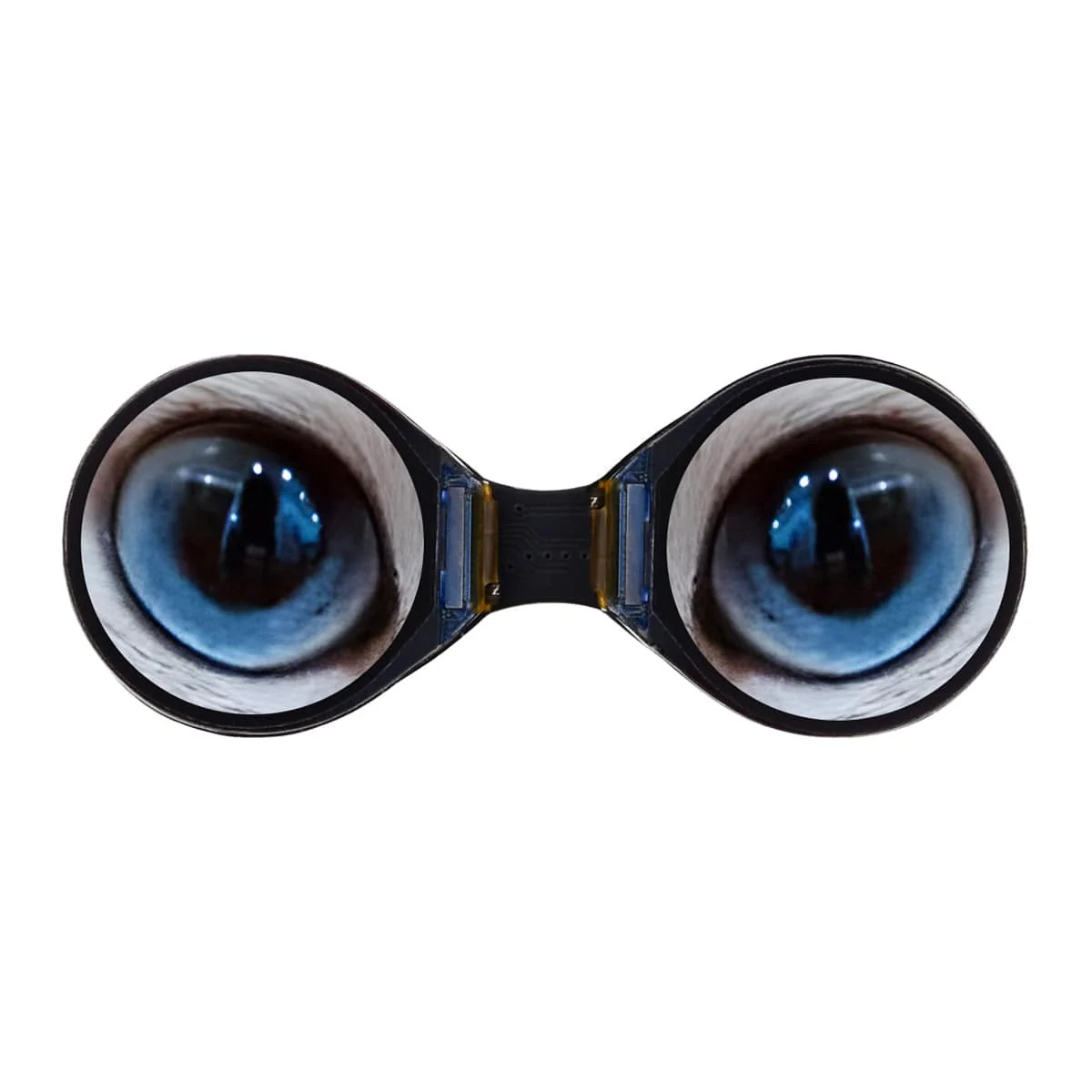

I can see you...looking at this cool double-eye display, that you can use with any project that needs moving eyes or a wearable for your next cosplay idea!

It has two round 0.71" IPS displays, each with a colourful 160x160 resolution. It uses the GC9D01 driver and communicates using an SPI connection.

It comes with examples for use with a Waveshare ESP32-C3 Zero board (technically it may work with other controllers, but no other examples are provided).

Board is NOT included

Features

• The double-eye LCD module
• Consists of two 0.71" round IPS LCDs
• 160x160 resolution
• 65K colours
• SPI interface, minimises required IO pins

Specifications

Operating Voltage	3.3V / 5V
Communication Connection	SPI
Display Panel	IPS
Driver	GC9D01
Resolution	160 x 160 pixels
Display Size	18 x 18 (mm)
Pixel Pitch	37.5 x 112.5 (μm)

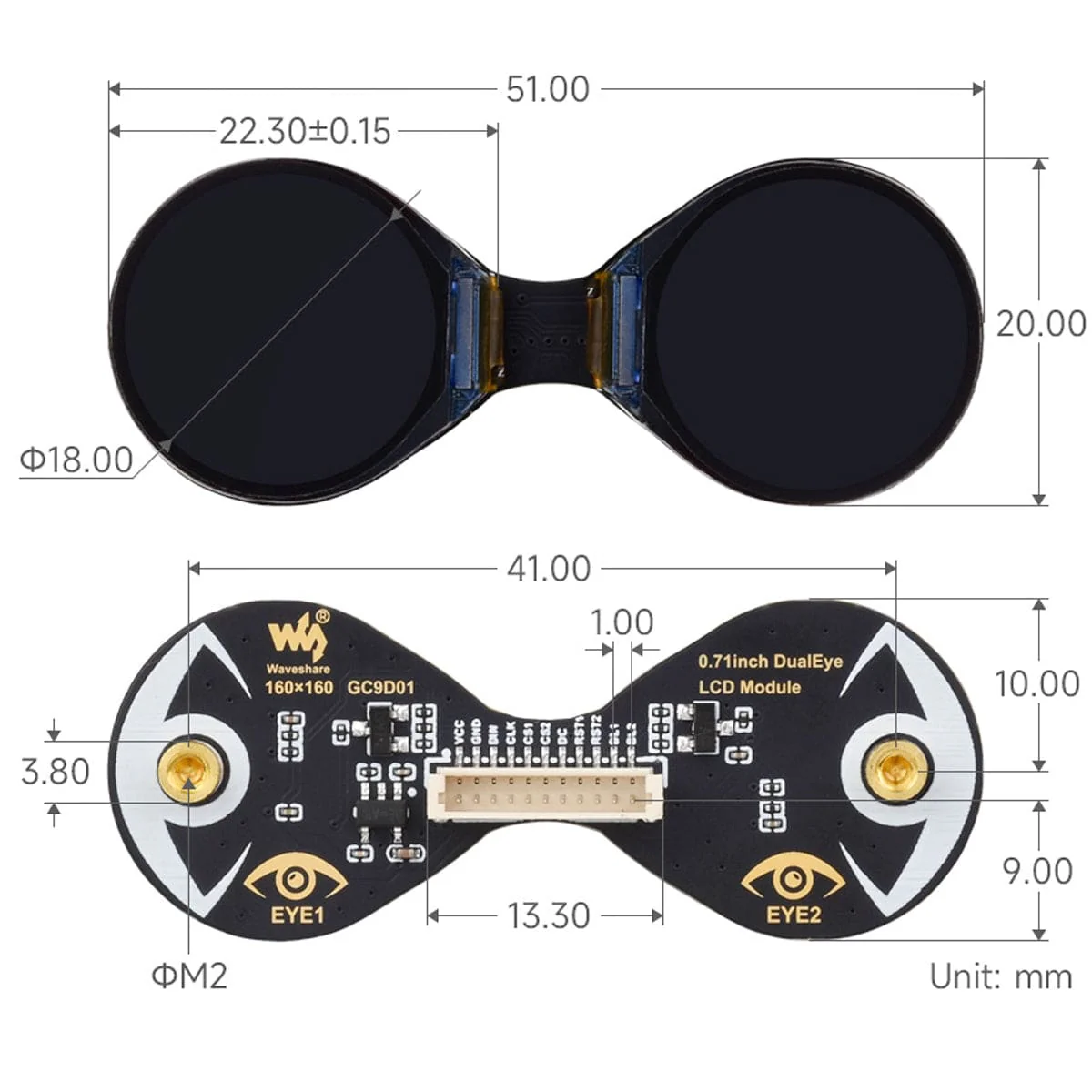

Dimensions	20.00 x 51.00 (mm)

Resources

• Product Wiki
• Schematic
• GC9D01 Datasheet

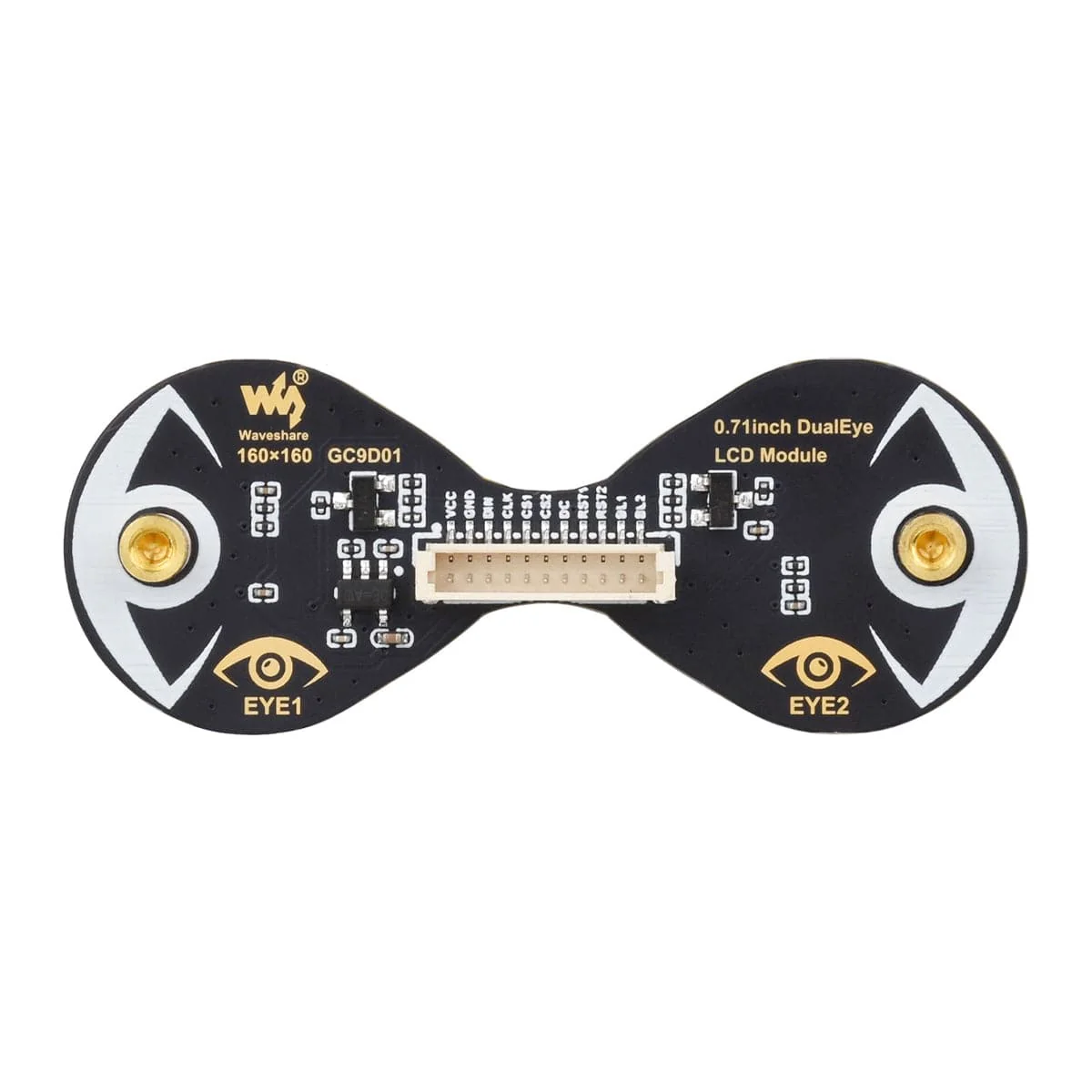

Pinout

Package Contents

• 1x 0.71" Dual Eye LCD Module
• 1x SH1.0 11-pin Cable
• 2x Convex Lens
