12.3" DSI Capacitive Touch IPS Display for Raspberry Pi 5

If the Raspberry Pi Touch Display 2 doesn't offer enough display real estate for your project, this whopper from Waveshare might be just what you're looking for. Size matters...

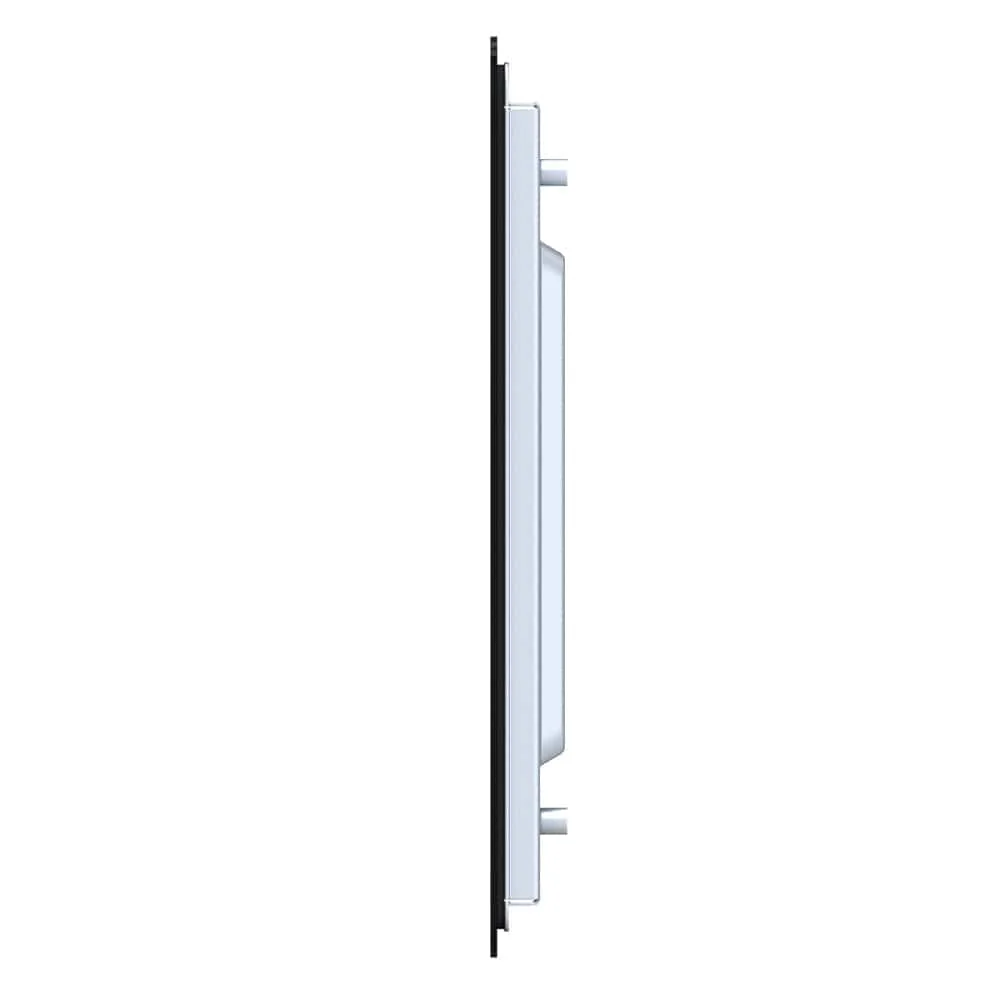

It's a 12.3" IPS panel designed for Raspberry Pi 5, with a 720x1920 portrait-native resolution (you can change it to landscape in software), wide 178° viewing angles, 10-point capacitive touch and 450cd/m² brightness with software brightness control. It has a slight bezel allowing you to panel mount it, and the overall thickness is just 11.5mm (before you mount your Raspberry Pi 5), ensuring it'll fit in as many custom enclosures/mounts as possible.

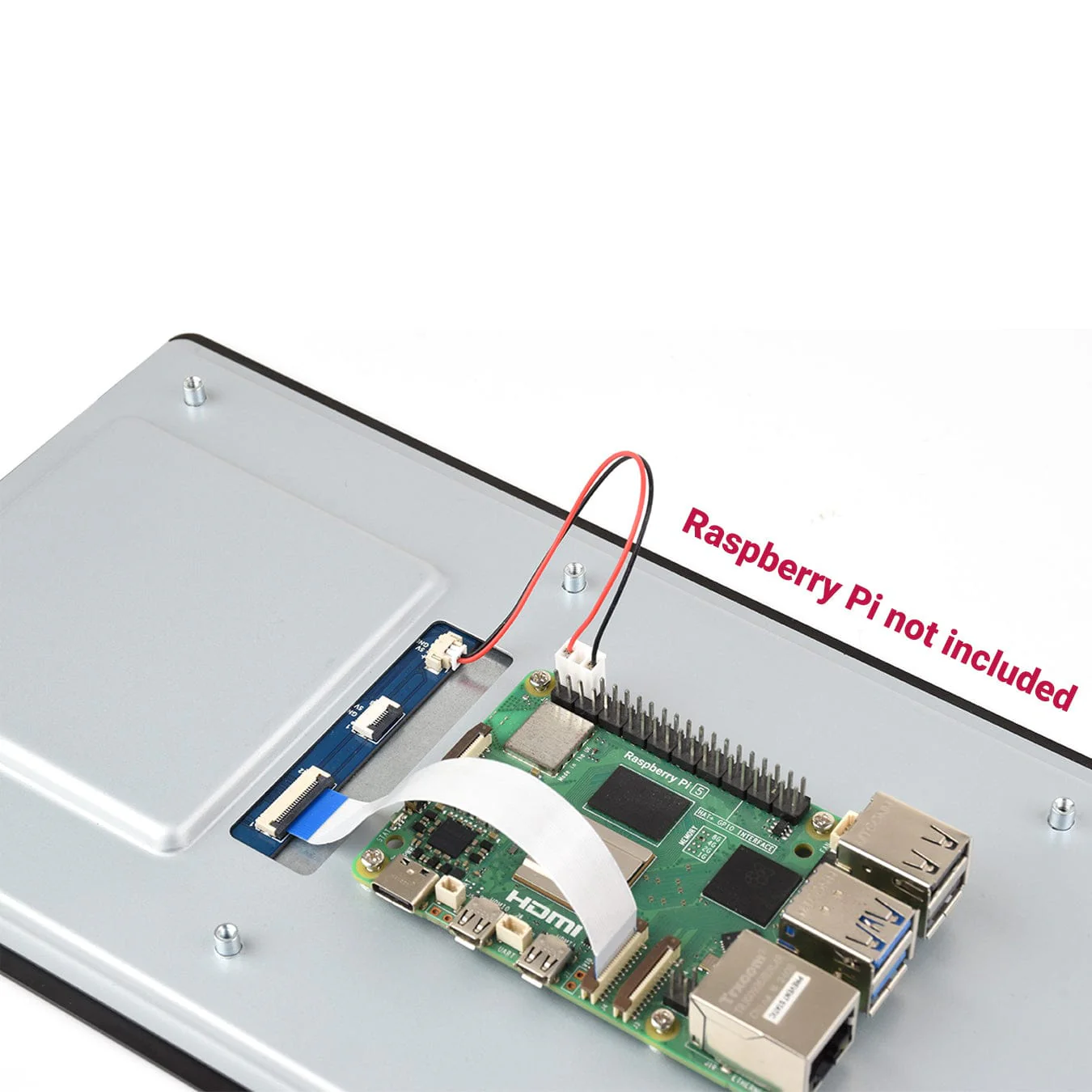

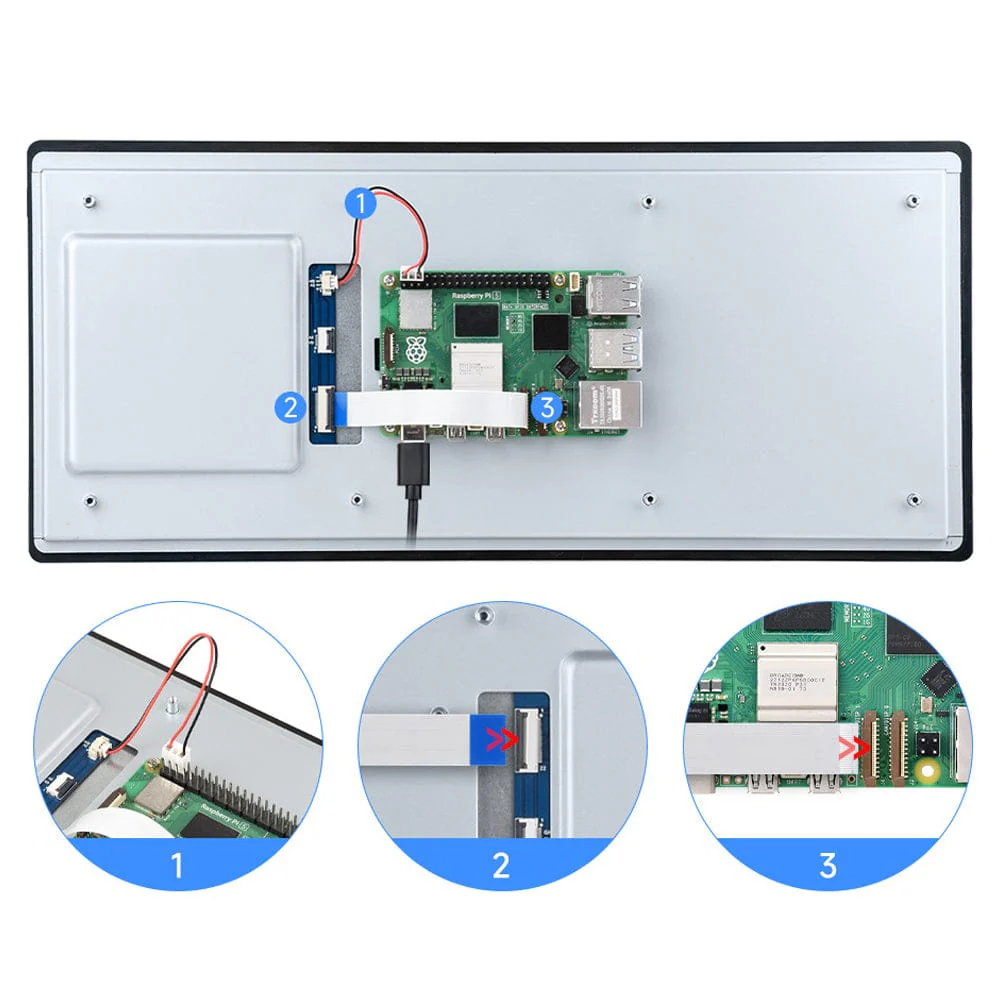

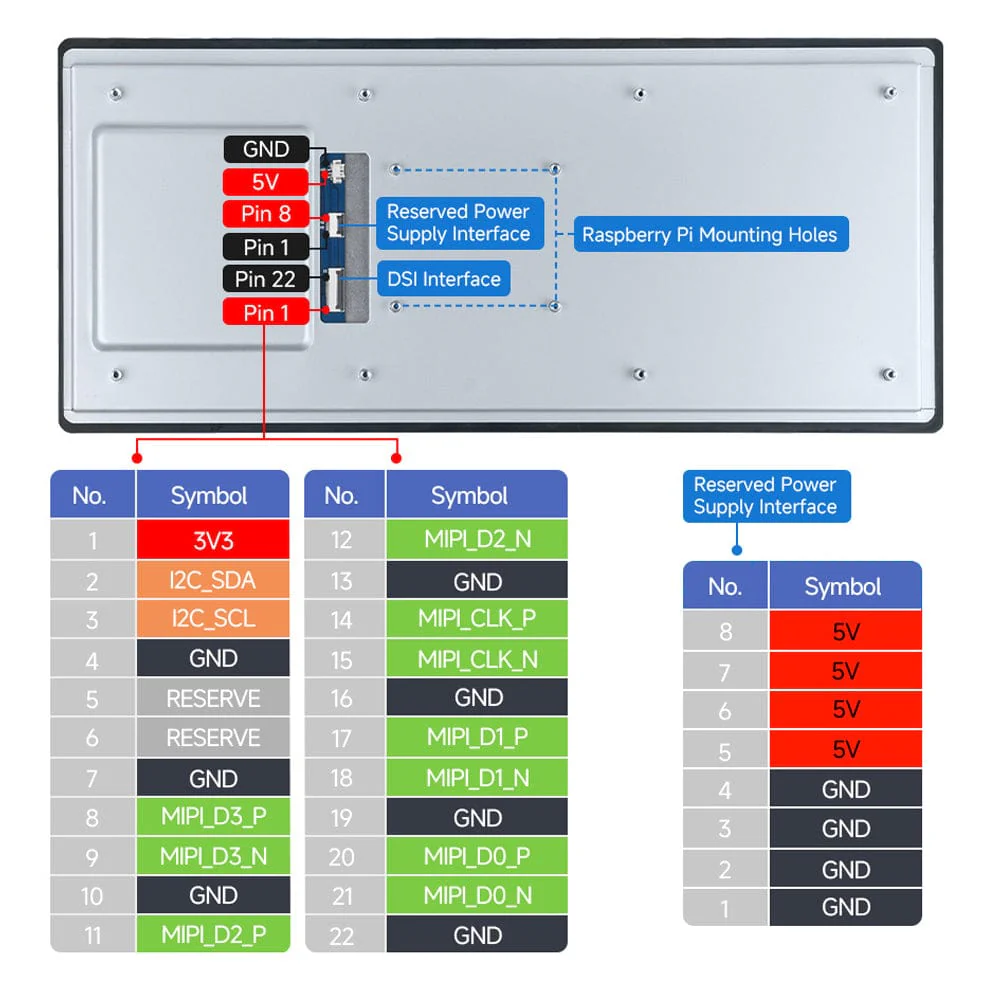

It's a DSI display, connecting to your Raspberry Pi 5 via the included FFC cable to one of the CSI/DSI ports, offering up to 60Hz refresh rate. A power cable assembly is also included, which connects the display to your GPIO pins to provide power (5V/GND).

Your Raspberry Pi mounts to the rear of the display using the included metal fixings, giving you a tidy way to keep everything together.

Raspberry Pi not included.

Features

• 12.3" DSI touch screen display
• 10-point capacitive touch control
• IPS display panel
• Hardware resolution of 720×1920
• Optical bonding toughened glass panel
• Toughened glass capacitive touch panel, hardness up to 6H
• DSI interface, with a refresh rate of up to 60Hz
• Supports software control of backlight brightness

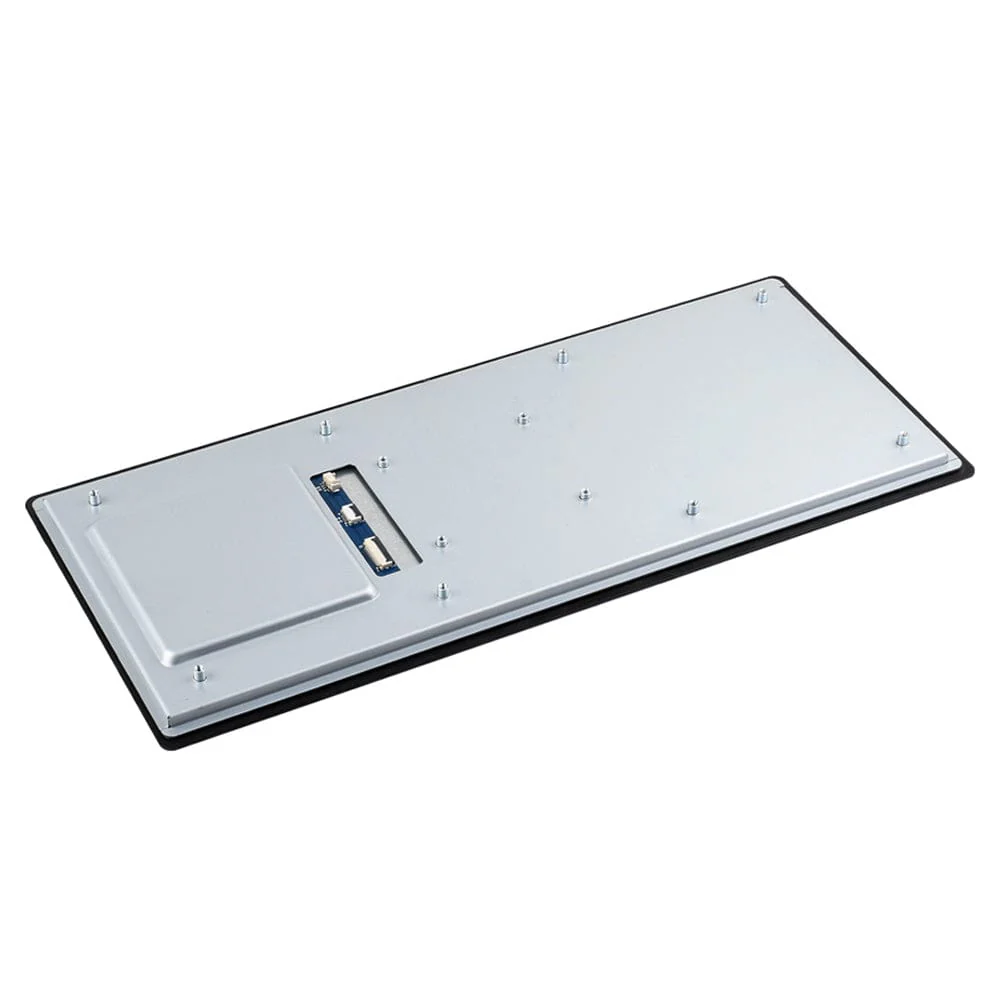

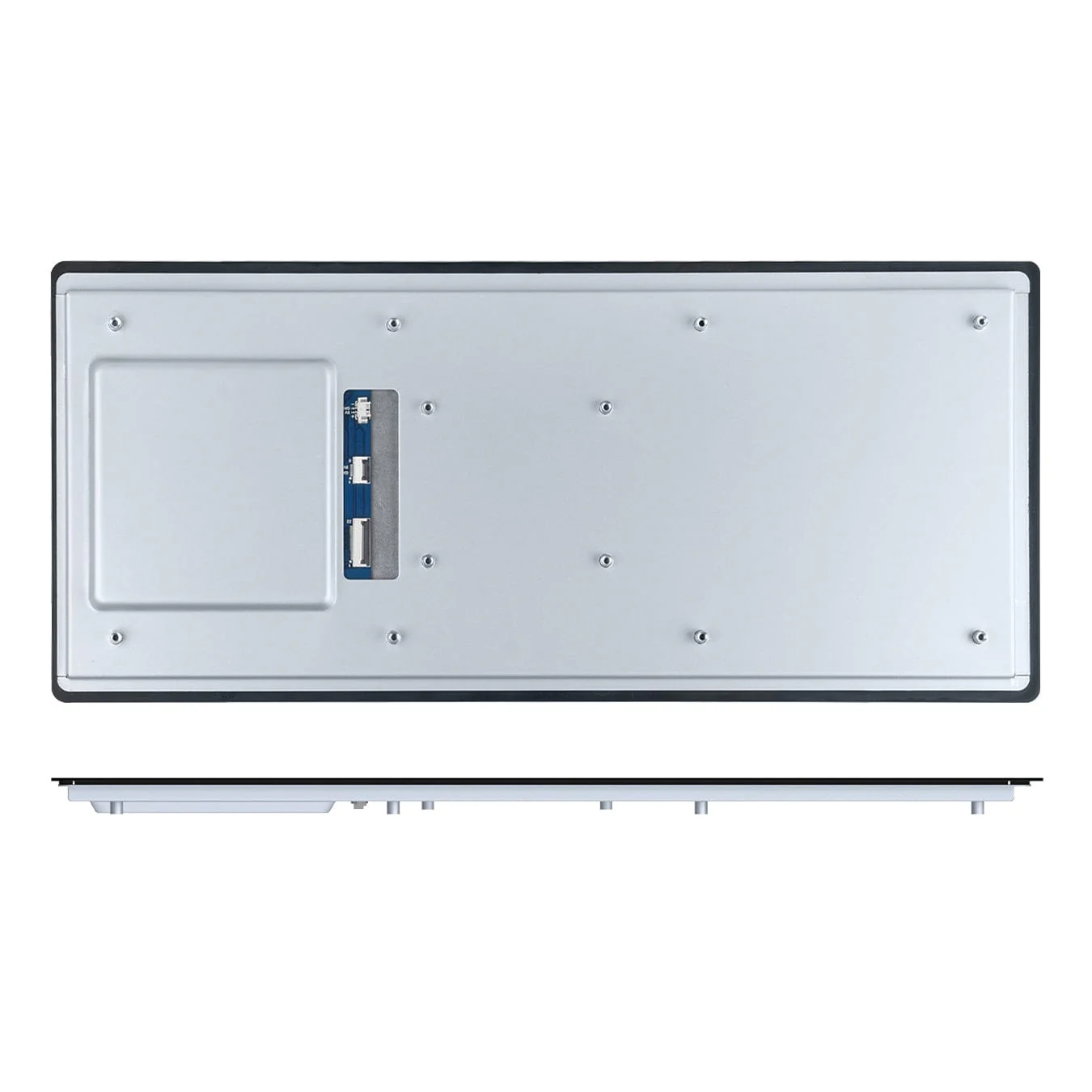

• All-metal back cover design

Resources

• Product Wiki

Package Contents

• 1x 12.3" DSI Capacitive Touch IPS Display for Raspberry Pi 5
• 2x FFC cable for DSI connection (22-pin, 200mm)
• 1x GPIO power cable (MX1.25 2-pin to 2.54mm 3-pin)
• 1x Fixings pack

Raspberry Pi not included.
