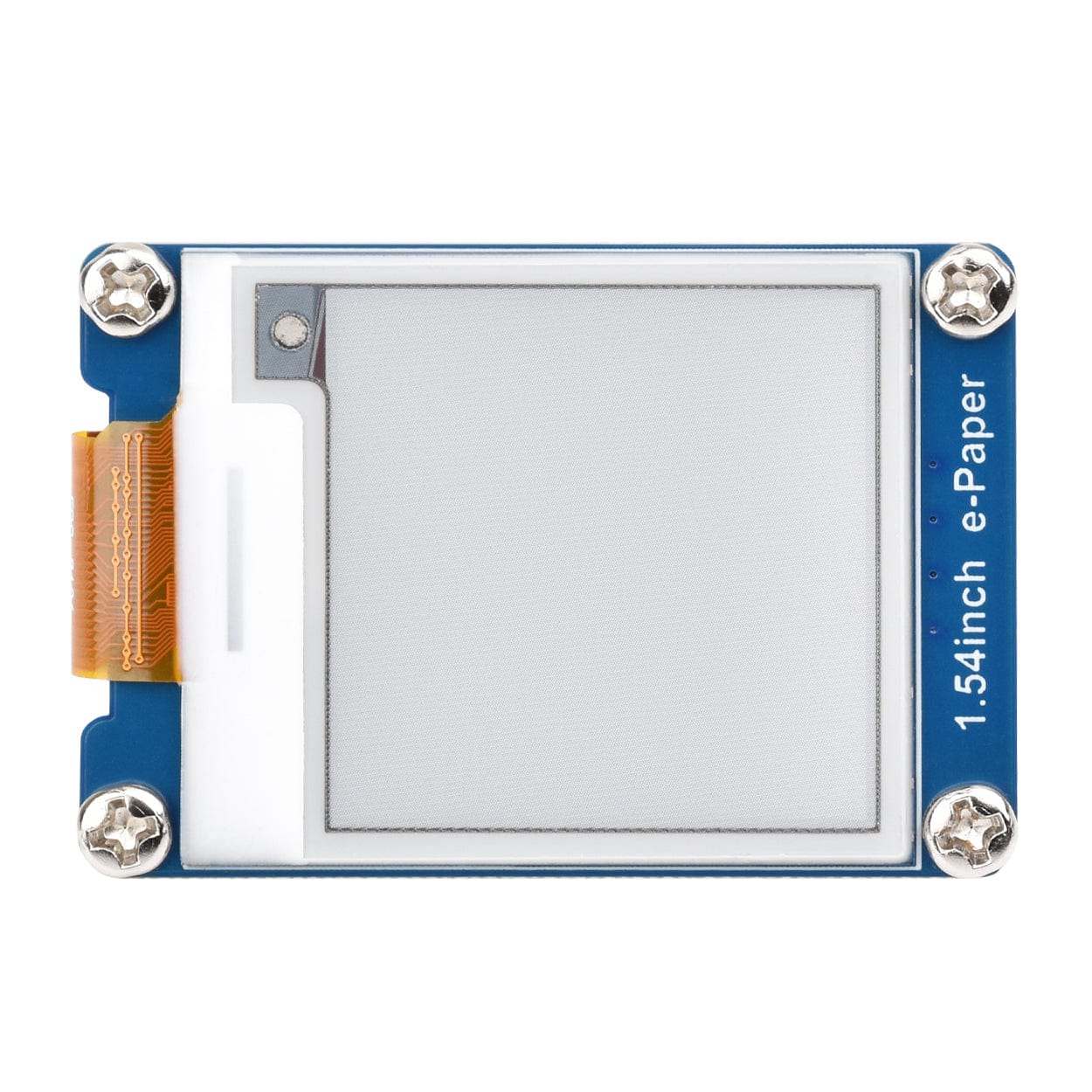

1.54" ePaper Display Module (G) - Red/Yellow/Black/White (200x200)

This mini 1.54" e-Paper display module has a 200x200 resolution, offers red/yellow/black/white colours, and is driven via SPI communication, with demo code available for Raspberry Pi, Arduino, ESP32 and more.

The overall module measures just 48mm x 33mm, making this great for compact projects, whilst the onboard voltage translator means it's compatible with both 3.3V and 5V development boards.

Like most e-Paper modules, this is ultra-low-power, essentially only requiring power when refreshing display contents. On standby, it consumes <0.01uA (almost nothing), and when refreshing, it uses <30mW. Fast refresh time is 15 seconds, whilst standard refresh takes 20 seconds.

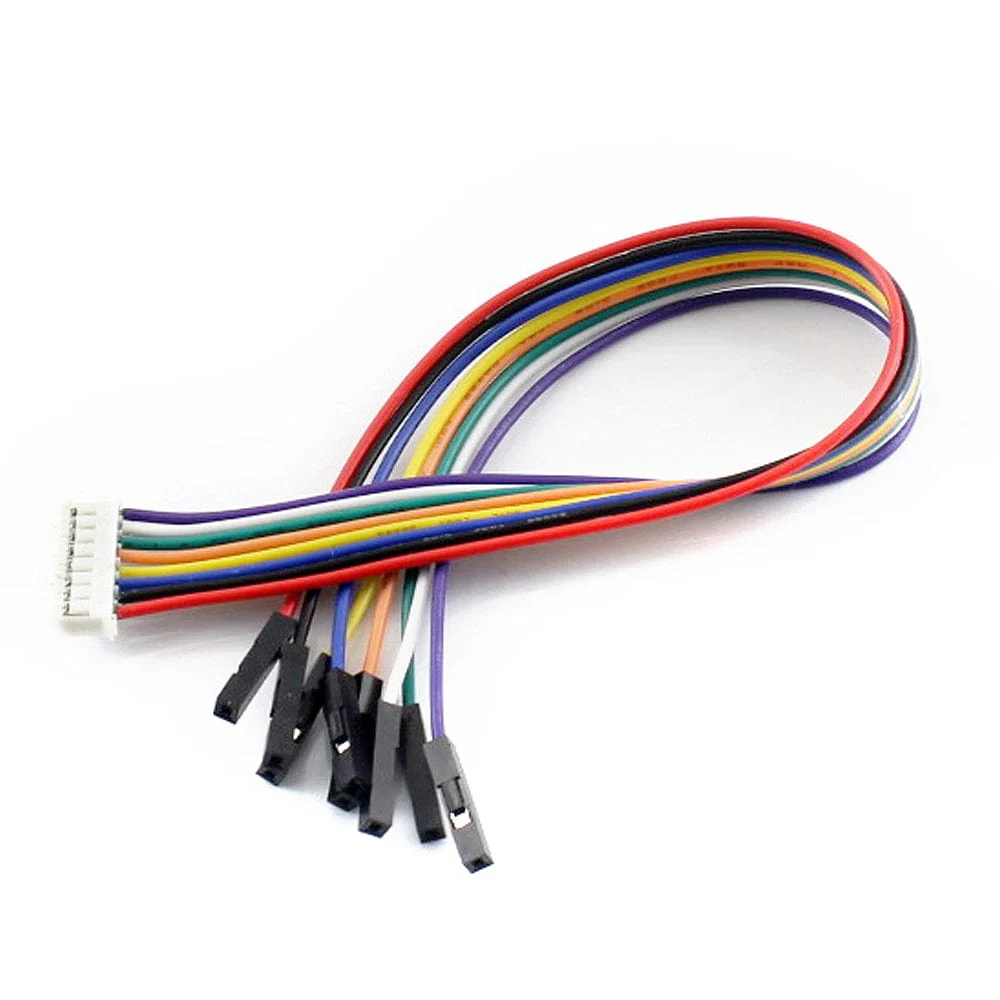

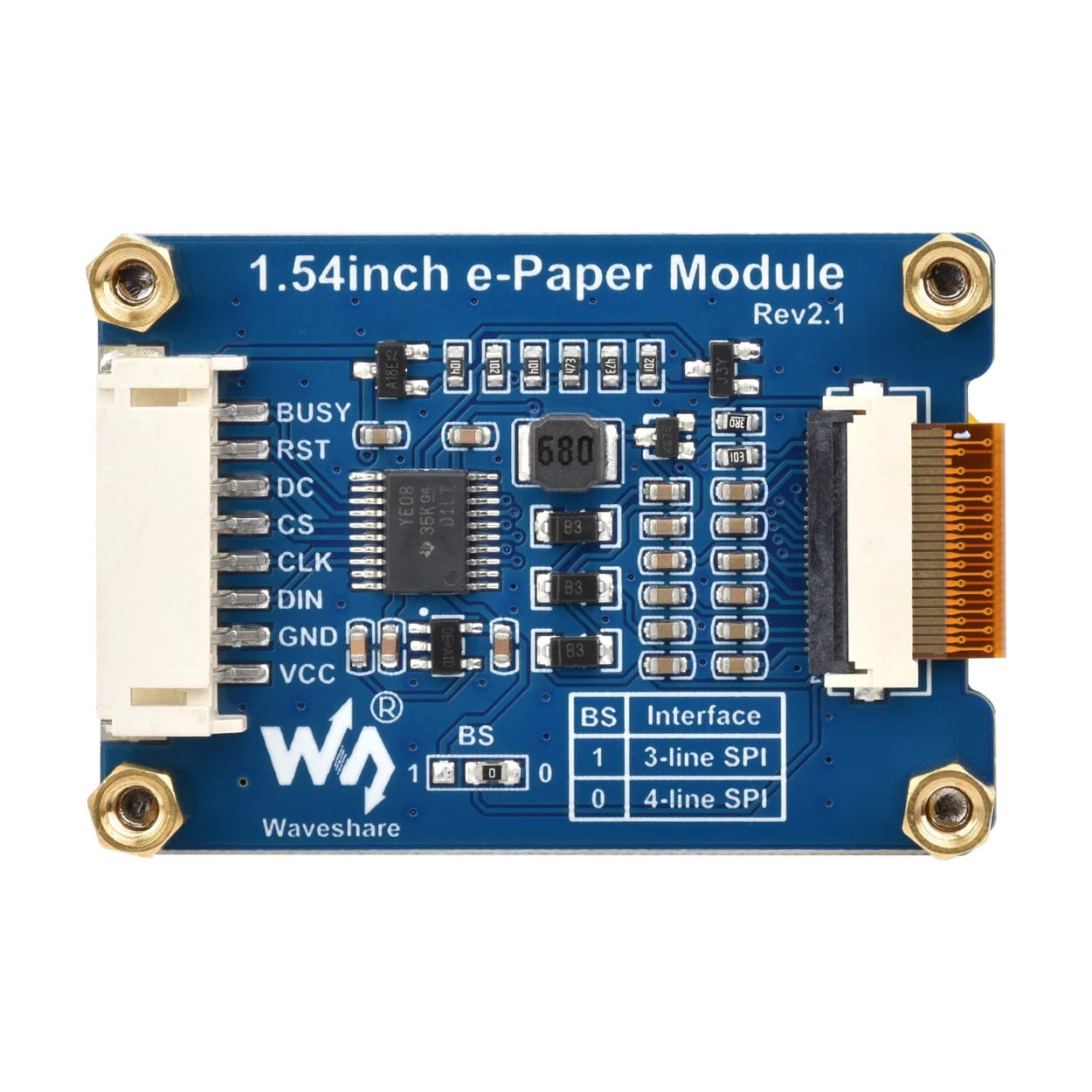

The display comes with a PH2.0 8-pin cable to connect directly to your microcontroller's (male) pins.

We also stock the raw panel, so if you manage to break the display (whoopsie!), you can replace it with this.

Important Notes

• Waveshare recommends at least 180 seconds between refreshes, and at least refreshed every 24 hours minimum.
• Partial refresh is supported, however, please check the notes on the product wiki, as a full refresh is required periodically.
• The screen cannot be left powered on for a long time. When the screen is not refreshed, the screen must be set to sleep mode or power off, or you may damage the module.
• There may be a slight colour difference between batches.

Features

• 1.54" e-Paper display module
• Displays in red, yellow, black, and white
• 200x200 resolution
• SPI interface with demo code available for Raspberry Pi, Arduino, ESP32 and more
• Compact module size: 48mm x 33mm

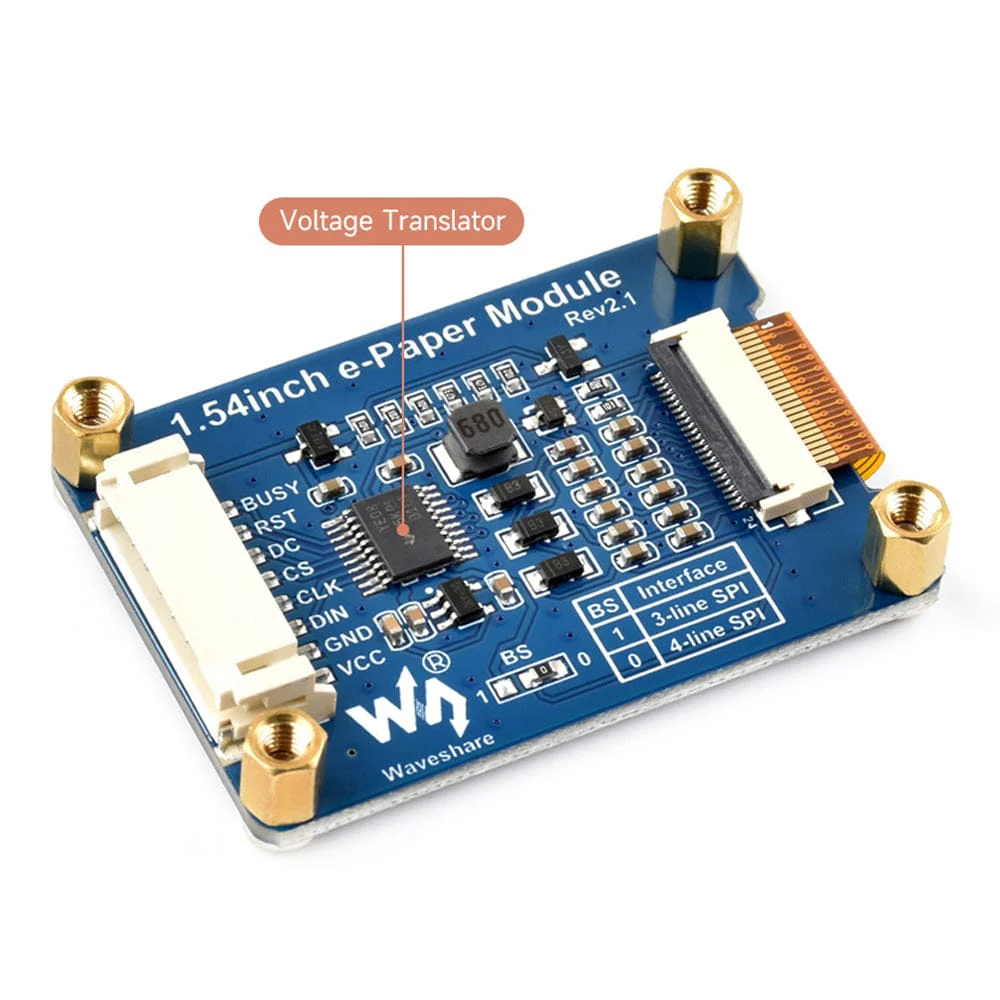

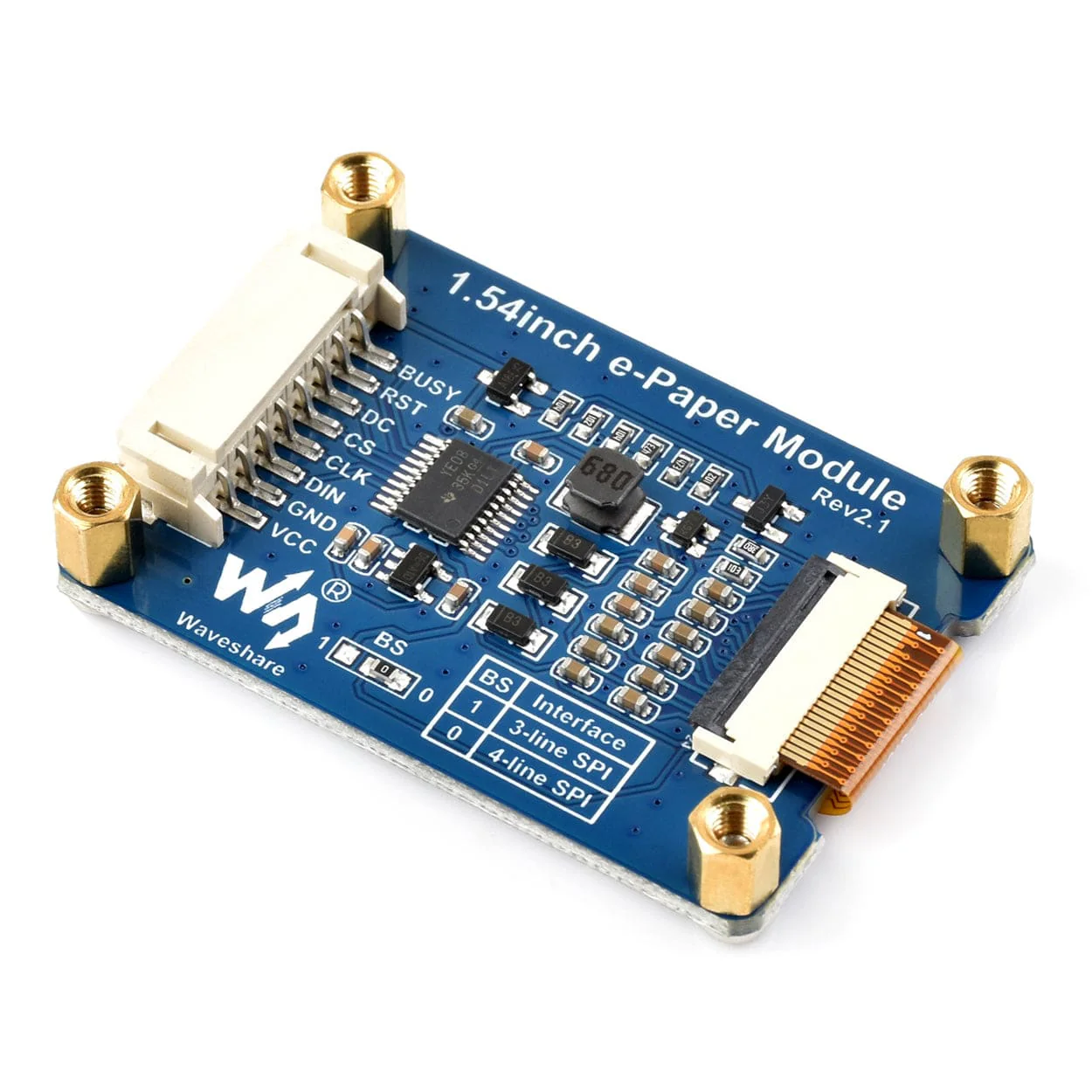

• Onboard voltage translator supports both 3.3V and 5V logic
• Ultra-low-power: <0.01uA standby, <30mW during refresh
• Refresh time: 15 seconds (fast), 20 seconds (standard)

Specifications

Size	1.54"

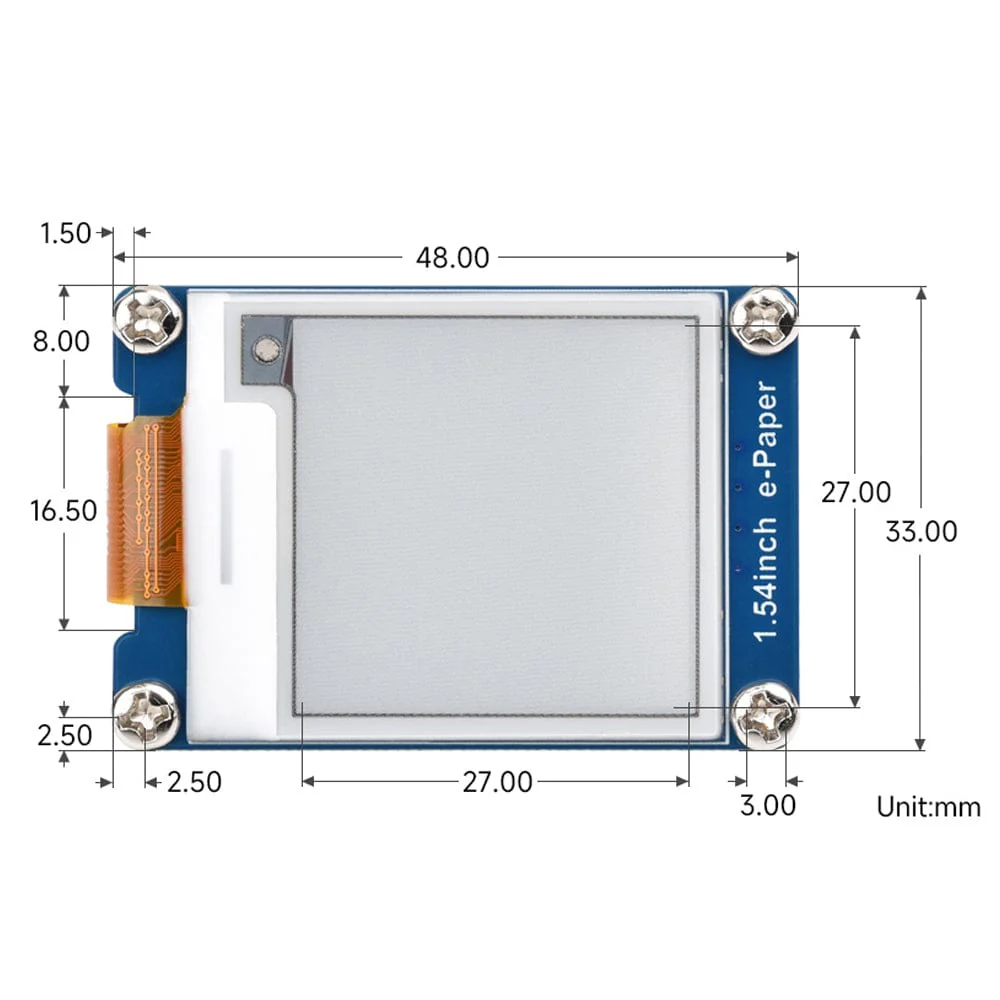

Driver Board Size	48.00mm × 33.00mm
Display Size	27.00mm × 27.00mm
Outline Dimensions (raw display)	37.32mm × 31.80mm × 1.00mm
Operating Voltage	3.3V / 5V (IO voltage should be the same as the supply voltage)
Communication Interface	SPI
Dot Pitch	0.135mm × 0.135mm
Resolution	200 × 200
Display Color	Black, White, Red, Yellow
Grayscale	2
Refresh Time	20s / 15s (fast refresh)
Refresh Power	<30 mW (typ.)
Sleep Current	< 0.01uA (close to 0)
Operating Temperature	0 ~ 40 °C
Storage Temperature	-25 ~ 70 °C

Resources

• Product Wiki

Package Contents

• 1x 1.54" e-Paper Module (G)
• 1x PH2.0 8-pin cable
