10.2" ePaper Display Raw Panel - Red/Yellow/Black/White (960x640)

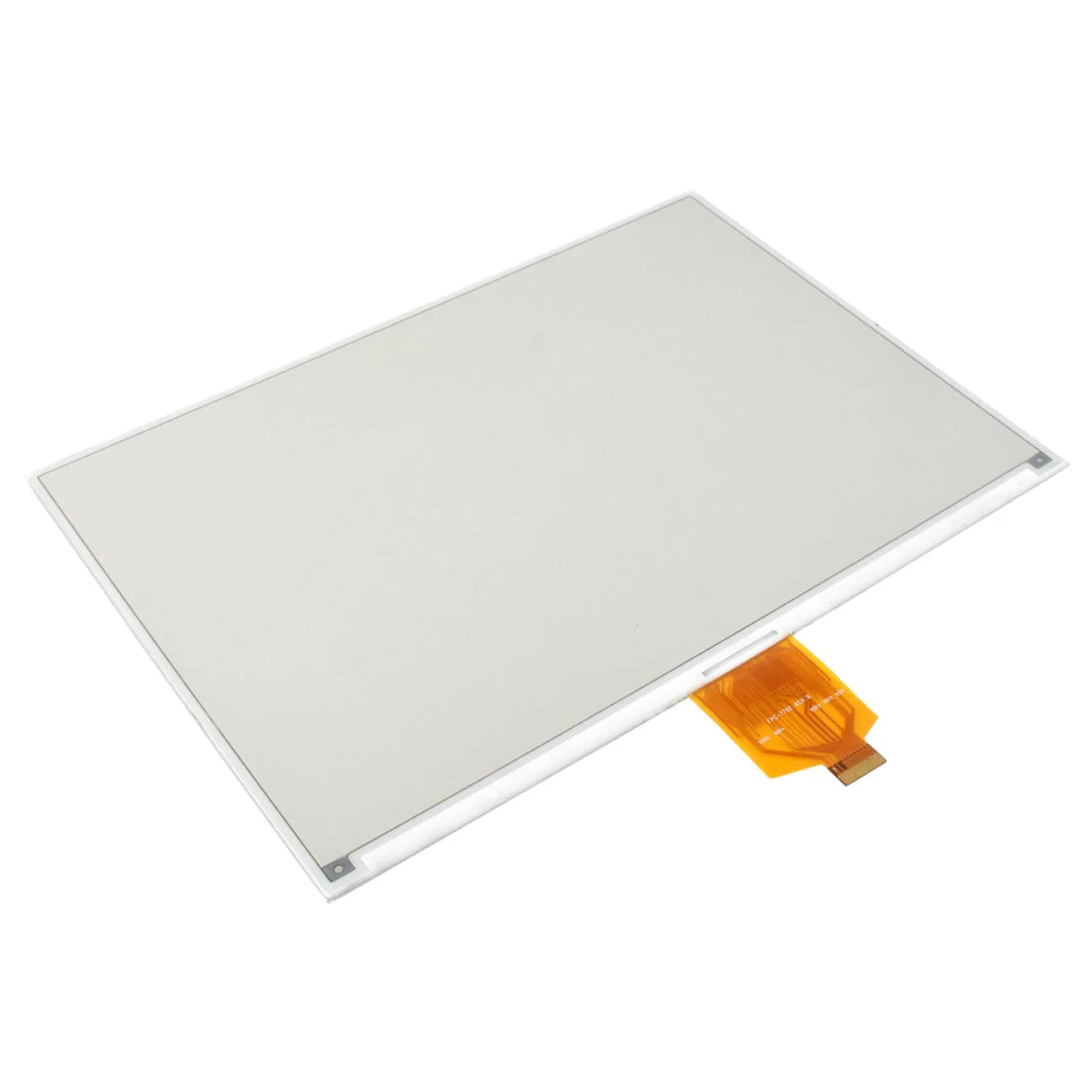

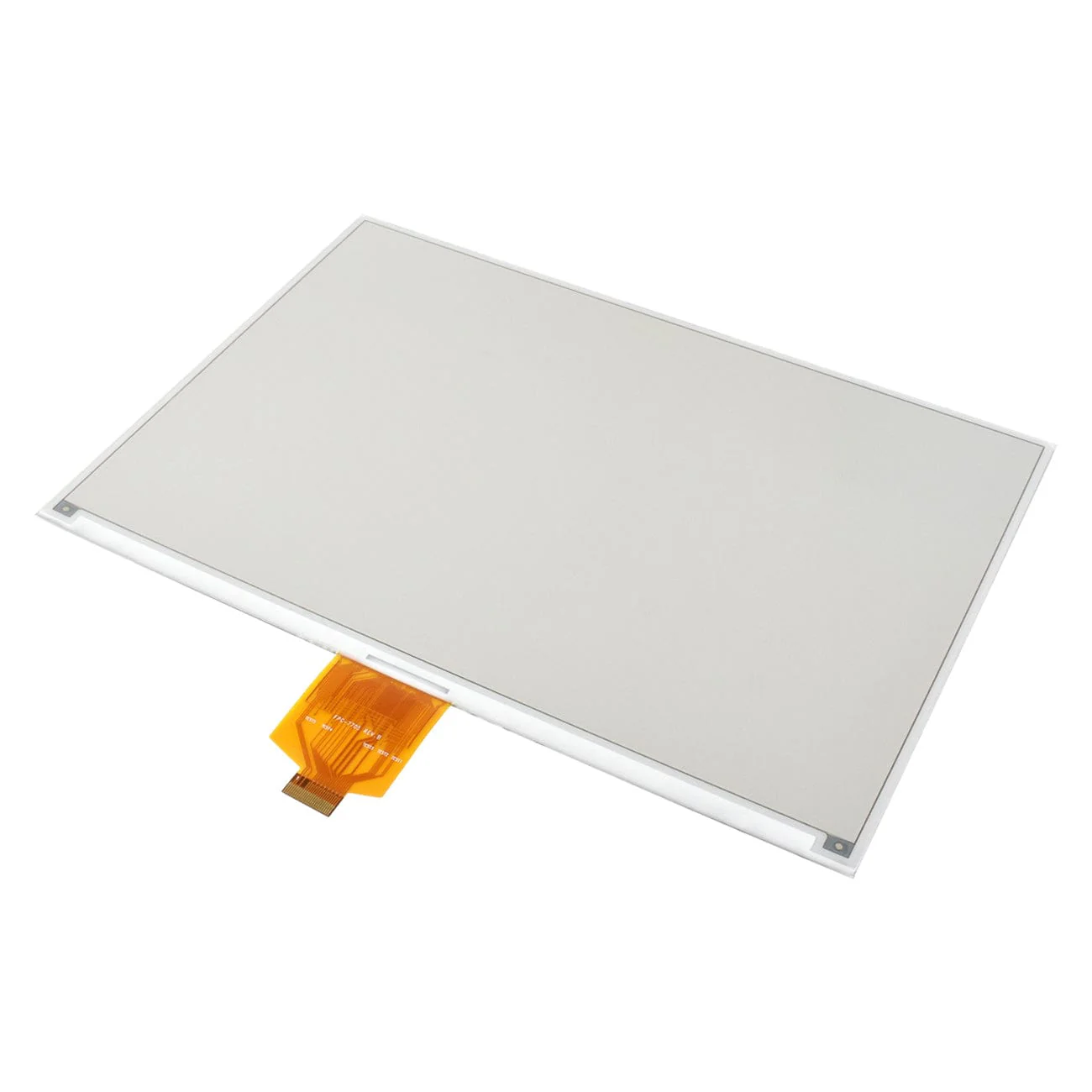

This is a 10.2" ePaper raw display, intended for use with our range of Waveshare ePaper driver boards, such as this ePaper Driver HAT for Raspberry Pi.

The panel features a 960x640 resolution, 170° viewing angles, and can display four colours - red, yellow, black and white. It uses an SPI interface which communicates via a driver board. This panel has a 27-second full refresh time. Partial refresh is not supported (Waveshare don't mention this anywhere in their documentation).

ePaper /displays are designed to replicate the appearance of ink on paper. Unlike regular displays, which lose their image when power is removed, ePaper displays are able to hold text and images indefinitely, even without power. ePaper screens are therefore ultra-low power, designed to have a wide viewing angle and additionally have limited reflection under sunlight.

Features

• 10.2" raw ePaper display panel for use with Waveshare ePaper driver boards
• 960 × 640 resolution with wide 170° viewing angles
• Supports four colours: red, yellow, black and white
• SPI interface, driven via a compatible ePaper driver board
• 27-second full refresh time (partial refresh not supported)
• No backlight – retains the last image even when powered off
• Ultra-low power consumption, with power only required during refresh
• Paper-like appearance with minimal reflection under sunlight

Specifications

Size	10.2"

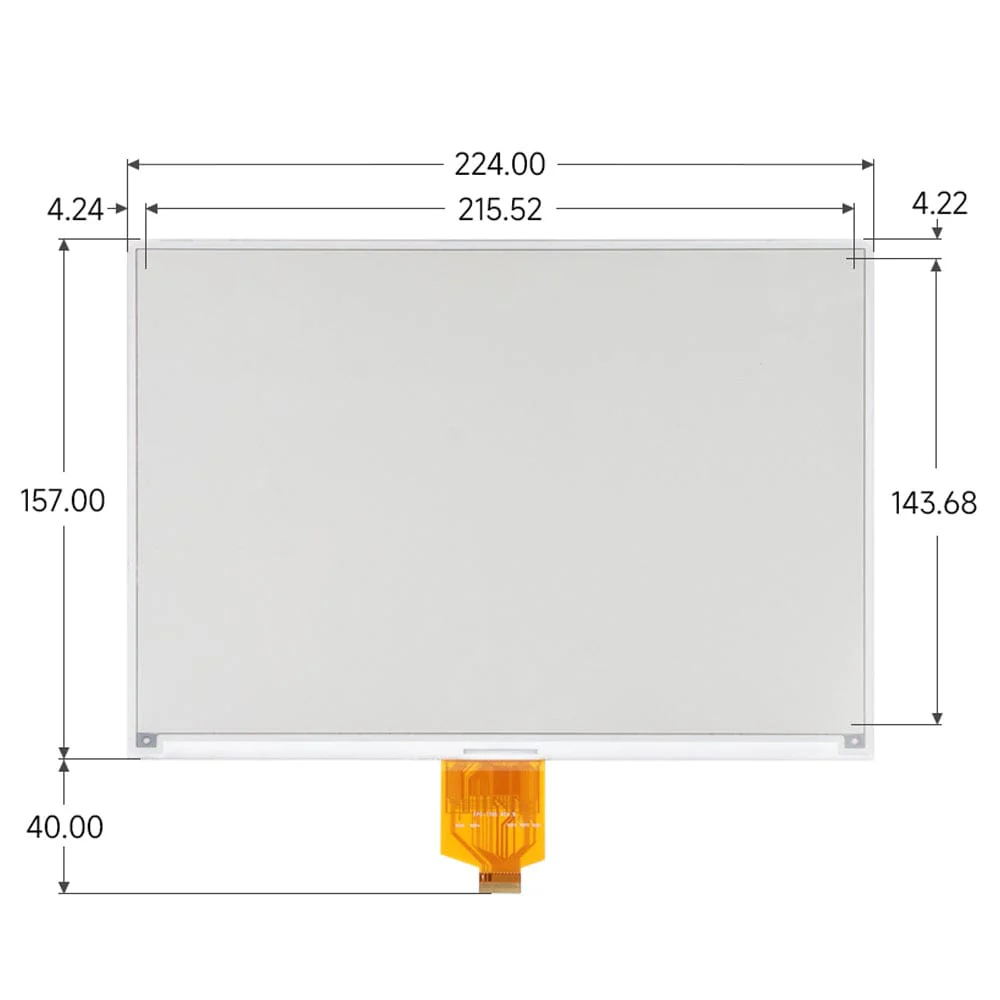

Display size	215.52mm × 143.68mm
Outline dimensions	224mm × 157mm × 1mm
Operating voltage	3.3V
Communication interface	SPI
Dot pitch	0.2245mm × 0.2245mm
Resolution	960 × 640
Display colours	Red, yellow, black, white
Gray scale	2
Refresh time	27s
Total refresh power	<100mW (typ.)
Standby Current	<0.01uA (almost none)

Resources

• Product Wiki
• ePaper panel datasheet

Package Contents

• 1x 10.2" ePaper Display Raw Panel - Red/Yellow/Black/White (960x640)
