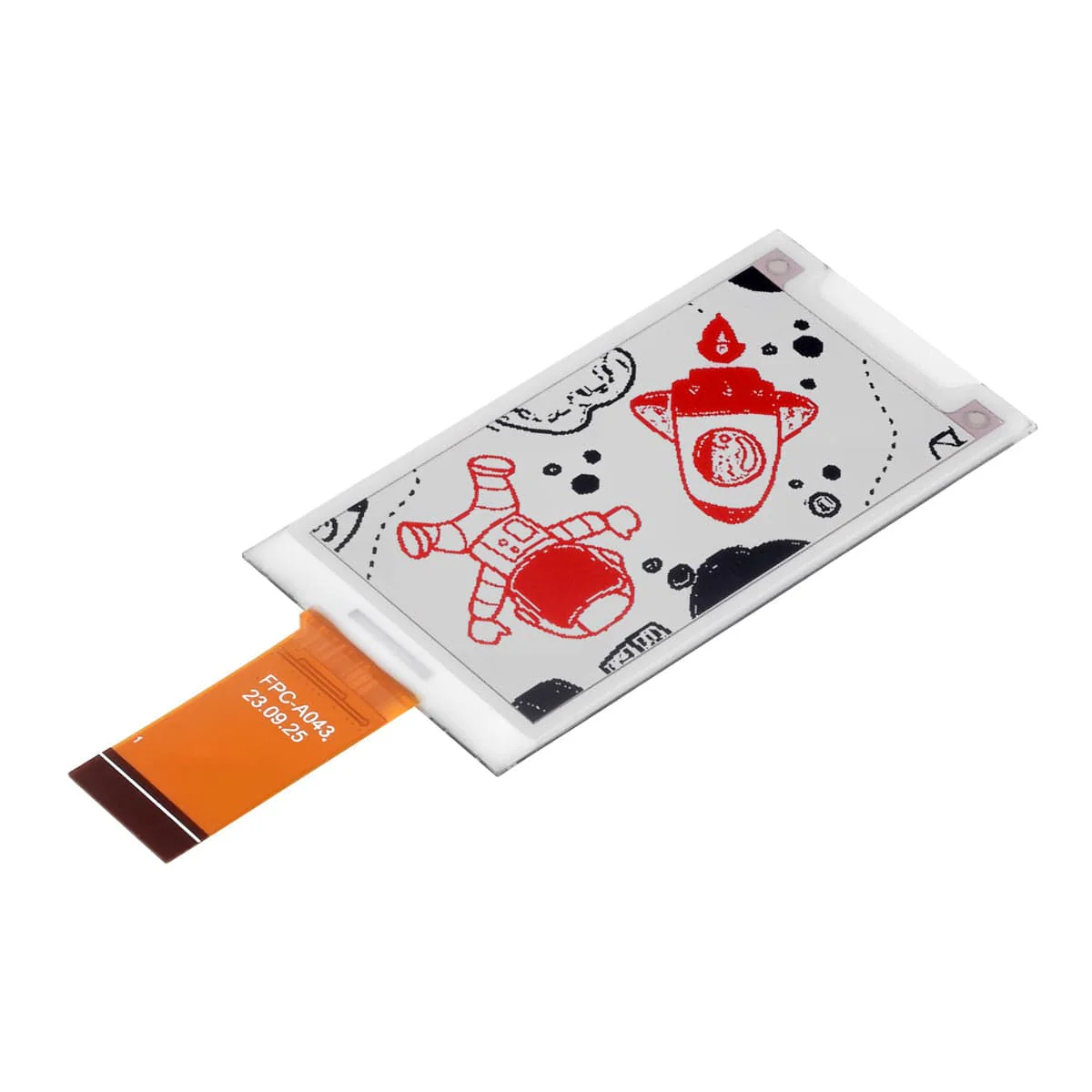

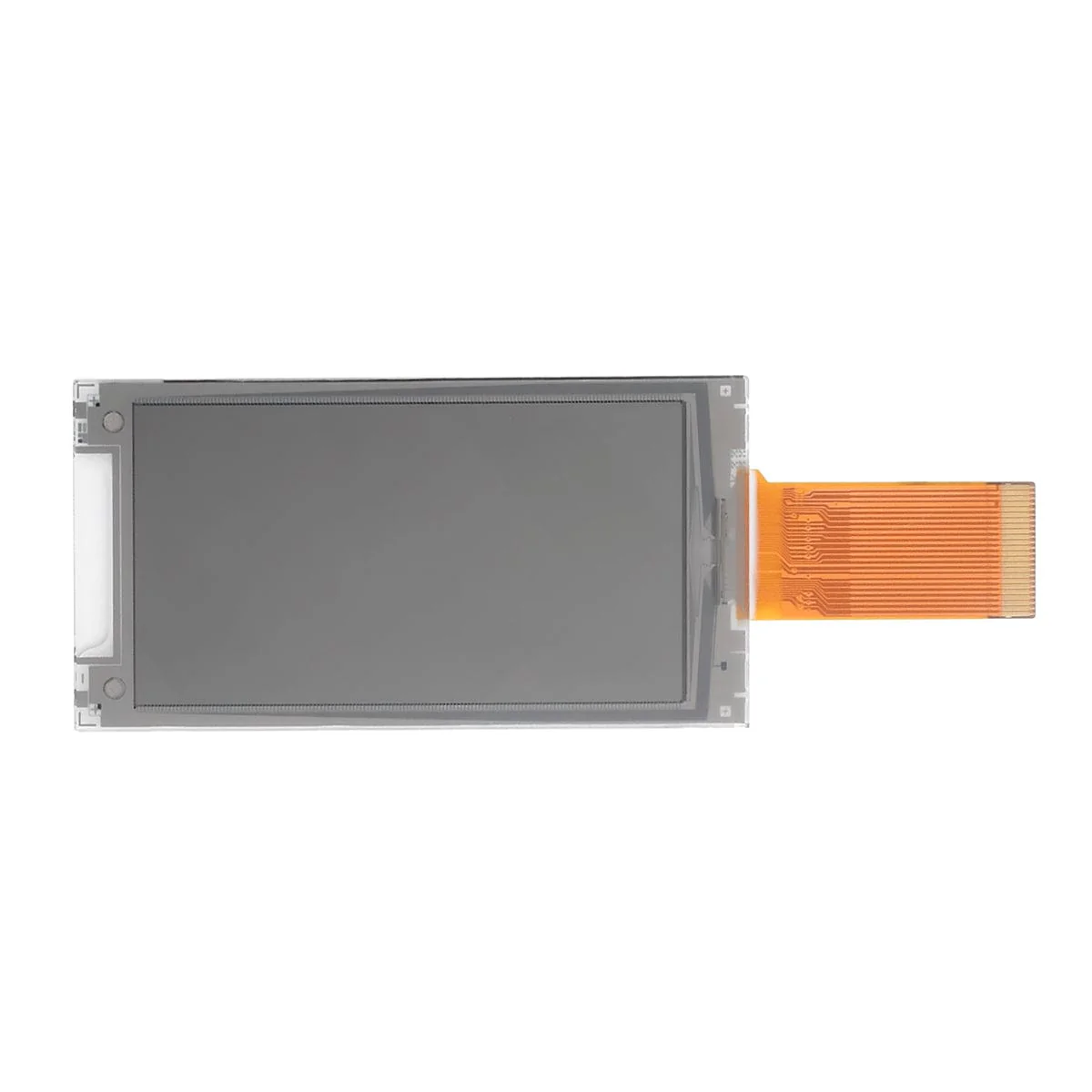

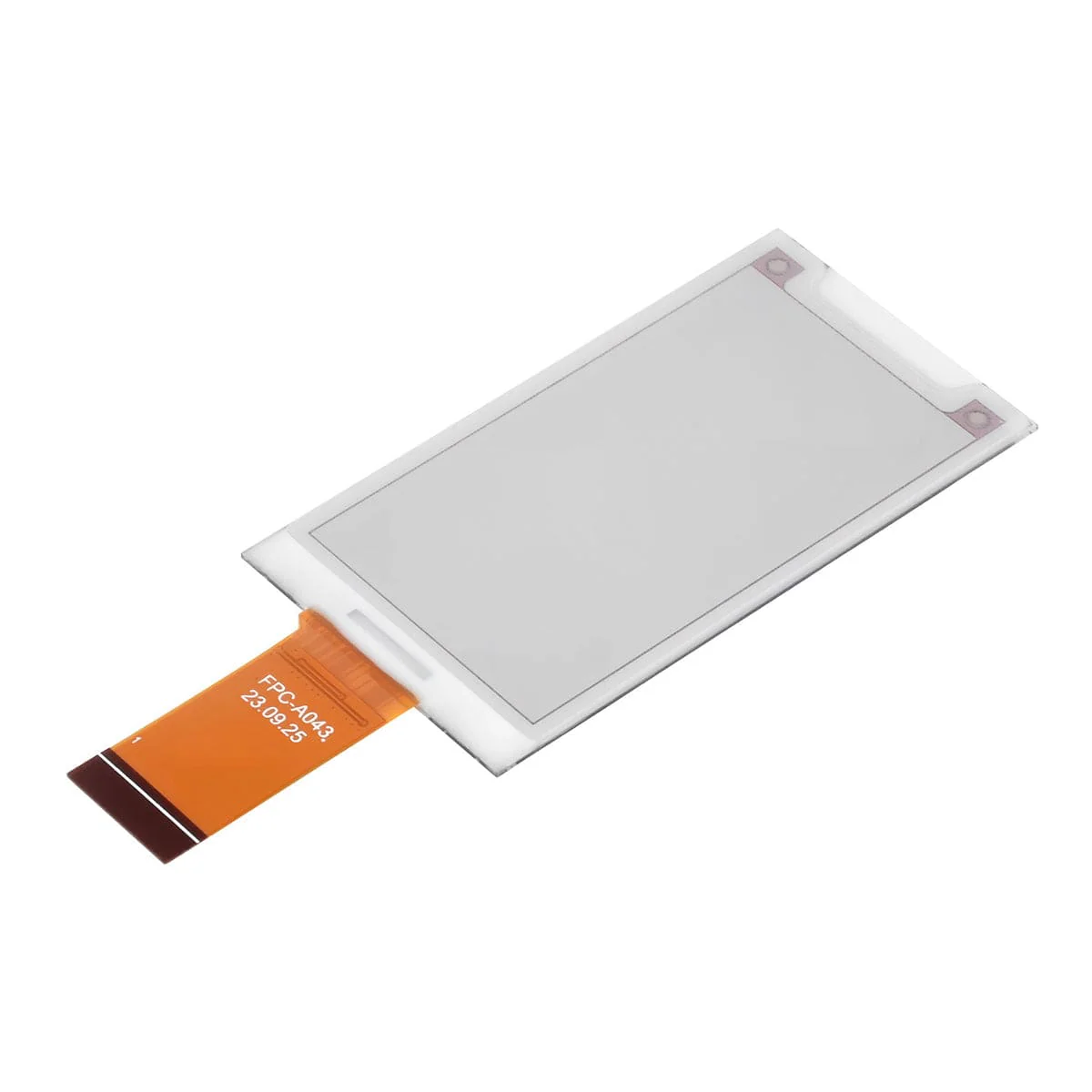

2.15" ePaper Display Raw Panel - Red/Black/White (296x160)

This E-Paper raw display has a 296 x 160 resolution with red, black and white colours for sharp and clear visuals. This display uses SPI communication to easily add it to your projects and has a viewing angle of over 170°, which provides clear visibility from almost any angle.

Without the need for a backlight, it saves on energy by continuing to keep the latest content you had put on there even when powered down. This means there will be very low power consumption, with power only needed when it's refreshing. Online development resources and a manual are included, with examples for Raspberry Pi, Jetson Nano, Arduino, and STM32.

Note: an e-Paper Raw Panel Driver HAT will be needed to run this display. You can find one in our store

Features

• No backlight, keeps displaying last content for a long time even when powered down
• Ultra-low power consumption, basically power is only required for refreshing
• Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi / Jetson Nano / RDK X3 / Arduino / STM32)

Specifications

Operating Voltage	3.3V
Interface	3-wire SPI, 4-wire SPI

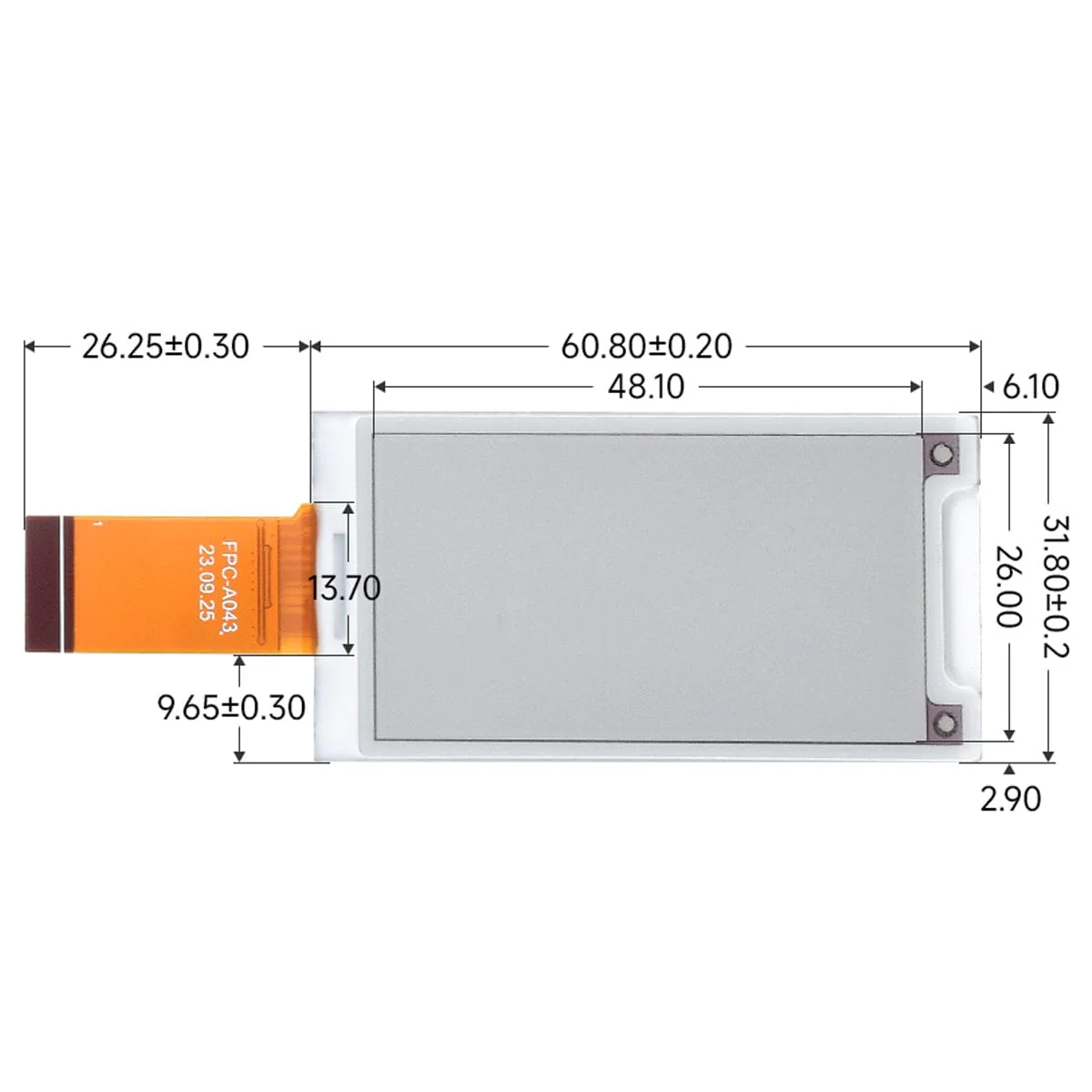

Outline Dimensions	60.8 x 31.8 x 1.00 (mm)
Display Size	48.10 × 26 (mm)
Dot Pitch	0.1625 × 0.1625 (mm)
Resolution	296 x 160 pixels
Display Colour	Red/Black/White
Greyscale	2
Full Refresh Time	23s
Refresh Power	<15mW
Standby Current	<0.01uA (almost none)
viewing angle	>170°

Resources

• Product Wiki
• Datasheet

Package Contents

• 1x 2.15" E-Paper Raw Display
