Aeotec Recessor for MultiSensor and TriSensor

With Aeotec's ceiling mount Recessor, you can integrate the Aeotec MultiSensor 6, MultiSensor 7 or TriSensor 8 into your ceiling for a more integrated deployment to your smart home.

3 easy steps to seamless installation

Designed for any indoor space in which you need a multi-sensor, Recessor’s installation starts with simply selecting where you want it. Wall, ceiling, cavity space - it's up to you.

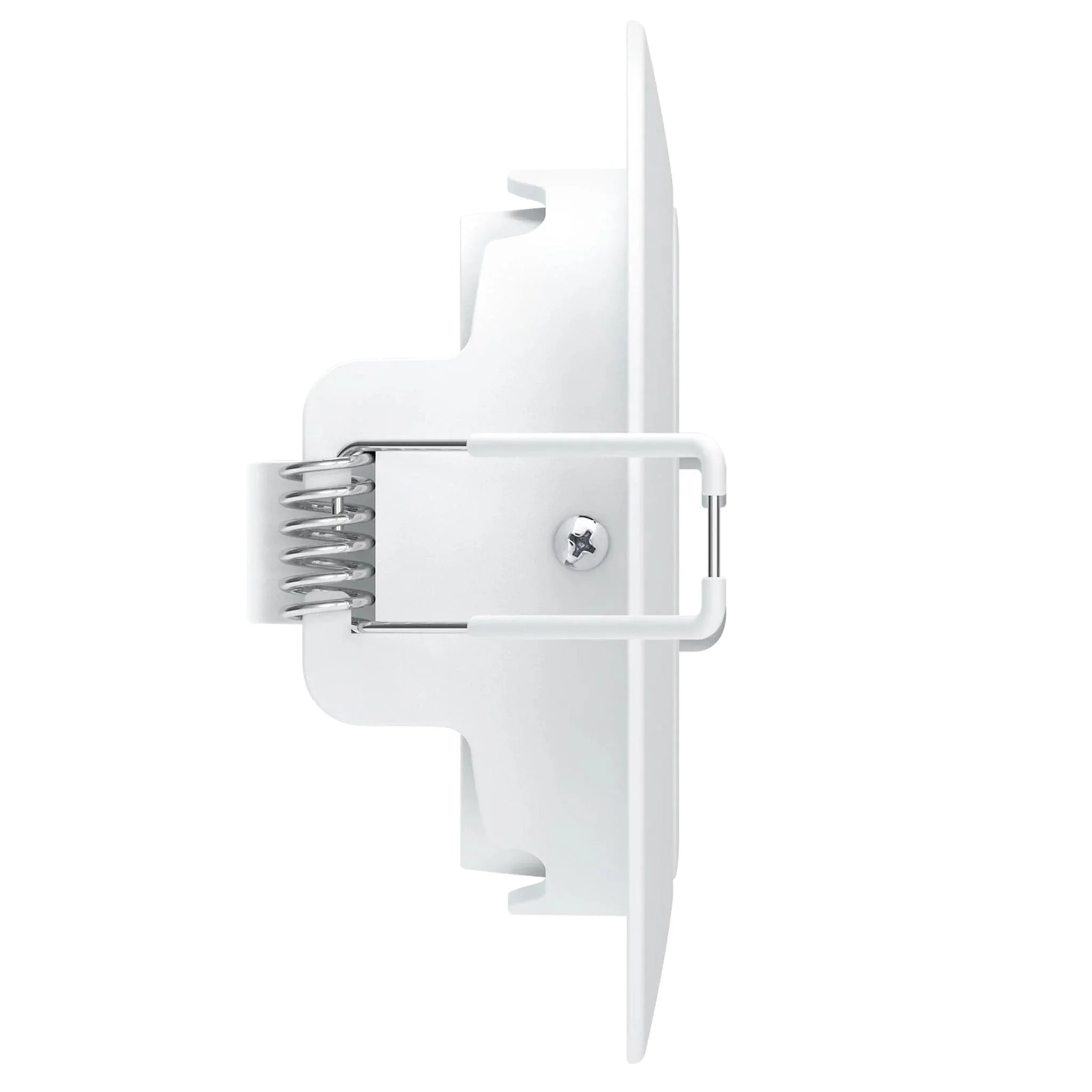

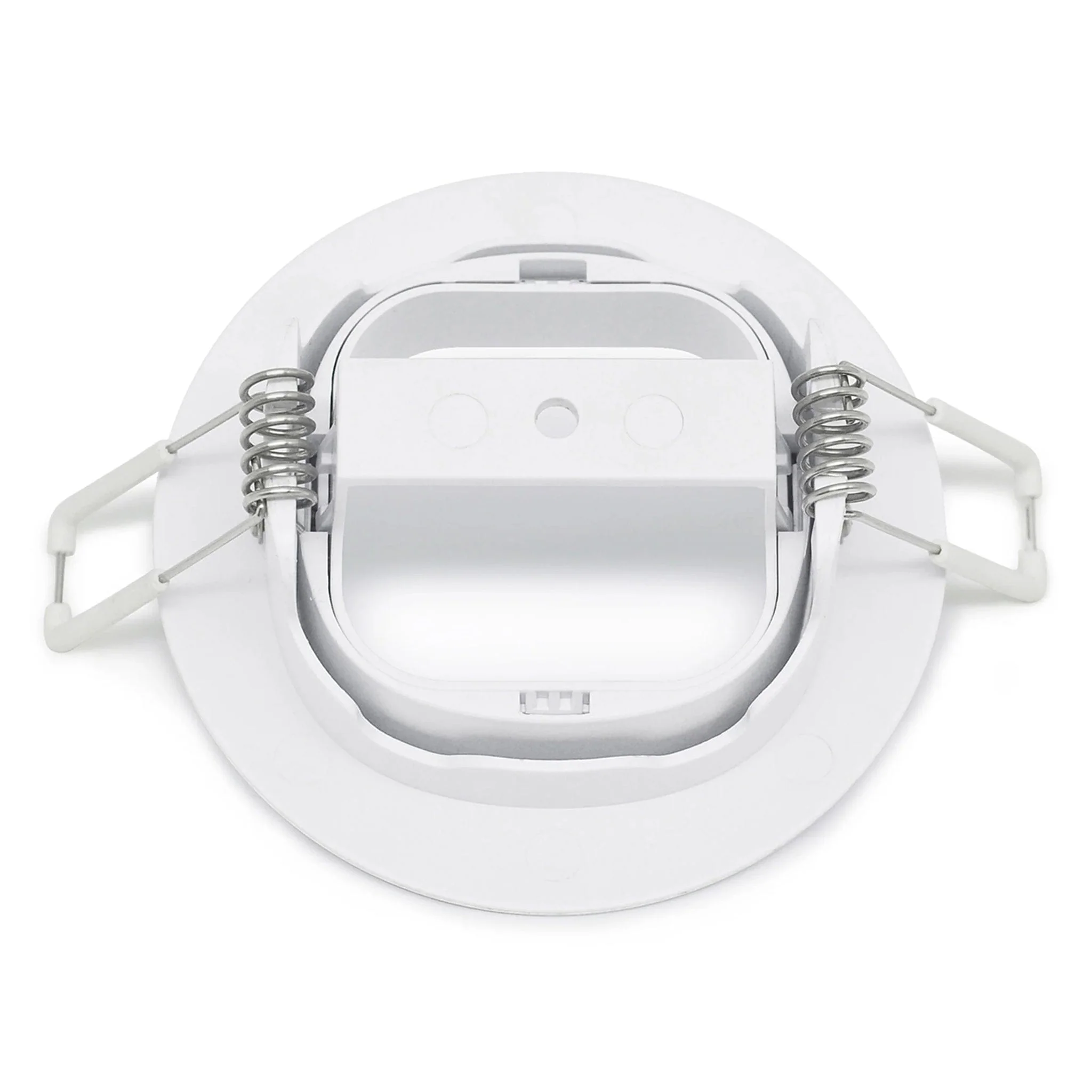

Once selected, make a 75mm aperture within the chosen surface and then secure your sensor within Recessor – it’s compatible with MultiSensor 6, MultiSensor 7, and TriSensor – simply by fastening it using Recessor’s connection mechanism. Then you’re ready for the final step; insert the complete unit into the aperture and Recessor’s spring-loaded grips will hold it in place without the need for screws or glue.

Precision at 30°

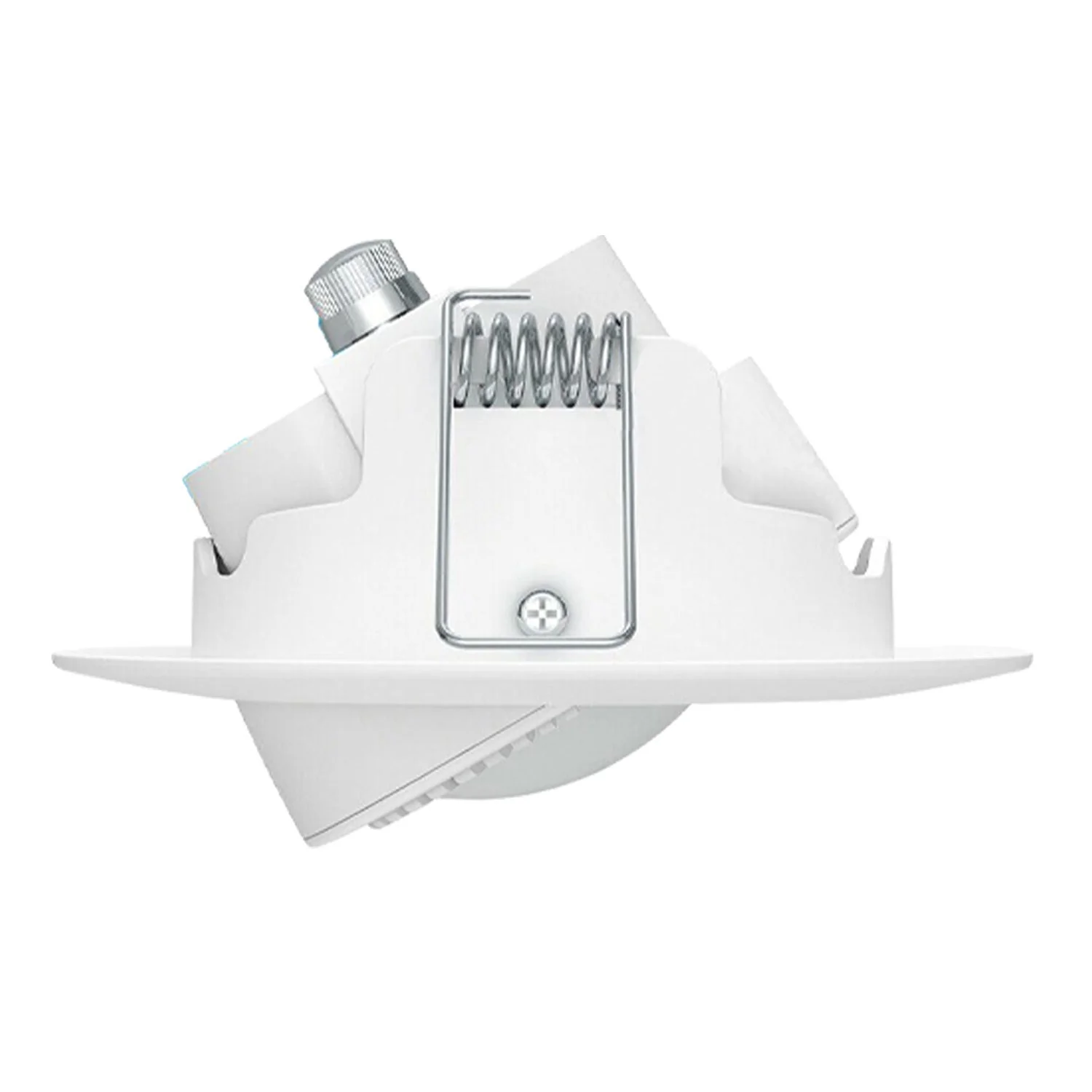

Once installed, your multi-sensor of choice can be made even more accurate. With a flexability that allows it to be angled at up to ±30°, you can use Recessor to refine the focus and measurement capabilities of MultiSensor 6, MultiSensor 7 or TriSensor to point exactly where you need them to be.

Still perfectly powered

Whichever power method you’re using with your multi-sensor, you can keep on using it with Recessor. It’s been crafted to allow for each multi-sensor’s batteries to still be changed, or for the optional power cable of MultiSensor 6 and MultiSensor 7 to be pass-through when they have been installed battery-free.

Sensor not included. Recessor holder only.

Specifications

• Model Number: DSE010
• Product Dimensions: 96 x 86 x 40 mm
• Package Dimensions: 100 x 139 x 40 mm
• Product Weight: 32g
• UPC: 810667023355
• EAN: 1220000013469

Resources

• Recessor user guide

Package Contents

• 1x Aeotec Recessor

Sensor not included.
