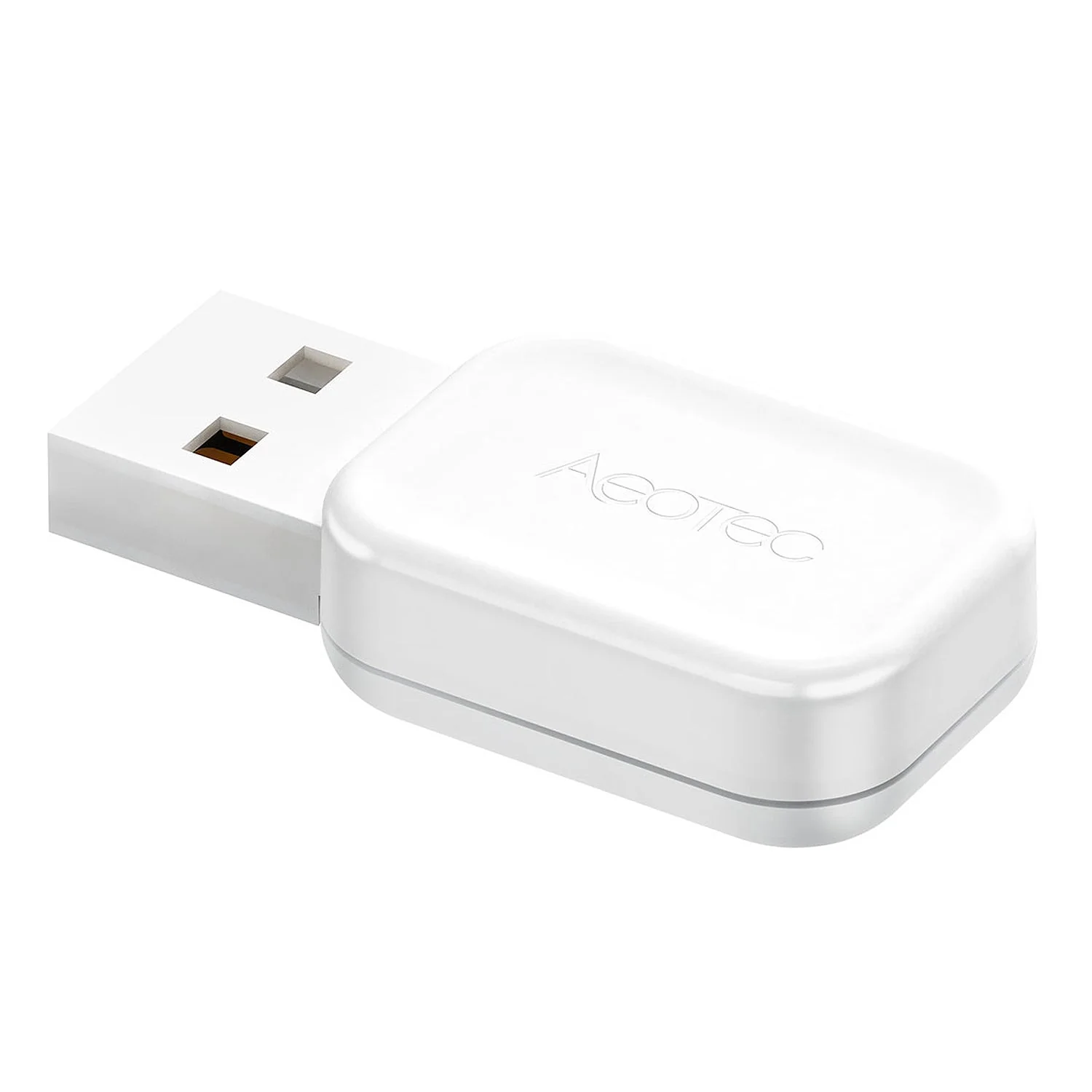

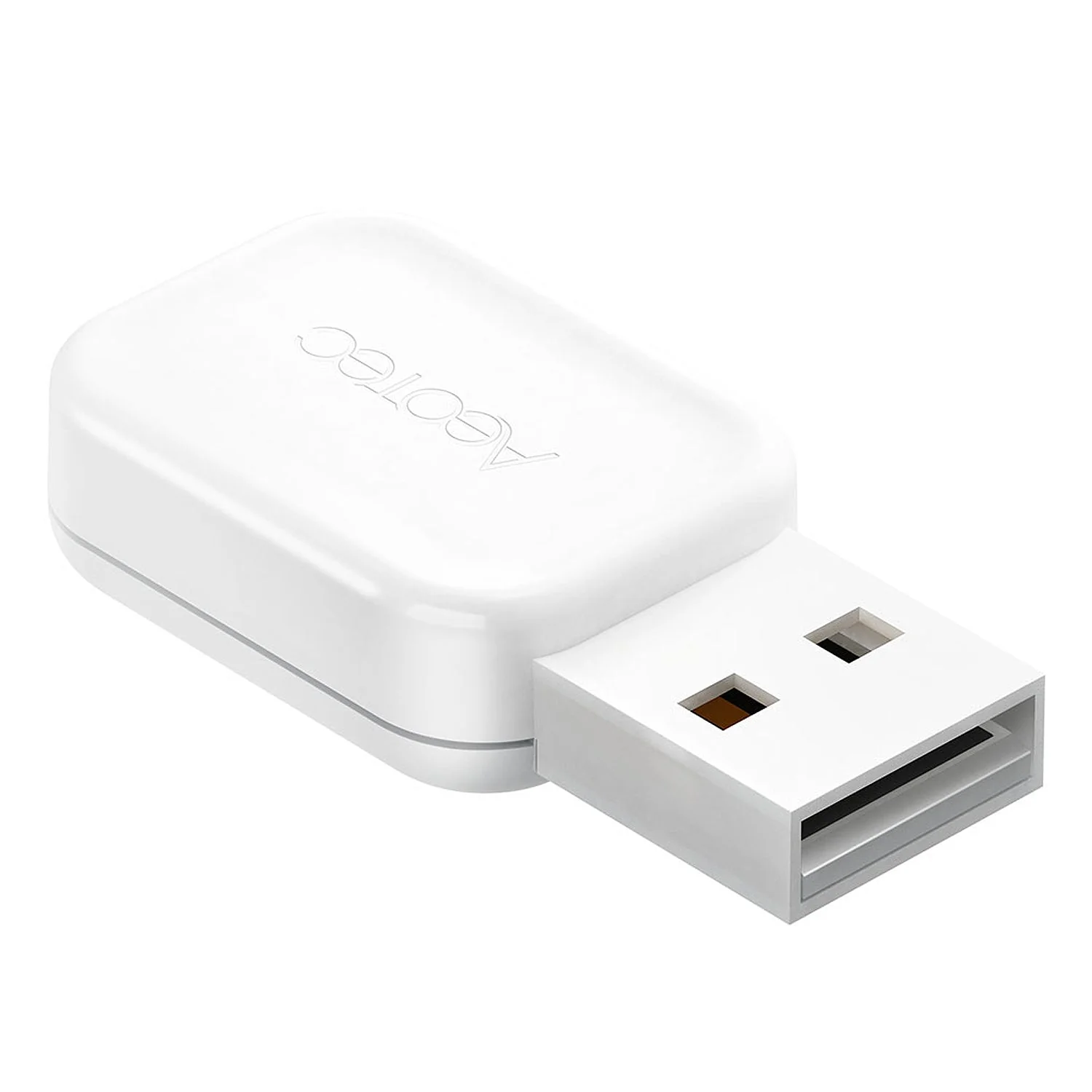

Aeotec Z-Stick 7 (Z-Wave)

The Aeotec Z-Stick 7 is a USB Z-Wave gateway using Gen7 and 700 series Z-Wave technologies, compatible with Raspberry Pi, Windows, Linux and iOS.

It allows you to monitor and control Z-Wave sensors, smart switches and other Z-Wave devices within your chosen home automation system such as Home Assistant (along with the Z-Wave integration).

Brimming with new features and technology, yet wholly more compact, Z-Stick 7 is 79 % smaller than Z-Stick Gen5+, and yet it is still just as easy to set up.

S2 Encrypted

Z-Stick 7 is S2 encrypted - wireless communication between its Z-Wave antenna and Z-Wave products installed in your home is secured with S2 security's triple-layered security.

Local hosting

If it isn't locally hosted, your automation system's security and privacy could be at risk. Take control of both by using open-source hardware, such as Raspberry Pi and Z-Stick 7 to host and control your automation setup locally

SmartStart enabled

Install new devices in seconds. Z-Stick 7 offers SmartStart natively, allowing for new Z-Wave devices to be connected to your system simply by scanning their QR code through a SmartStart-enabled app.

Features

• Built with Z-Wave 700 series - higher range, more efficient and better performance compared to older generation series
• Z-Wave controller as a USB stick
• Wireless technology: Z-Wave Plus V2
• SmartStart enabled
• S2 Security
• Compatible with Raspberry Pi, Windows, Linux and iOS
• Manages up to 232 Z-Wave devices
• Universally usable with various Z-Wave software solutions (requires Z-Wave Serial Bridge API support)

Specifications

• Name: Z-Stick 7
• Model Number: ZWA010-C (UK/EU version)
• UK/EU frequency 868.42 Mhz
• Product Weight: 3.5g
• UPC/EAN: 1220000016545
• Library Type: Bridge Controller
• Device Type: Z-Wave USB Controller
• Z-Wave Plus Certified: Yes
• SmartStart: Yes
• Z-Wave Chip: EFR32ZG14
• Z-Wave Version: Series 700 and Gen7
• Security: S2 native
• QR Code Inclusion: SmartStart native
• Z-Wave SDK: 7.11.0 or later
• Power Supply: USB DC 4.75V to 5.25V
• Sensitivity of the RF receiver:
  • TX Power: +4,8 dBm
  • RX sensitivity: -97.5 dBm
• Standby current: 18 - 20 mA
• Max current: 40mA
• Recommended host current: 50mA
• Known compatibilities:
  • Tested to be compatible with Raspberry Pi 3 and up
  • Tested to be compatible with Windows 10 OS
  • Tested to be compatible with Linux OS
  • Tested to be compatible with OSX OS
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20 C to 70 C
• Product Dimensions: 37 x 28 x 8.5mm
• Operating Distance:
  • Up to 50m indoor
  • Up to 150m outdoors

Resources

• User guide
• Setup Home Assistant with Z-Stick 7 and Z-WaveJS UI
• Update Z-Stick 7 with Z-WaveJS UI
• Backup and restore Z-Stick 7

Package Contents

• 1x Aeotec Z-Stick 7
