Aeotec Zigbee Motion Sensor

The Aeotec Zigbee Motion Sensor fits seamlessly into your home thanks to its compact size, and also includes a built-in temperature sensor! In combination with your Zigbee-enabled Home Automation system, you can set alerts and automation for when motion is detected or the temperature is a certain level.

Use the Aeotec Motion Sensor for a comfortable return home - turn on your smart lighting based on motion detection when you enter your hallway, for example. You can save energy just as easily by setting a corresponding rule - turn off lighting, heating and other devices automatically if no movement is detected for a certain period of time.

It's even useful for security, triggering lighting, sirens and notifications within specific hours to keep your home secure.

With the built-in temperature sensor, you'll always know when the temperature in your home changes. See the temperature in real-time with your home automation system, and use your air conditioning, heating and other smart devices to create a comfortable atmosphere in your home.

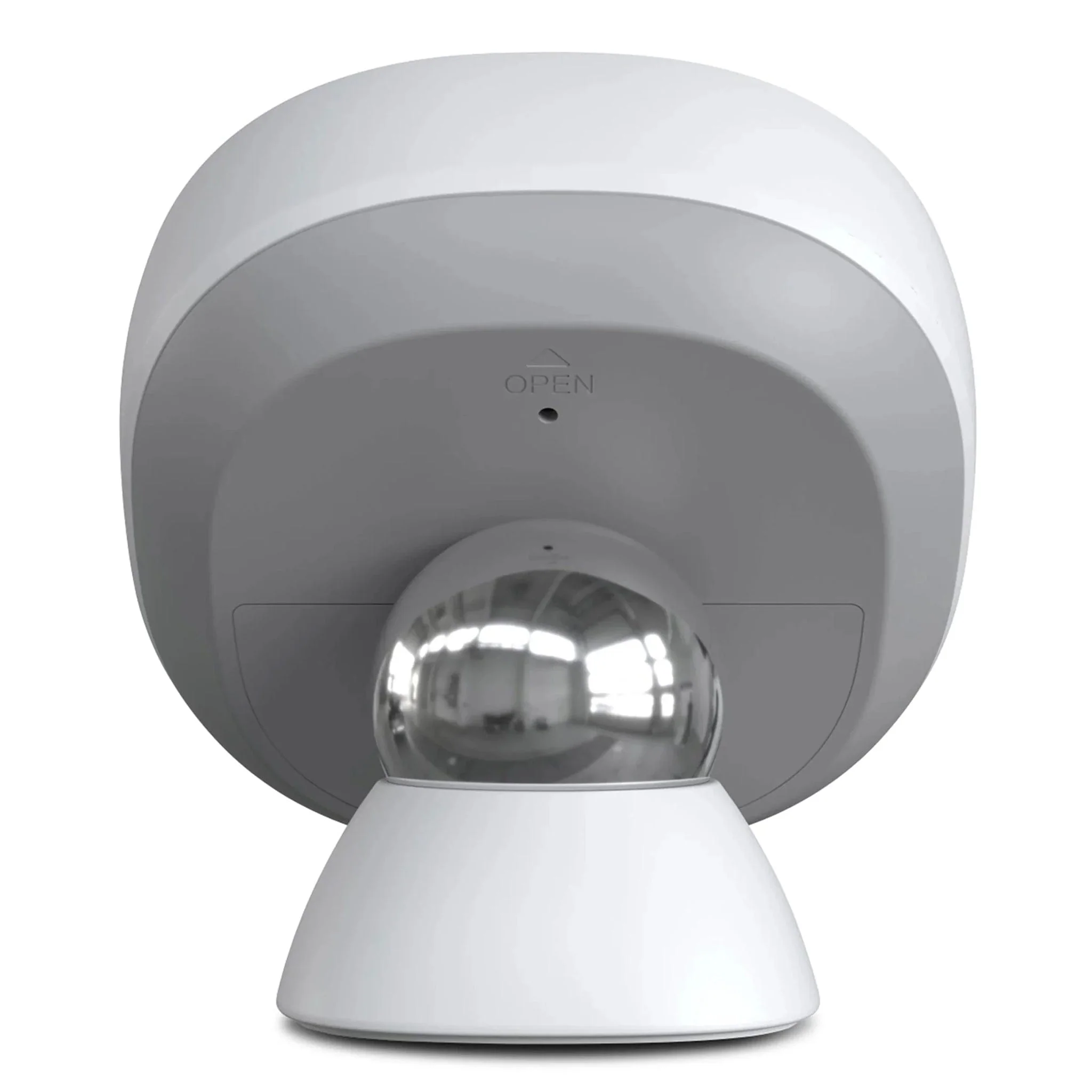

A magnetic ball mount is included for setting the sensor at the perfect angle for your desired detection area/zone.

Requires a Zigbee-enabled home automation system or hub, such as a Raspberry Pi running Home Assistant, combined with a Zi-Stick USB Zigbee 3.0 gateway.

---

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?

---

Features

• Monitor motion and temperature
• Adjust the sensor angle with the included quick-tilt magnetic ball mount
• 120-degree viewing angle
• Zigbee home automation system/hub required (you do not specifically need an Aeotec or SmartThings hub)
• Power: CR2 Lithium Battery (included)
• Zigbee 3.0

Specifications

• Name: Aeotec Motion Sensor
• Model number: EU: GP-AEOMSSEU (EU)
  • EAN: 4251295701653
  • UPC: 810667025434
• Radio protocol: Zigbee3
• Power supply: No
• Battery charger input: No
• Battery type: 1 x CR2 battery (included)
• Battery life: up to 1 year
• Radio frequency: 2.4 GHz
• Operating Temperature: 0 ~ 40 °C
• Sensor: Motion + Temperature
• Indoor/Outdoor use: Indoor only
• Motion Field of View: 120º
• Motion detection distance: 5m (~16 ft)
• Operating distance: Up to 40 m (depending on local conditions)
• Dimensions: 56.6 x 50.2 x 55.7mm
• Weight: 95g

Resources

• Aeotec Motion Sensor user guide

Package Contents

• 1x Aeotec Motion Sensor
• 1x Magnetic ball mount
• 1x CR2 battery (installed)
• 1x User manual
• 1x Health and safety guide
• 3M adhesive strips
