Arducam LAN Cable Extension Kit for Raspberry Pi Camera
Place your Raspberry Pi camera up to 15 metres away with the Arducam LAN Cable Extension Kit. It converts the MIPI CSI-2 interface to Ethernet, works out of the box with Pi 5/4/3/CM, and supports a wide range of cameras.

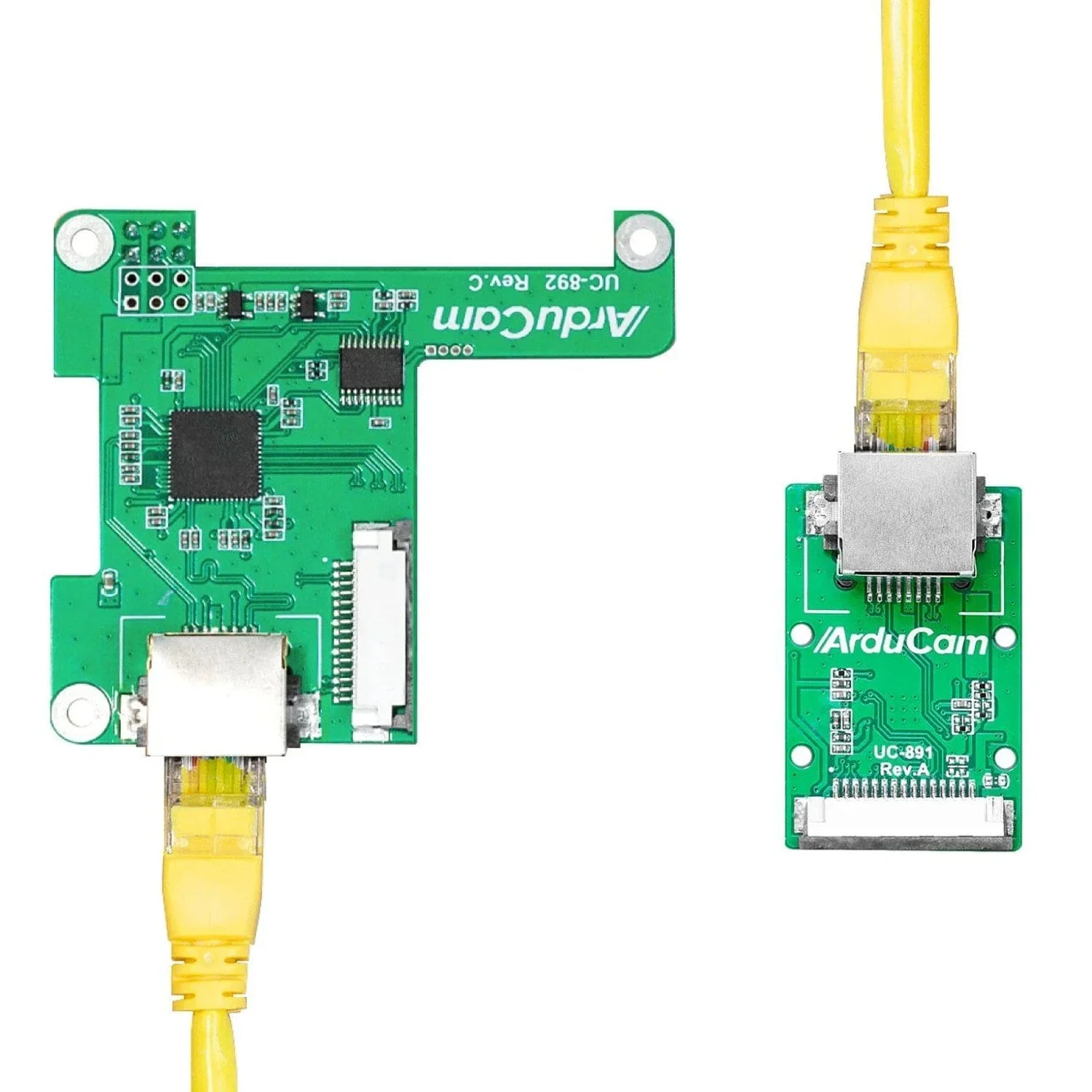

The Arducam LAN Cable Extension Kit lets you place your Raspberry Pi camera up to 10–15 metres away from your board using a standard LAN cable (1m cable included). It converts the high-speed MIPI CSI-2 interface into an Ethernet-compatible connection, allowing far greater range than a traditional FFC cable - and without needing any additional software or configuration.

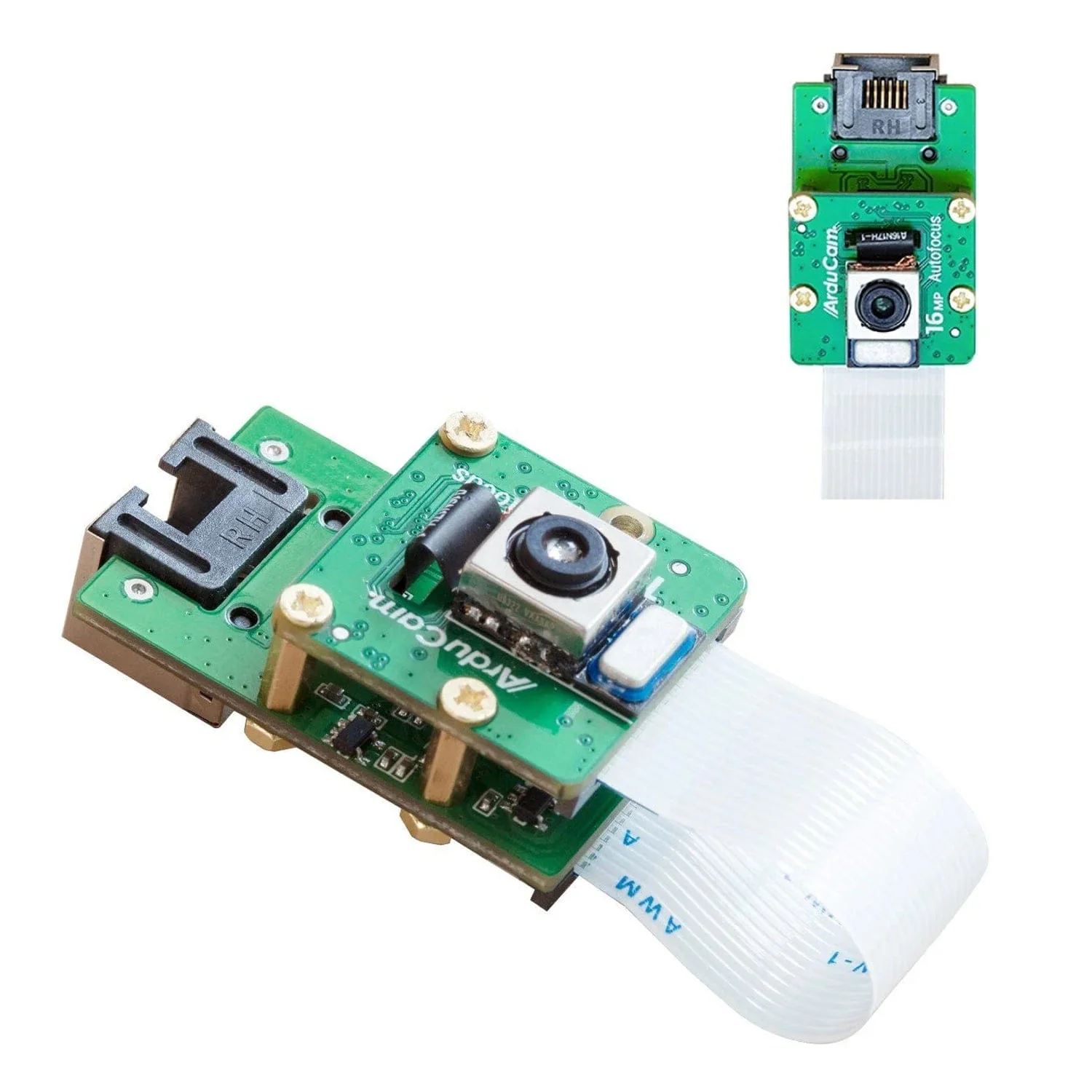

It’s plug-and-play with Raspberry Pi 5, 4 and 3 and Compute Modules (CM modules via carrier boards with appropriate IO available). Simply connect your camera and board at each end of the LAN cable, and you’re ready to go. A 1m Rj45 cable is included to get you started, but you'll find longer RJ45 cable options in the store.
The kit supports a wide range of camera modules, including:
- Official Raspberry Pi Camera Modules
-
Arducam camera modules
- OV5647, IMX219, IMX296, IMX477, IMX708
- 16MP, 64MP Hawkeye, 64MP Owlsight
- ToF cameras
Raspberry Pi and camera modules not included
Supported Camera and Modes
| Supported cameras | Video Modes |
| Camera Module V1 (OV5647) | 1080p 30 fps, 720p 60fps, 480p 60fps/90fps |
| Camera Module V2 (IMX219) | 1080p47, 1640×1232p41, 640×480p206 |
| HQ Camera (IMX477) | 2028×1080p50, 2028×1520p40, 1332×990p120 |
| Camera Module V3 (IMX708) | 2304×1296p56, 2304×1296p30 HDR, 1536×864p120 |
| Arducam IMX296 Global Shutter Camera (B0445) | 1440×1080@60fps |
| Arducam IMX519 Camera | 1080p30, 720p60 |
| Arducam 64MP Camera (B0399) | 1080p30, 720p60, 640×480p60/90 |
| Arducam 64MP Camera (B0483) (link-frequency=456000000) | 1080p30, 720p60, 640×480p60/90 |
| Arducam ToF Camera (B0410) | 240×180@30fps |
Resources
Package Contents

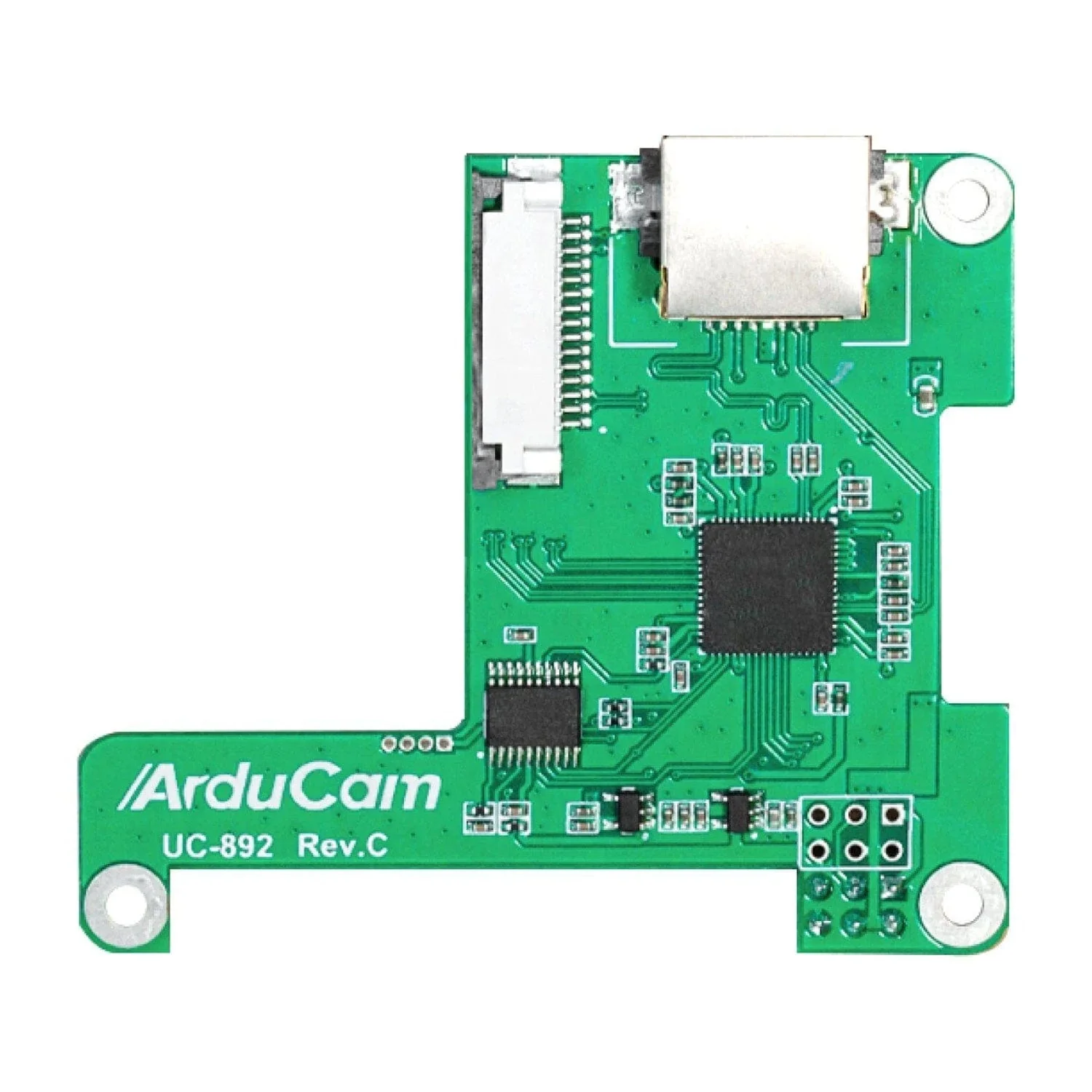

- 1x Rx board

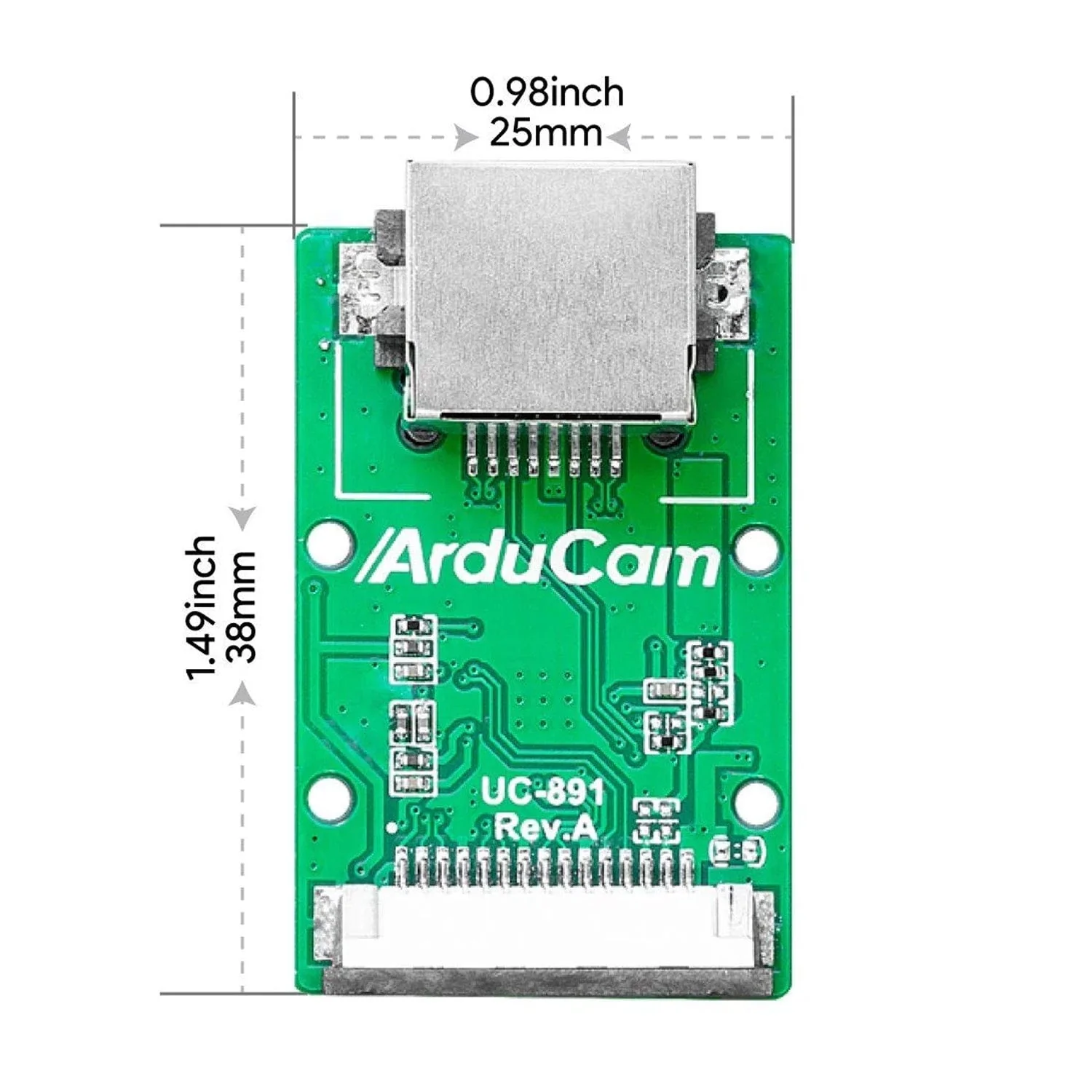

- 1x Tx board
- 1x 1m LAN cable
- 2x 8cm ribbon flex cables for MIPI CSI-2 Transmission
- 2x 7.3cm 15-22pin FPC Cable
- 1x Mounting screw pack
Raspberry Pi and camera modules not included
