Arducam PiNSIGHT - 12MP Vision AI Mate for Raspberry Pi
Arducam Products

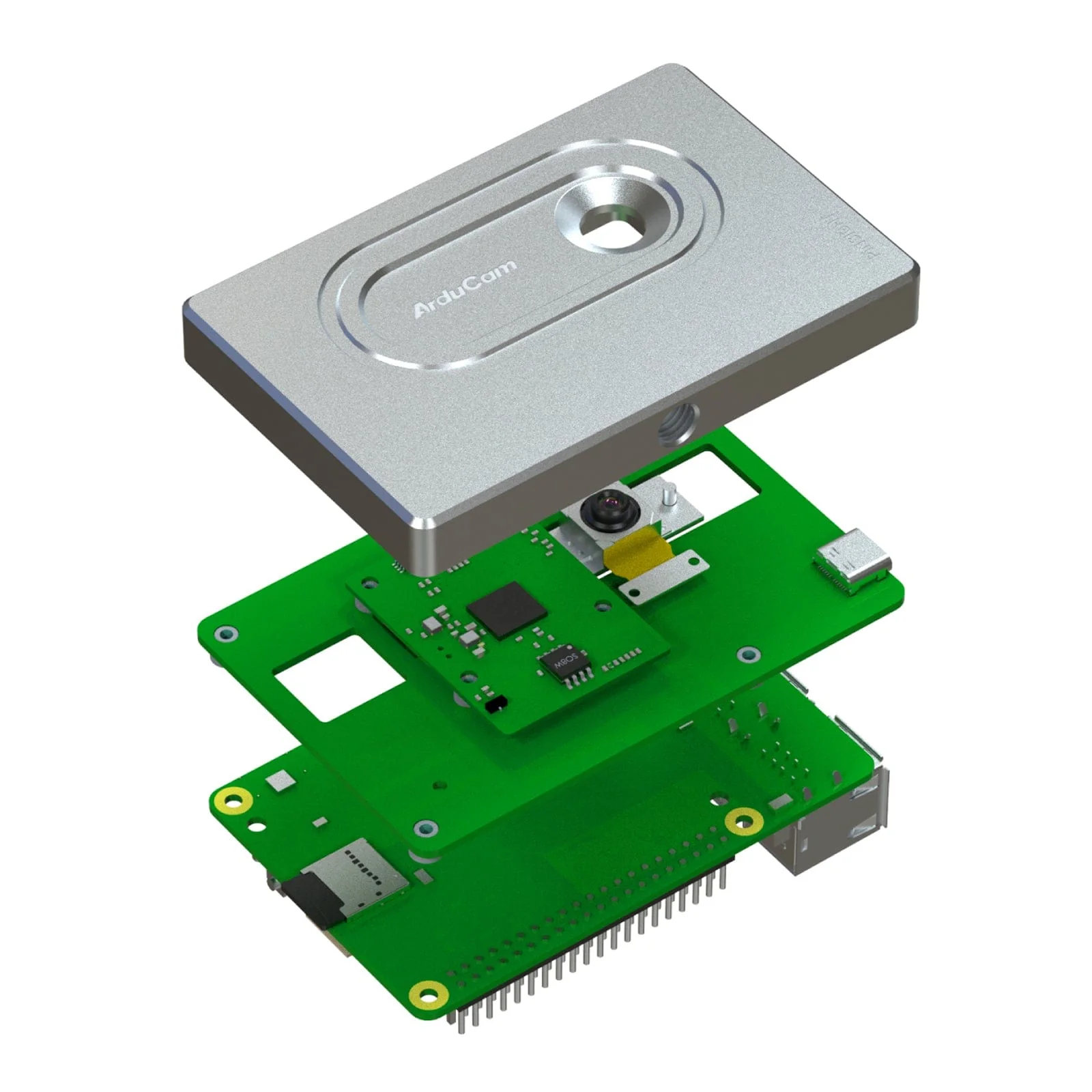

The Arducam Pinsight is a 12MP AI camera module that integrates with the OAK-SoM for efficient video processing and has hardware-based encoding (H.264, H.265, MJPEG). The 4K camera module provides clear visuals and supports 4K/30FPS and 1080P/60FPS encoding. This allows for precise, real-time video processing and the ability to handle multiple video streams simultaneously. This module provides the Raspberry Pi with improved AI vision capabilities and can be used for a range of intelligent applications.
Notes
- The Raspberry Pi Board and the tripod is not included in the package.
- Performance with Rpi 3 and below might be affected.
- To ensure optimal performance, an official Raspberry Pi 25W power supply is recommended.
- Other power supplies may cause the Pi 5 to limit downstream USB current. For power supplies under 25W, enable usb_max_current_enable=1. For power supplies with POE HAT, set PSU_MAX_CURRENT=5000.
Features

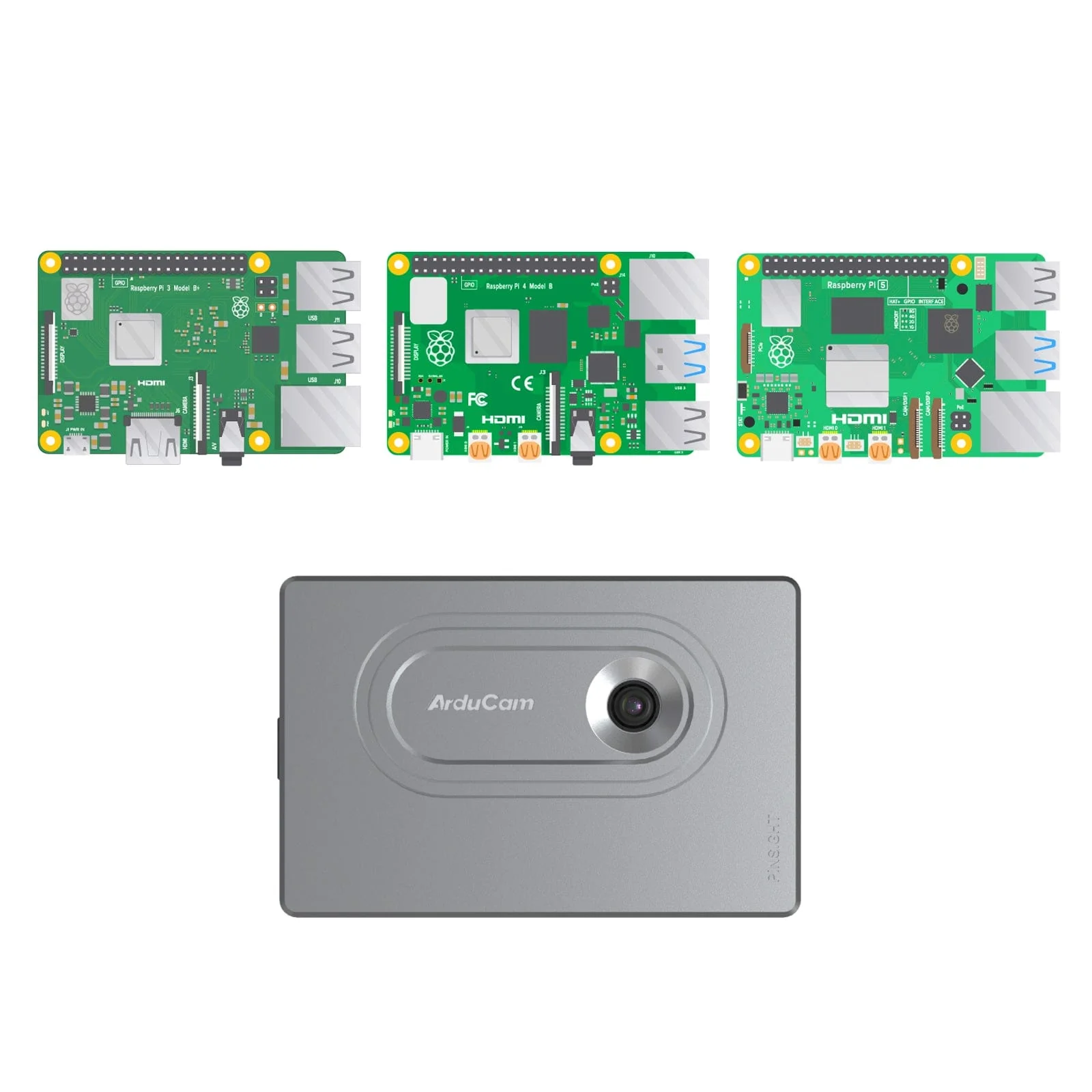

- Seamless Integration: Pinsight effortlessly transforms Raspberry Pi into an AI powerhouse, offering expanded possibilities for intelligent vision. Itâs backwards compatible with Pi 4B/3B+.
- OpenVINO Harmony: Pinsight seamlessly integrates with OpenVINO, enabling flexible deployment of advanced AI capabilities in a diverse ecosystem.
- Efficient Hardware Encoding: OAK-SoM enables hardware-based encoding (H.264, H.265, MJPEG), ensuring superior efficiency, faster video processing, and optimized power consumption when paired with the Arducam 12MP camera module.
- High Performance, Low Power: Pinsight delivers consistent real-time performance with dedicated hardware acceleration, ideal for power-constrained applications, supporting parallel processing of multiple video streams.
- Simple and Affordable: Pinsightâs easy adaptation to Raspberry Pi 5, sleek design, and cost-effectiveness make it the prime choice for an excellent and budget-friendly AI camera solution.
Specifications
| Still Resolution | 12.3 Megapixels |
| Video Modes | 4056 x 3040@30fps, 3840 x 2160@30fps, 1920 x 1080@60fps |
| Output Format | RAW10/YUV/NV12/RGB |
| Sensor Resolution | 4056 x 3040 pixels |
| Sensor image area | 6.287mm x 4.712 mm (7.9mm diagonal) |
| Pixel Size | 1.55 ”m x 1.55 ”m |
| Optical Size | 1/2.3Ⳡ|
| IR Sensitivity | Integral IR-cut Filter, visible light only |
| Focus Type | Auto Focus |
| Focal Length | 4.81mm |
| F.NO | F1.8 |
| Field of View(FOV) | 81°(D) x 69°(H) x 55°(V) |
| Lens Mount | Stock Lens |
| Distortion | ïŒ1% |
| Default Focus Range | 15cm-â |
| Electrical and Mechanical | |

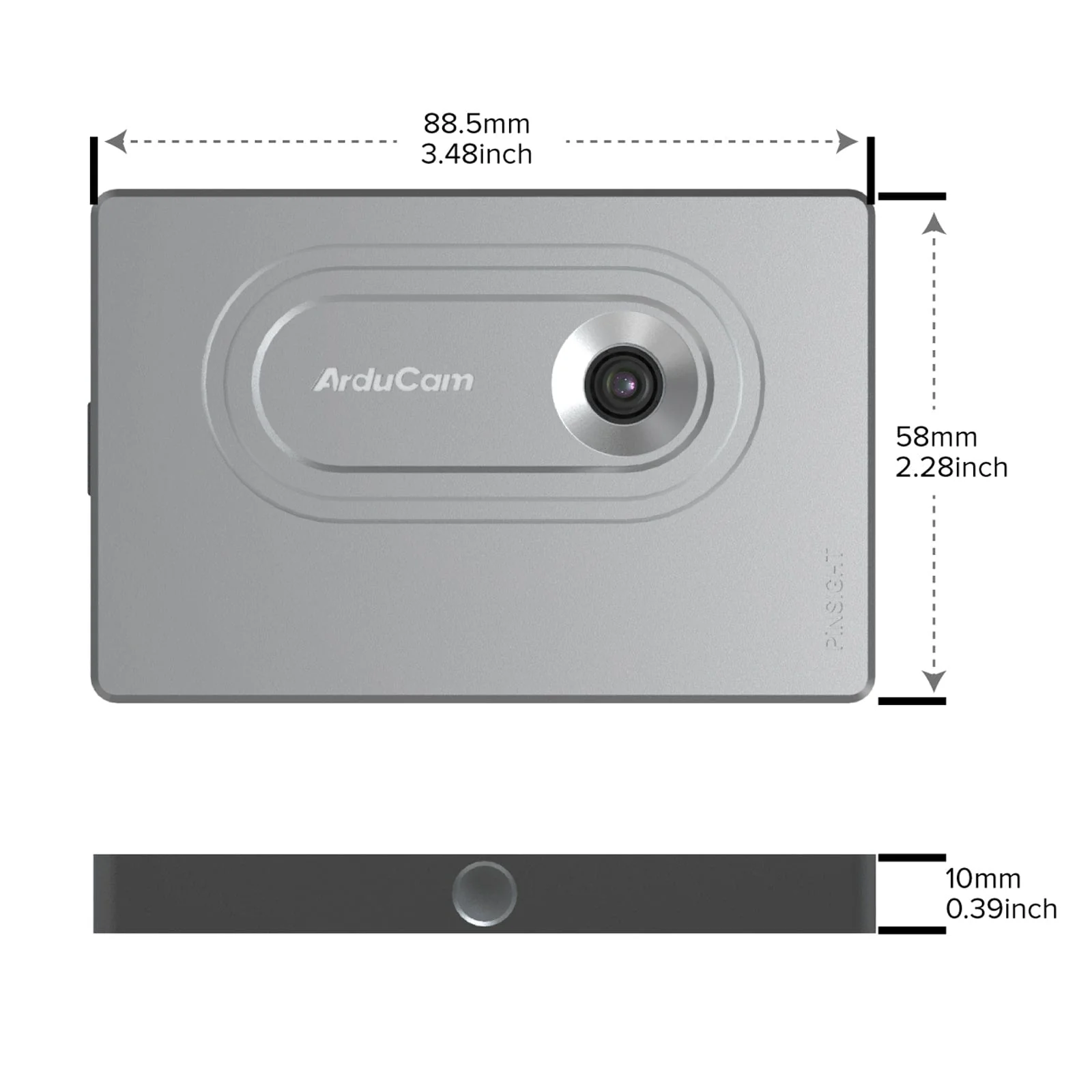

| Overall Size | 88.5 x 58 x 10 mm |
| Operating Temp | -20°C and 50°C |
| Power Requirements | 5V 1A |
Resources
Package Contents
- 1x Arducam Pinsight AI Mate
- 1x 15cm USB 3.0 TyPE-C Cable
