Arduino Nano Screw Terminal Adapter

Build your Arduino Nano projects with secure and long-lasting connections without the need for any soldering!

The Arduino Nano Screw Terminal Adapter gives you reliable, clearly-labelled terminal blocks for your IO connections, great for semi-permanent projects, or project builds with some movement where jumper wires just won't do. The Nano header allows you to switch between the various Nano family boards without soldering while leaving the rest of your project intact.

Whilst the aim of the game here is reliable connections without soldering, there is a small 9x8 2.54mm prototyping area for soldering components for your project, just a handy little extra if you want to use it.

Arduino Nano not included.

Features

• Screw terminal adapter for Arduino Nano family boards
• Each pin is broken out into a reliable terminal block
• Labelled terminal blocks for easy IO identification
• Compatible with all Arduino Nano boards
• Small 9x8 prototyping area
• Corner mounting holes (3.2mm, for M3 screws)
• EAN: 7630049203297
• Product number: Arduino ASX00037

Specifications

Screw terminals	32 screw terminal connections (3.5mm pitch, 16 ˜ 30 AWG)
Connector sockets	2 double-row sockets 15 contacts each (2.54mm pitch)
Prototyping Area	9x8 grid (2.54 mm pitch)
Dimensions	Weight: 29g
	Height: 50.5mm
	Length: 70mm

Resources

• Schematics
• Datasheet

Package Contents

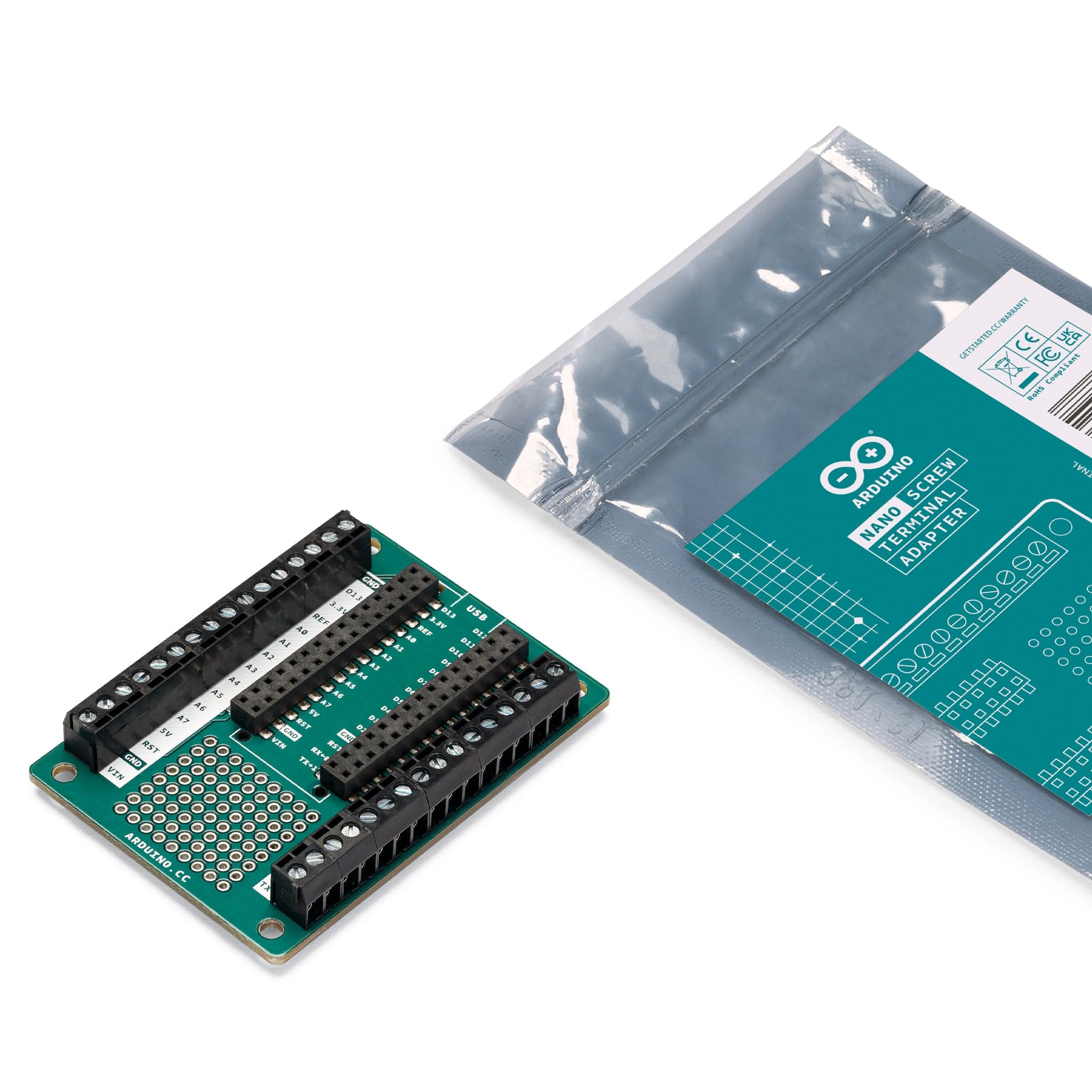

• 1x Arduino Nano Screw Terminal Adapter board

Arduino Nano not included
