Grove - Mega Shield v1.2

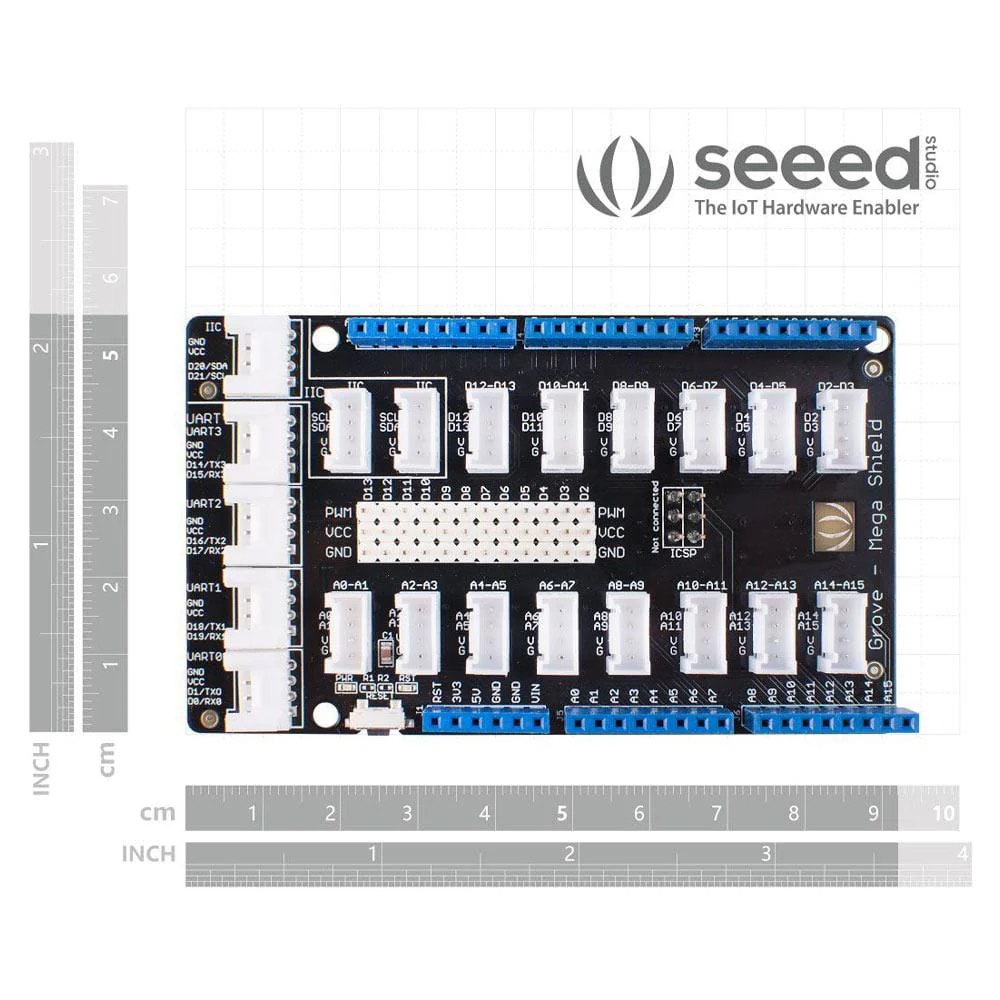

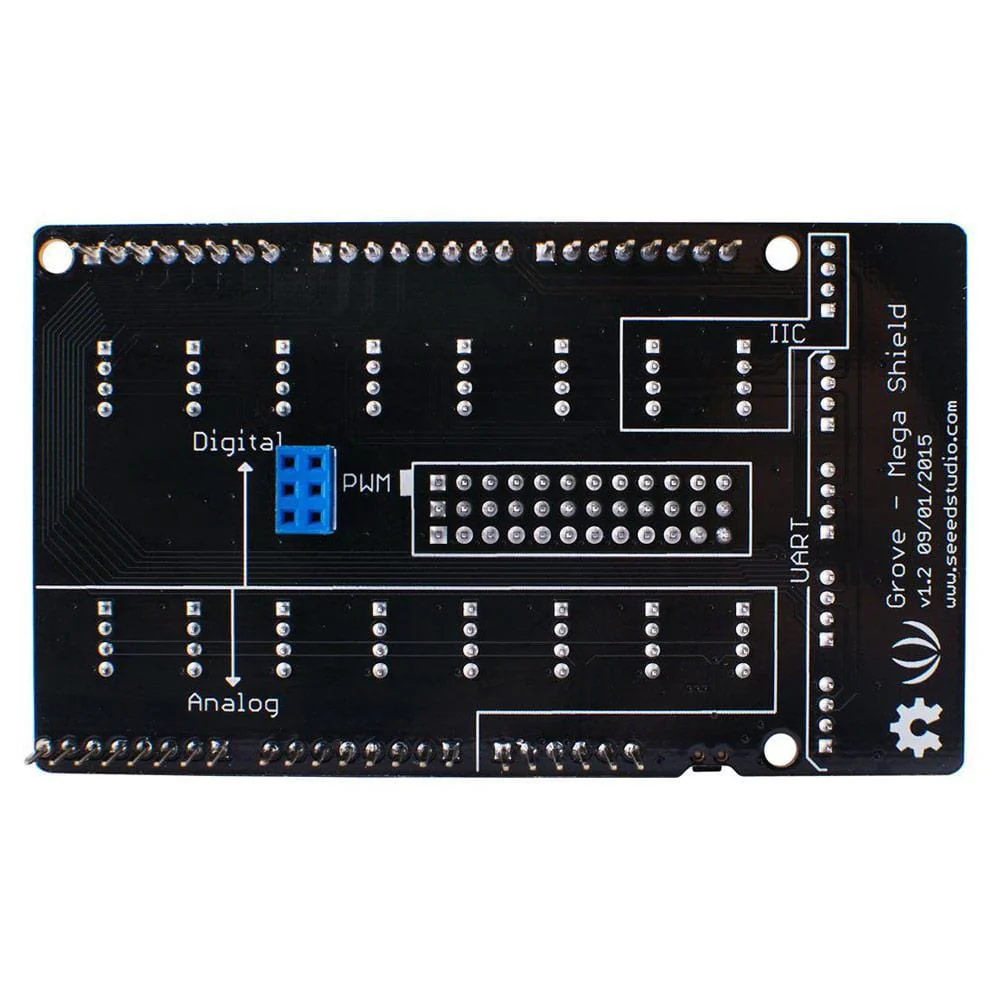

The Grove Mega Shield is an extension board for the Arduino Mega for use with the wide range of Grove modules.
Seeed has standardised all the connectors into 4-pin (Signal 1, Signal 2, VCC and GND) 2mm connectors and kept some of the 3-pin (Signal, VCC and GND) 2.54mm headers for Servos, which simplifies the wiring of electronics projects.
The 4-pin buckled connectors also make wiring more stable. The Mega Shield includes Digital 0-21 and Analogue 0-15. Seeed abandons the Digital 22-53 pins for easily installing the Mega Shield with the Xduino Mega/Google ADK.
Features
- Arduino Mega1280/2560 compatible
- Grove compatible
- Pre-assembled - no soldering
- Pinouts for Servos and similar electronics
- Google ADK compatible
Specification
- Dimensions: 92.8mm x 57.2mm x 15mm
- Weight: 58g
- Product number: Seeed 103020027
Package Contents
- 1x Grove - Mega Shield V1.2
Original: $5.80
-65%$5.80
$2.03Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Grove Mega Shield is an extension board for the Arduino Mega for use with the wide range of Grove modules.
Seeed has standardised all the connectors into 4-pin (Signal 1, Signal 2, VCC and GND) 2mm connectors and kept some of the 3-pin (Signal, VCC and GND) 2.54mm headers for Servos, which simplifies the wiring of electronics projects.
The 4-pin buckled connectors also make wiring more stable. The Mega Shield includes Digital 0-21 and Analogue 0-15. Seeed abandons the Digital 22-53 pins for easily installing the Mega Shield with the Xduino Mega/Google ADK.
Features
- Arduino Mega1280/2560 compatible
- Grove compatible
- Pre-assembled - no soldering
- Pinouts for Servos and similar electronics
- Google ADK compatible
Specification
- Dimensions: 92.8mm x 57.2mm x 15mm
- Weight: 58g
- Product number: Seeed 103020027
Package Contents
- 1x Grove - Mega Shield V1.2
