ATOMIC GPS Base v2.0 (ATGM336H)
The M5 Stack Atomic GPS Base V2.0 uses the AT6668 chip with MAX2659 amplifier and ceramic antenna, supporting GPS, BD2, BD3, GLONASS, GALILEO, and QZSS reception. It outputs via NMEA0183 4.1 protocol, offering high accuracy and strong anti-interference positioning.

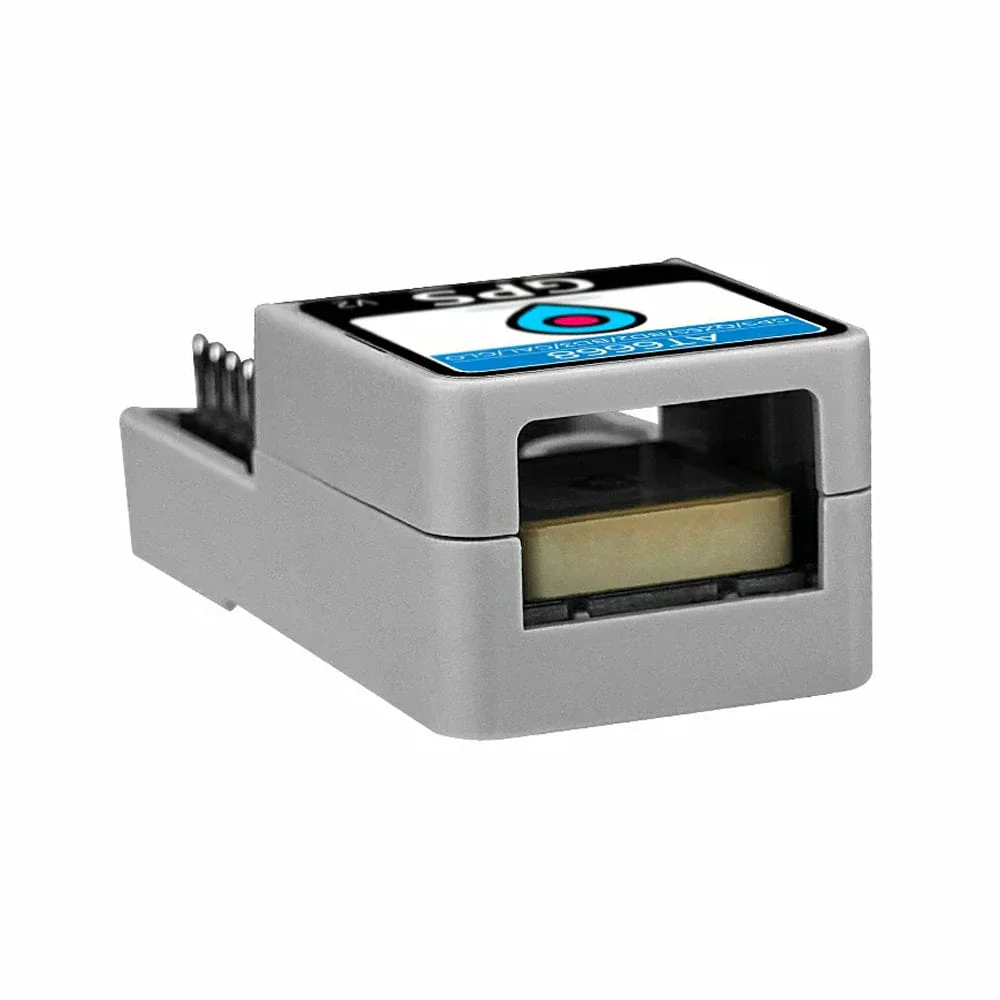

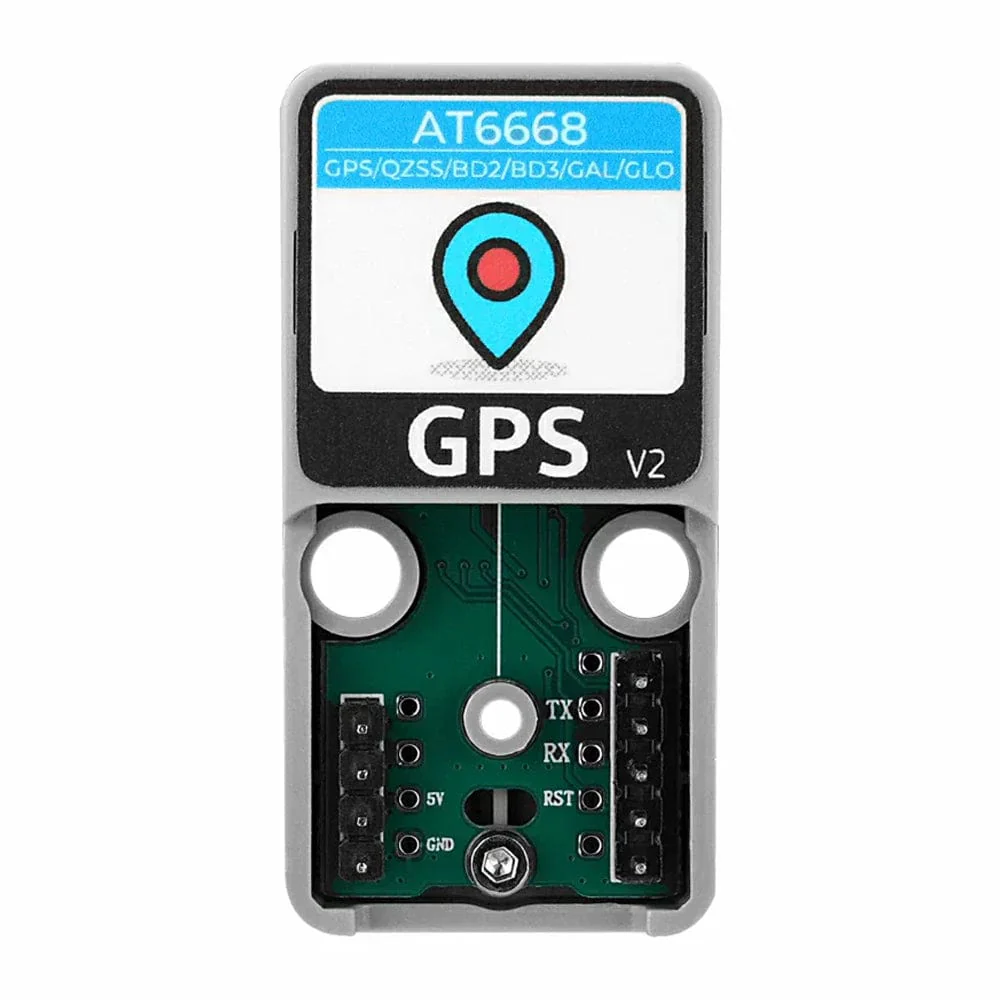

M5Stack Atomic GPS Base V2.0 is a GPS positioning module based on the Atom series of hosts. It integrates a high-performance AT6668 chip with a built-in MAX2659 low-noise amplifier and ceramic antenna, providing accurate and reliable satellite positioning services.
It uses the NMEA0183 4.1 protocol for output and supports multi-frequency and multi-mode GNSS signal reception. It can receive signals from multiple satellite navigation systems such as GPS, BD2, BD3, GLONASS, GALILEO, and QZSS. It can be widely used in applications such as high-precision multi-system joint positioning and single-system independent positioning. It has strong anti-interference ability and high positioning accuracy, making it suitable for vehicle positioning and navigation, IoT positioning devices, industrial automation and robot positioning, and drone positioning.
Features
- Supports single-system positioning for multiple satellite navigation systems (GPS/QZSS/BD2/BD3/GAL/GLO) or multi-system joint positioning with any combination
- Multi-frequency and multi-system reception
- Multi-channel
- Low power consumption
- Maximum positioning update rate of 10Hz
- Development platforms:
- Arduino IDE
- UiFlow1
- UiFlow2
Specifications
| SoC | ATGM336H-6N-74 module @AT6668 |
| Satellite Frequencies | BDS: B1, B1C GPS/QZSS: L1 GALILEO: E1 GLONASS: L1 |
| Positioning Accuracy | <1.5m (CEP50) |
| Channels | 50 |
| Output Frequency | 1Hz (max 10Hz) |
| Startup Time | Cold start: 23s; Hot start: 1s; Reacquisition: 1s |
| Acquisition Time | 1s |
| Baud Rate | 115200bps@8N1 |
| Data Format | NMEA0183 |
| Sensitivity | Tracking: -167dBm; Reacquisition: -160dBm; Cold start: -148dBm; Hot start: -156dBm |
| Power Consumption | Standby current: DC [email protected]; Operating current: DC [email protected] |
| Product Size | 48.0 x 24.0 x 17.5 mm |
| Product Weight | 13.2g |
Resources

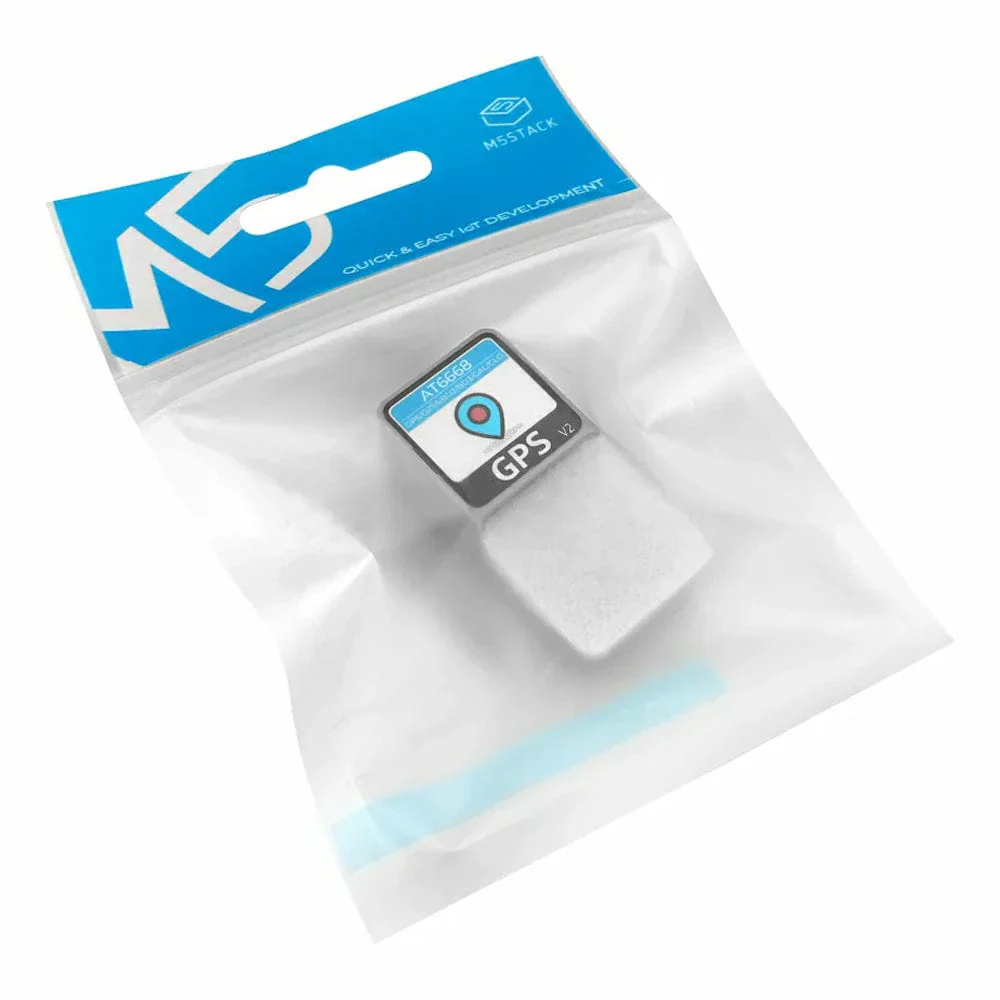

Package Contents
- 1 x Atomic GPS Base v2.0
