12V DC Motor 25D - 100RPM with Hub & Bracket

Want to build a tough Raspberry Pi robot, but need something with a little more oomph?

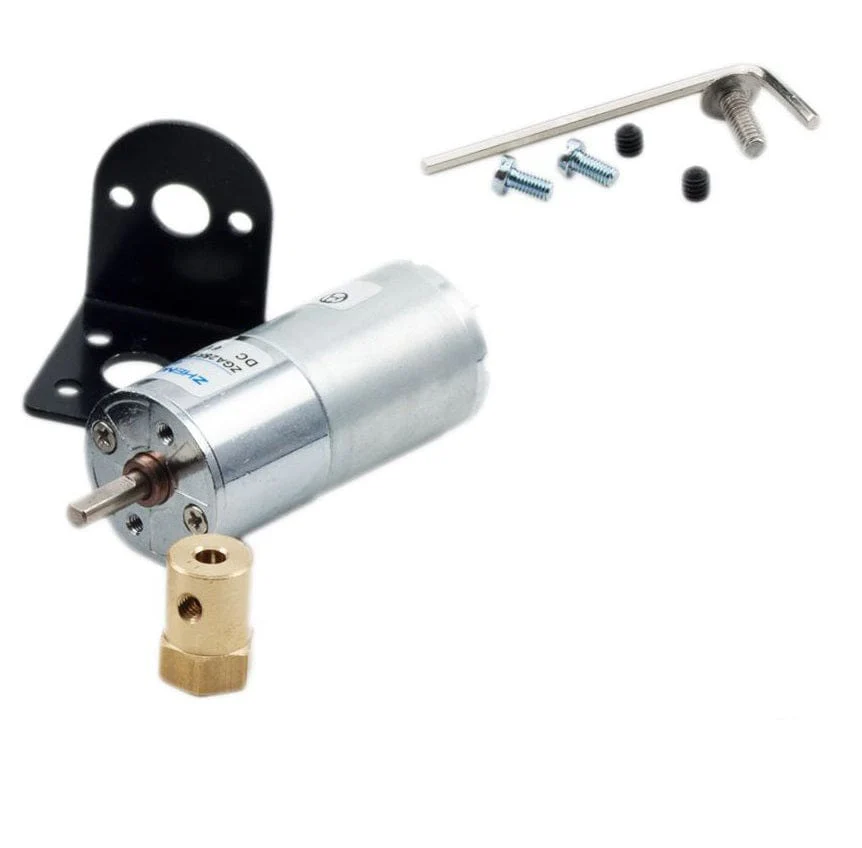

These heavy-duty, all-metal geared 12V 100RPM DC motors are perfect for a Raspberry Pi robot designed to traverse rough terrain! Each kit comes complete with all the mounting hardware required to get you revving in no time:

• 1 x 12V 100RPM DC Motor with all-metal gearing
• 1x 25mm mounting bracket
• 1 x 4mm hub (to fit RC-style 12mm Hex wheels)
• And all the screws required to put it all together!

Need Wheels?

RC-style 12mm hex fitment wheels are available separately in different colours, and fit the included hub coupler:

• White pair with tyres
• SIlver pair with tyres
• Blue pair with tyres
• Red pair with tyres
• Black Off-road pair with tyres

This DC motor can be used with any motor driver, but due to the high torque, we recommend a heavy-duty motor driver.

Includes

• 1 x 12V 100RPM DC Motor with integrated gearbox (metal gearing)
• 1 x 4mm Hub Coupler
• 1 x 25mm Mounting Bracket
• Assorted bolts for assembly

Tools not included

Specification

• Voltage VDC: 12V
• No Load Speed: 110RPM
• No Load Current: 0.12A
• Rated Speed: 100RPM
• Rated Current: 0.23A
• Rated Torque: 0.61kg/cm
• Full Load Speed: 77RPM
• Full Load Torque: 0.12kg/cm
• Motor ID: ZGA25RP60.5i
• Motor Dimensions: 53mm x 25mm x 25mm
