Laser Diode - 5mW 650nm Red

Product image 1
Product image 2
Product image 3

Laser Diode - 5mW 650nm Red

Components & Parts

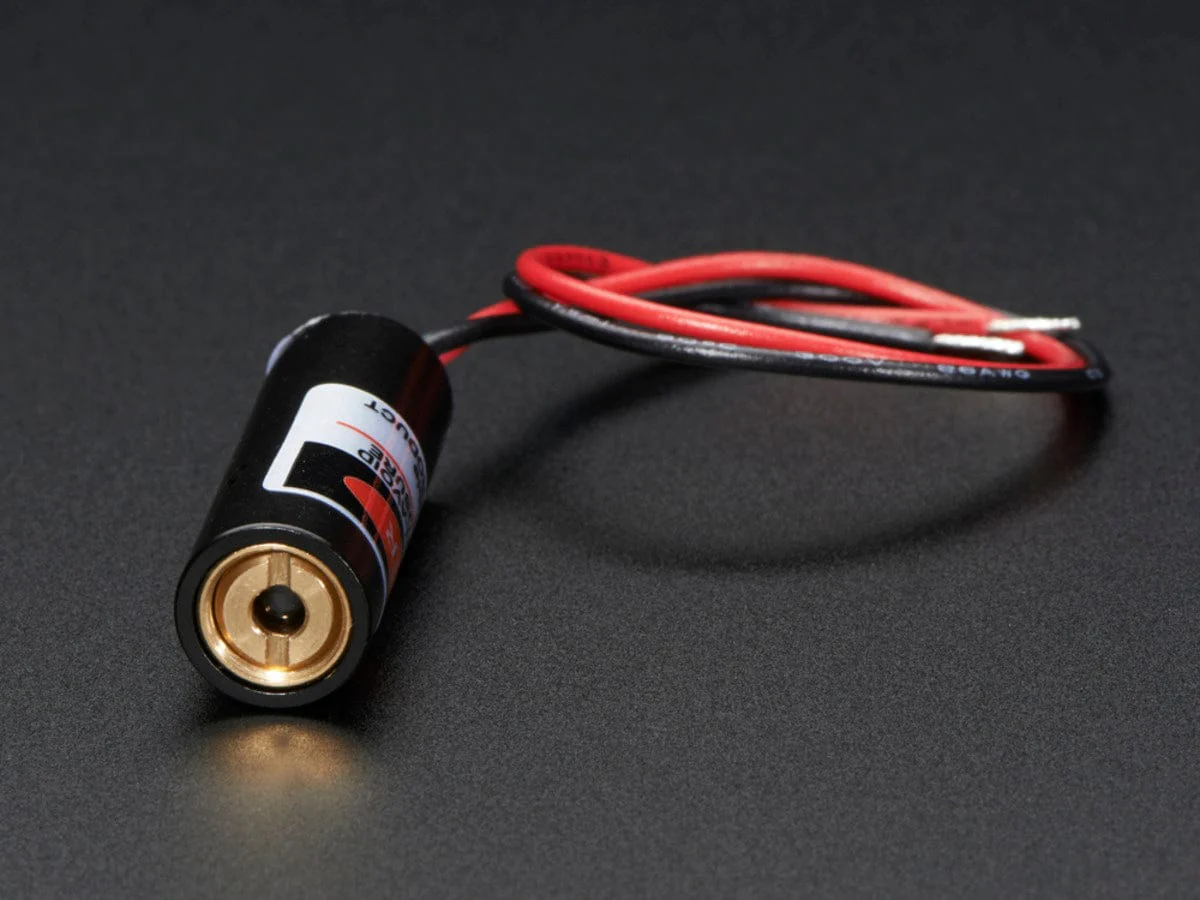

You have some frickin' sharks at your lair, and you're thinking "it would be really great if I could attach some lasers to them" and then you see these little laser diode modules: what great timing! These encapsulated laser diodes are Class IIIa 5mW, with a 650nm red wavelength. They can be driven from 2.8V to 5.2V so they're great for your embedded electronics project. You can use these for laser harps, electronic 'trip wires', laser-vision guidance, and more! Simply connect power to the red and black wires and you will be lasing in no time.

Please note: this is not a laser pointer. It's a diode with integrated driver. You still need a 3 to 5VDC power supply. These diodes are 5mW output, and have a safety label marked on them. For more information on laser safety and ratings check out the Wikipedia page

Technical Details

  • Weight: 6.3g
  • Diameter: 10mm / 0.4"
  • Length: 31mm / 1.2"
  • Wire length: at least 100mm / 3.9"
  • 650nm wavelength
  • 2.8 - 5.2V DC voltage input
  • 25mA max current draw
  • Operating temperature -10°C to 40°C

Resources

    $2.06

    Original: $5.90

    -65%
    Laser Diode - 5mW 650nm Red—

    $5.90

    $2.06

    Product Information

    Shipping & Returns

    Description

    You have some frickin' sharks at your lair, and you're thinking "it would be really great if I could attach some lasers to them" and then you see these little laser diode modules: what great timing! These encapsulated laser diodes are Class IIIa 5mW, with a 650nm red wavelength. They can be driven from 2.8V to 5.2V so they're great for your embedded electronics project. You can use these for laser harps, electronic 'trip wires', laser-vision guidance, and more! Simply connect power to the red and black wires and you will be lasing in no time.

    Please note: this is not a laser pointer. It's a diode with integrated driver. You still need a 3 to 5VDC power supply. These diodes are 5mW output, and have a safety label marked on them. For more information on laser safety and ratings check out the Wikipedia page

    Technical Details

    • Weight: 6.3g
    • Diameter: 10mm / 0.4"
    • Length: 31mm / 1.2"
    • Wire length: at least 100mm / 3.9"
    • 650nm wavelength
    • 2.8 - 5.2V DC voltage input
    • 25mA max current draw
    • Operating temperature -10°C to 40°C

    Resources
