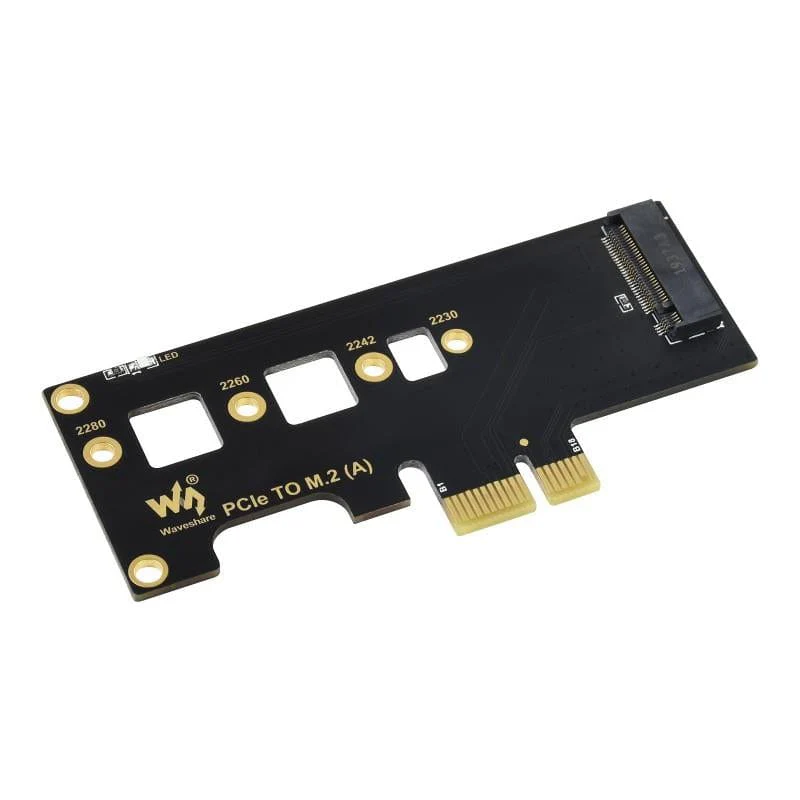

PCIe to M.2 Adapter (A) for Raspberry Pi CM4 IO Board

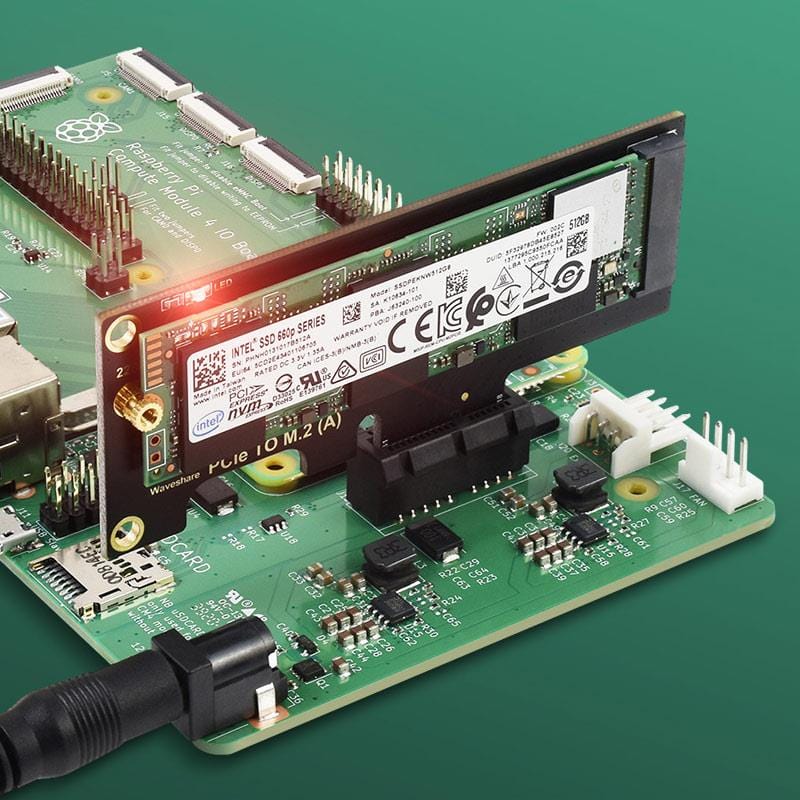

The Compute Module 4 IO board includes a 1x PCIe Gen 2.0 slot allowing you to add additional hardware to your CM4 projects. This PCI-E to M.2 adapter allows you to use an NVMe (M Key) M.2 SSD with your CM4 IO board.

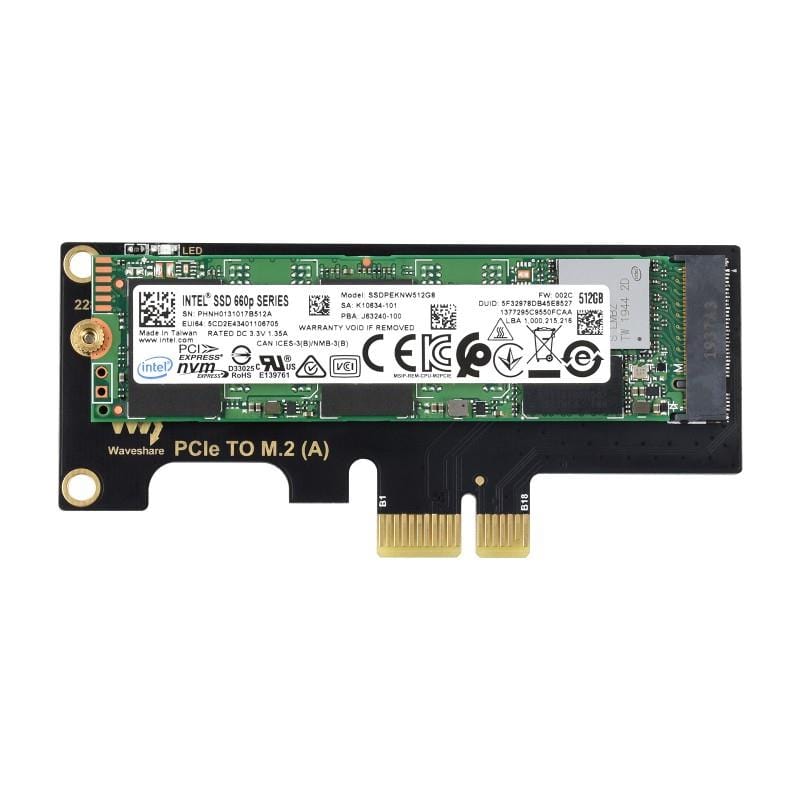

The adapter can accept different-sized M.2 SSDs including 2230, 2242, 2260 and 2280 format.
When powered on, the onboard LED will light up and blink during activity (reading/writing).
Note: SSD, CM4 and IO board not included.
Features
- Compatible with Compute Module 4 IO board

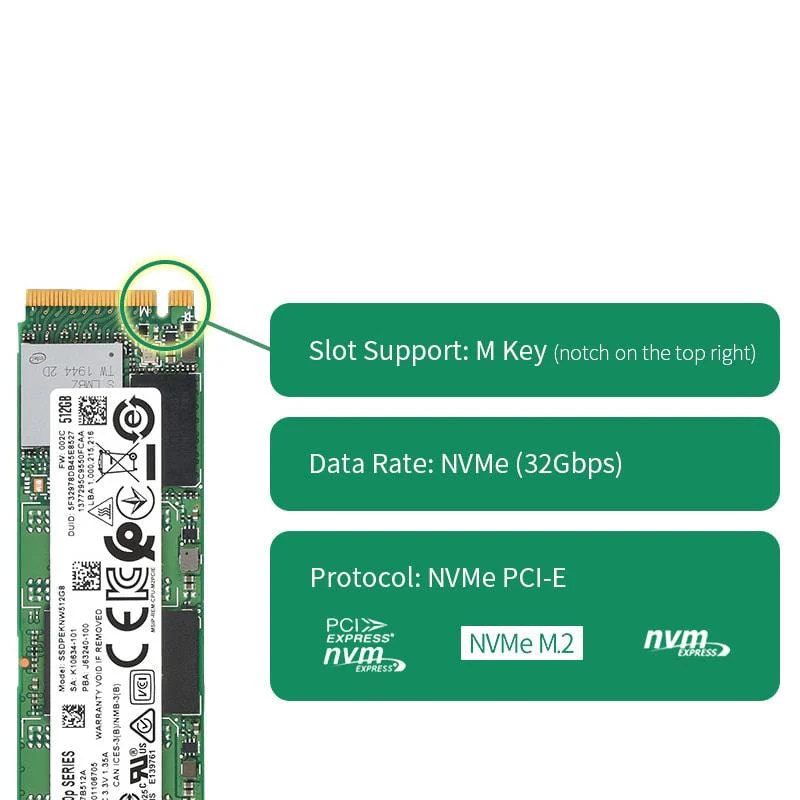

- Compatible with M.2 NVMe SSDs (M Key)
- Data Rate: 32Gbps (dependant on attached hardware/controller - CM4 rates limited to PCI-E x1 data transfer speeds)
- Supports PCI-E x1, x4, x8 and x16 sockets
- Immersion Gold contacts

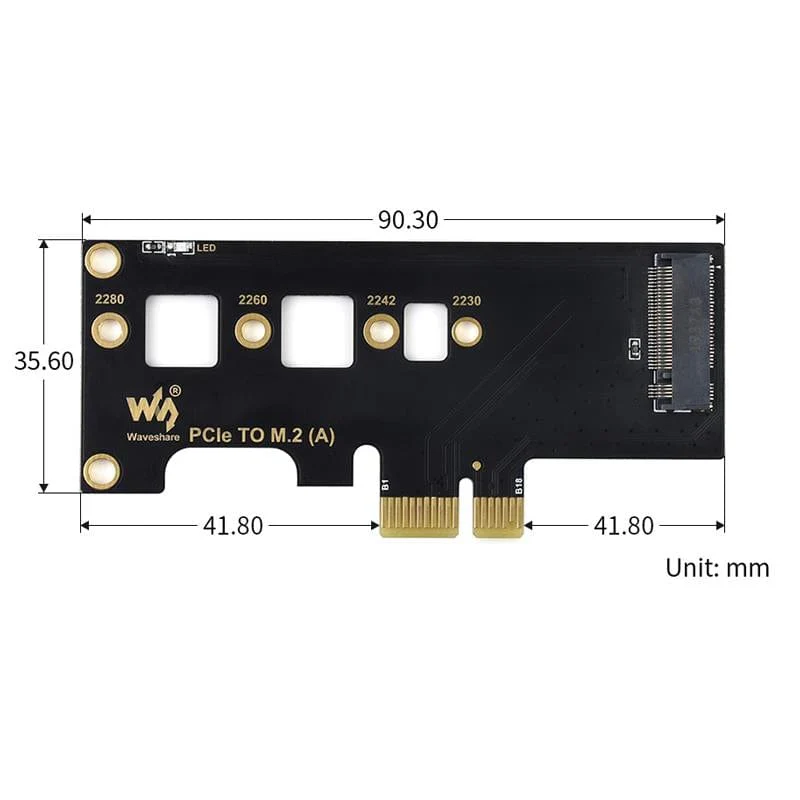

- Dimensions: 90.30mm x 35.60mm
Package Contents
- PCI-E adapter
- Fixings pack
Original: $3.90
-65%$3.90
$1.36Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Compute Module 4 IO board includes a 1x PCIe Gen 2.0 slot allowing you to add additional hardware to your CM4 projects. This PCI-E to M.2 adapter allows you to use an NVMe (M Key) M.2 SSD with your CM4 IO board.
The adapter can accept different-sized M.2 SSDs including 2230, 2242, 2260 and 2280 format.
When powered on, the onboard LED will light up and blink during activity (reading/writing).
Note: SSD, CM4 and IO board not included.
Features
- Compatible with Compute Module 4 IO board
- Compatible with M.2 NVMe SSDs (M Key)
- Data Rate: 32Gbps (dependant on attached hardware/controller - CM4 rates limited to PCI-E x1 data transfer speeds)
- Supports PCI-E x1, x4, x8 and x16 sockets
- Immersion Gold contacts
- Dimensions: 90.30mm x 35.60mm
Package Contents
- PCI-E adapter
- Fixings pack
