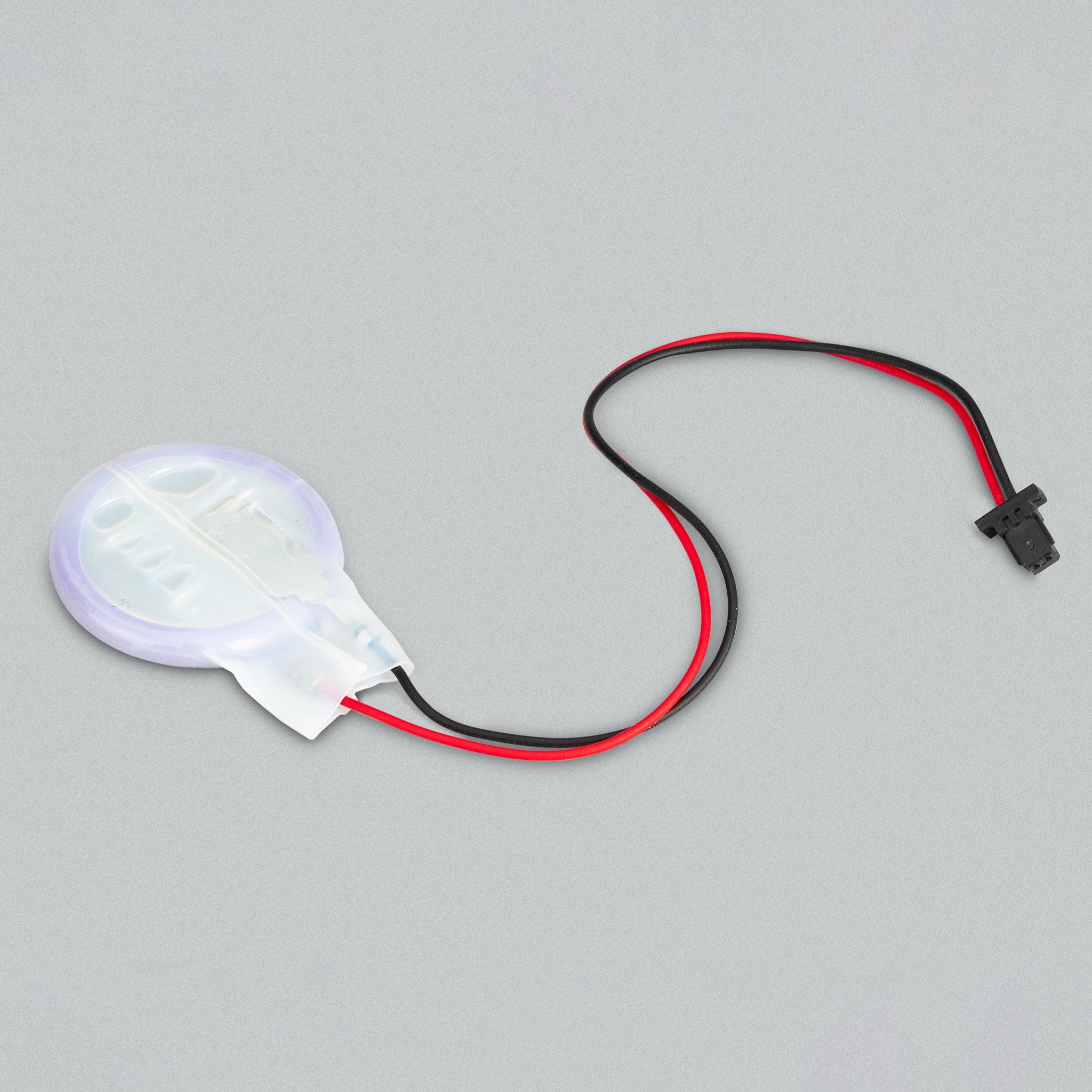

RTC Battery for Raspberry Pi 5

This rechargeable lithium battery is designed to be used with Raspberry Pi 5 to power the onboard real-time clock (RTC) whenever mains power is disconnected.

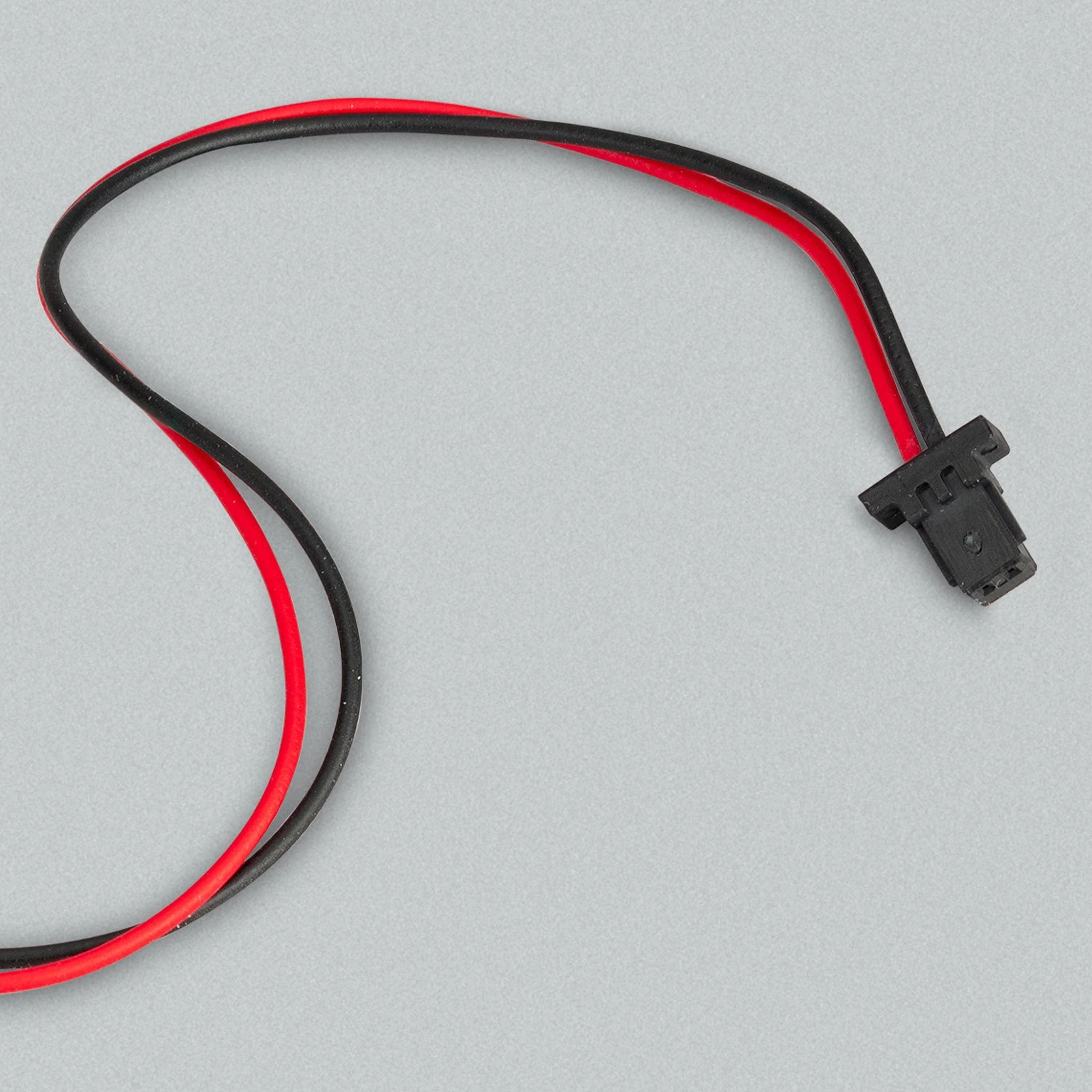

This battery comes with a compatible connector for the dedicated backup battery header on the Raspberry Pi board (labelled 'BAT', next to the USB-C connector).

The power-management IC used on Raspberry Pi 5 integrates a real-time clock and charging circuitry for these button cells, which can power the clock while mains power is disconnected, and will also recharge the battery when power is connected.

A double-sided adhesive pad is included.

Note: The charging circuit on Raspberry Pi 5 is not enabled by default - please see the official Raspberry Pi documentation for instructions on how to enable charging.

---

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart, your shipping options will be limited to DHL. Why?

---

Features

• RTC battery for Raspberry Pi 5

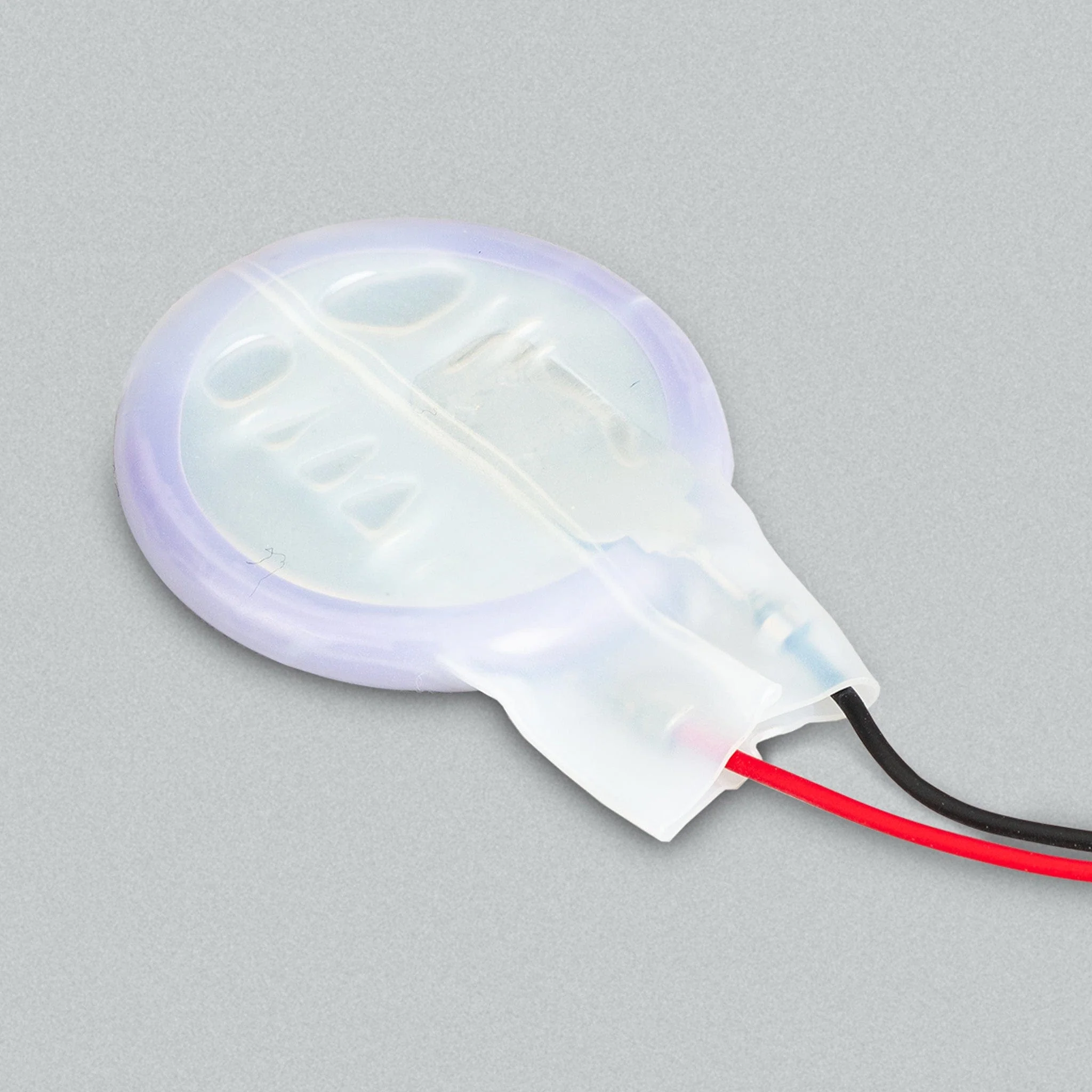

• Panasonic ML-2020 lithium manganese dioxide rechargeable battery
• Nominal capacity (according to public datasheet): 45mAh
• Fitted with a compatible header for Raspberry Pi 5 RTC battery socket

Package Contents

• 1x RTC battery for Raspberry Pi 5

Raspberry Pi not included

Resources

• Documentation
  • Enable battery charging on Raspberry Pi 5
• EAN: 5056561803739
• SKU: SC1163

Revision History

• Initial batches did not include an adhesive pad, however as of March 2024 these now come with the product,.
