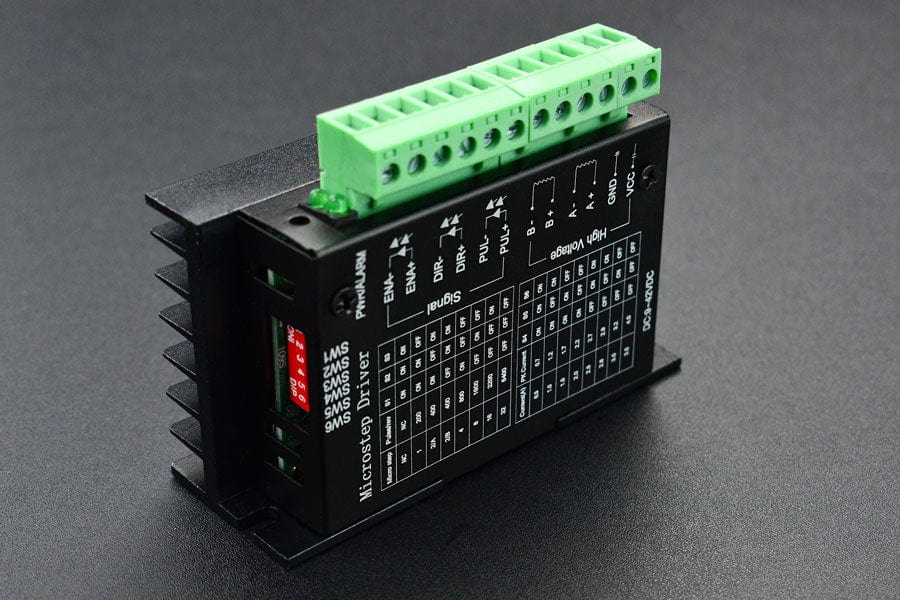

TB6600 Stepper Motor Driver
Motor Drivers
Features
Support 8 kinds of current control
Support 7 kinds of micro steps adjustable
The interface adopts high-speed optocoupler isolation
Automatic semi-flow to reduce heat

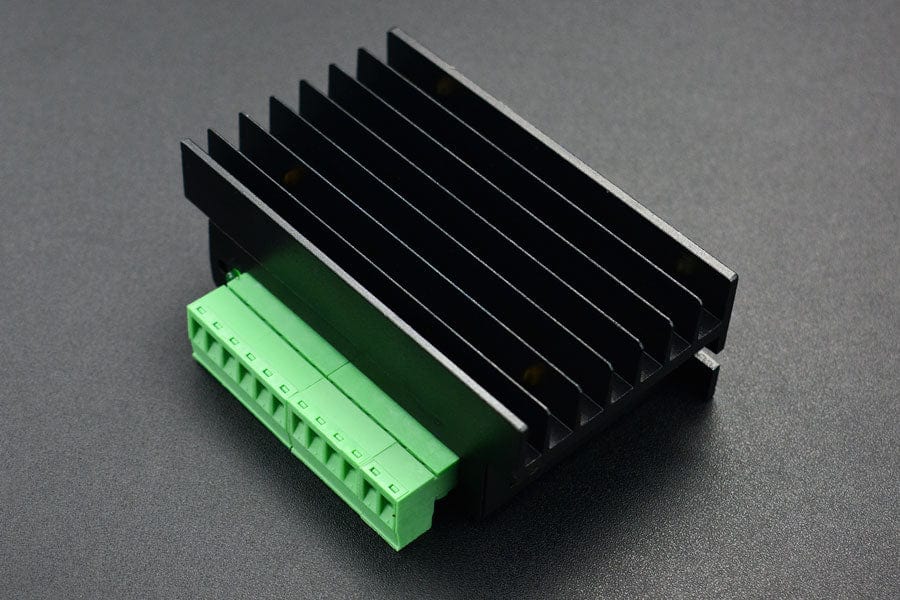

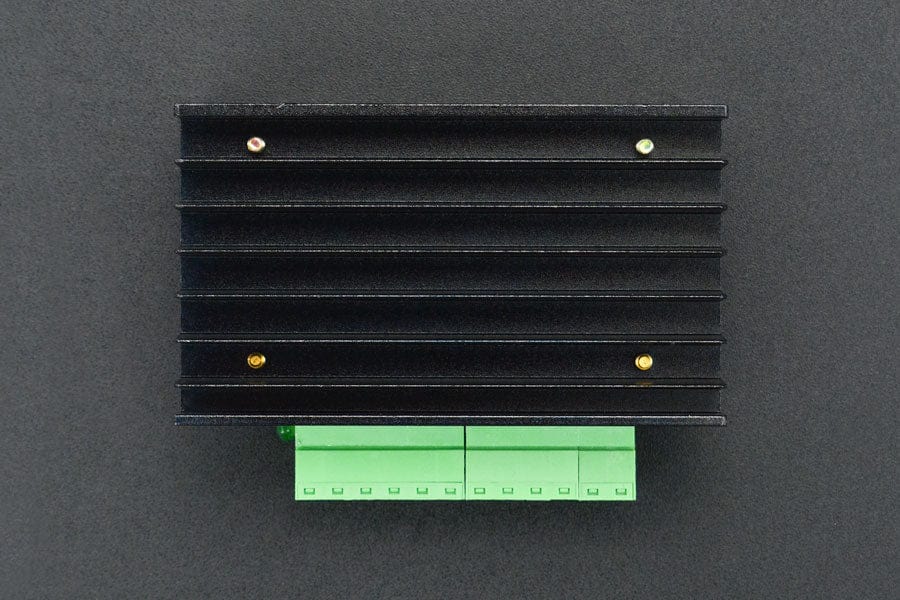

Large area heat sink
Anti-high-frequency interference ability
Input anti-reverse protection
Overheat, over current and short circuit protection
Specification
Input Current: 0~5A
Output Current: 0.5-4.0A
Control Signal: 3.3~24V
Power (MAX): 160W
Micro Step: 1, 2/A, 2/B, 4, 8, 16, 32
Temperature: -10～45℃
Humidity: No Condensation
Dimension: 96*56*33 mm/ 3.78*2.2*1.3 inches
Weight: 0.2 kg
Drive IC: TB67S109AFTG
Documents
Shipping List
TB6600 Stepper Motor Driver x1
What is a stepper motor?
Stepper motor is a brushless DC electric motor that divides a full rotation into a number of equal steps The motor's position can then be commanded to move and hold at one of these steps.
How to control a stepper motor?
The fast way to control a stepper motor is just using a stepper motor driver (controller). And TB6600 arduino is just what you need.
TB6600 arduino is an easy-to-use professional stepper motor driver, which could control a two-phase stepping motor. It is compatible with Arduino and other microcontrollers that can output a 5V digital pulse signal. TB6600 arduino stepper motor driver has a wide range power input, 9~42VDC power supply. And it is able to output 4A peak current, which is enough for the most of Stepper motor .

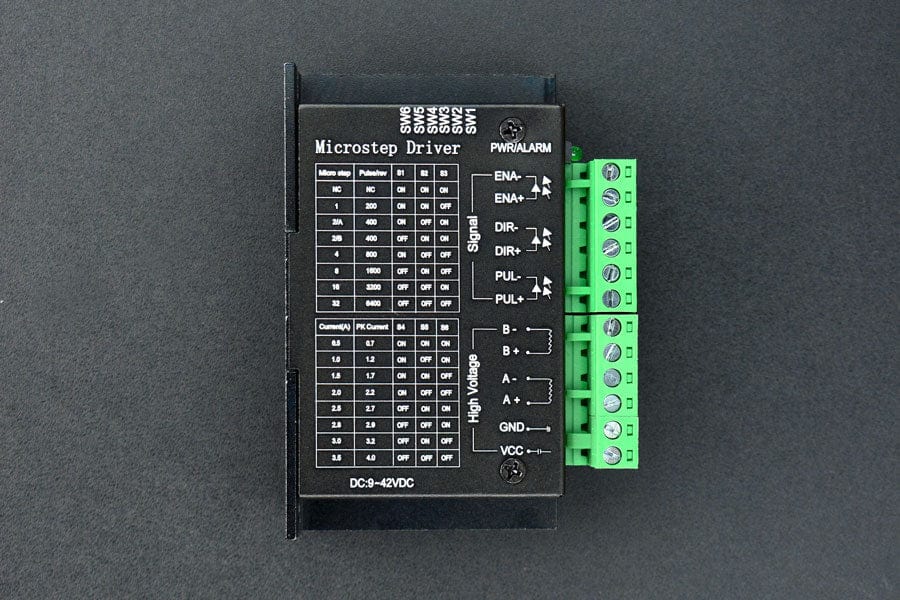

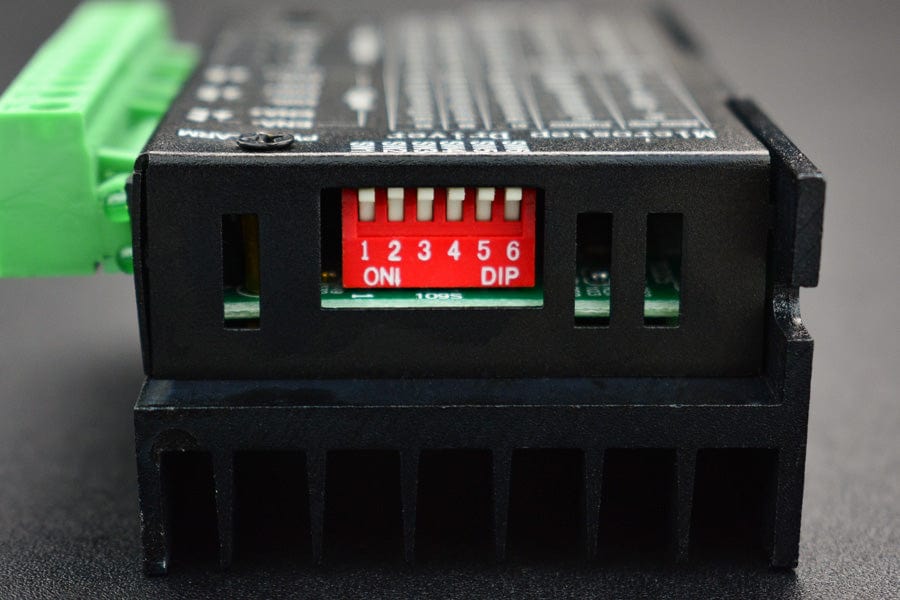

The stepper driver supports speed and direction control. You can set its micro step and output current with 6 DIP switch. There are 7 kinds of micro steps (1, 2 / A, 2 / B, 4, 8, 16, 32) and 8 kinds of current control (0.5A, 1A, 1.5A, 2A, 2.5A, 2.8A, 3.0A, 3.5A) in all. And all signal terminals adopt high-speed optocoupler isolation, enhancing its anti-high-frequency interference ability.
As a professional device, it is able to drive 57, 42-type two-phase, four-phase, hybrid stepper motor.
Note: this is a newest upgrade version of TB6600 stepper motor driver.
Stepper motor is a brushless DC electric motor that divides a full rotation into a number of equal steps The motor's position can then be commanded to move and hold at one of these steps.
How to control a stepper motor?
The fast way to control a stepper motor is just using a stepper motor driver (controller). And TB6600 arduino is just what you need.
TB6600 arduino is an easy-to-use professional stepper motor driver, which could control a two-phase stepping motor. It is compatible with Arduino and other microcontrollers that can output a 5V digital pulse signal. TB6600 arduino stepper motor driver has a wide range power input, 9~42VDC power supply. And it is able to output 4A peak current, which is enough for the most of Stepper motor .
The stepper driver supports speed and direction control. You can set its micro step and output current with 6 DIP switch. There are 7 kinds of micro steps (1, 2 / A, 2 / B, 4, 8, 16, 32) and 8 kinds of current control (0.5A, 1A, 1.5A, 2A, 2.5A, 2.8A, 3.0A, 3.5A) in all. And all signal terminals adopt high-speed optocoupler isolation, enhancing its anti-high-frequency interference ability.
As a professional device, it is able to drive 57, 42-type two-phase, four-phase, hybrid stepper motor.
Note: this is a newest upgrade version of TB6600 stepper motor driver.
