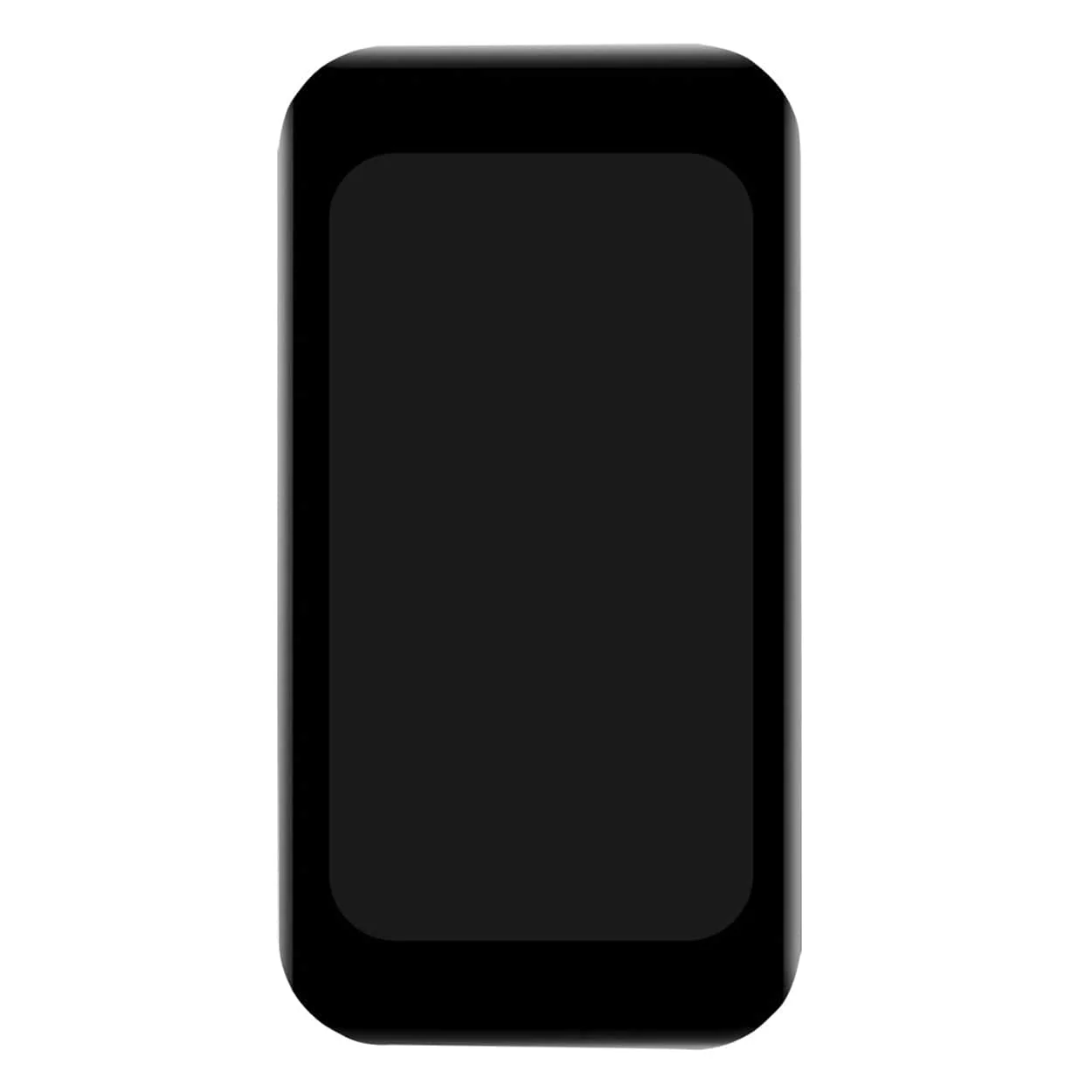

1.47" IPS LCD Display Module with Touch (172x320)

This compact Waveshare 1.47" IPS LCD display module includes capacitive touch, uses SPI and I2C communication, and can display 262K colours.

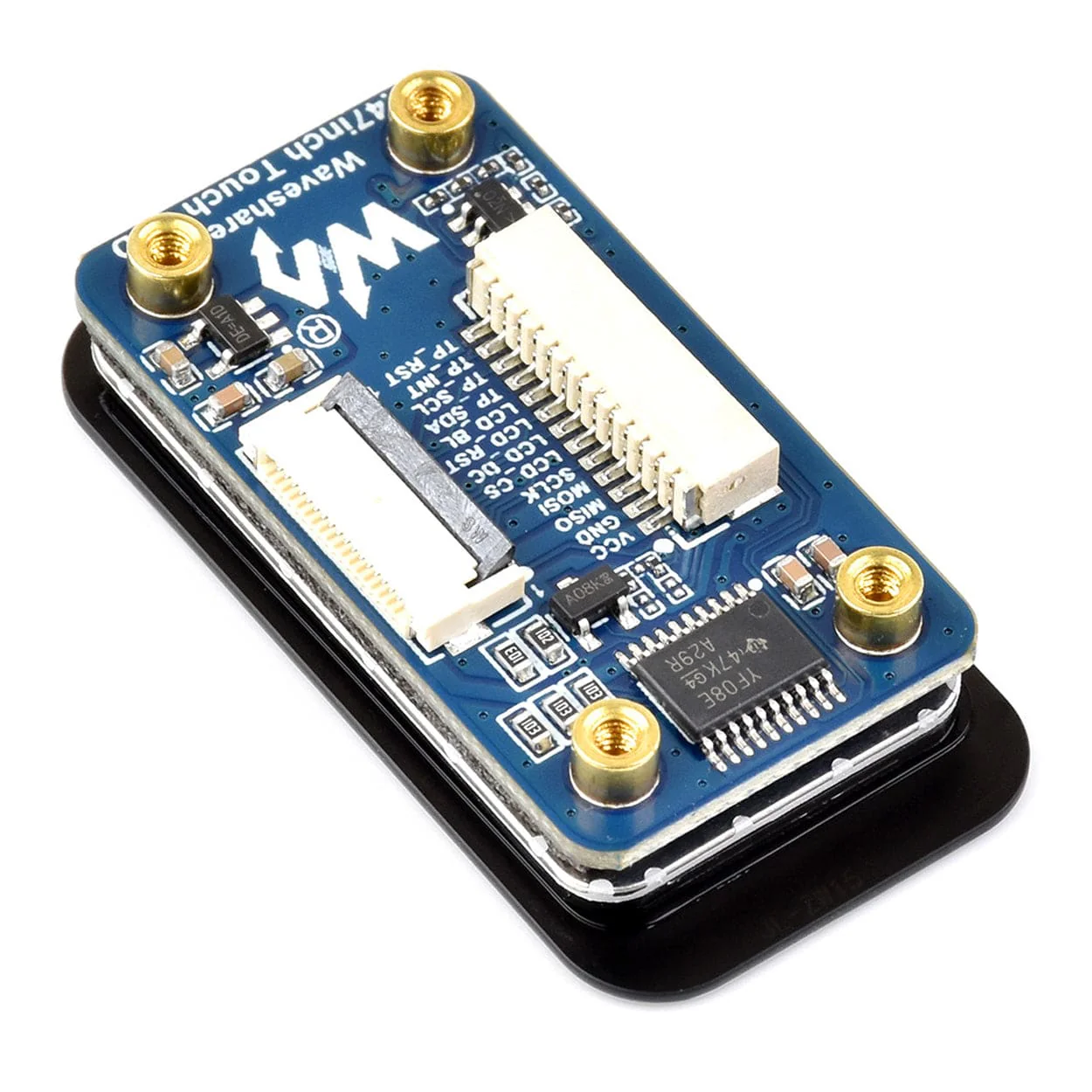

With overall dimensions of just 41.69mm x 22.05mm, it's a neat little LCD to embed into a project, and mounting is made easier thanks to the thin bezel and rear M2 mounting posts.

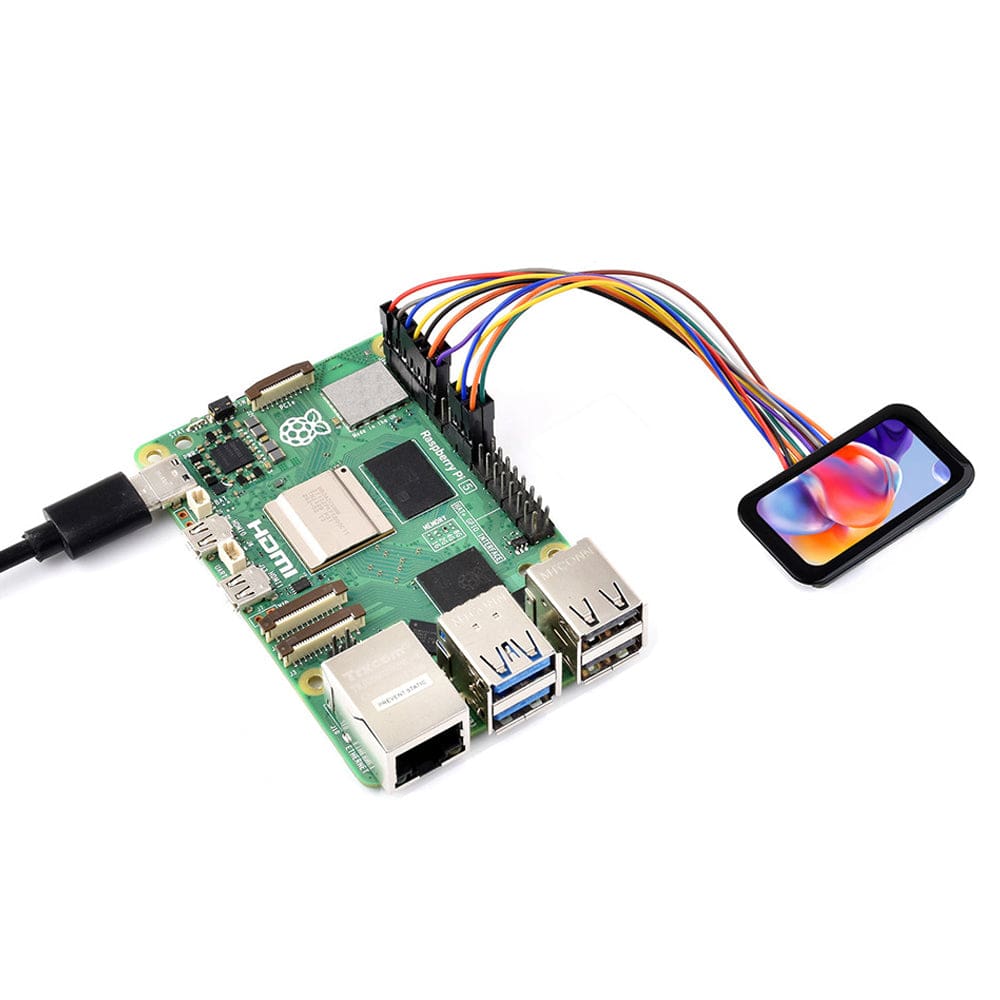

Connecting to your dev board of choice is simple, thanks to the included 100mm assembly cable. Waveshare provides example scripts for Raspberry Pi, Pico, Arduino, and ESP32, giving you a starting point to work from and use for your own project.

Features

• 172×320 resolution
• 262K colours
• High touch screen transmittance
• Embedded JD9853 driver chip
• AXS5106L capacitive touch control chip
• SPI and I2C communication
• Supports Raspberry Pi / ESP32 / Raspberry Pi Pico / Arduino
• Online development resources and manual

Specifications

Operating voltage	3.3V / 5V
Resolution	172 × 320 pixels
Display driver	JD9853
Touch driver	AXS5106L
Display interface	4-wire SPI
Touch interface	I2C
Display panel	IPS
Touch type	Capacitive
Display size	17.75 × 32.93 mm

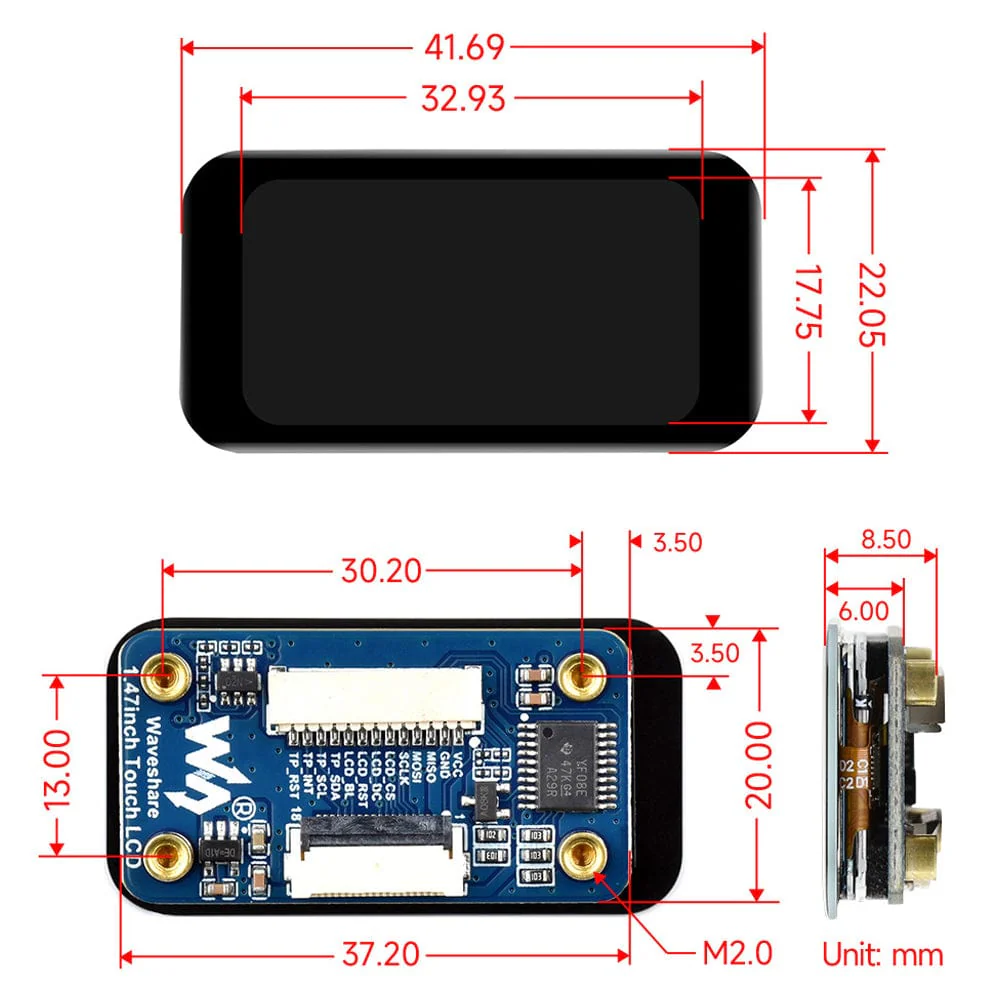

Module size	22.05 × 41.69 mm

Resources

• Product Wiki

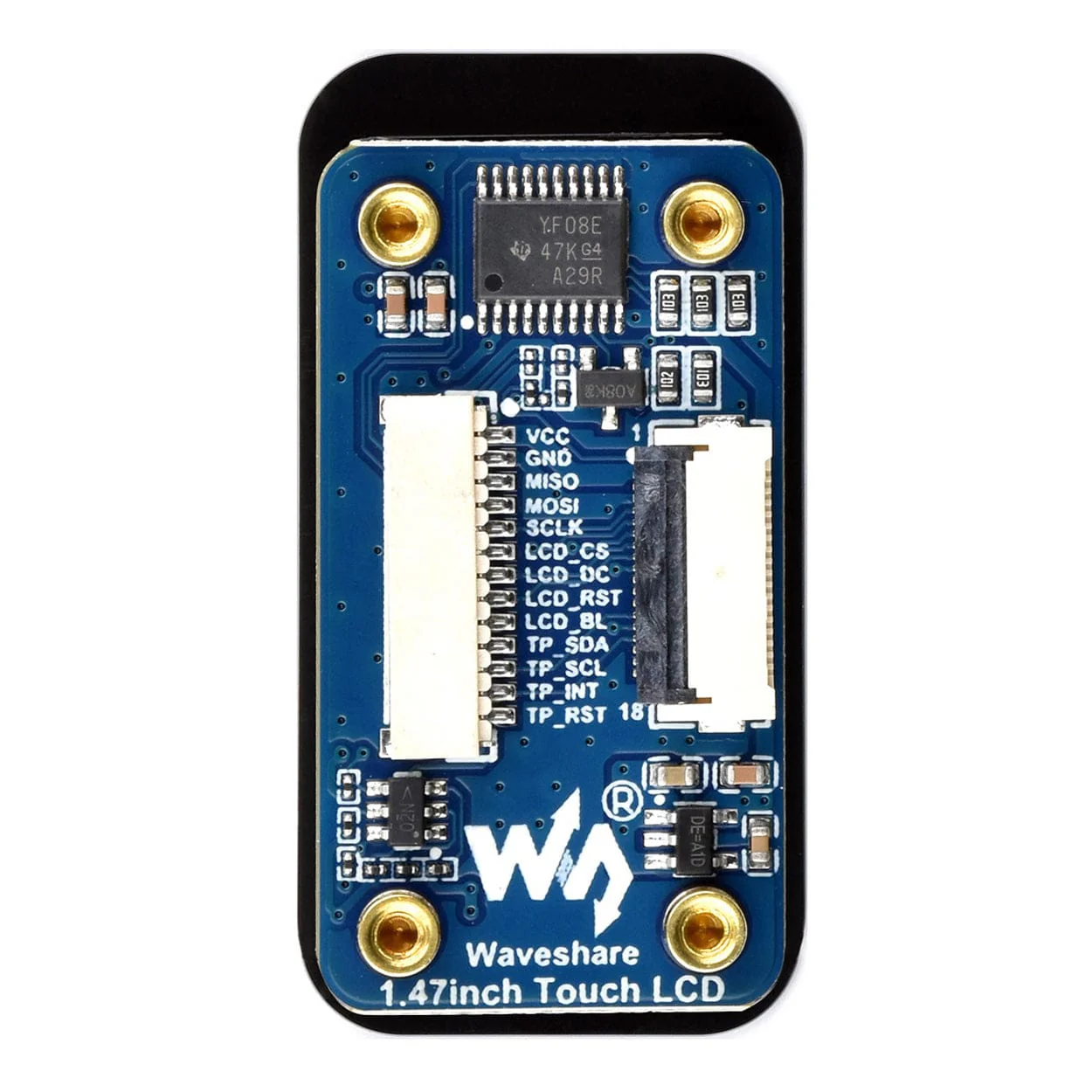

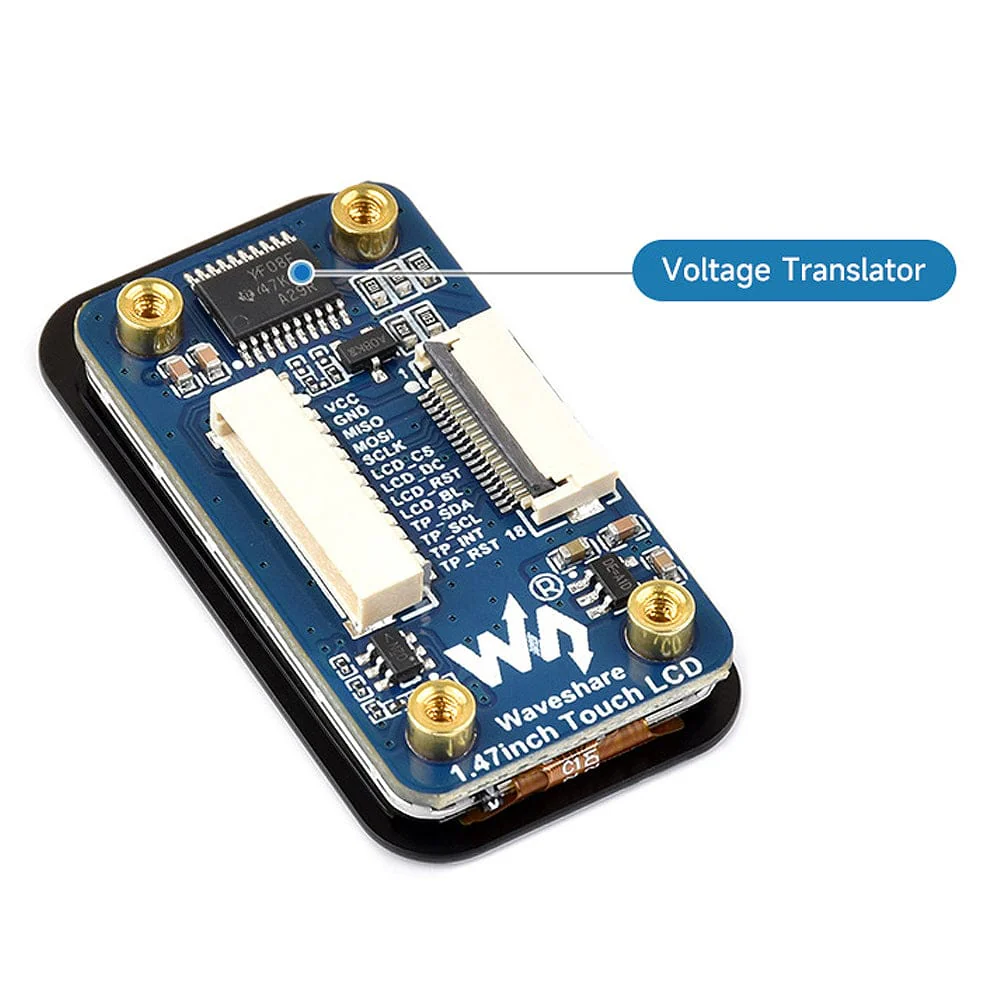

Pinout

VCC	Power (3.3V / 5V input)
GND	Ground
MISO	SPI MISO pin
MOSI	SPI MOSI pin
SCLK	SPI clock pin
LCD_CS	LCD chip selection, low active
LCD_DC	LCD data/command selection (high for data, low for command)
LCD_RST	LCD reset, low active
LCD_BL	LCD backlight
TP_SDA	TP data pin
TP_SCL	TP clock pin
TP_INT	TP interrupt pin
TP_RST	TP reset, low active

Package Contents

• 1x 1.47" IPS LCD Display Module with Touch (172x320)

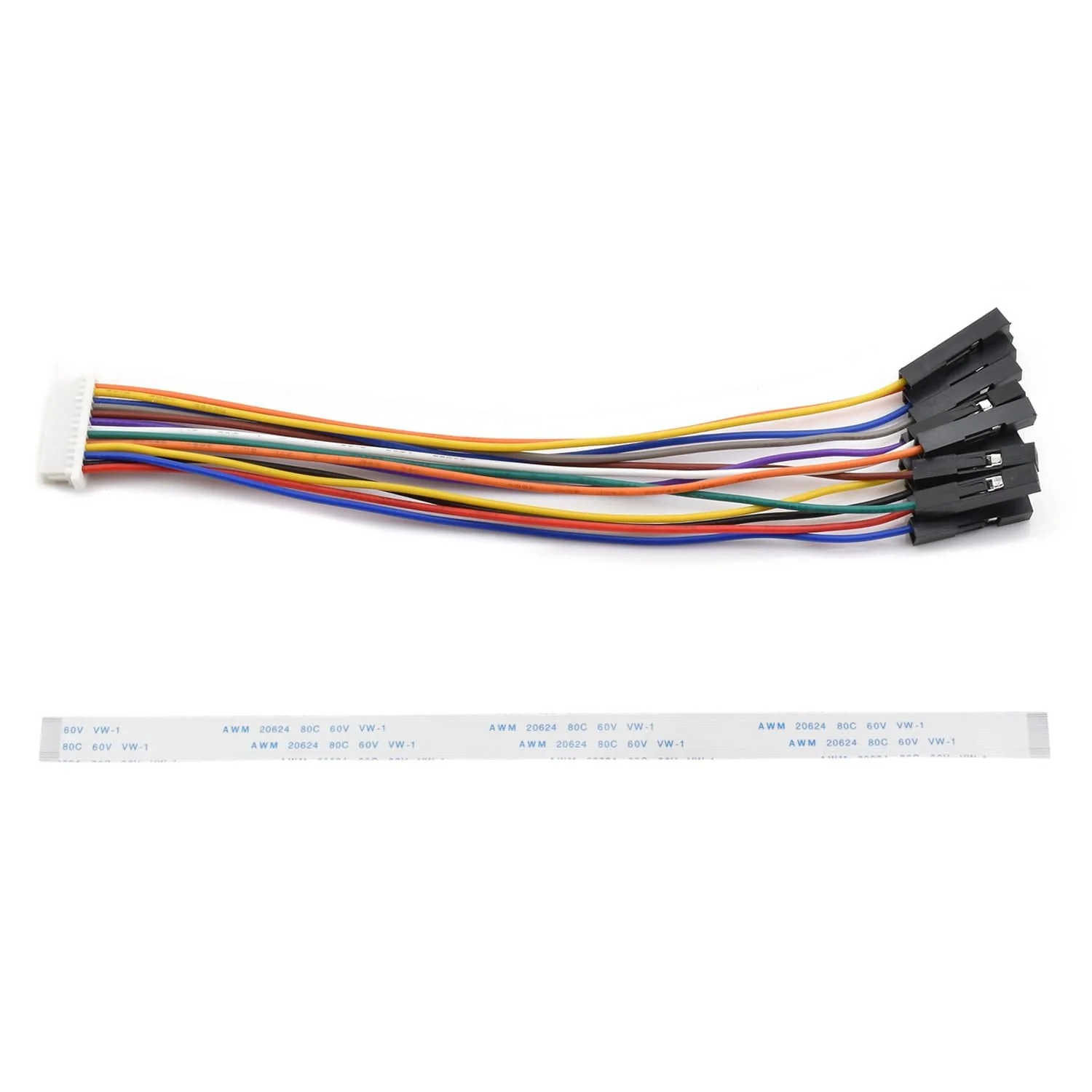

• 1x 100mm SH1.0 13-pin cable
• 1x FFC Cable
