10.2" Four-Colour ePaper Display (G) with Driver HAT for Raspberry Pi
10.2" Four-Colour ePaper Display (G) with Driver HAT for Raspberry Pi

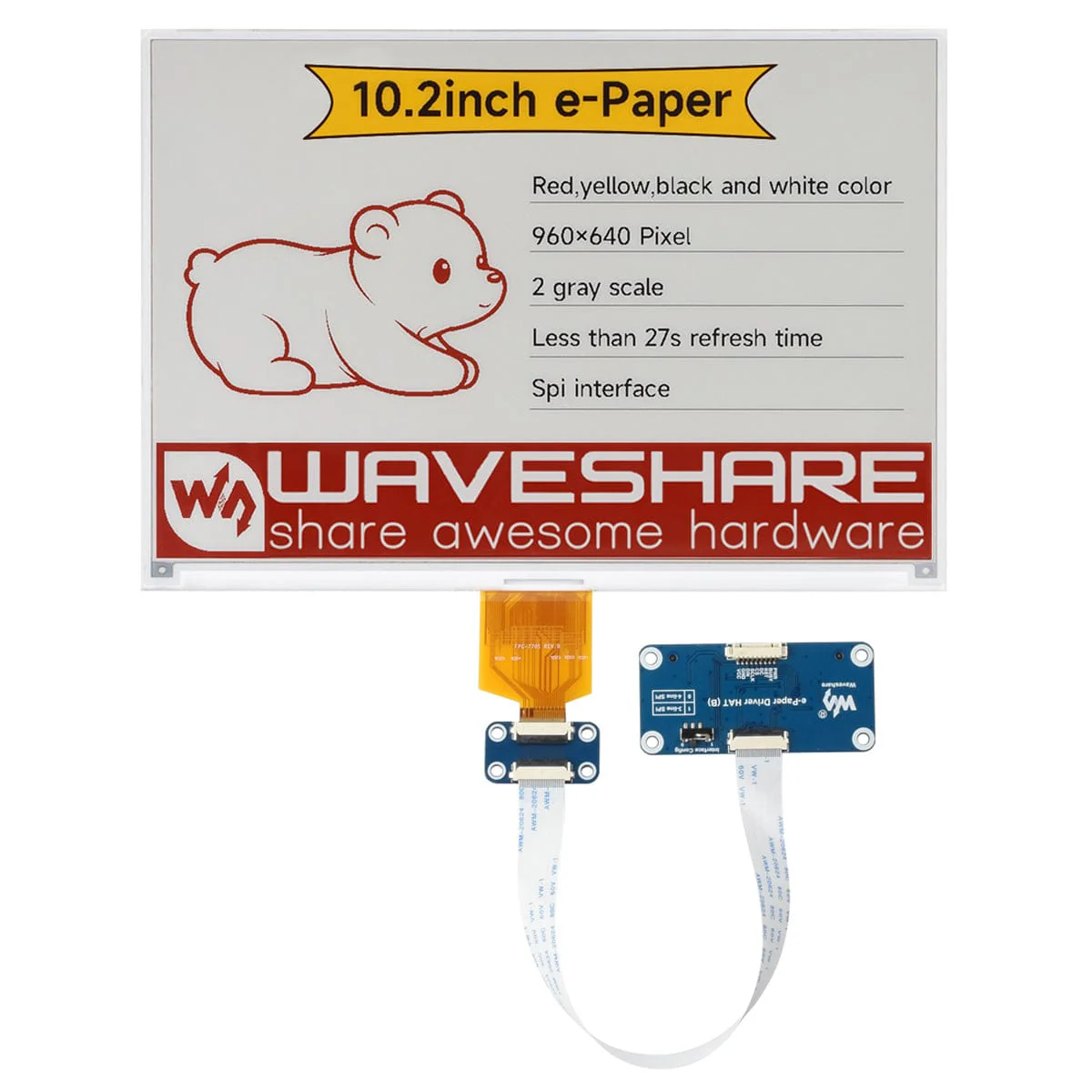

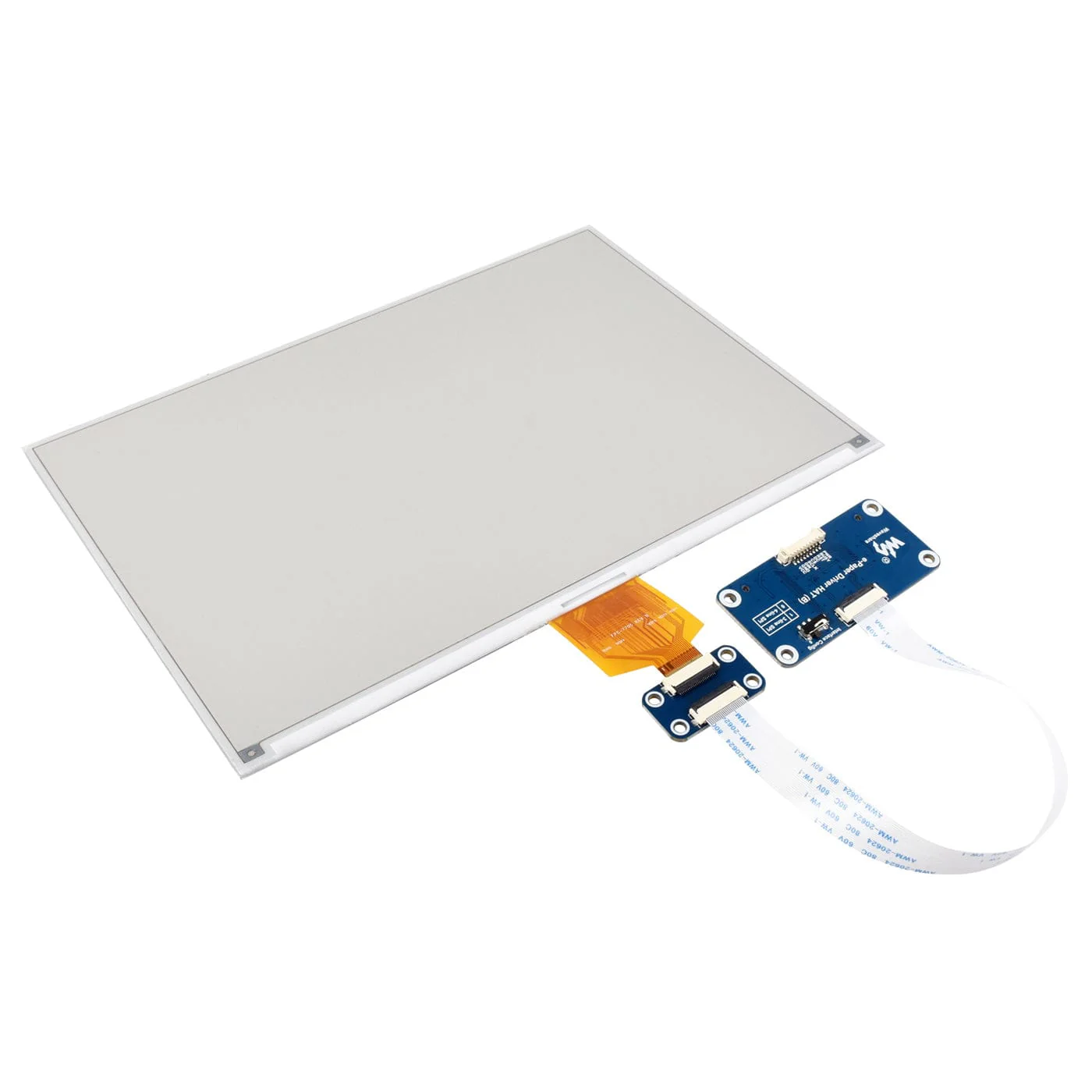

This jumbo panel is a 10.2" 960x640 ePaper display which supports four colours - red, yellow, black and white! It comes with a driver HAT for your Raspberry Pi, along with some demo programs in C and Python for coding inspiration.
ePaper /displays are designed to replicate the appearance of ink on paper. Unlike regular displays, which lose their image when power is removed, ePaper displays are able to hold text and images indefinitely, even without power. ePaper screens are therefore ultra-low power, designed to have a wide viewing angle and additionally have limited reflection under sunlight.
This particular 10.2" panel offers 170° viewing angles, a 960x640 resolution, four-colour support and a 27-second refresh time. Partial refresh is not supported (Waveshare don't mention this anywhere in their documentation).
The HAT also includes a 9-pin connector to use with the included cable assembly, to allow you to use this with other development boards. Raspberry Pi, Arduino, ESP, STM and Jetson Nano examples are provided in the wiki. The onboard voltage translator allows it to be used with 3.3V or 5V MCUs.
Raspberry Pi not included.
Features
- 10.2" ePaper display with 960x640 resolution
- Supports four colours: red, yellow, black, and white
- Includes e-Paper Driver HAT for Raspberry Pi
- Standard Raspberry Pi 40-pin GPIO header for direct mounting
- No backlight; retains the last image even when powered off
- Ultra-low power consumption, power only required during refresh
- 170° viewing angles with low reflection in bright light
- Full refresh time of approximately 27 seconds (no partial refresh support)
- Onboard voltage level translator, compatible with 3.3V and 5V
- 9-pin connector and cable for use with non-Raspberry Pi dev boards
- SPI interface for use with ESP, Jetson Nano, Arduino, STM32
Specifications
| Size | 10.2" |

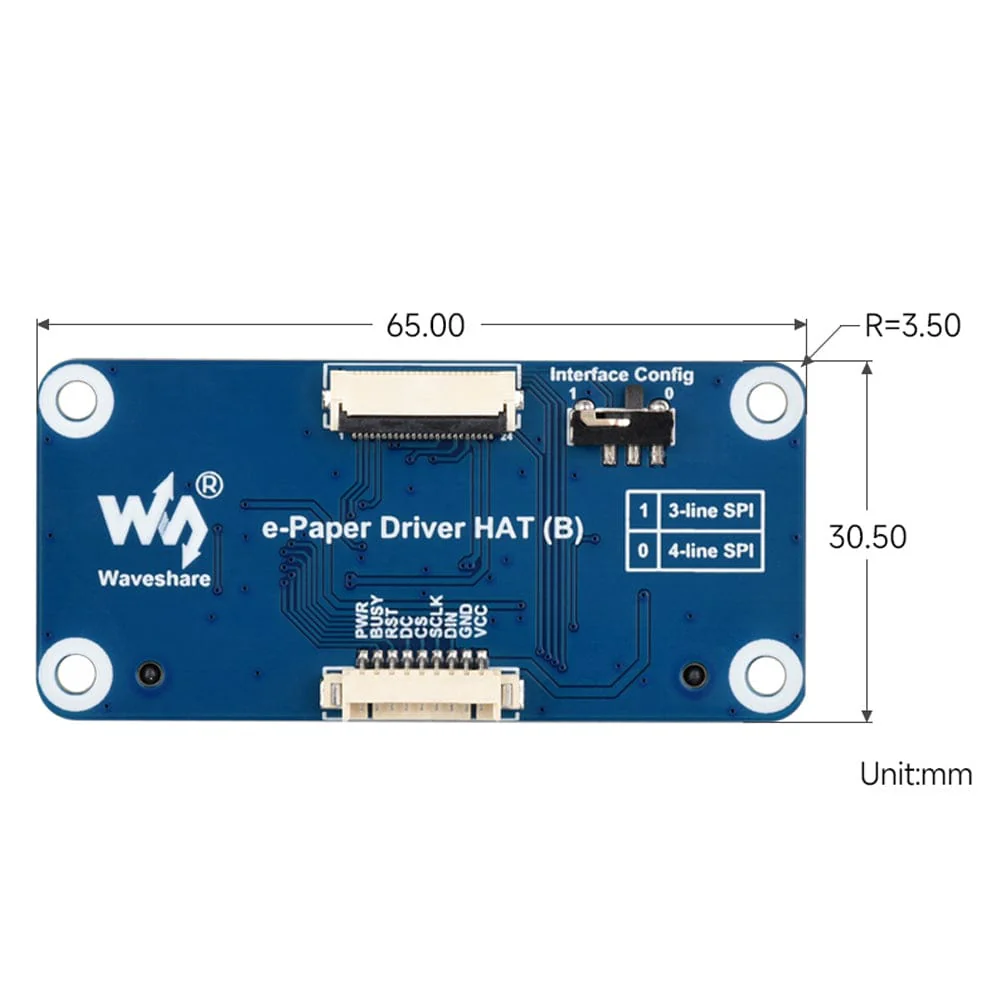

| Driver board size | 65.00mm × 30.50mm |

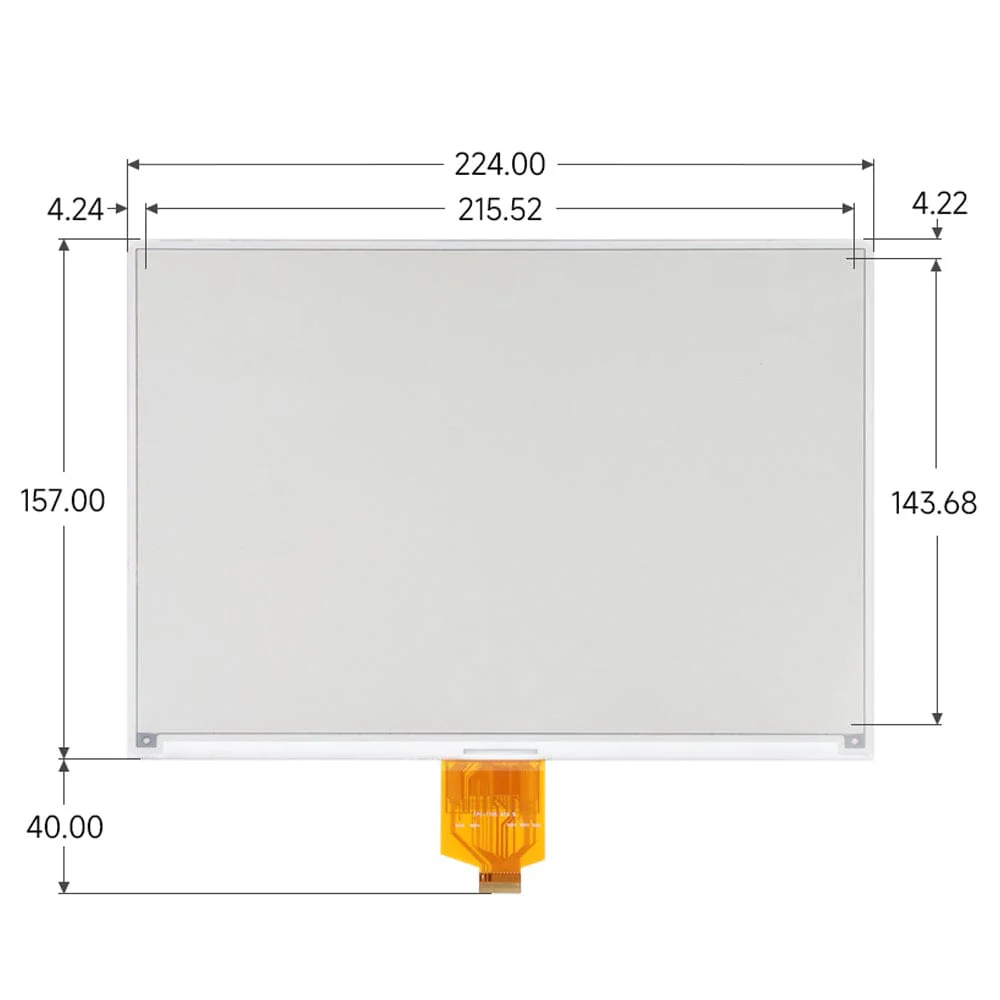

| Display size | 215.52mm × 143.68mm |
| Outline dimensions | 224mm × 157mm × 1mm |
| Operating voltage | 3.3V / 5V (I/O level voltage must match supply voltage) |
| Communication interface | SPI |
| Dot pitch | 0.2245mm × 0.2245mm |
| Resolution | 960 × 640 |
| Display colours | Red, yellow, black, white |
| Gray scale | 2 |
| Refresh time | 27s |
| Total refresh power | <100mW (typ.) |
| Operating temperature | 0 to 40 °C |
| Storage temperature | -25 to 70 °C |
Resources
- Product wiki
- Examples/demo code:
- Driver HAT schematic
- ePaper panel schematic
Pinout
| PWR | Power control pin |
| BUSY | Busy status output |
| RST | External reset, low active |
| DC | Data / command selection (high for data, low for command) |
| CS | SPI chip select, low active |
| SCLK | SPI SCK pin |
| DIN | SPI MOSI pin |
| GND | Ground |
| VCC | 3.3V / 5V |
Package Contents
- 1x 10.2" ePaper display (G)
- 1x Driver HAT
- 1x MX1.25 9-pin cable assembly
- 1x Screw pack
Raspberry Pi not included.
