This 2.15" e-Paper HAT is a tri-colour (Red/Black/White) display with no backlight, and retains the last displayed image for long periods even when powered off, making it very energy-efficient. Power is only needed during refreshes, meaning power consumption is at a minimal level. The display also has a wide 170° viewing angle for clear visibility from different areas of viewing.
It also has a standard Raspberry Pi 40-pin GPIO extension header, making it compatible with Raspberry Pi series boards, Jetson Nano, and RDK X3. The SPI connection allows it to work with other controller boards like Arduino and STM32, while a built-in voltage translator provides compatibility with both 3.3V and 5V MCUs. Included are online development resources and a manual, which make it easy to get started!
We also have a quad-colour version here
If you're looking for the Raw display version, click here to find it in our store.
Note: Raspberry Pi is NOT included
Features
- No backlight, keeps displaying last content for a long time even when powered down
- Ultra-low power consumption, basically power is only required for refreshing
- Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi / Jetson Nano / RDK X3 / Arduino / STM32)
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano, RDK X3
- Raspberry Pi HAT+ standard to improve interoperability, helping the users to design and develop faster, easy to use with other peripherals and extend more functions for Raspberry Pi
- SPI interface for connecting with controller boards like Raspberry Pi / Arduino / STM32, etc.
- Voltage translator, compatible with 3.3V / 5V MCUs
Specifications
| Operating Voltage | 5V |
| Interface | 3-wire SPI, 4-wire SPI |

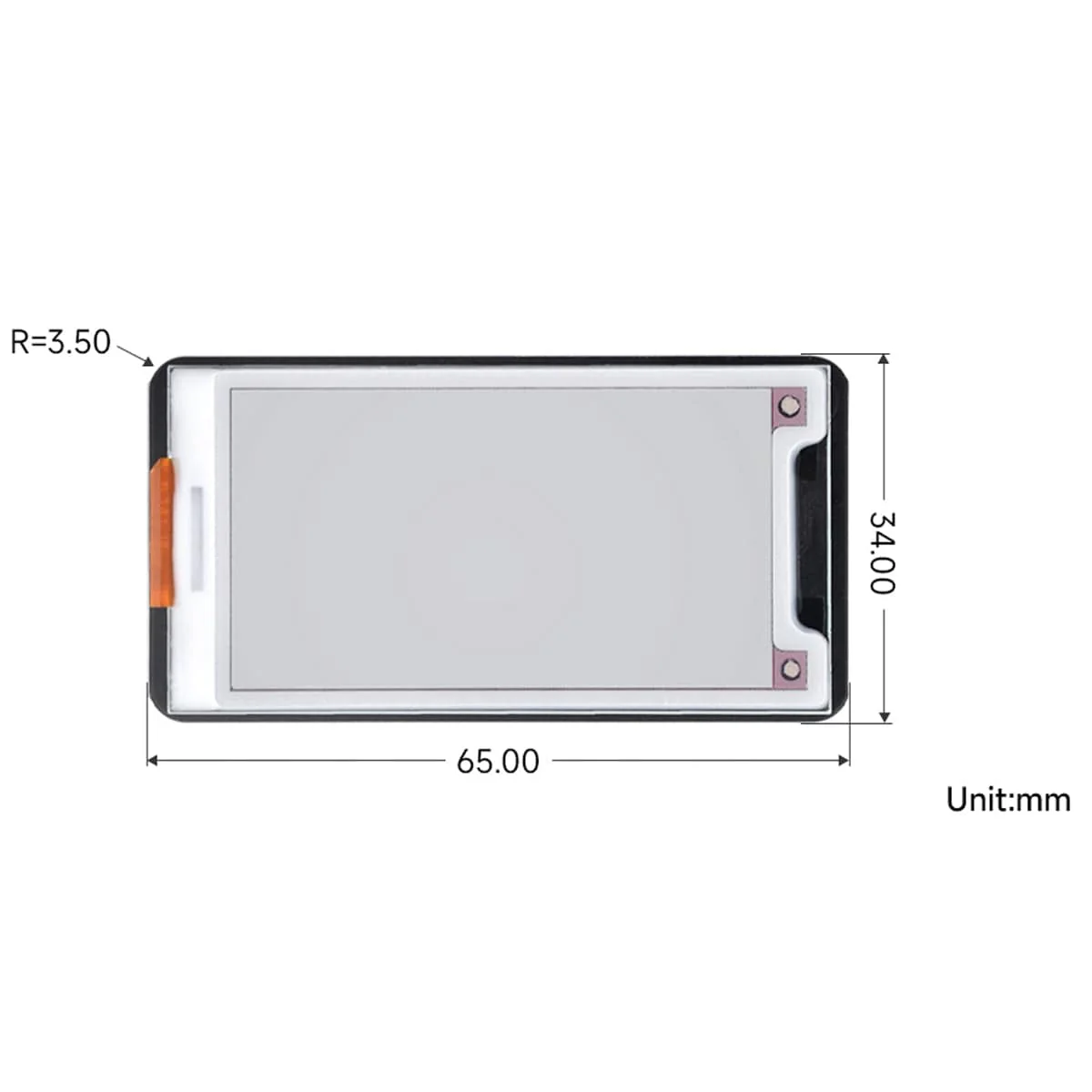

| Outline Dimensions | 65 x 34 (mm) |
| Display size | 48.10 x 26 (mm) |
| Dot Pitch | 0.1625 x 0.1625 (mm) |
| Resolution | 296 x 160 pixels |
| Display Colour | Red/Black/White |
| Greyscale | 2 |
| Full Refresh Time | 23s |
| Refresh Power | <15mW |
| Standby Current | <0.01uA (almost none) |
| Viewing Angle | >170° |
Resources
Pinout
| VCC | Power (3.3V / 5V input) |
| GND | Ground |
| DIN | SPI MOSI pin |
| CLK | SPI SCK pin |
| CS | SPI chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | External reset, low active |
| BUSY | Busy status output pin |
Package Contents
- 1x 2.15" e-Paper HAT+
- 1x GH1.25 9-pin cable
- 1x Screws pack
