12.3" IPS Capacitive 10-Point Touch Display (1920 x 720)
This 12.3" IPS screen with a 1920 x 720 resolution has colourful and sharp visuals and a 10-point capacitive touch with in-cell touch technology. With a wide 178° viewing angle and a brightness level of 300cd/m², the display provides clear and vibrant visuals from nearly any angle.
Compatible with multiple operating systems, this screen works with Raspberry Pi OS, Ubuntu, Kali, and Retropie when used with a Raspberry Pi, and it works easily with Windows 11, 10, 8.1, 8, and 7. DDC/CI backlight adjustment allows for easy control of brightness, making it adaptable to various lighting environments.
The display includes two audio output options with a 3.5mm jack and a 4-pin header. It also has a USB Type-C port, which provides a quick connection to laptops or smartphones, making it a great choice for any project needing a high-quality display.
Features
- 12.3" IPS screen with 1920 x 720 hardware resolution.
- 10-point capacitive touch with in-cell touch technique, narrow frame with thin thickness, fast response.
- Raspberry Pi OS/Ubuntu/Kali and Retropie when used with Raspberry Pi.
- Windows 11/10/8.1/8/7 when used as a computer monitor.
- Ubuntu when working with the Jetson series.
- Multi-language OSD menu support (can be used for power control, adjusting brightness/contrast, etc.)
- Support software DDC/CI brightness adjustment.

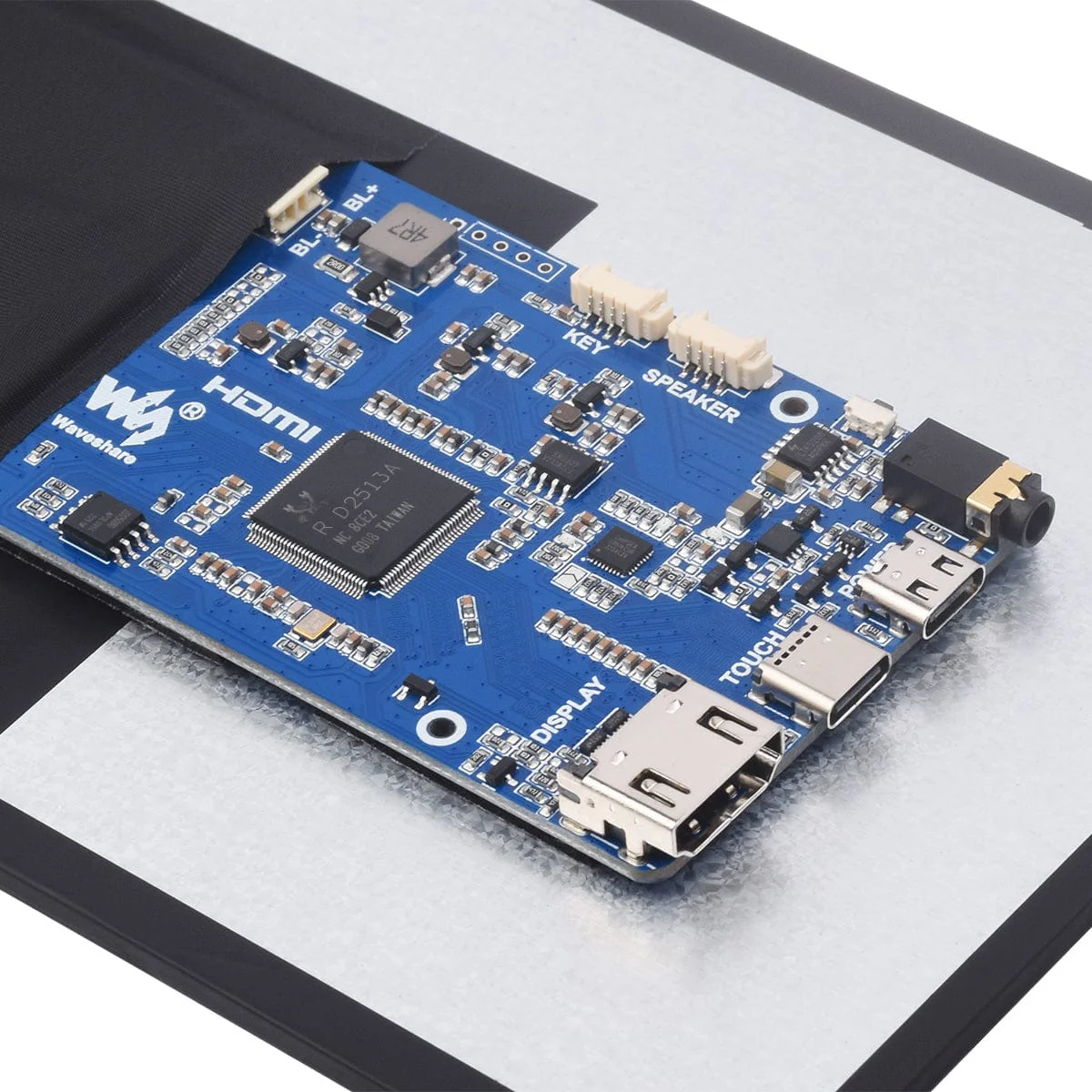

What's on Board
Specifications
| Size | 12.3 | " |
| Viewing Angle | 178 | Deg |
| Resolution | 1920 x 720 | Pixels |

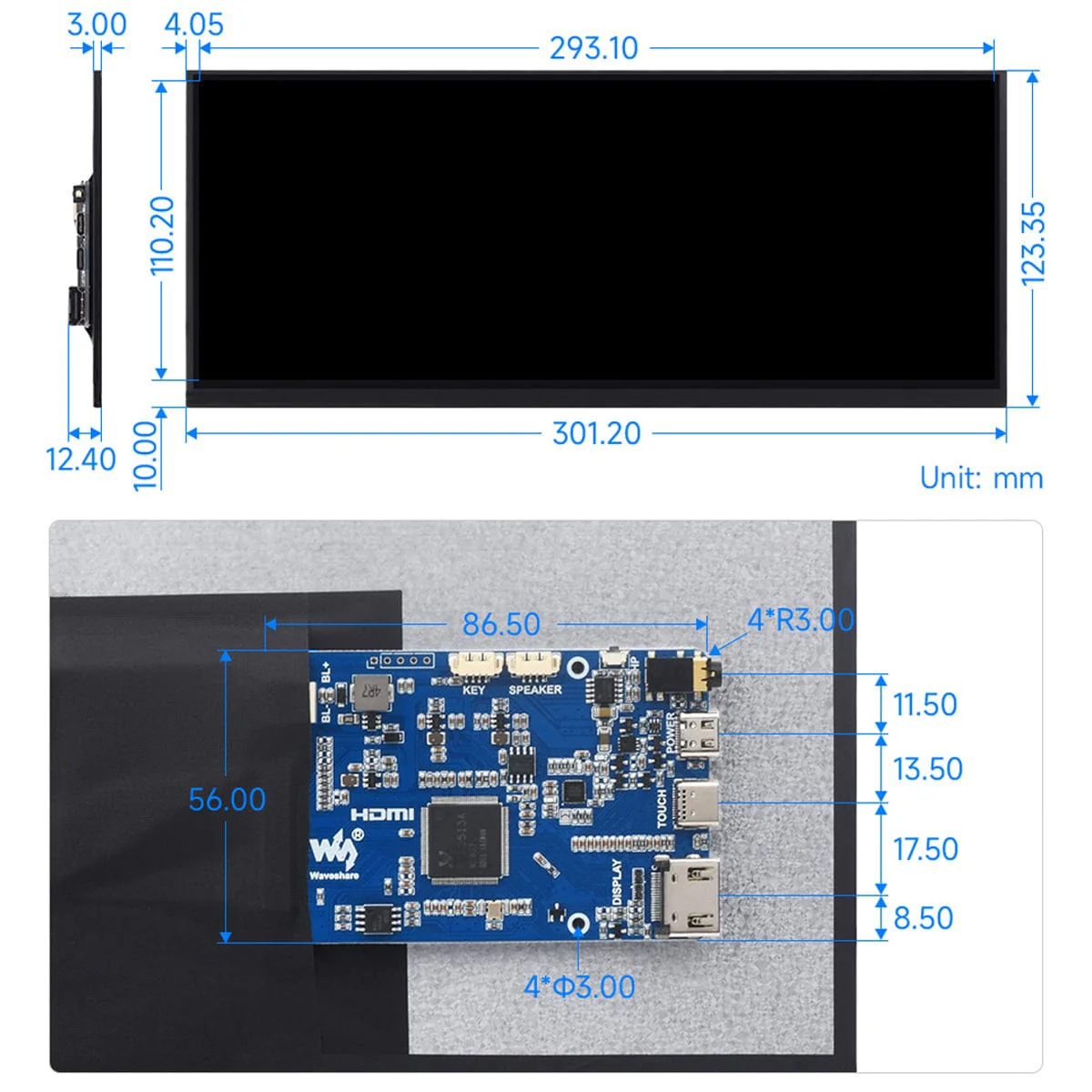

| Overall Dimensions | 301.2 (H) x 123.35 (V) x12.4 (D) | mm |
| Display Area | 293.10 (H) x 110.20 (V) | mm |
| Colour Gamut | 0.72 | NTSC |
| Maximum Brightness | 300 | cd/m² |
| Contrast | 50.00069444 | / |
| Backlight Adjustment | OSD menu/DDCCI brightness adjustment | / |
| Refresh Rate | 60 | Hz |
| Display Interface | HDMI/Type-C | / |
| Power Port | 5V Power Supply | / |
| Maximum Power Consumption | 5 | Watt |
Connection Example - Raspberry Pi 5
Resources
Package Contents
- 1x 12.3" 1920 x 720 LCD
- 1x HDMI Flat Cable -1m
- 1x HDMI to Micro HDMI Adapter
- 1x USB-A to Type-C Cable ~1m
- 1x Type-C Dual-Plug Cable
- 1x Triangular Stand
- 1x Button Board
- 1x 1.27H 4-pin Button Board Cable
- 1x Capacitive Touch Pen
- 1x Cleaning Cloth
Original: $105.60
-65%$105.60
$36.96Product Information
