1591B Proto Board for Raspberry Pi Pico [Discontinued]

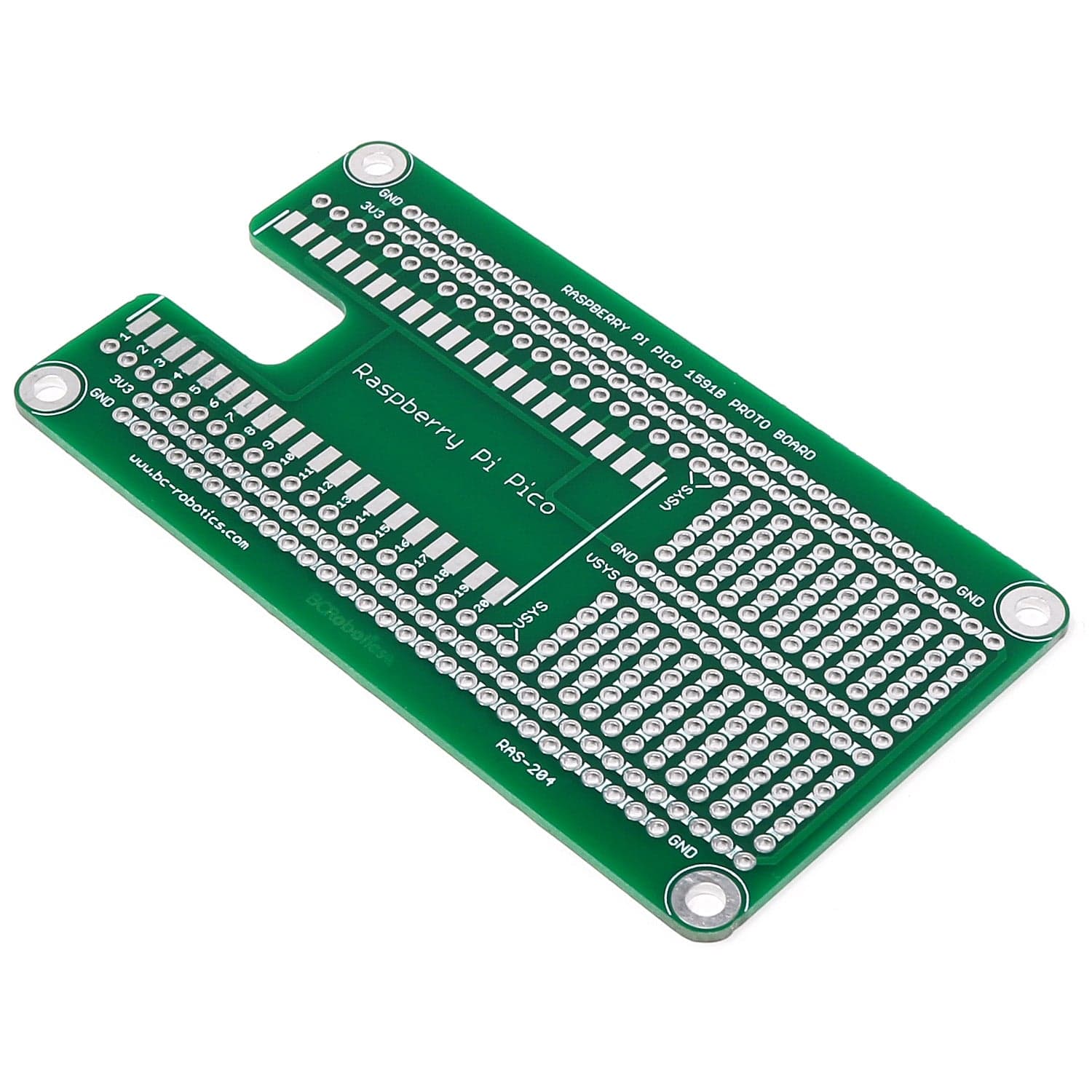

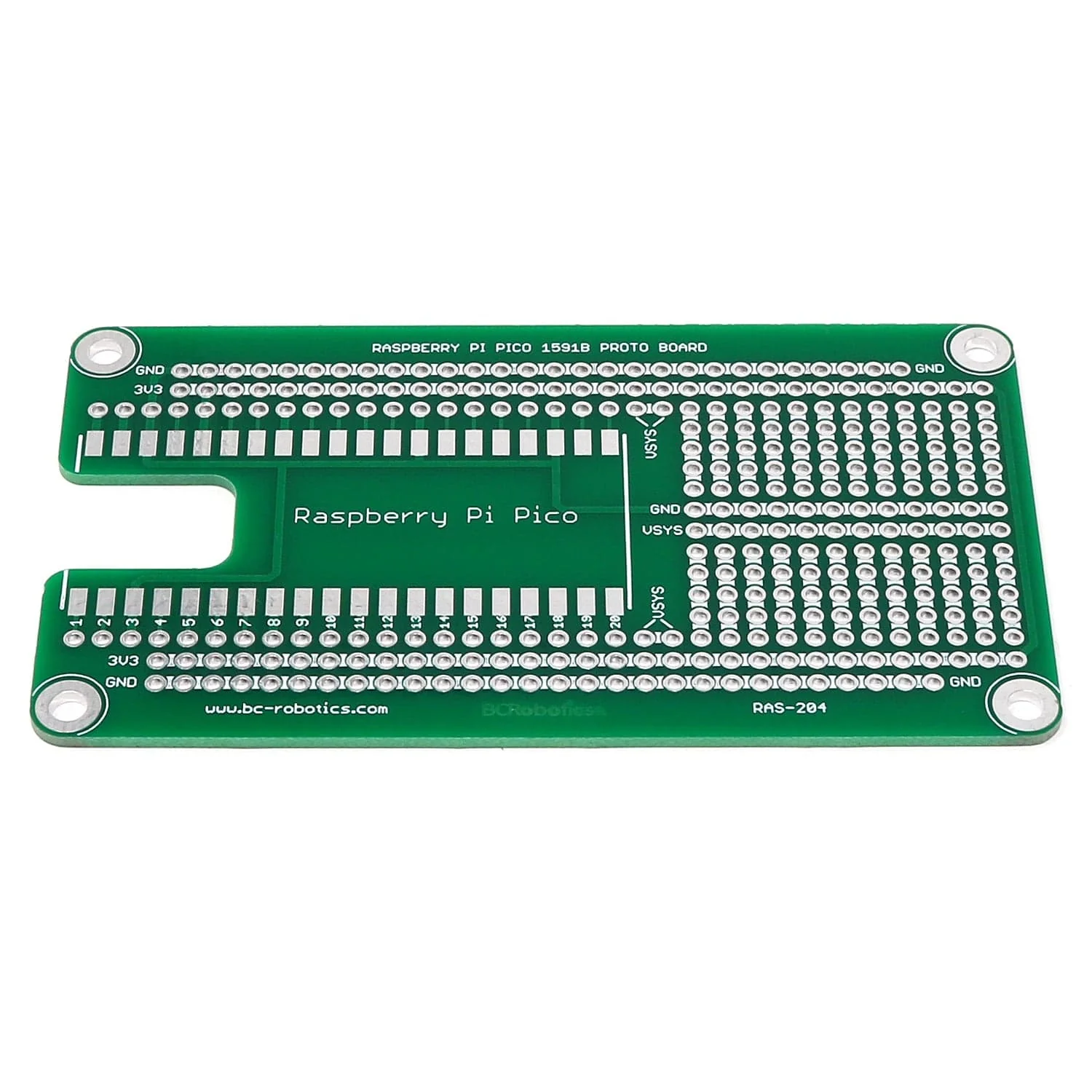

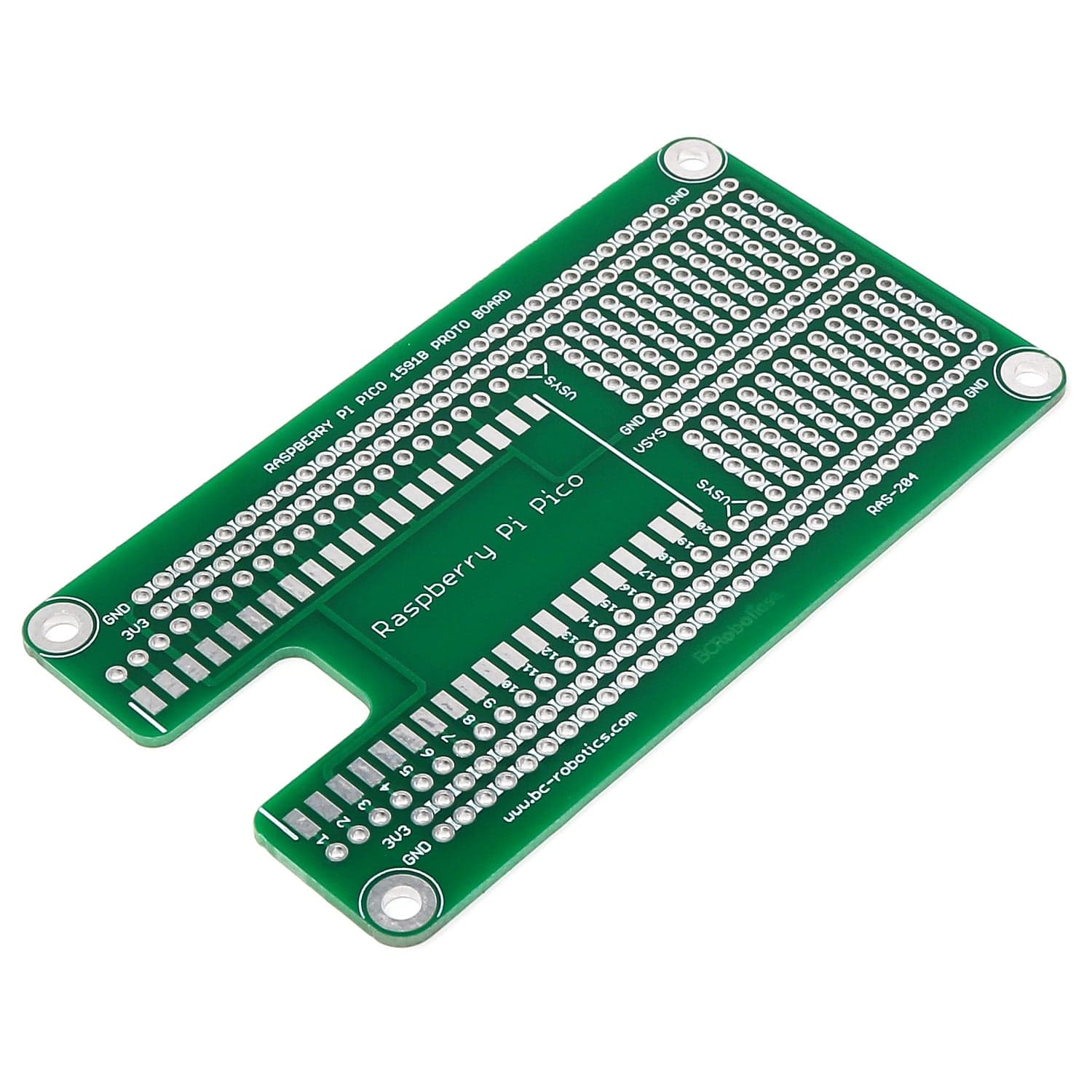

The 1591B Proto Board for Pico is designed to fit both the Raspberry Pi Pico and the Raspberry Pi Pico W with enough prototyping room for additional components, connectors or sensors.

Best of all, these fit directly inside the Hammond 1591BFLBK enclosure. Ideal for a one-off project that needs an easy enclosure and mounting solution!

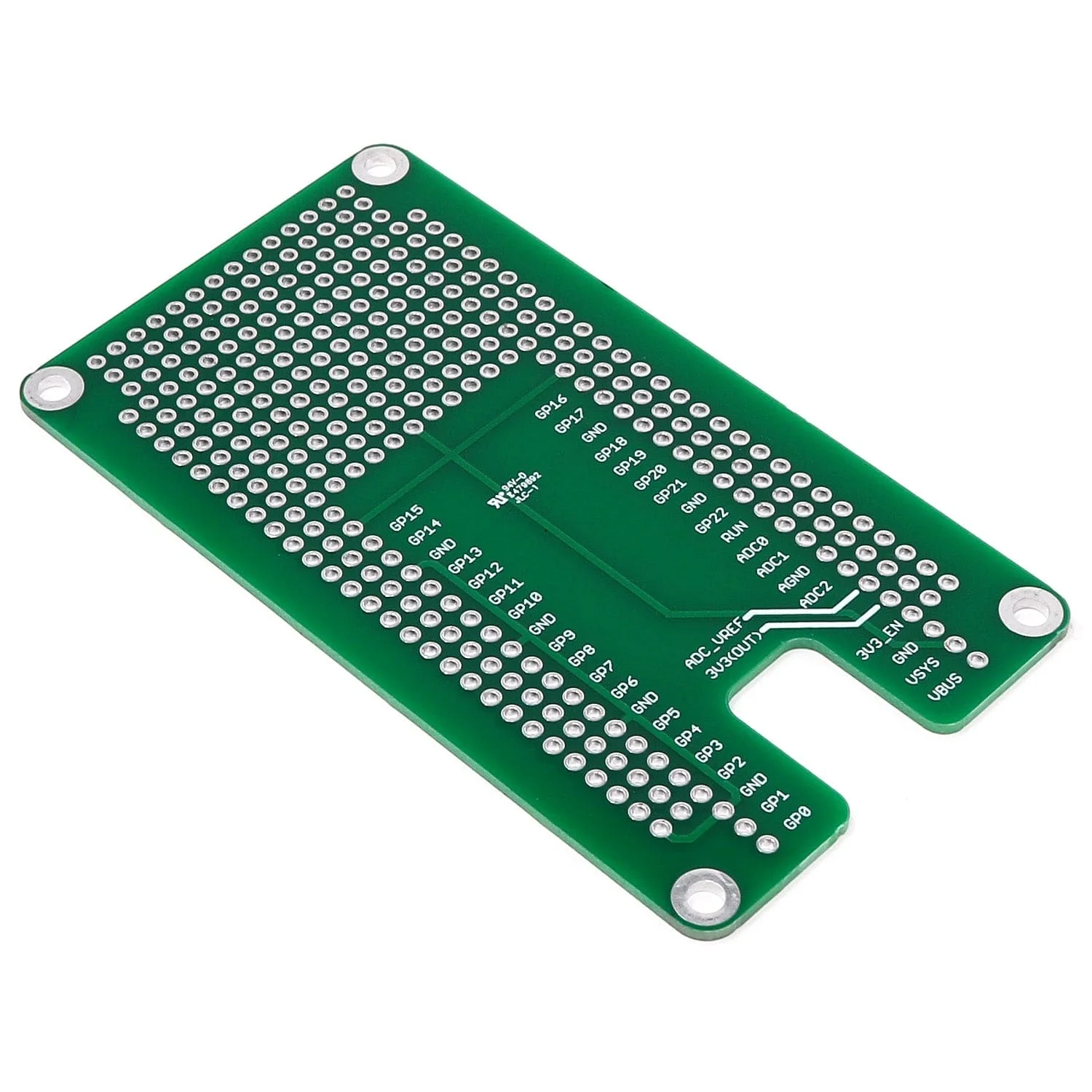

Your Pico is attached using large solder pads – these are intended to be soldered using the castellated edges on the Pico and are easily accomplished using a normal soldering iron. The board breaks out all 40 GPIO pins from the Raspberry Pi Pico to easily accessible pins. The prototyping area measures 12 x 12 pins, but we have also included full-length 3.3V / GND rails and also a VSYS rail if you need access to that as well.

Raspberry Pi Pico, Enclosure and hardware are not included.

Features

• Dimensions: 91 x 50mm
• Plated through holes
• 1.6mm FR4 PCB material
• Mounting Holes: 84mm x 43.25mm
• Raspberry Pi Pico footprint with familiar breadboard prototyping area
• Raspberry Pi Pico and Raspberry Pi Pico W compatible
• 1 oz. copper layer

Package Contents

• 1 x 1591B Proto Board for Raspberry Pi Pico
