8-Channel RS485 to RJ45 Ethernet Serial Server (PoE Option)
This is an industrial-grade serial data acquisition unit and IoT gateway. With eight independent RS485 channels and dual Ethernet ports (802.3af PoE optional - select variant before adding to cart), it provides a compact platform for applications such as data acquisition, industrial monitoring, safety and security systems, and IoT gateways. Each RS485 channel operates independently with configurable baud rates, ensuring stable communication without cross-interference.
The device supports a wide range of communication modes, including TCP server, TCP client, UDP, and UDP multicast, and combines multiple roles in a single unit. It can operate as a serial server, Modbus gateway, MQTT gateway, or perform RS485-to-JSON conversion. Dual Ethernet ports allow network cascading or segmented communication, while screw-terminal power input and optional PoE support provide flexible power options.

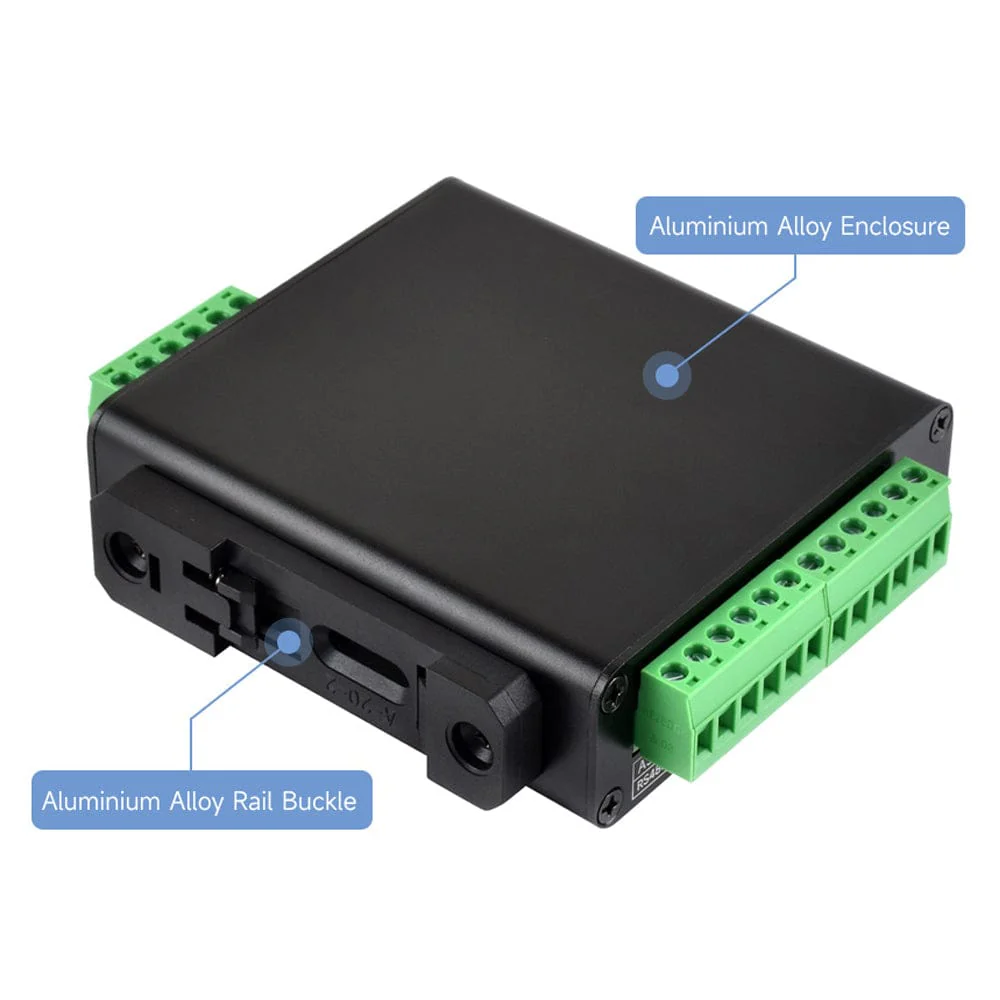

The unit features onboard power and signal isolation, surge and ESD protection, and multiple status LEDs for real-time monitoring. The aluminium alloy enclosure offers durability and effective heat dissipation, and the compact housing supports both wall-mount and DIN-rail installation for quick deployment and easy expansion in industrial control cabinets or field installations.
Power supply not included.
Features
- 8-channel independent RS485 ports, each configurable with different baud rates and operating without interference
- Supports TCP server, TCP client, UDP, and UDP multicast modes
- Combines multiple functions in one, including serial server, Modbus gateway, MQTT gateway, and RS485 to JSON, etc.
- Adopts screw terminal for stable power input
- Onboard dual Ethernet ports enable network switching functionality (PoE version optional)

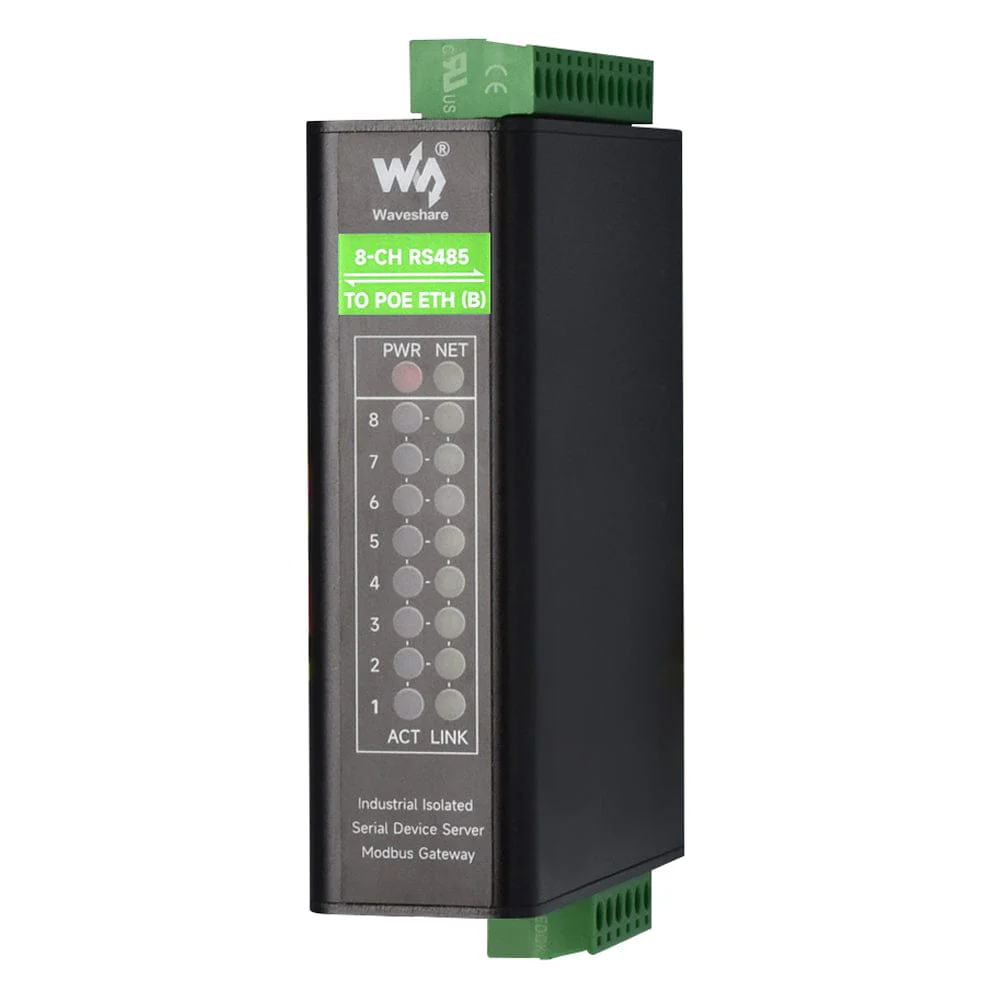

- Multiple LEDs for real-time monitoring of device status

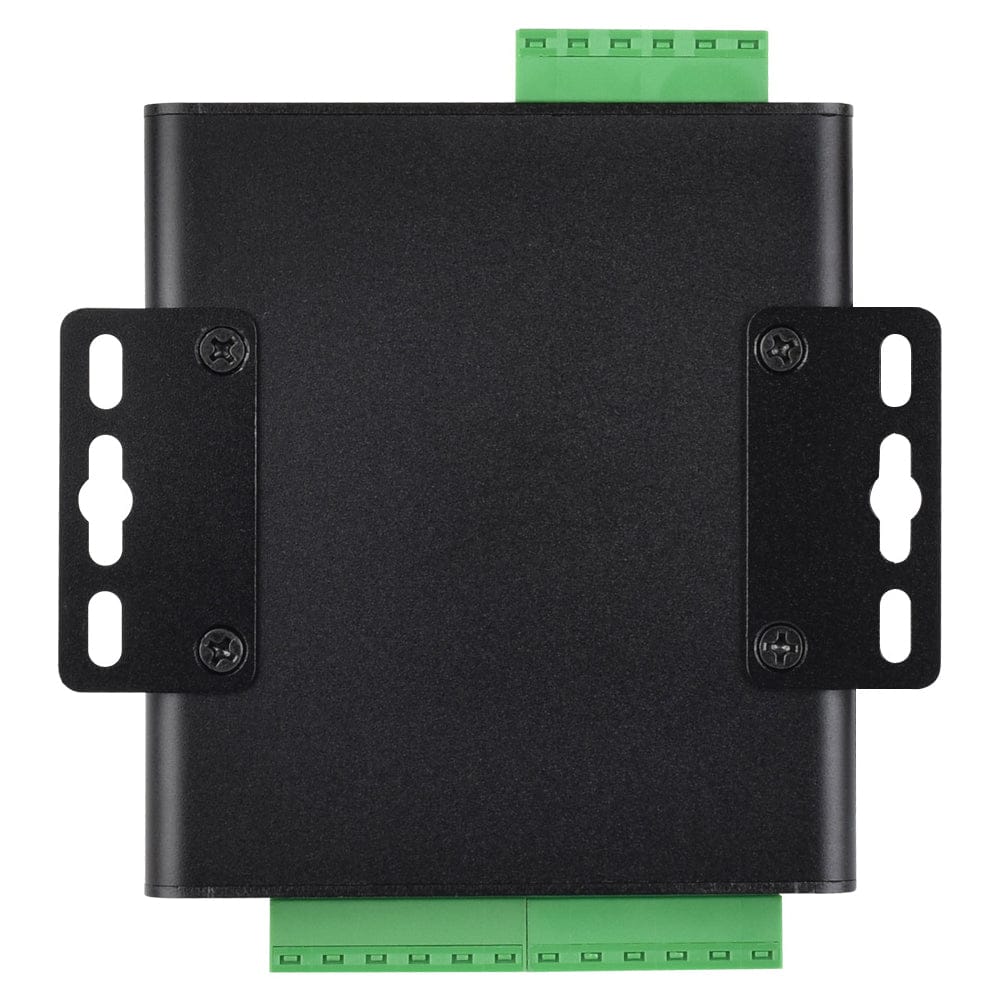

- Wall-mount and rail-mount case design, easy to install, for quick deployment and expansion
Specifications
| Version | Standard | PoE |
| Product type | Serial server, Modbus gateway, MQTT gateway | |
| Basic function | Bi-directional transparent data transmission between RS485 and Ethernet | |
| Communication interface | RS485 × 8, Ethernet × 2 | |

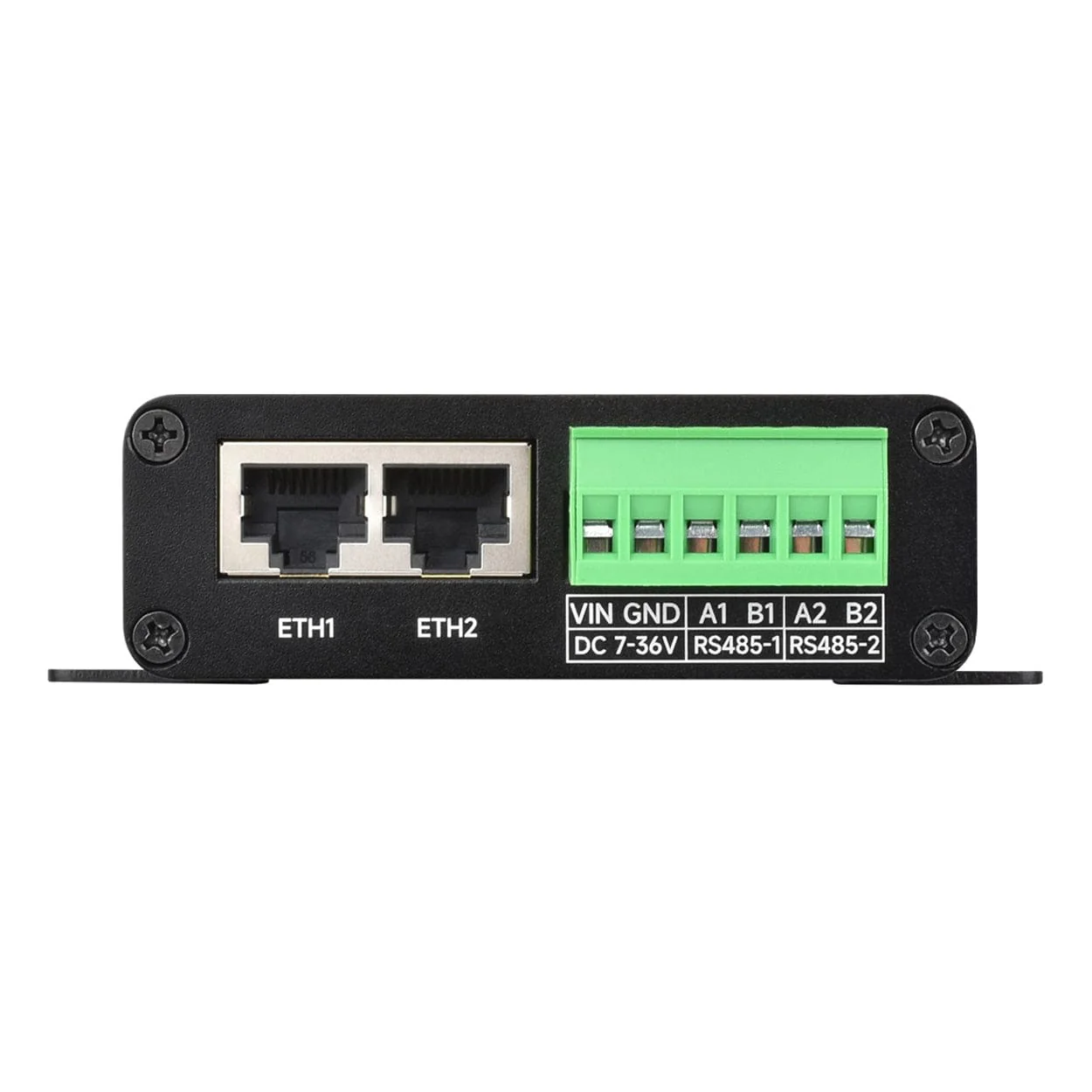

| Power supply | DC 7–36V via screw terminal | DC 7–36V via screw terminal or PoE |
| Isolation protection | Power isolation, signal isolation | |
| Ethernet | RJ45 | RJ45 with PoE support (IEEE 802.3af) |
| Ethernet speed | 10/100M auto-negotiation RJ45, 2 kV surge protection | |
| Serial port | Isolated RS485 (8 channels transmit and receive independently) | |
| Baud rate | 300–115200 bps | |
| Parity | None, odd, even, mark, space | |
| Data bits | 5–9 bits | |
| Flow control | Not supported | |
| Supported protocols | Ethernet, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS | |
| Configuration | Host software, web browser, device management library | |
| Operating modes | TCP server, TCP client (coexisting), UDP, UDP multicast | |
| Operating temperature | -40°C to 85°C | |
| Humidity range | 5%–95% relative humidity | |

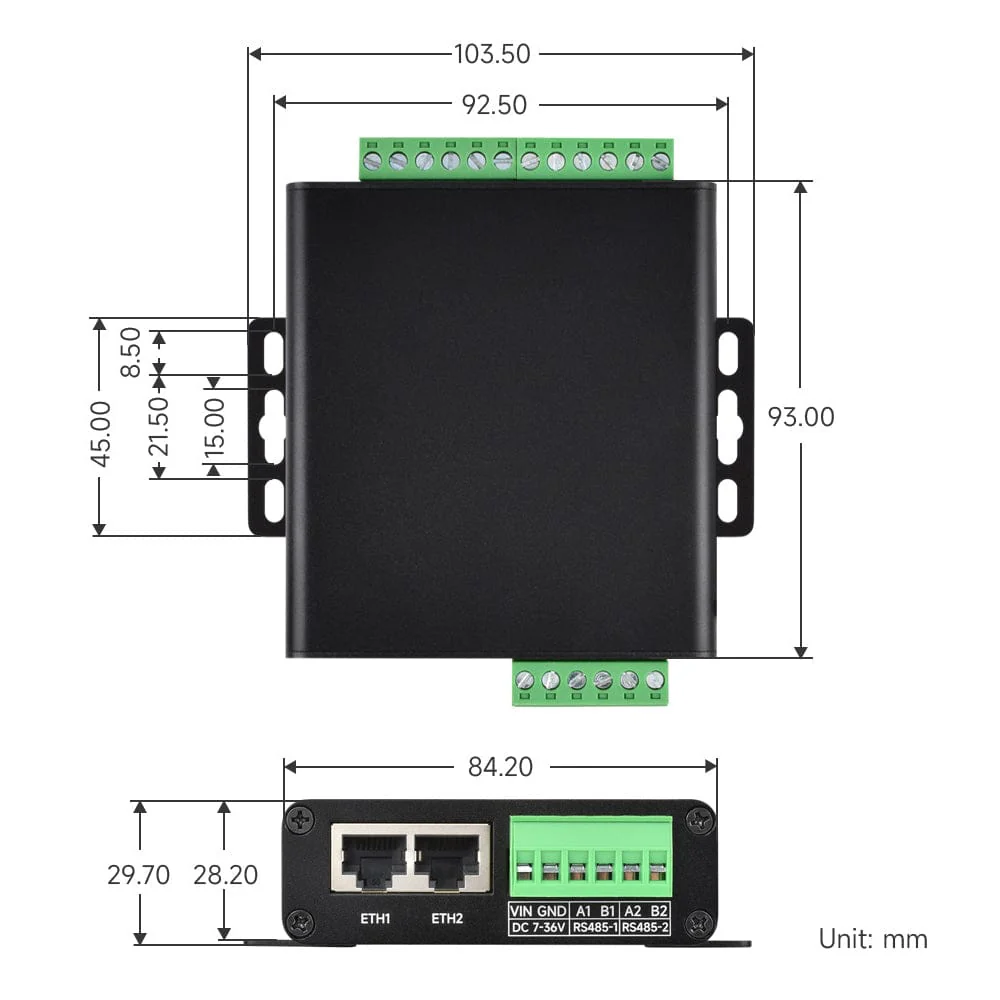

| Dimensions (L×W×H) | 93 × 103.5 × 29.7 mm | |
Resources
Package Contents
- 1x 8-Channel RS485 to RJ45 Ethernet Serial Server
- Select standard or PoE version before adding to cart
Power supply not included.
