Chain Angle (STM32G031)
The Chain Angle is a Chain-series potentiometer knob module with up to 12-bit ADC output and an RGB status LED. It supports UART cascading via dual HY2.0-4P ports, ideal for HMI control, smart home inputs and speed control projects.

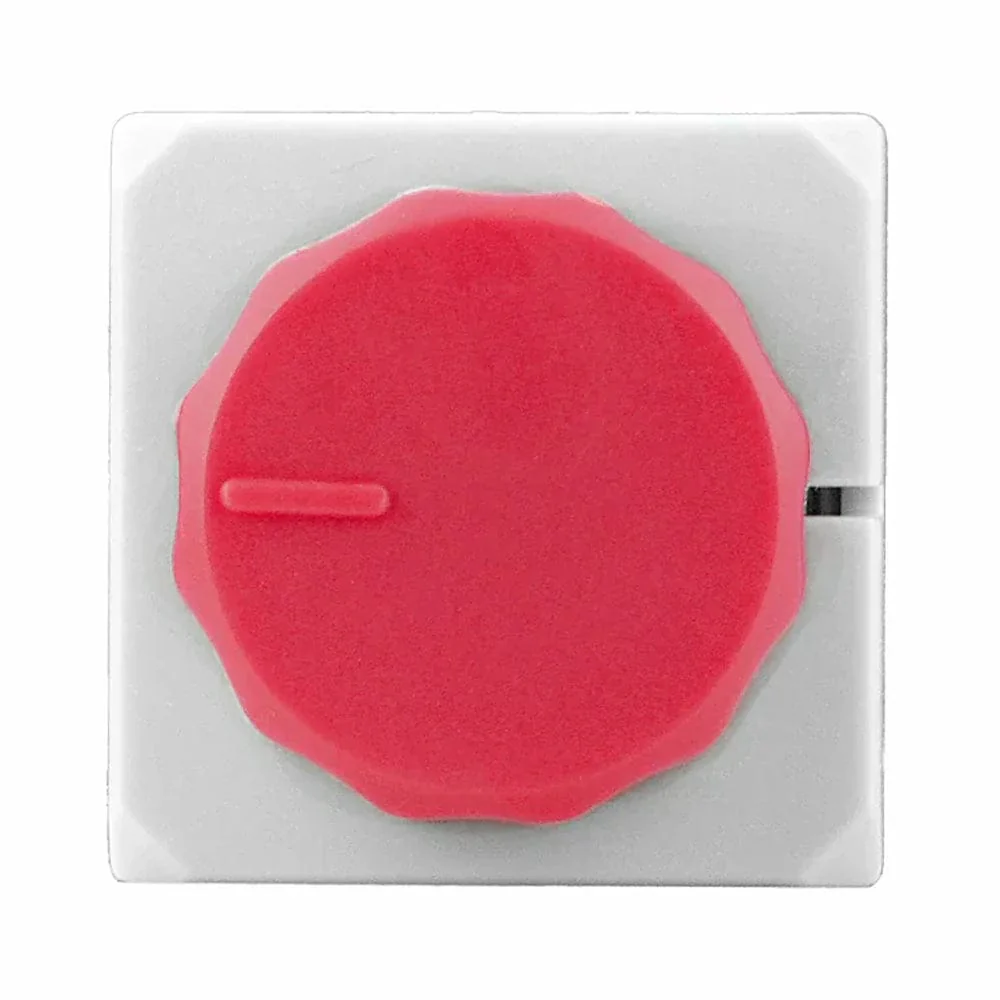

The Chain Angle is a potentiometer knob input node in the M5Stack Chain series, designed for analogue control in interactive projects. As you rotate the knob, the voltage at the sampling terminal changes within a fixed range. The onboard MCU then converts this signal using ADC and outputs a value with up to 12-bit resolution, making it useful for accurate, adjustable input.
A programmable RGB LED is also integrated for clear status indication and interactive visual feedback. This makes the Chain Angle a good fit for applications such as human–machine interfaces, smart home systems, and motor speed control.

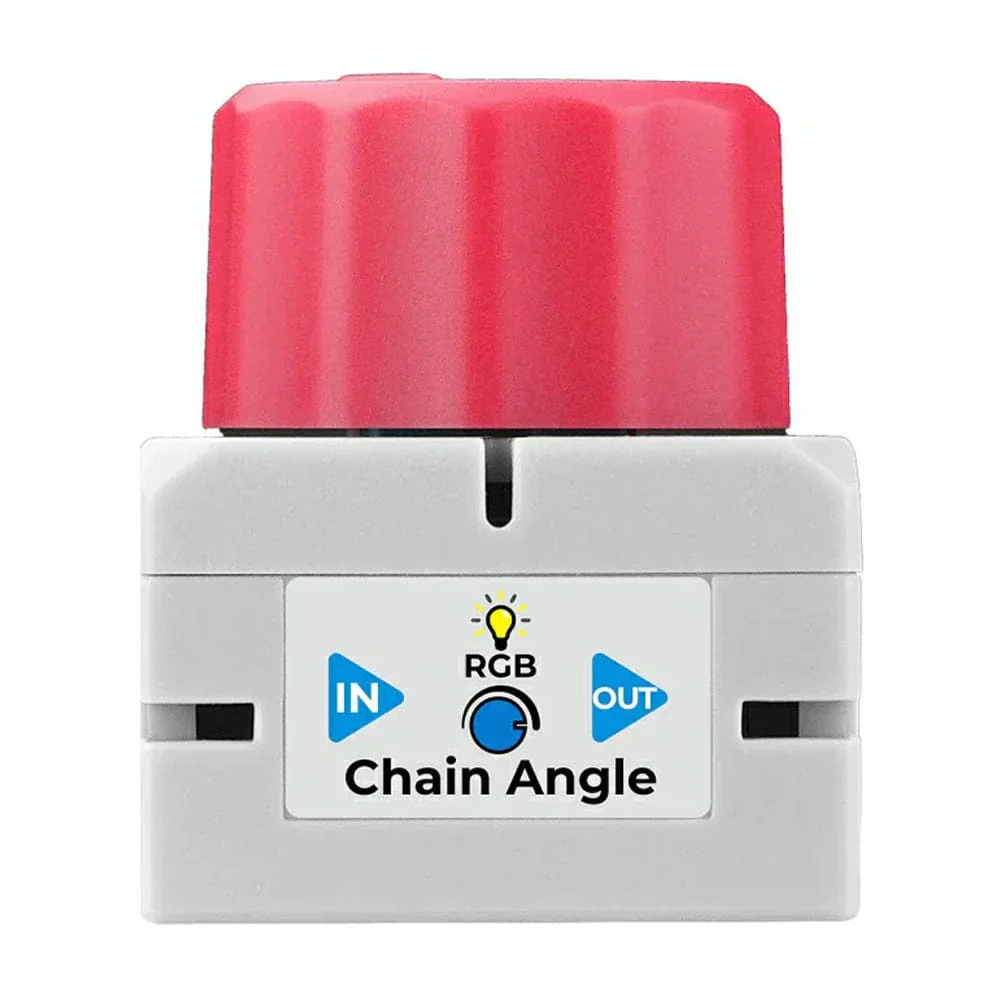

The module is built around the STM32G031G8U6 MCU and uses a UART serial cascade communication protocol. With two HY2.0-4P expansion ports, it can be easily daisy-chained with additional Chain series devices to create more complex and feature-rich interactive systems.
Features
- M5Stack Chain series
- Potentiometer knob input
- STM32G031G8U6 core MCU
- 1x RGB LED
- Uses UART serial cascade communication protocol

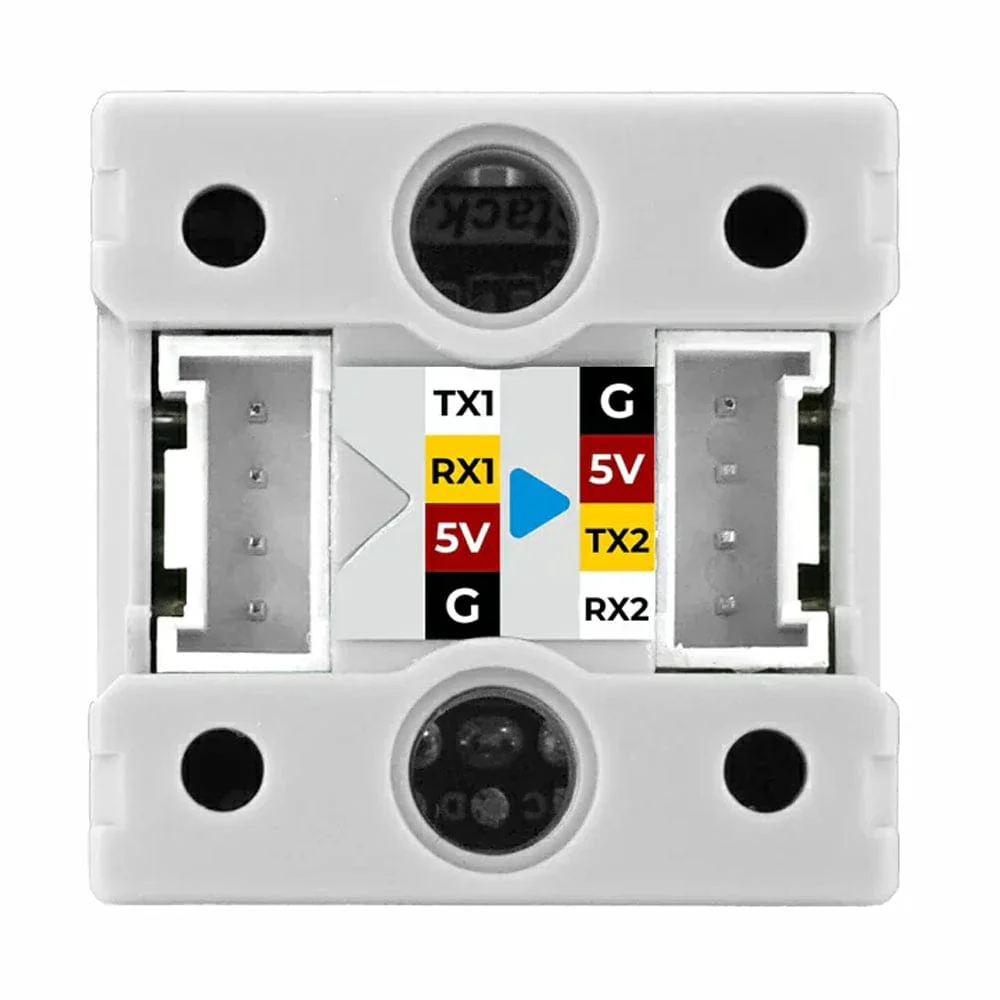

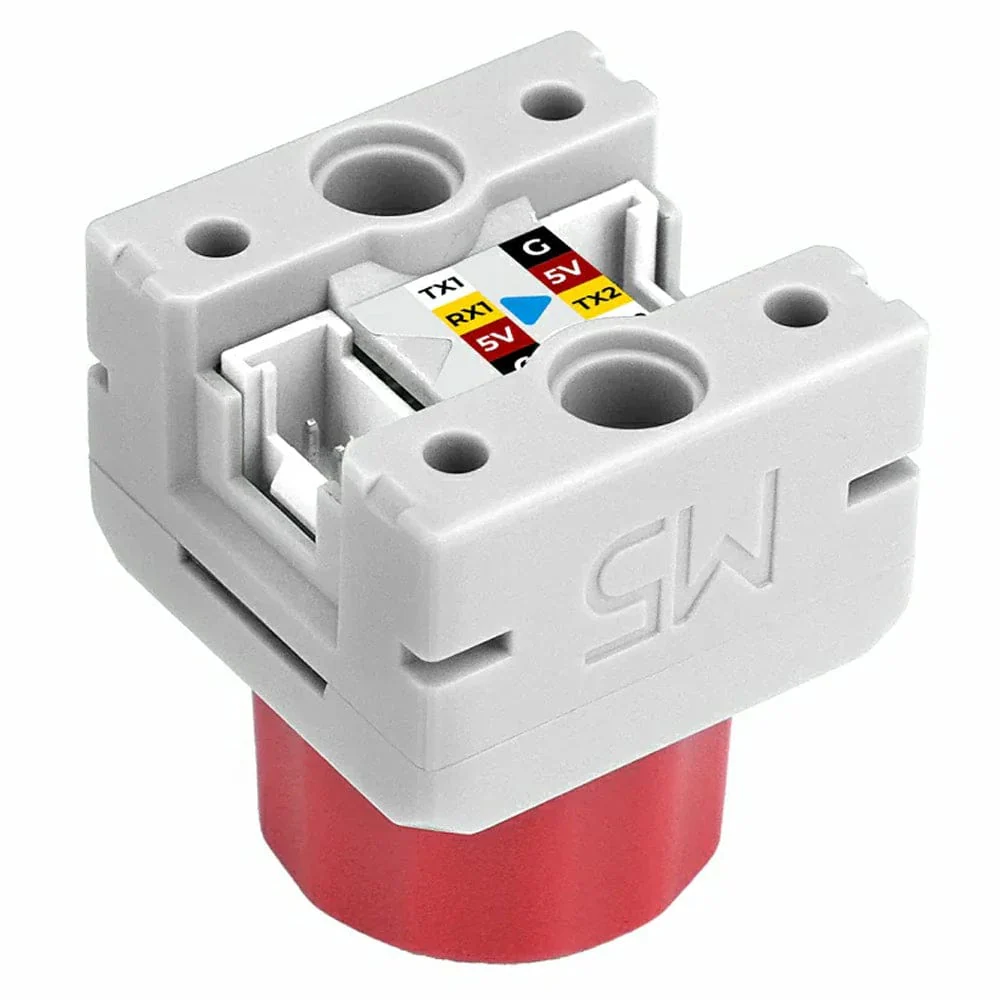

- 2x HY2.0-4P expansion interfaces for extending Chain series devices
Specifications
| MCU | STM32G031G8U6 |
| Input Power | DC 5V |
| Communication | UART 115200bps@8N1 |
| Interface | 2x HY2.0-4P |
| RGB LED | 1x WS2812C |
| RGB Power On Consumption | 21.13mA |
| Rotation Angle | 280° ±10° |
| Operating Temperature | 0 ~ 40°C |
| Product Size | 23.9 x 23.9 x 28.2mm |
| Product Weight | 8.4g |
Resources
Package Contents
- 1x Chain Angle
- 1x Chain Bridge
