8" DSI Capacitive IPS 10-Point Touch Display for Raspberry Pi (800x1280)
This 8" IPS display from Waveshare features an 800x1280 resolution IPS display with up to 10-point capacitive touch, with dedicated mounting points on the rear for a Raspberry Pi 5/4/3, using the DSI connection along with GPIO power using the included cables.
The IPS display ensures wide 178° viewing angles and accurate, vibrant colours, with backlight adjustment available via software. Up to 10-point touch is available (operating system dependent), supported by a toughened glass panel with optical bonding, with up to 6H hardness rating.

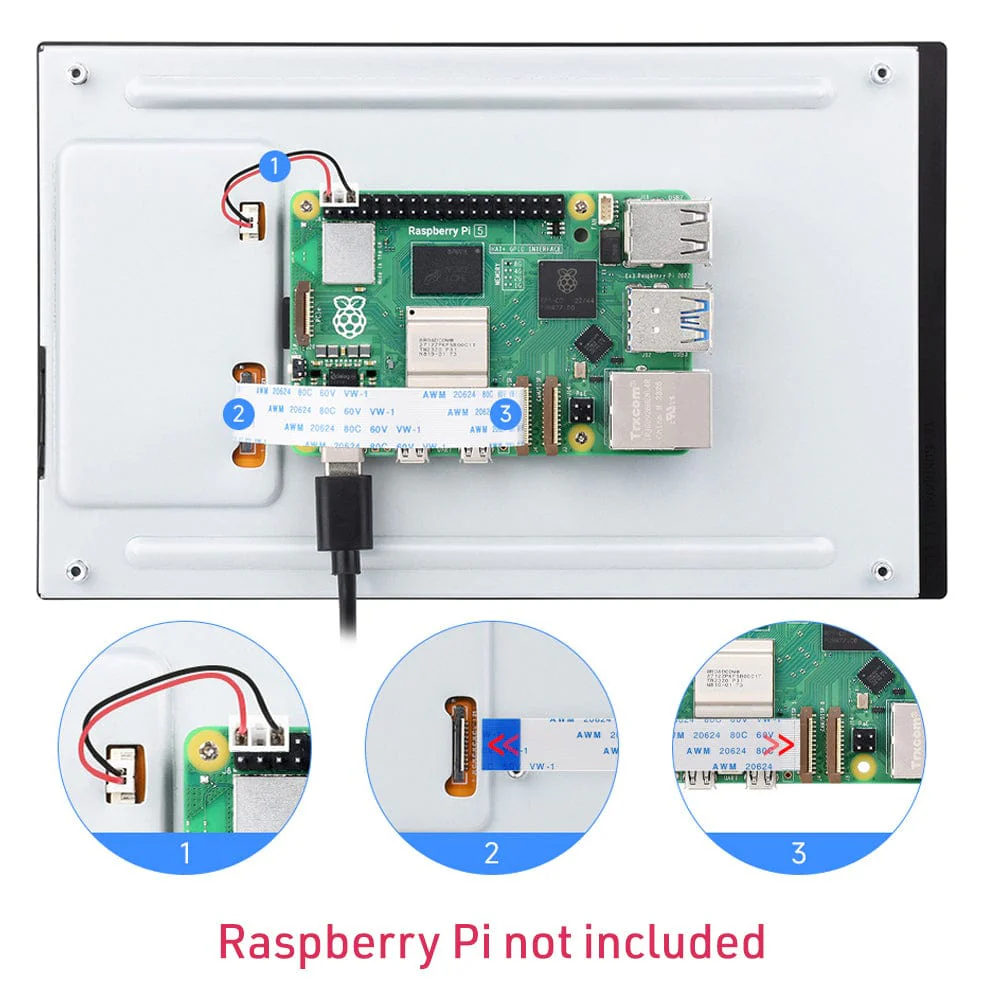

The display will work with any Raspberry Pi that has a DSI port (Pi 5, 4, 3, 2, B+), as different DSI cables are included to cover the various models, along with a GPIO power cable. Standoffs and screws are also included to allow you to mount your Raspberry Pi to the rear of the display.
Raspberry Pi not included.
Features
- 8" DSI touch screen with ten-point capacitive touch control
- Compatible with Raspberry Pi 5, 4, 3, 2, B+
- IPS display panel with a native resolution of 800×1280
- Optically bonded toughened glass panel
- Toughened glass 10-point capacitive touch panel with hardness up to 6H
- LCD driven via the DSI interface, with a refresh rate of up to 60Hz
- Supports software-controlled backlight brightness
- Aluminium alloy back cover with passive cooling design
Specifications
| Minimum | Standard | Maximum | Unit | Note | |
| Input voltage | 4.75 | 5.00 | 5.30 | V | 1 |
| Input current | - | 0.8 | TBD | A | 2 |
| Operating temperature | 0 | 25 | 60 | ℃ | 3 |
| Storage temperature | -10 | 25 | 70 | ℃ | 3 |
Note 1: Input voltages exceeding the maximum or improper operation may cause permanent damage to the device.
Note 2: The input current needs to be ≥ 0.8A, otherwise it will cause startup failure or display abnormality. Remaining in an abnormal state for a long time may cause permanent damage to the device.
Note 3: Do not store the display panel in a high-temperature or high-humidity environment for a long period. The display panel should operate within its specified limits; otherwise, it may be damaged.
Resources

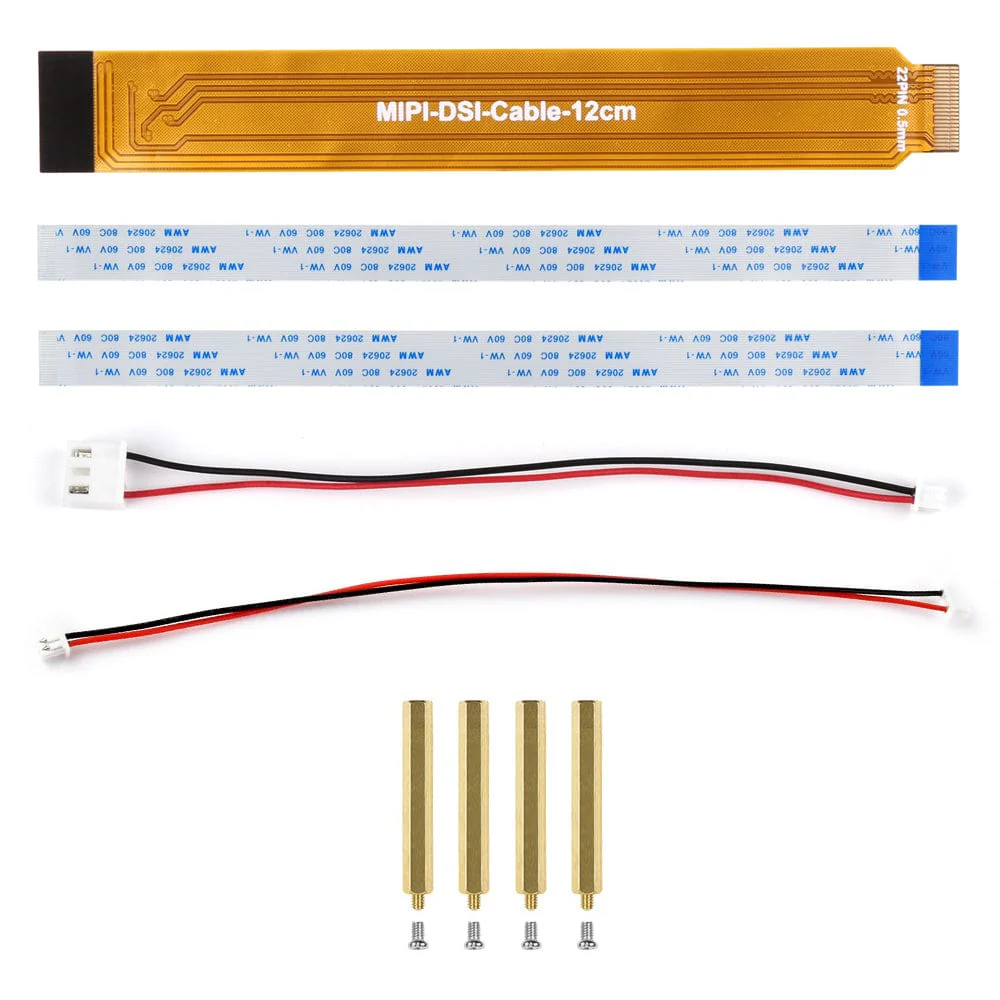

Package Contents
- 1x 8" DSI Capacitive IPS 10-Point Touch Display for Raspberry Pi
- 1x MX1.25 2-pin to 2.54mm 3-pin cable
- 1x 150mm MX1.25 2-pin to MX1.25 4-pin cable
- 1x 120mm DSI cable
- 2x 200mm 22-pin FFC cables
- 1x Screws pack
Raspberry Pi not included.
