Direct Drive Servo Motor Driver Board for DDSM400

This DDSM Driver Board is a motor driver expansion board that lets you control up to six DDSM400 servo motors simultaneously, which is ideal for a variety of robotic projects (If you're looking for a board to control DDSM115, DDSM210 or DDSM315 motors, click here).

It connects to a Raspberry Pi through its integrated 5V buck regulator circuit and a GPIO 40-pin header connector.

The board is built around the ESP32-WROOM-32 module, with multiple wired and wireless communication methods. You can also send JSON commands for easy motor control. The motors can be used via the ESP32 UART or the Type-C USB port, making it easy to integrate with your system.

The board also comes with motor control demos and an SDK.

Features

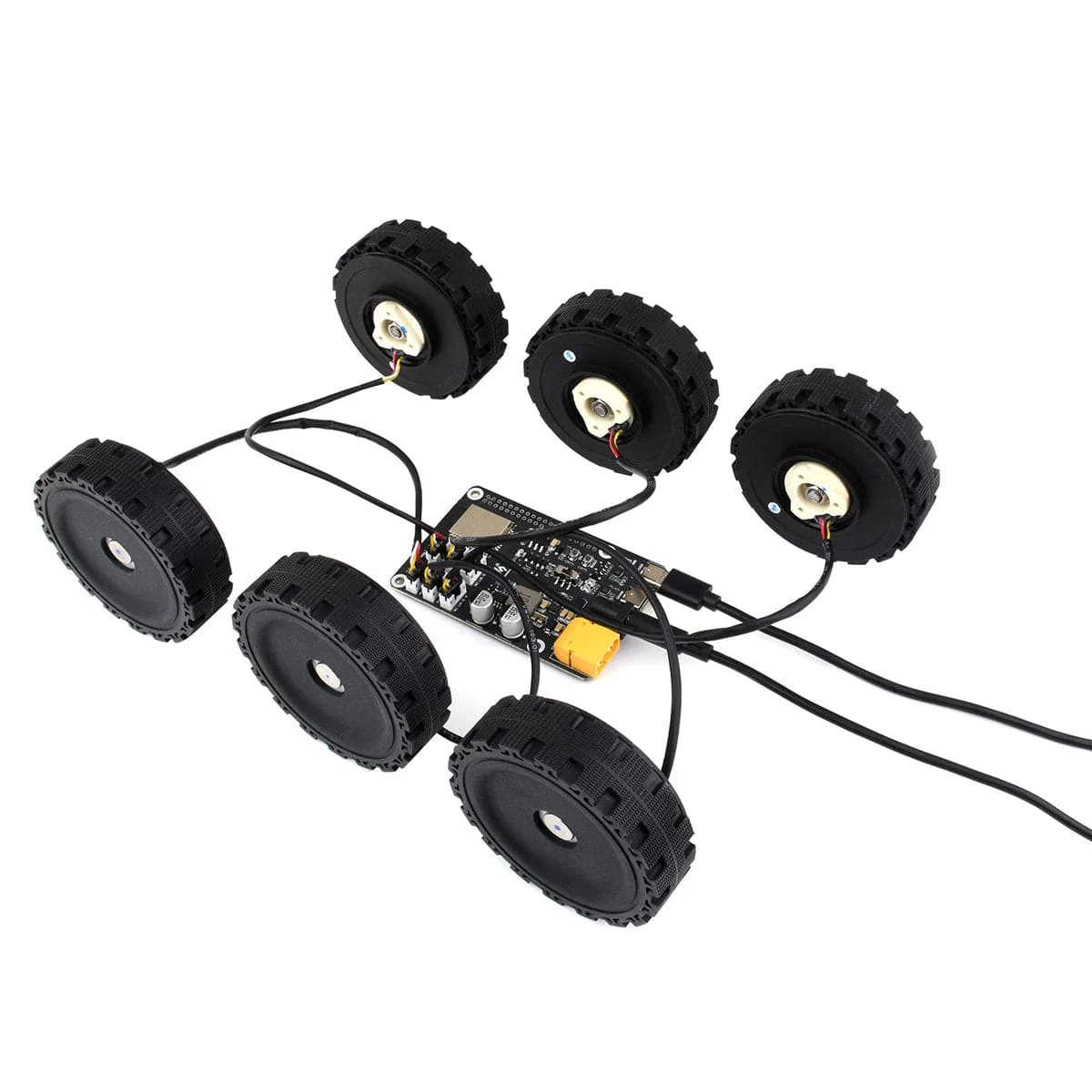

• Suitable for DDSM400 hub motor, onboard 6-ch DDSM400 motor interfaces
• Based on ESP32-WROOM-32 module, supports multiple wired and wireless communication modes, supports JSON command interaction for easier control
• Provides DDSM400 hub motor control demo and SDK, easy-to-use
• Integrated WEB application for controlling and setting the DDSM400 hub motors, more convenient for debugging
• Control the hub motors directly via the Type-C port
• Connect to Raspberry Pi, powering the Pi via a 5V buck regulator circuit and communicating through GPIO UART interface, neat cable management

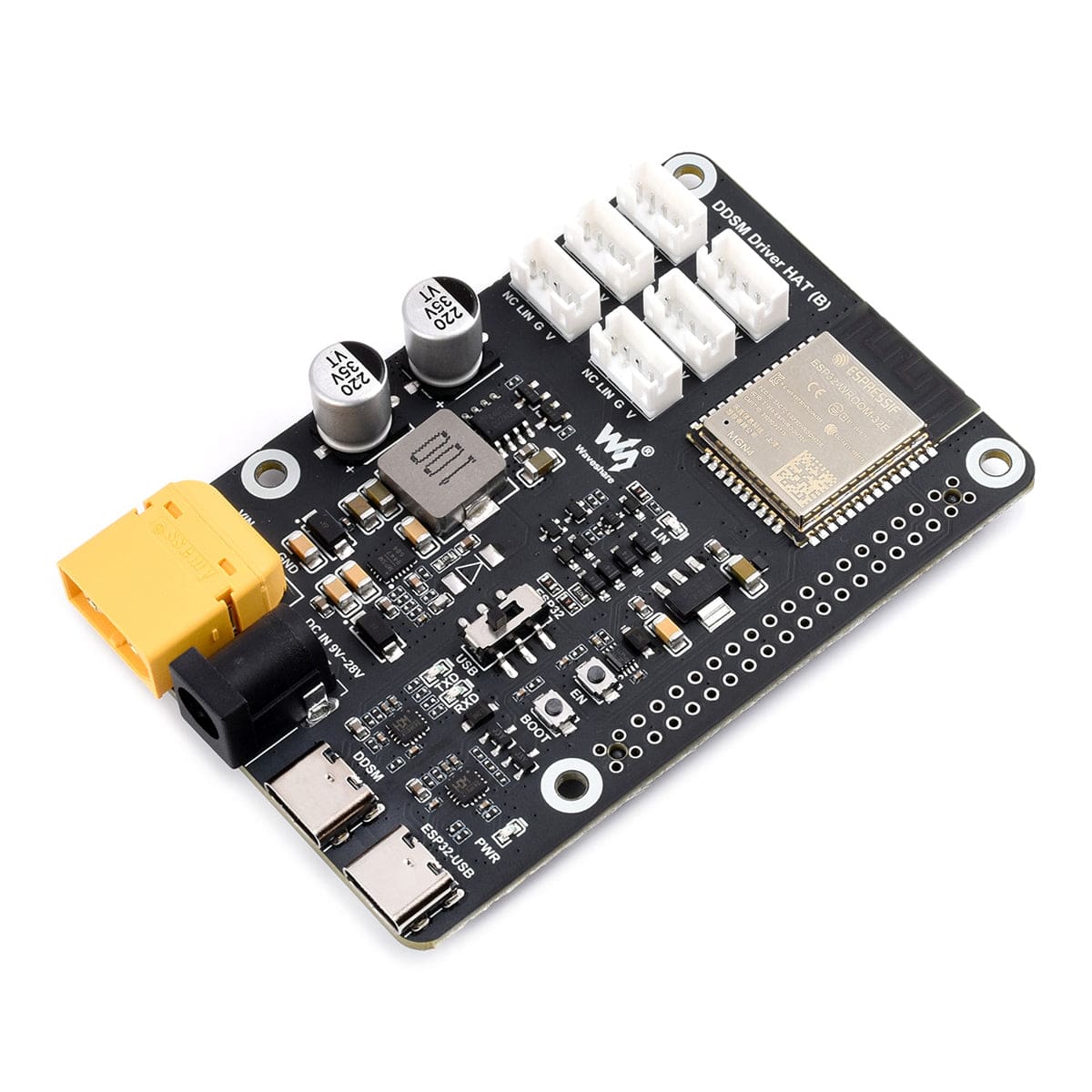

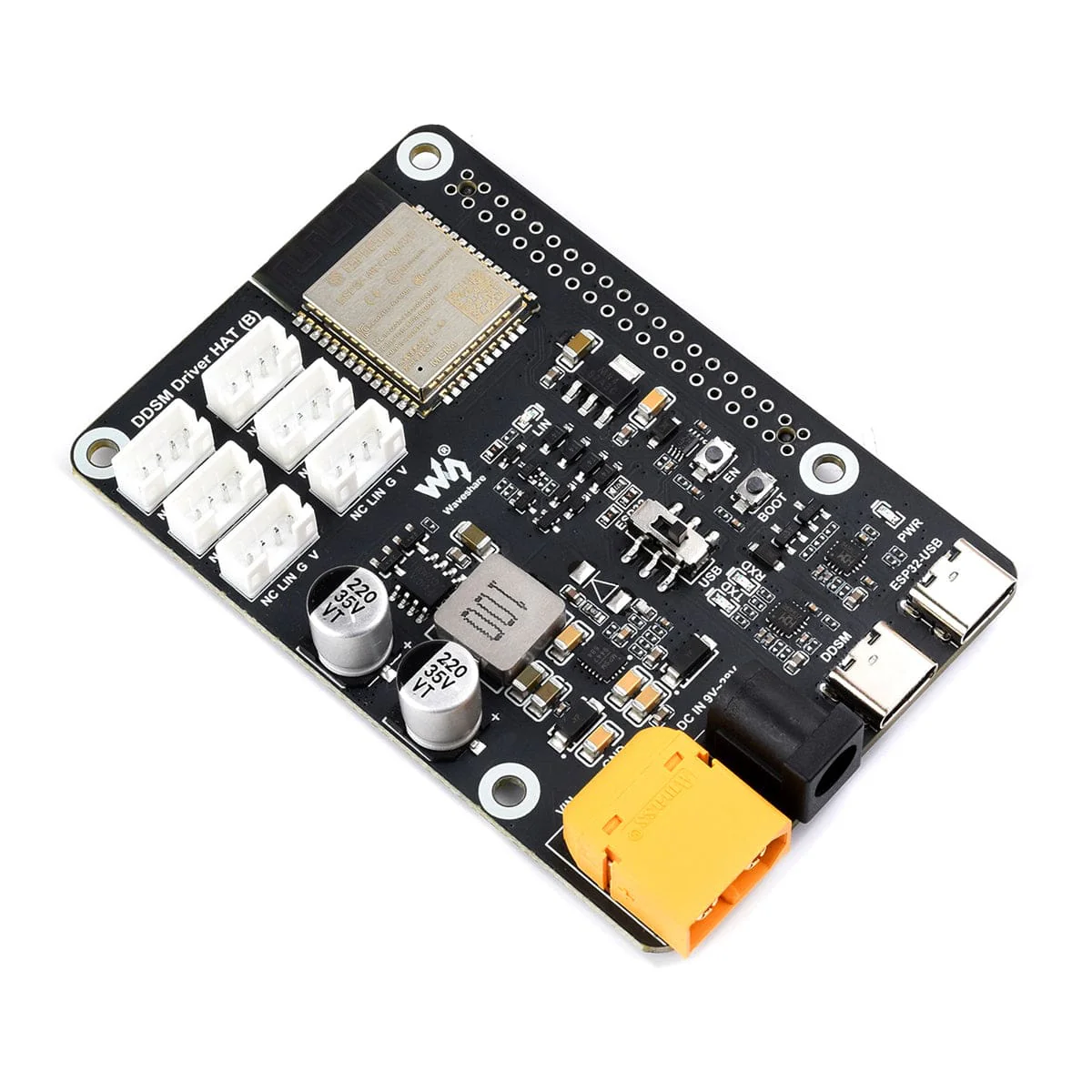

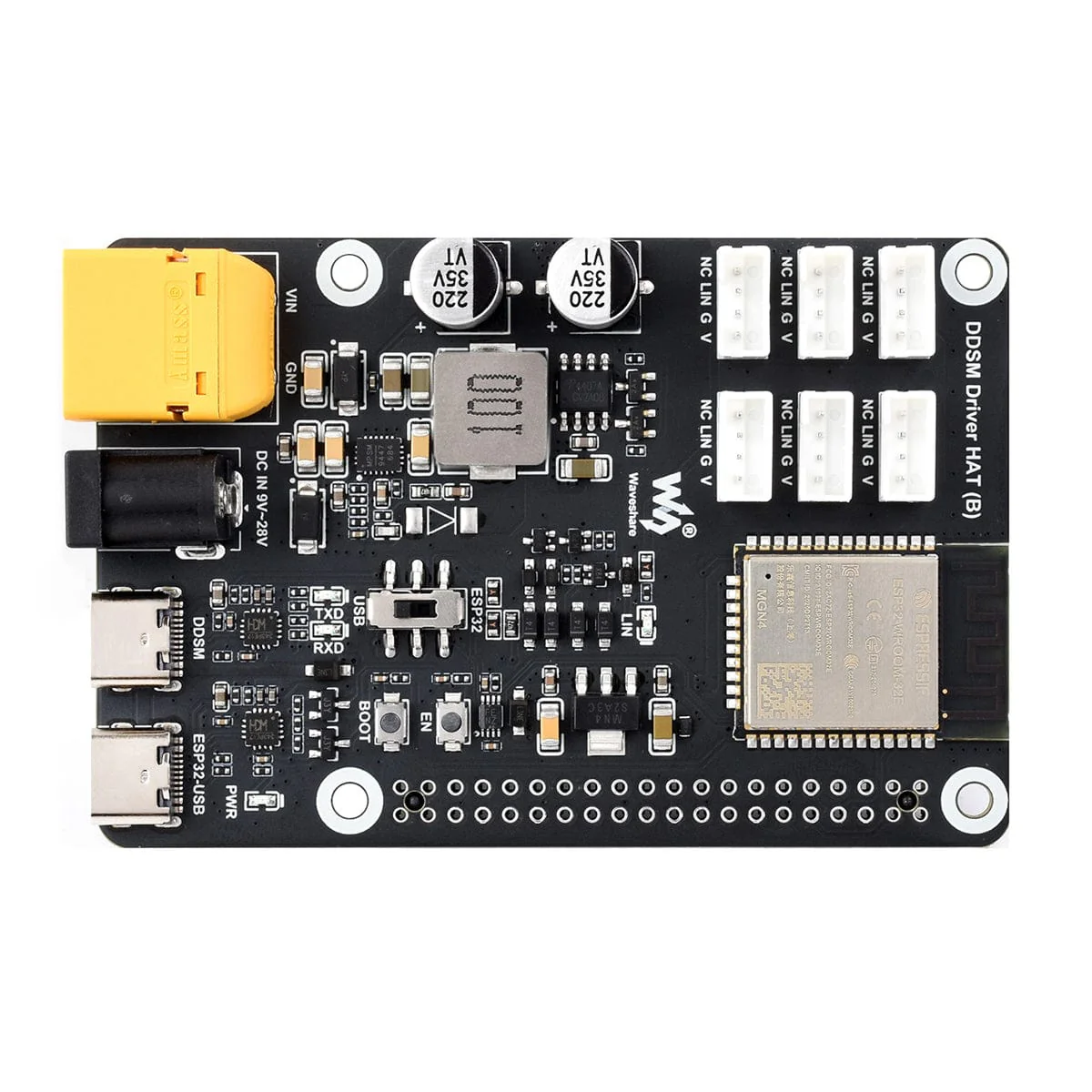

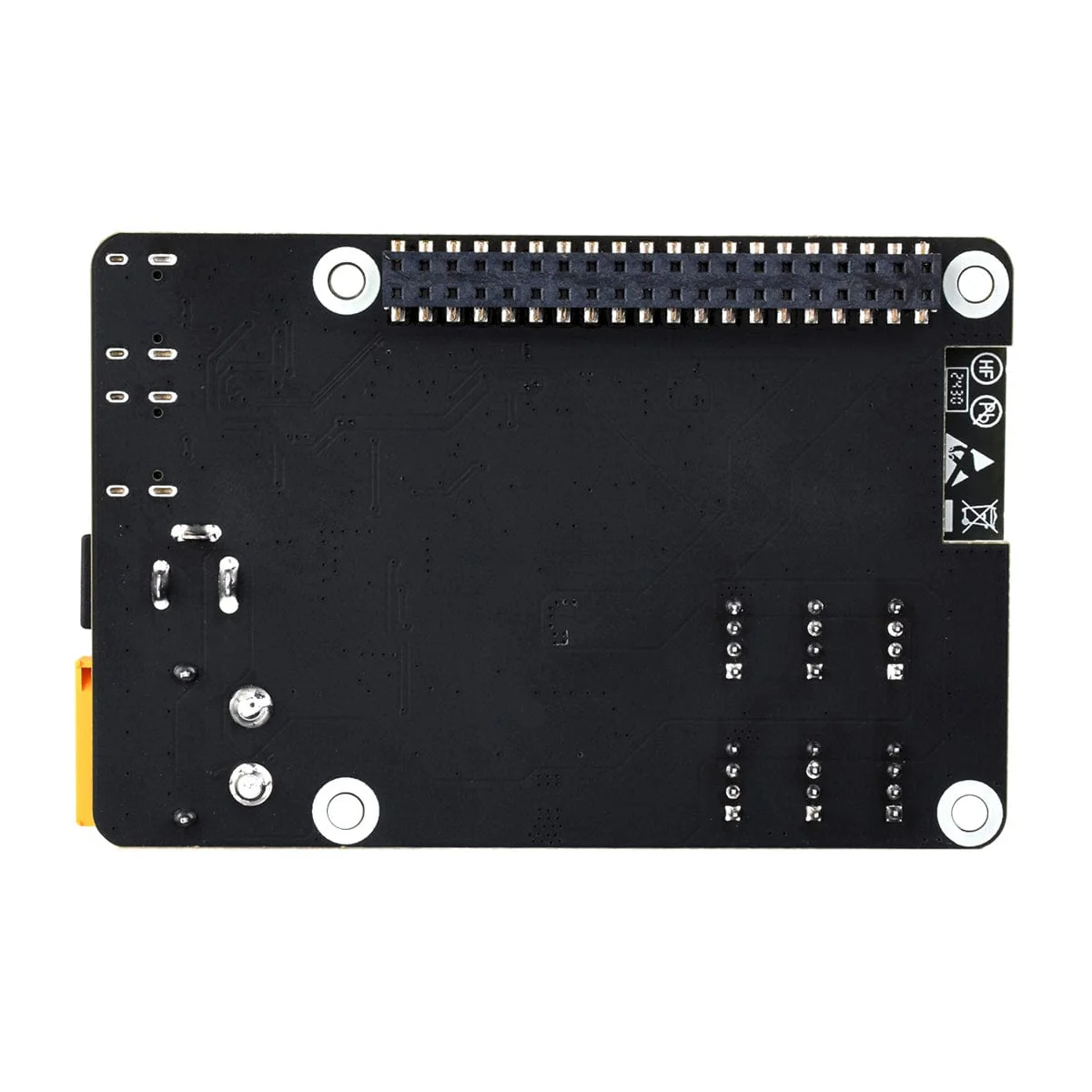

What's on Board

1. ESP32 controller
2. LIN single bus communication circuit
3. UART control switch
4. Reset button
5. BOOT button
   for entering downloading mode manually
6. Raspberry Pi 40-pin header
7. ESP32 Type-C port
8. Hub motor Type-C port
9. 5.5 x 2.5 DC power jack
10. XT60 power supply connector
11. LIN hub motor headers

Specifications

Controller Module	ESP32
Power Supply Port	XT60, 5.5 x 2.5mm DC power jack
Power Supply	9V ~ 28V
Communication Interface	2x Type-C, UART
Wireless Communication	2.4G WiFi
Mounting Hole Diameter	3 mm
Mounting Hole Spacing	58 x 49 mm
PCB Size	85 x 57 mm

Resources

• Product Wiki
• Schematic

Pinout

Package Contents

• 1x DDSM Driver HAT (B)
• 1x 2 x 20-pin header
• 1x USB Type-A to Type-C cable
• 1x Screws pack
