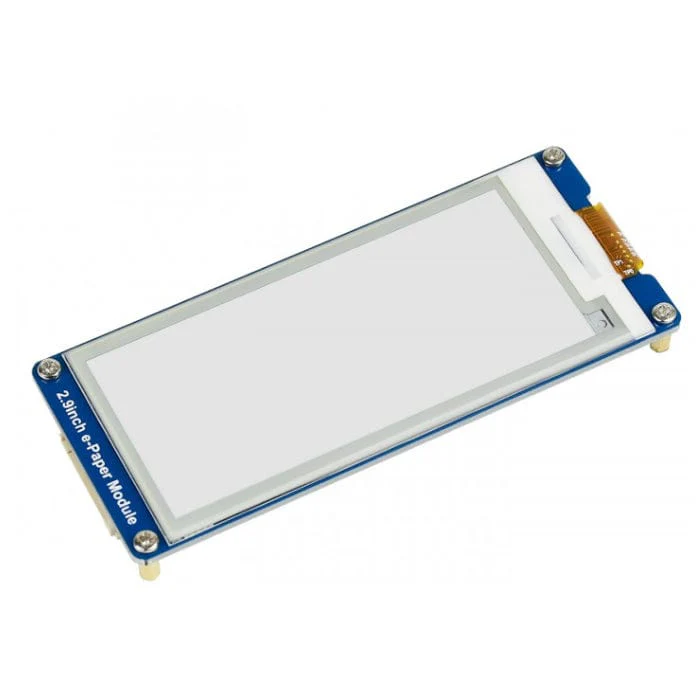

2.9" ePaper Display Module (296x128)

A 2.9" ePaper display module from Waveshare, with a 296x128 resolution, 170° viewing angles and partial refresh support - controlled via SPI.

ePaper displays are designed to replicate the appearance of ink on paper. Unlike regular displays, which lose their image when power is removed, ePaper screens are able to hold text and images indefinitely, even without power. ePaper screens are therefore ultra low power, designed to have a wide viewing angle and additionally have limited reflection under sunlight. The applications are limitless!

These ePaper display modules from Waveshare come complete with an embedded controller PCB, communicating via SPI interface, and support partial refresh.

Features

• No backlight, keeps displaying last content for a long time even when powered down
• Ultra low power consumption, basically power is only required for refreshing
• SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.
• Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

• Operating voltage: 3.3V
• Interface: 3-wire SPI, 4-wire SPI

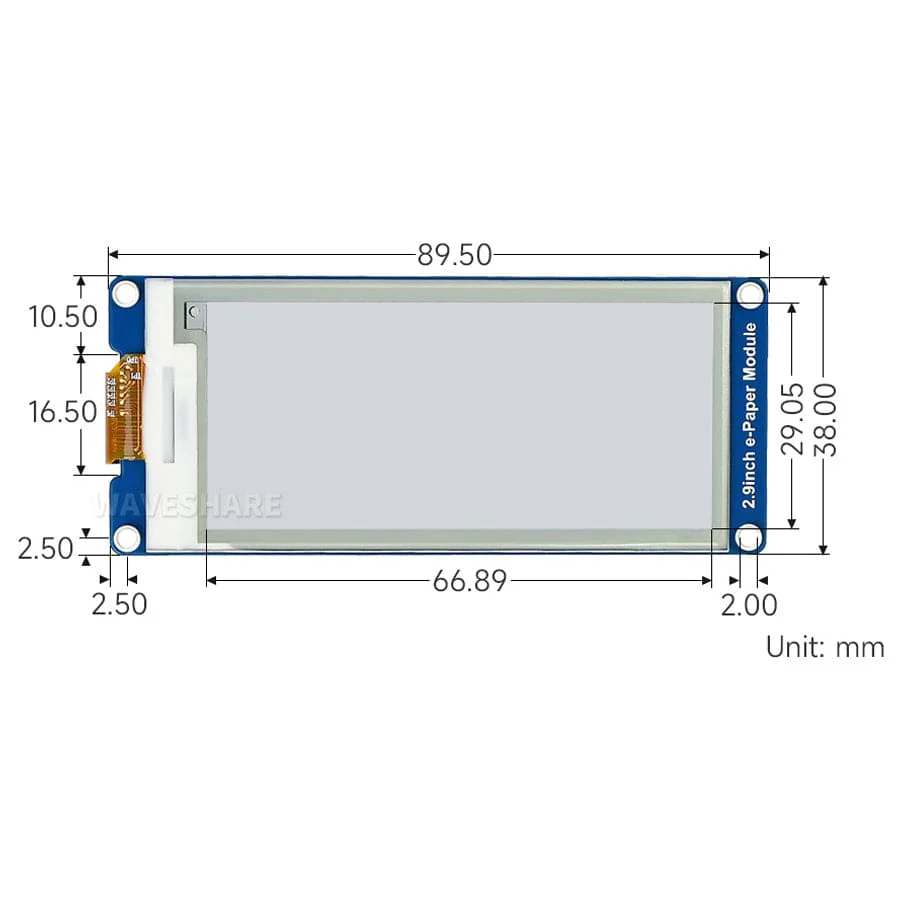

• Outline dimension: 89.5mm x 38mm
• Display size: 66.89mm x 29.05mm
• Dot pitch: 0.138 x 0.138
• Resolution: 296 x 128
• Display color: black, white
• Grey level: 2
• Refresh power: 26.4mW(typ.)
• Standby power: <0.17mW
• Viewing angle: >170°

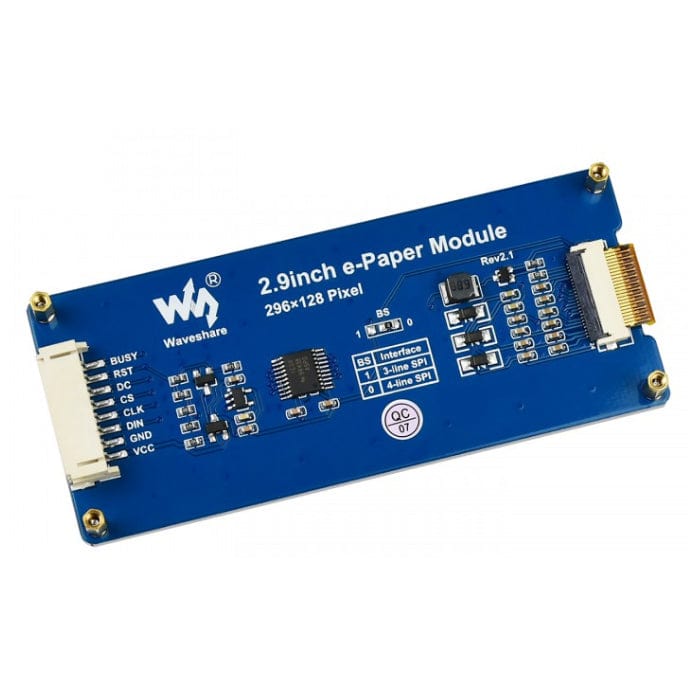

Pinout

SYMBOL	DESCRIPTION
VCC	3.3V/5V
GND	Ground
DIN	SPI MOSI pin
CLK	SPI SCK pin
CS	SPI chip selection, low active
DC	Data/Command selection (high for data, low for command)
RST	External reset, low active
BUSY	Busy status output, high active

Resources

• Product Wiki

Package Contents

• 1x 2.9" e-Paper Module
• 1x PH2.0 20cm 8-Pin
