Gigabit Ethernet + 3x USB 3.2 PCIe HAT+ for Raspberry Pi 5

This PCIe to Gigabit HAT+ is designed for the Raspberry Pi 5, providing an easy plug-and-play solution without needing drivers.

It extends your Pi's capabilities by adding three USB 3.2 Gen1 ports and one Gigabit Ethernet port. It has high-performance chips for reliable and fast connections and supports various operating systems like Raspberry Pi OS, Ubuntu, and OpenWRT.

Additionally, it includes onboard power monitoring and EEPROM for storing product information and HAT ID. This expansion is perfect for enhancing your Raspberry Pi’s connectivity and performance.

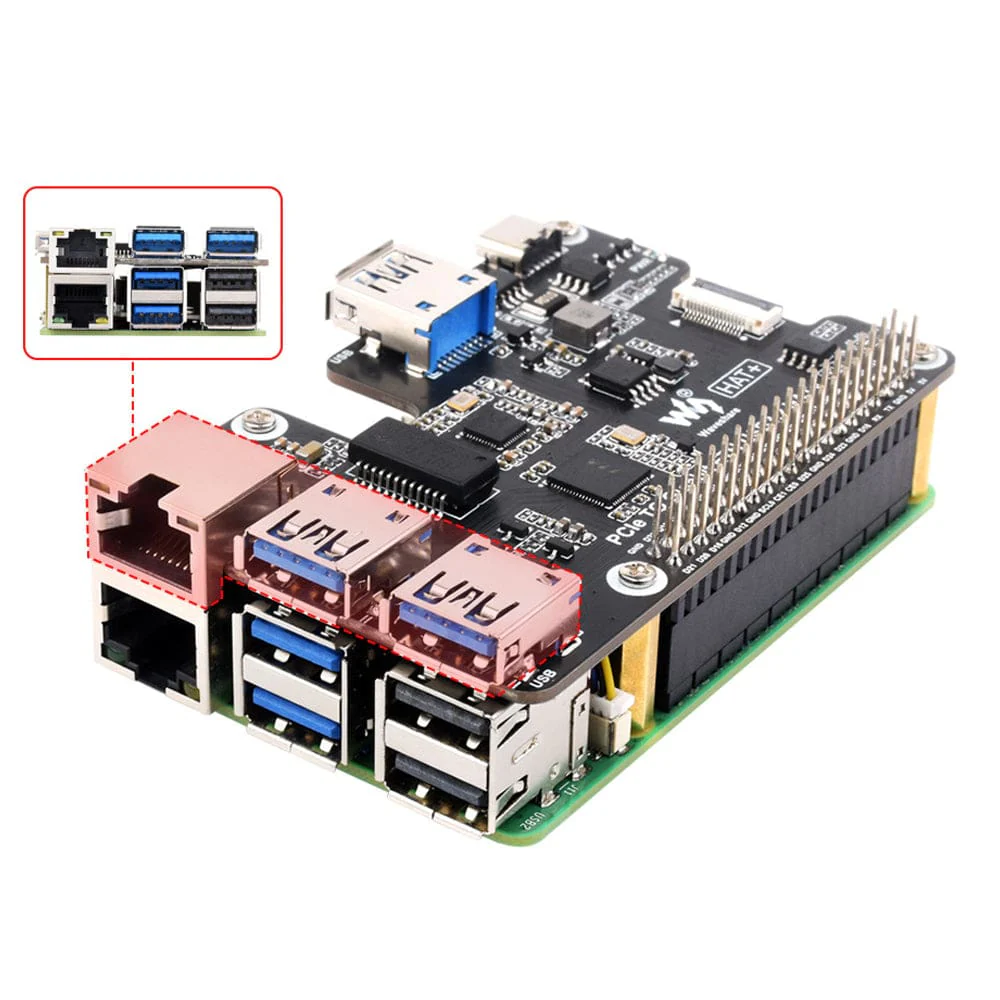

We stock a case from Waveshare designed to fit this HAT, with cut-outs for the additional USB ports.

Note: PCIE interface is not enabled on the Raspberry Pi by default

Features

• 1x PCI-E Gen2 mode.
• Only supports PI5B.
• Equipped with VL805 original high-performance main control chip.
• Support power control through a USB interface.
• Support USB power control.

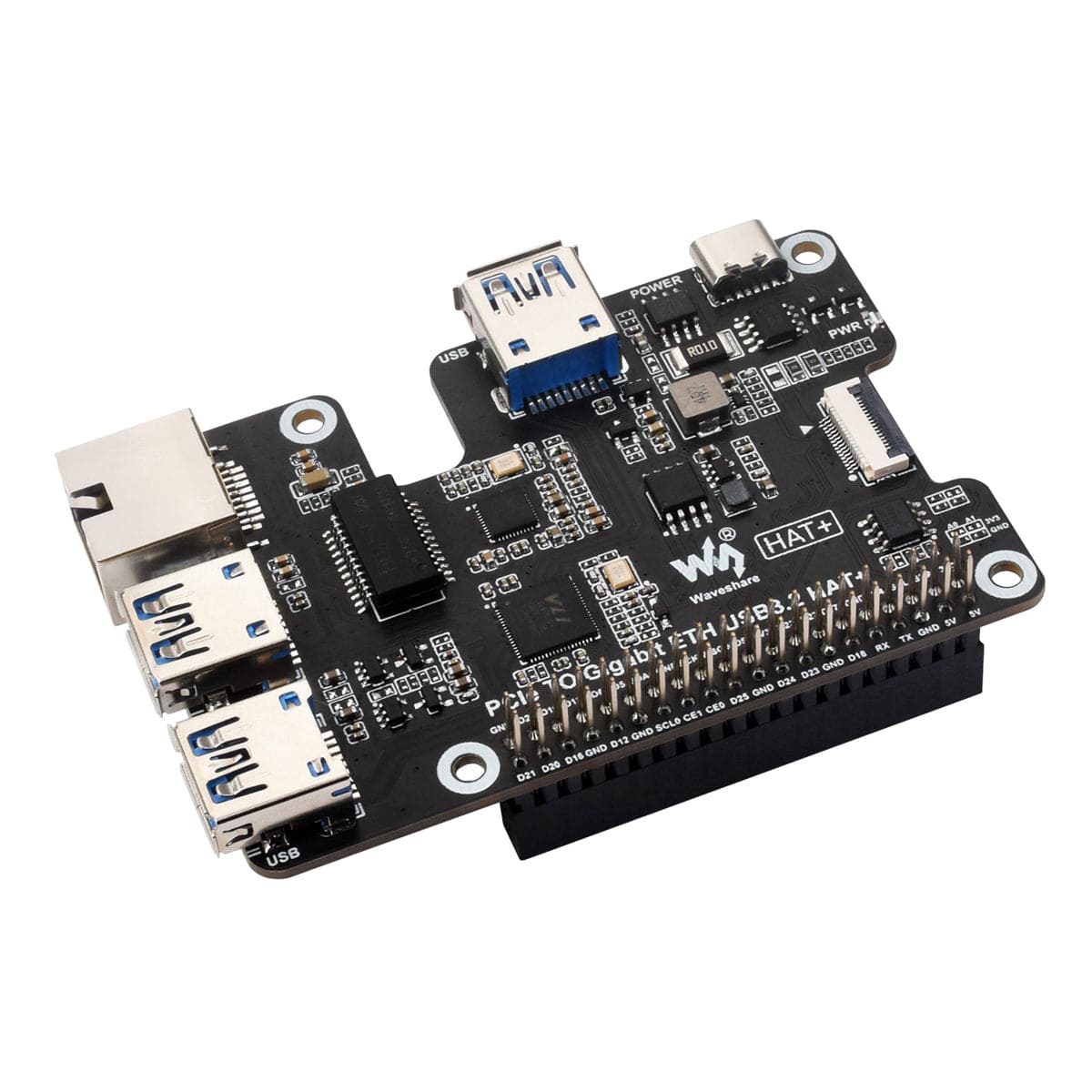

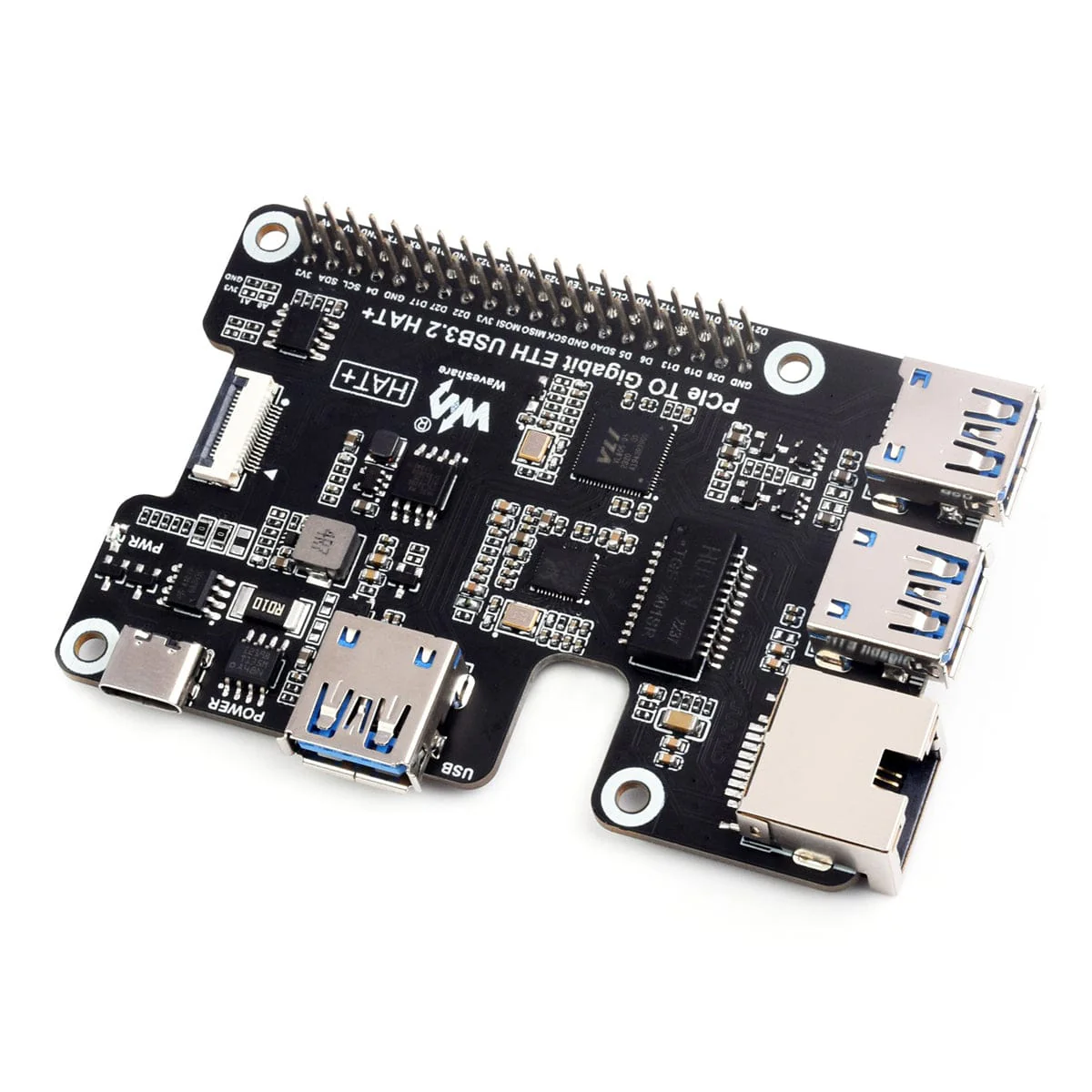

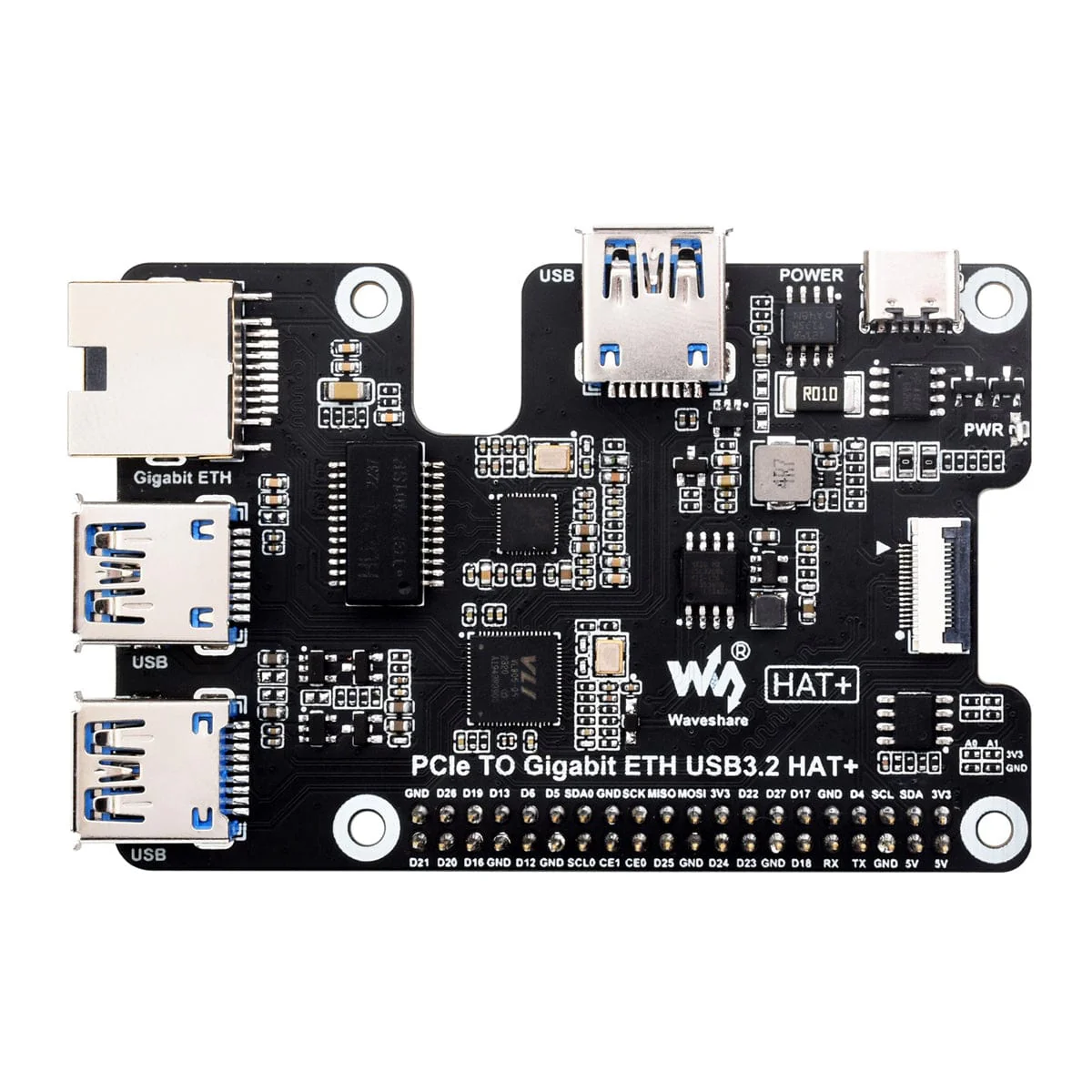

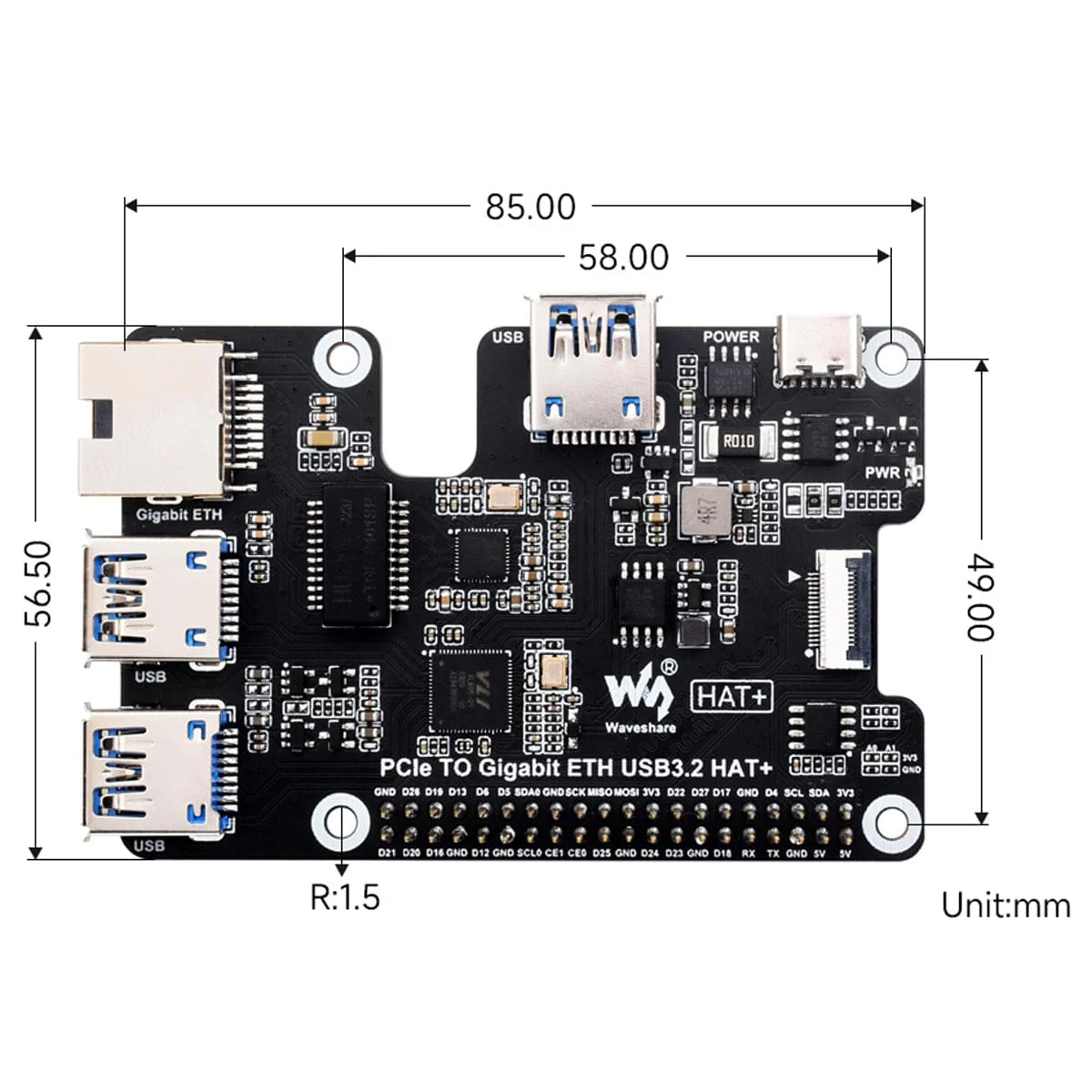

What's on Board

1. VL805
   PCIe to USB 3.2 Gen1 HUB chip
2. RTL8153B
   USB to Gigabit ETH chip
3. INA219
   Power monitoring chip
4. EEPROM
   For saving HAT ID and product information
5. 16PIN PCIe interface
   For connecting to the PCIe interface of Raspberry Pi 5
6. Raspberry Pi GPIO header
   for connecting Raspberry Pi 5
7. Gigabit Ethernet port
   Up to 1000Mbps data rate, compatible with 100Mbps
8. USB 3.2 Gen1 expanded ports
   USB1~USB3
9. Power port
   For external Type-C 5V DC power supply
10. PWR LED
    Power indicator

Resources

• Product Wiki

Package Contents

1. 1x PCIe TO Gigabit ETH USB 3.2 HAT+
2. 1x Ethernet cable ~1.5m
3. 1x 16-pin Cable 40mm
4. 1x Standoff pack
