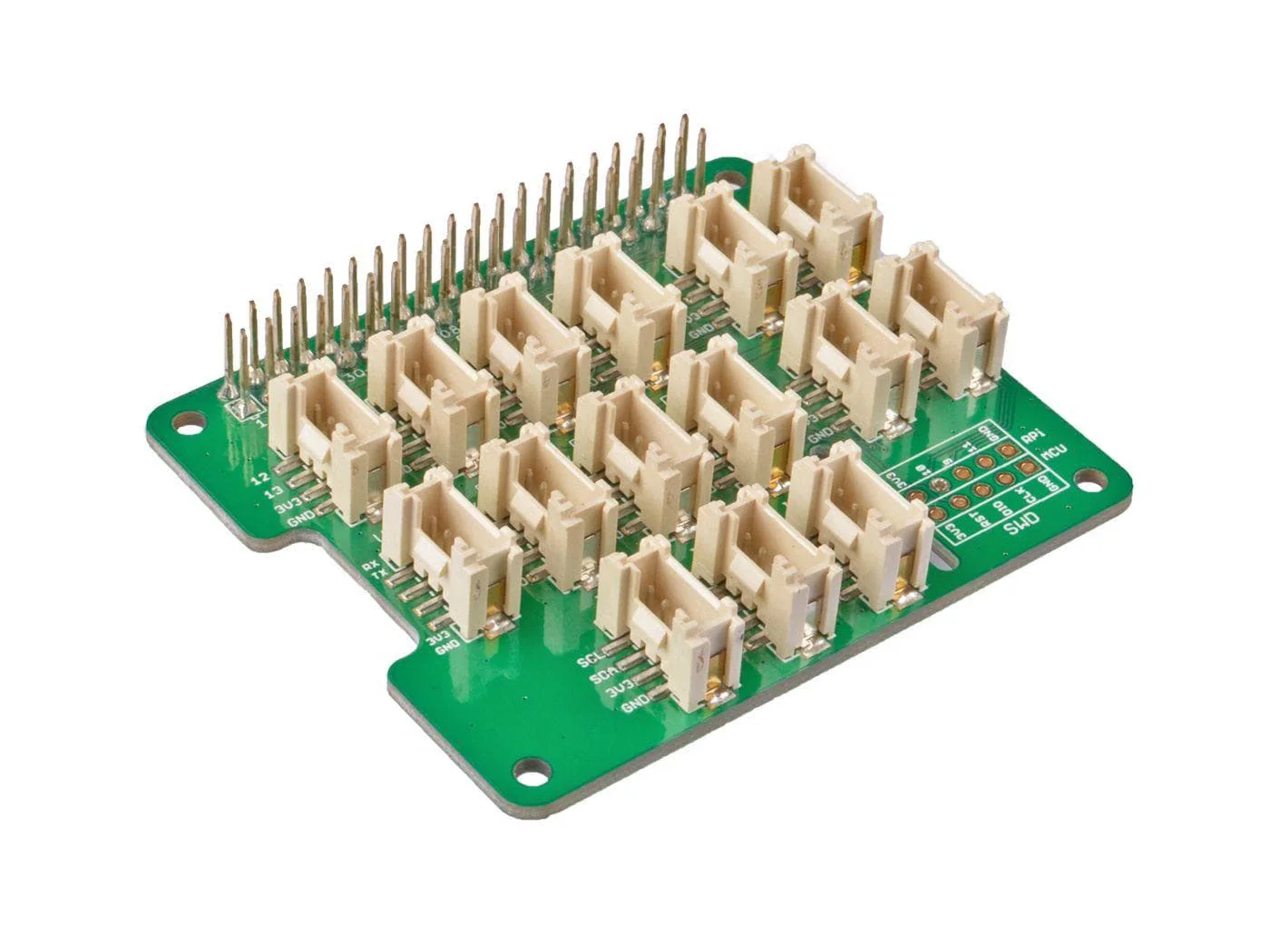

Grove - Base HAT for Raspberry Pi

The grove series of sensors, actuators and displays have grown into a large family of handy modules for makers. More and more grove modules will join the Grove ecosystem in the future too!

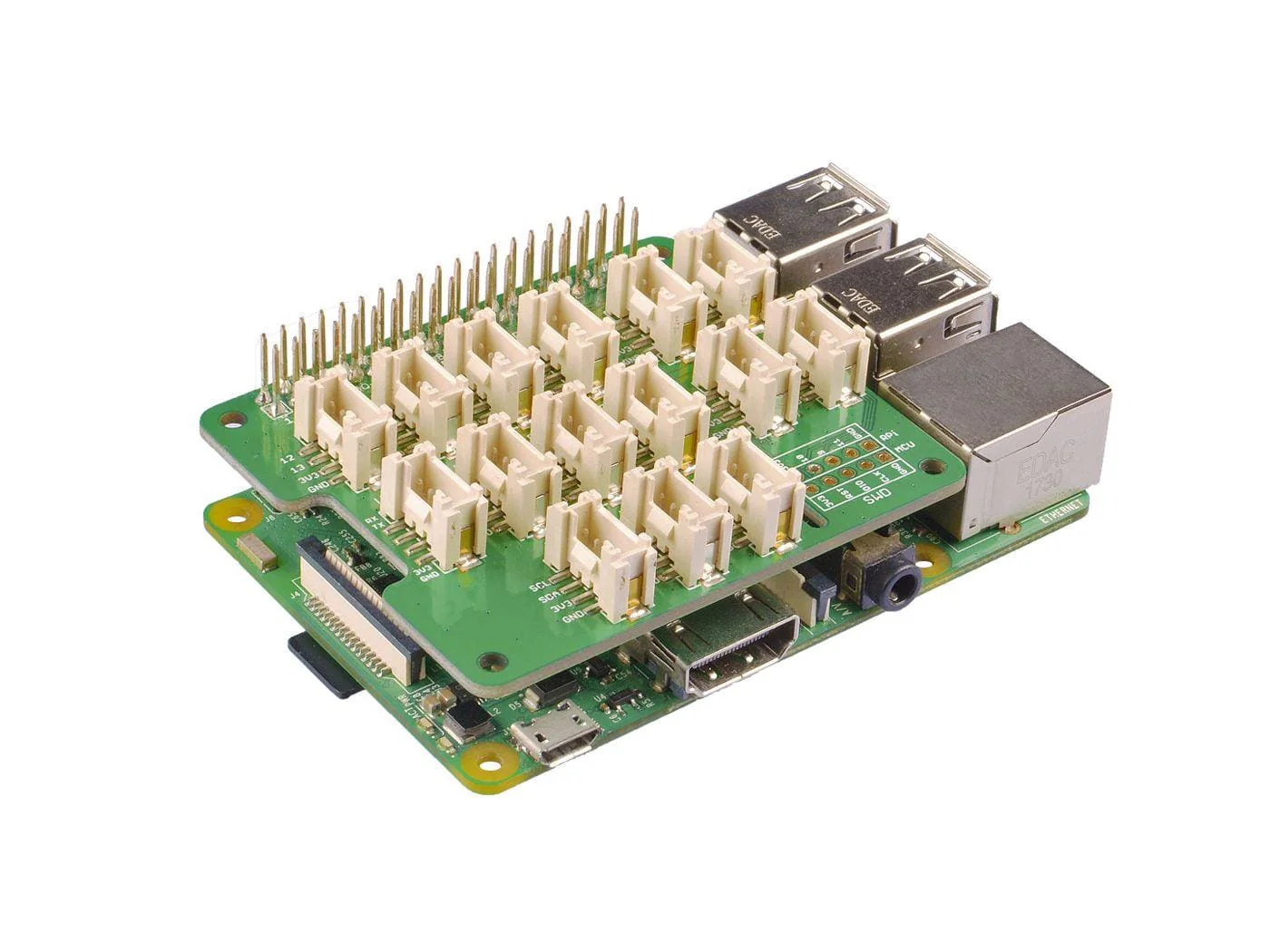

Now Seeed brings you the Grove Base HAT for the Raspberry Pi, bringing the Raspberry Pi into the Grove System.

The Grove Base Hat for Raspberry Pi provides Digital/Analog/I2C/PWM/UART ports to meet all your project needs. With the help of the build-in MCU, a 12-bit 8 channel ADC is also available for your Raspberry Pi.

More than 60 groves support the Grove Base Hat for Raspberry Pi. In addition, Seeed will continue to add new compatible modules to the compatible list.

Compared with Grove Pi+, the Grove Base Hat for Raspberry Pi does not use the ATMEGA chip for data conversion - so it runs faster. Seeed provides the Raspberry Pi driver for Grove Base Hat for Raspberry Pi.

Note: Raspberry Pi NOT included

Features

• Supports Raspberry Pi 2/ 3B/3B+/4/Zero

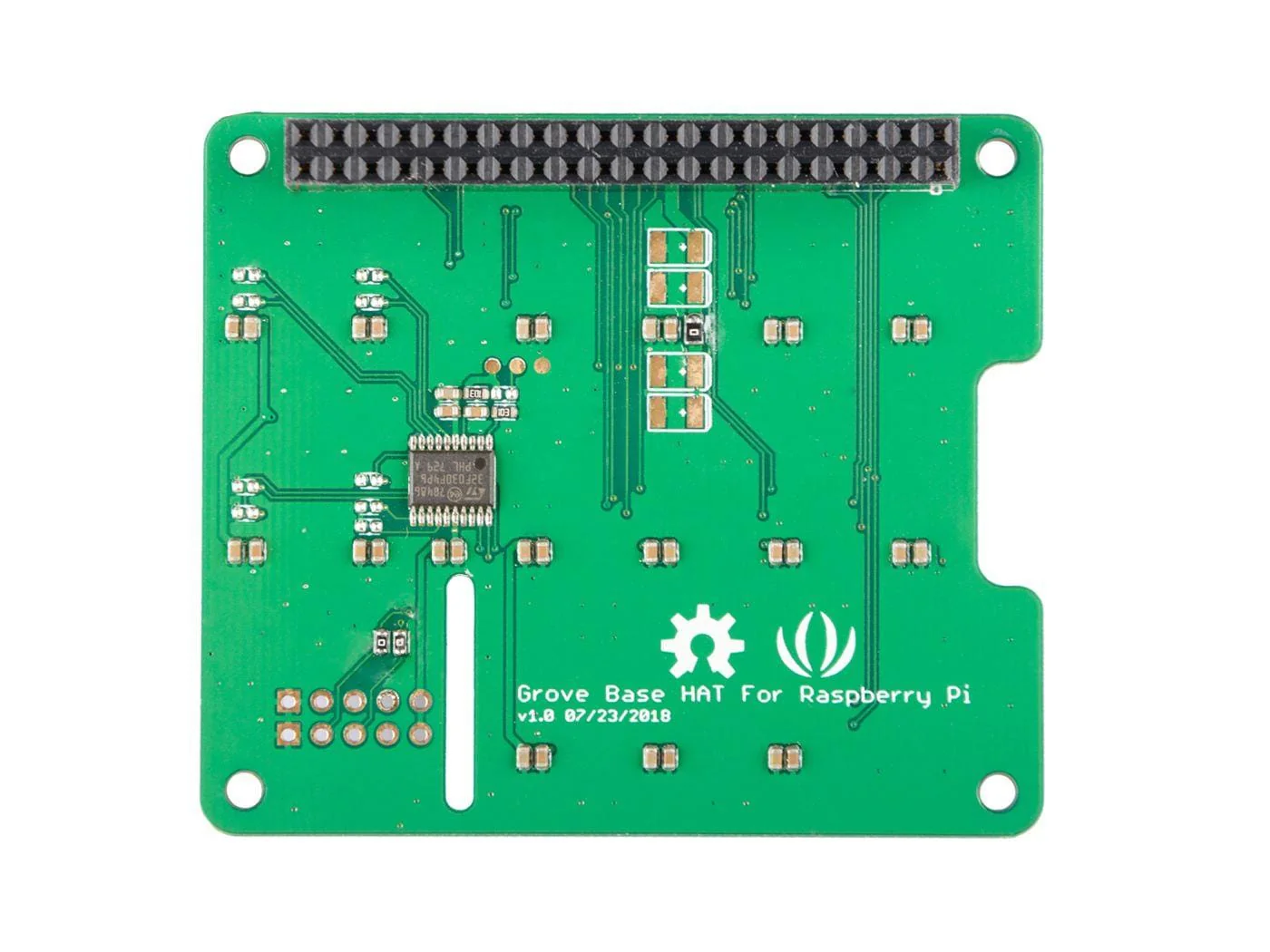

• Build-in MCU STM32
• 12-bit ADC
• Multi-type Grove port
• Fixed address: 0x04
• Product number: Seeed 103030275

Specifications

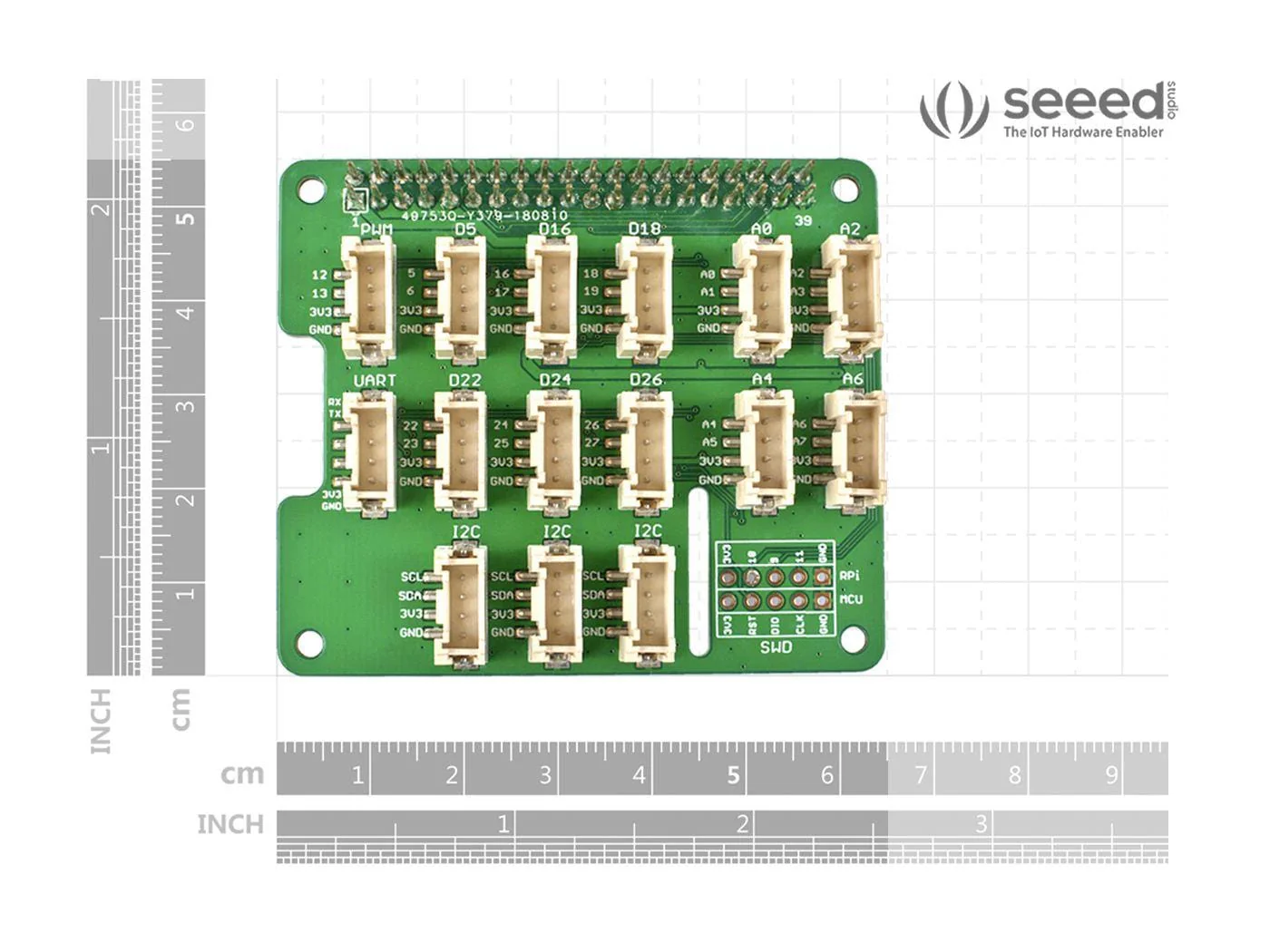

• Dimensions: 55mm x 65mm x 20mm
• Weight: G.W 24.5g
• Operating Voltage: 3.3V
• MCU: SMT32

Resources

• Getting Started guide
• Product Wiki

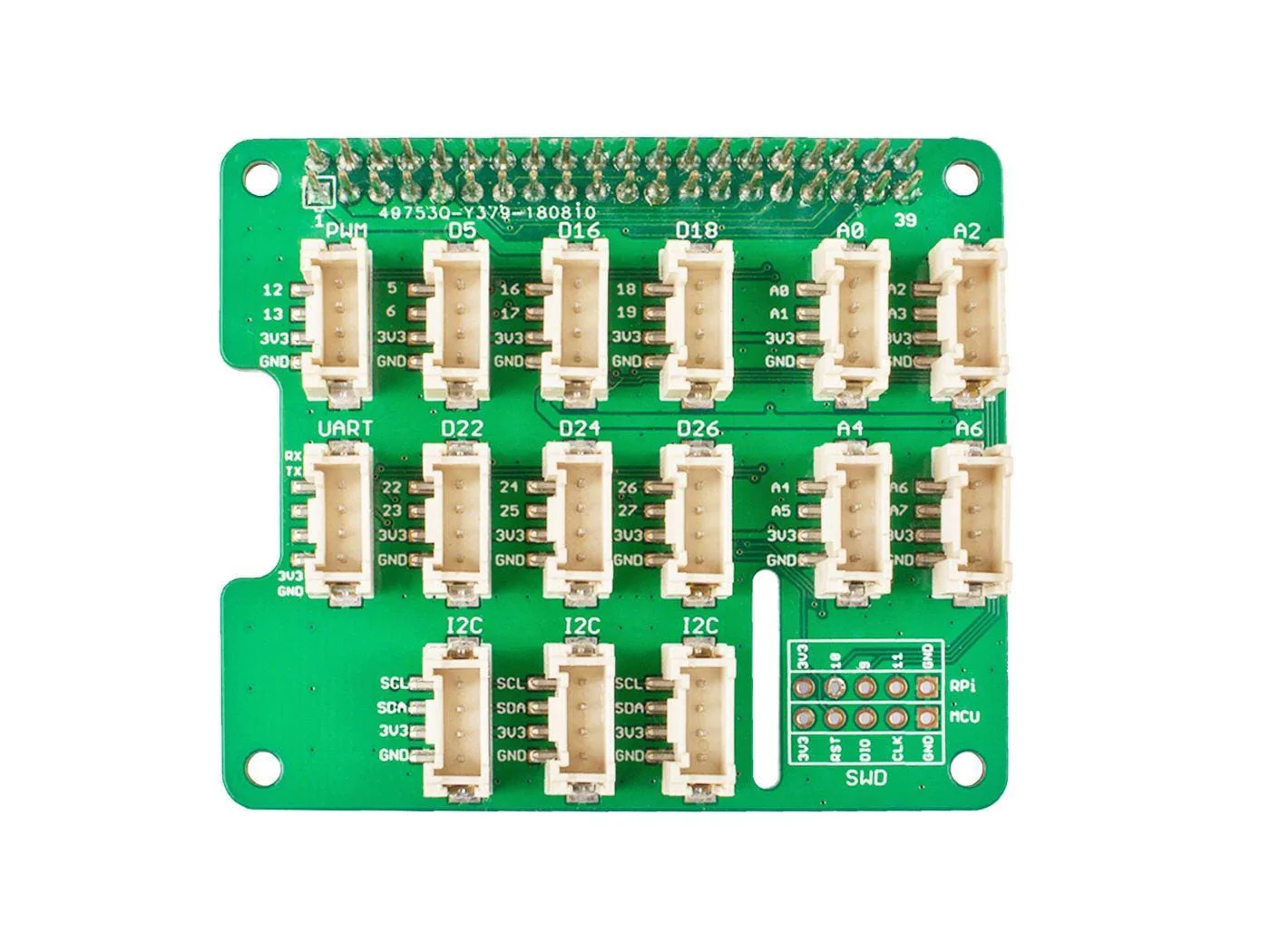

Pinout
