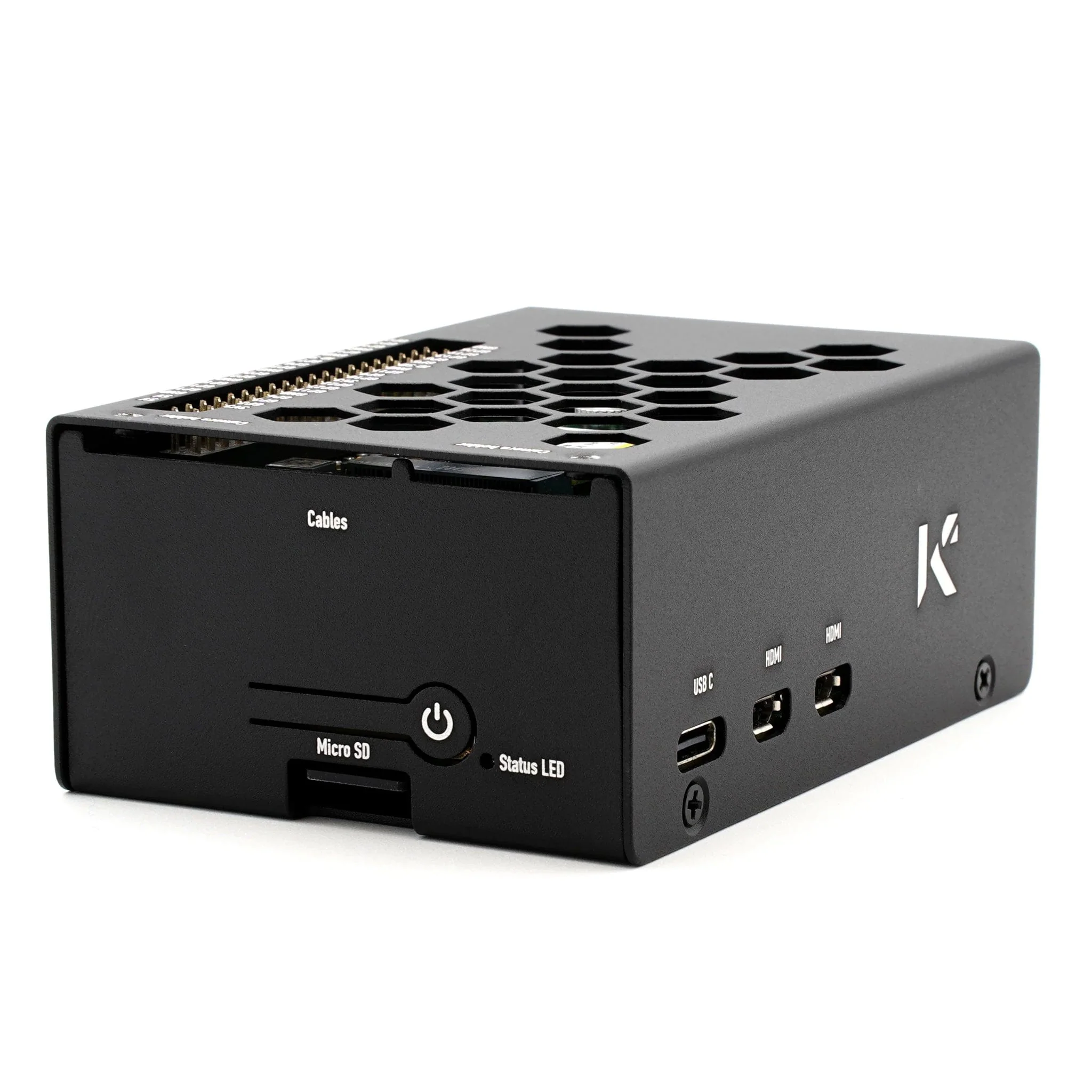

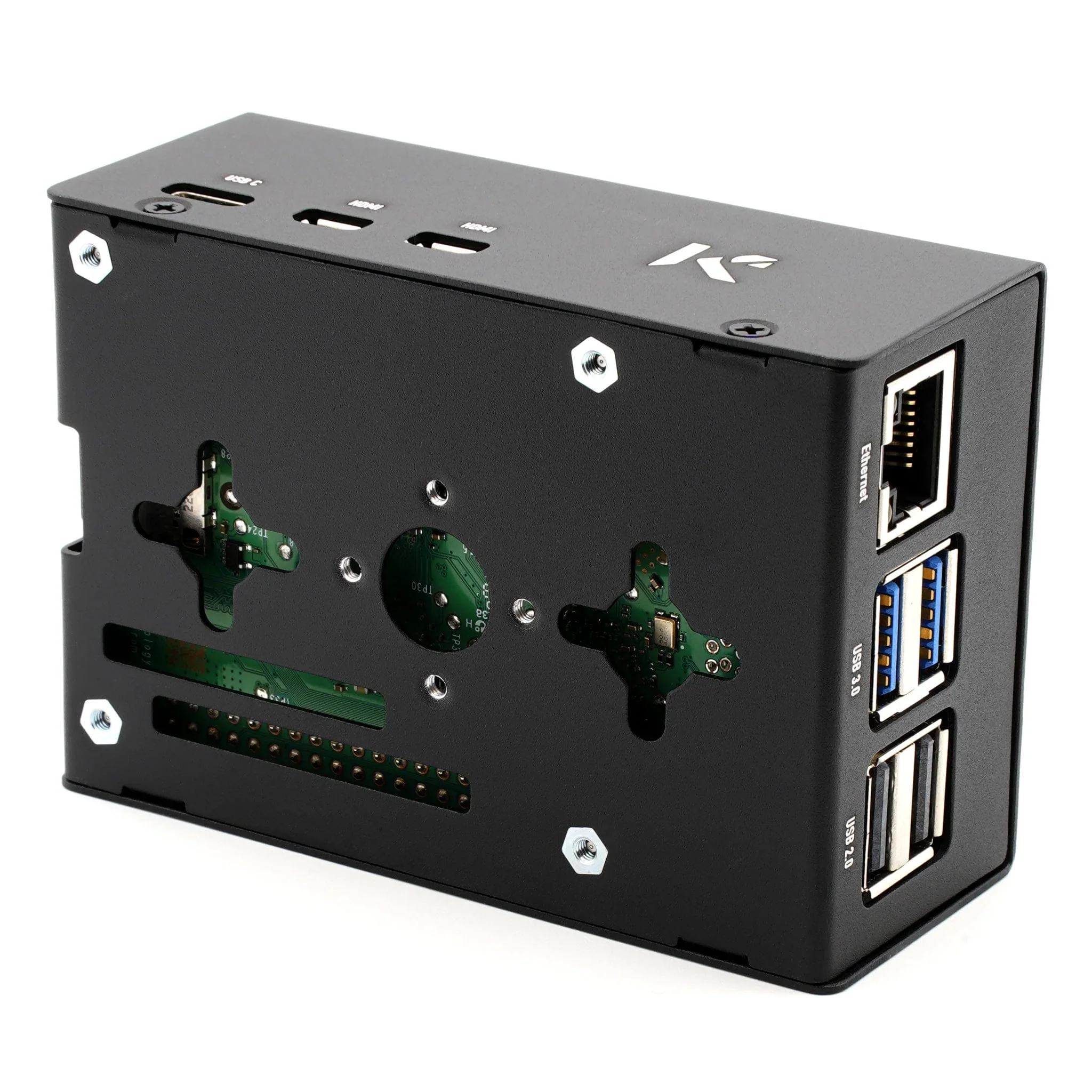

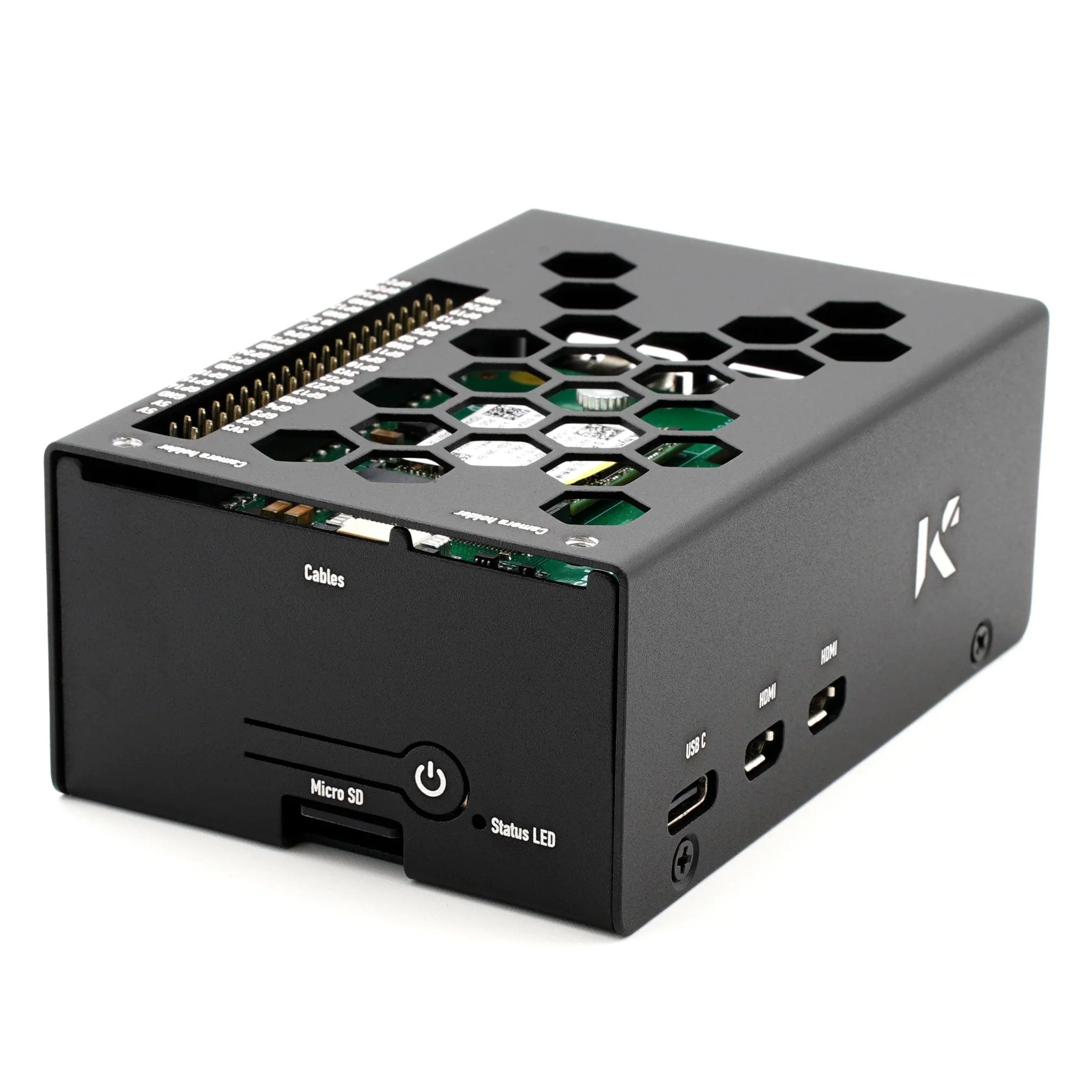

KKSB Case for Raspberry Pi 5 and M.2 NVMe HAT

A sandblasted black anodised aluminium case for Raspberry Pi 5, designed to support the Official Raspberry Pi M.2 HAT+ and other HATs with a similar form factor.

The KKSB Case provides cut-outs for Raspberry Pi 5 interfaces, ensuring easy access to ports while maintaining a compact design, as well as a power button interface.

Ventilation slots help maintain airflow, making it compatible with the Raspberry Pi Active Cooler. The included 40-pin stackable header ensures proper spacing between the HAT and the cooler, whilst the inclusion of long and short spacers ensures the accomodation of HATs with varying header lengths.

The case also includes wall mounting keyholes and is fully compatible with KKSB DIN Rail Clips, KKSB Tripod Brackets, and KKSB VESA Brackets (sold separately).

Features

• Sandblasted Black Anodised Aluminium: Provides heat dissipation and shielding

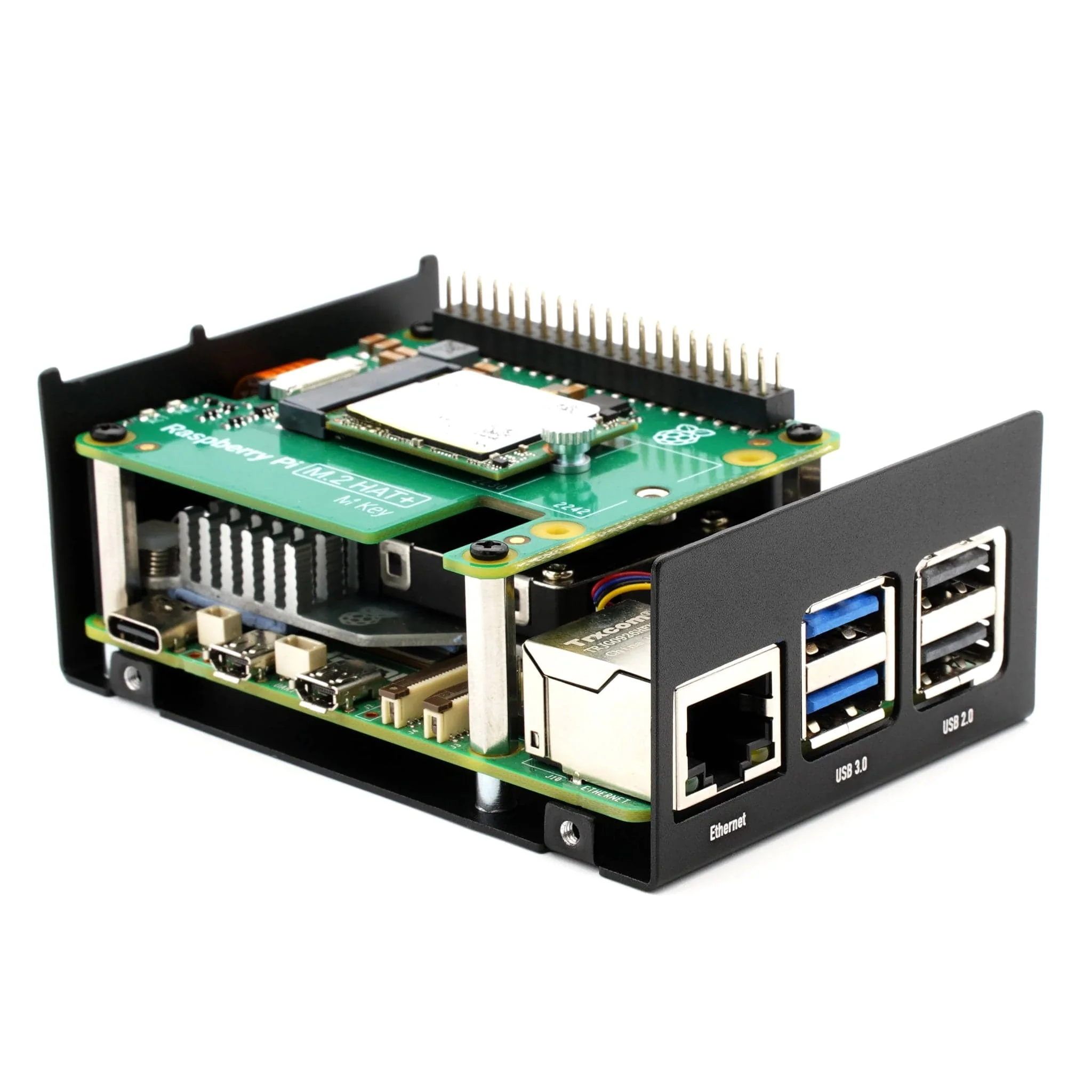

• Supports Raspberry Pi 5 and M.2 NVMe HAT+: Compatible with standard HATs of similar form factor
• Ventilation Slots: Ensures airflow for cooling solutions
• 40-Pin Stackable Header: Maintains spacing between HAT and cooler
• Wall Mounting Keyholes: Enables secure installation
• Pre-cut Holes for KKSB Accessories: Supports DIN Rail Clips, Tripod Brackets, and VESA Brackets

Specifications

Material	Sandblasted Black Anodised Aluminium
Compatibility	Raspberry Pi 5, Official Raspberry Pi M.2 HAT+, Other HATs with Similar Form Factor
Cooling Support	Compatible with Official Raspberry Pi Cooler
Mounting Options	Wall Mount Keyholes, Precut Holes for KKSB Accessories

Resources

• Assembly Instructions

Package Contents

• KKSB Case
• Spacers
• Screws
• Rubber Feet
• Stackable Header 40-pin

Raspberry Pi 5, M.2 HAT+, Electronics, Cooler, and Compatible KKSB Accessories are NOT included.
