KKSB HAT Case for Raspberry Pi 5

A durable aluminium enclosure for Raspberry Pi 5, supporting standard HATs and NVMe expansion boards.

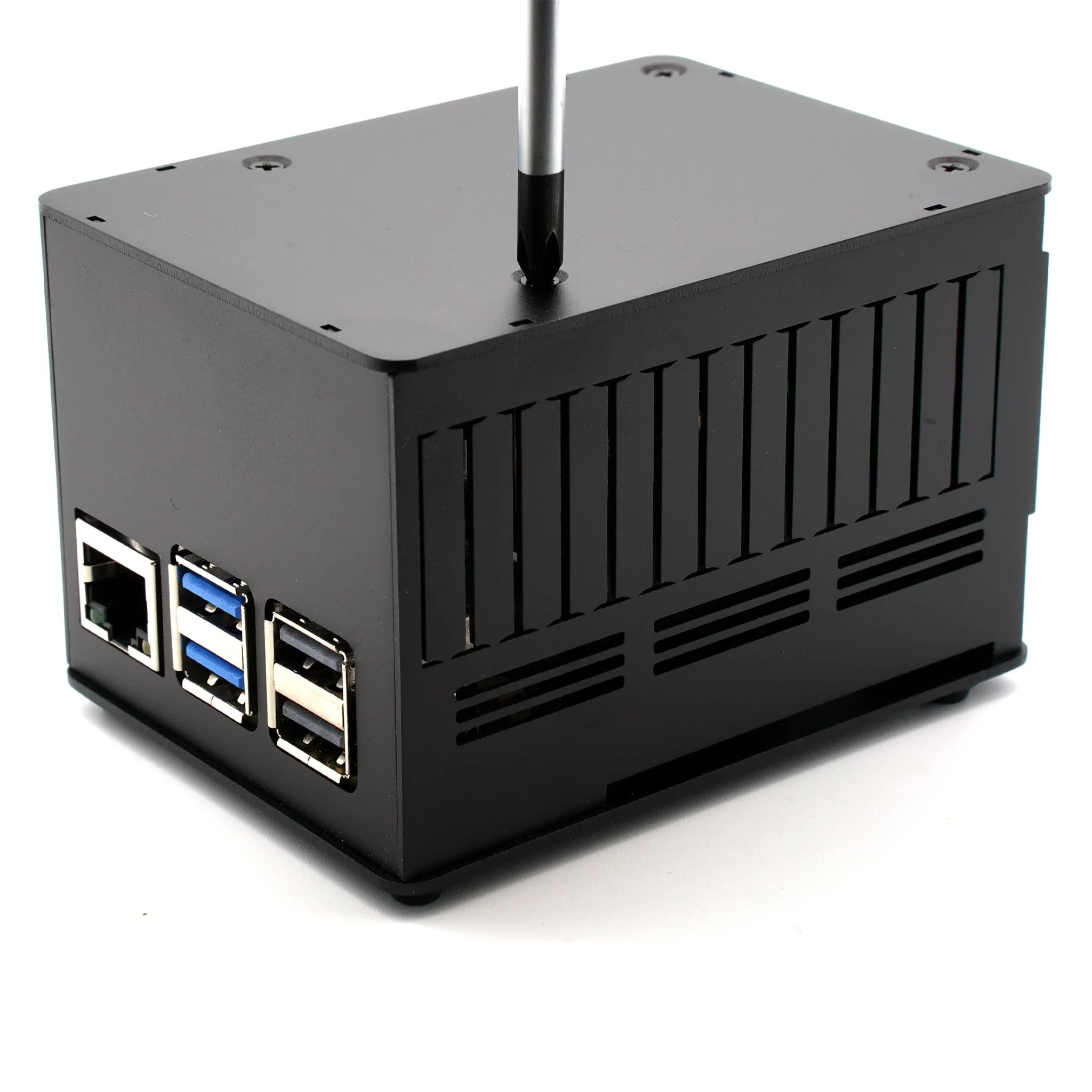

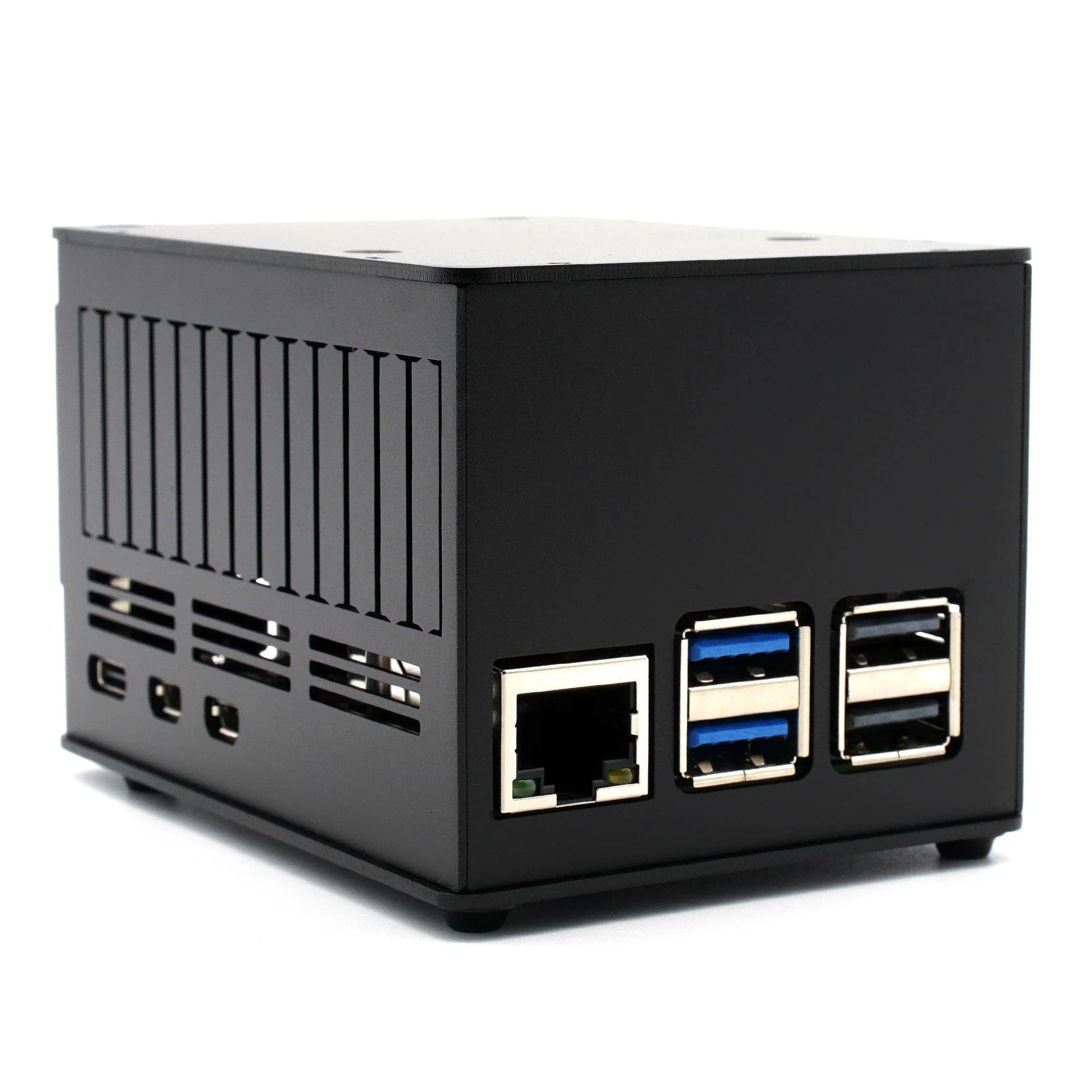

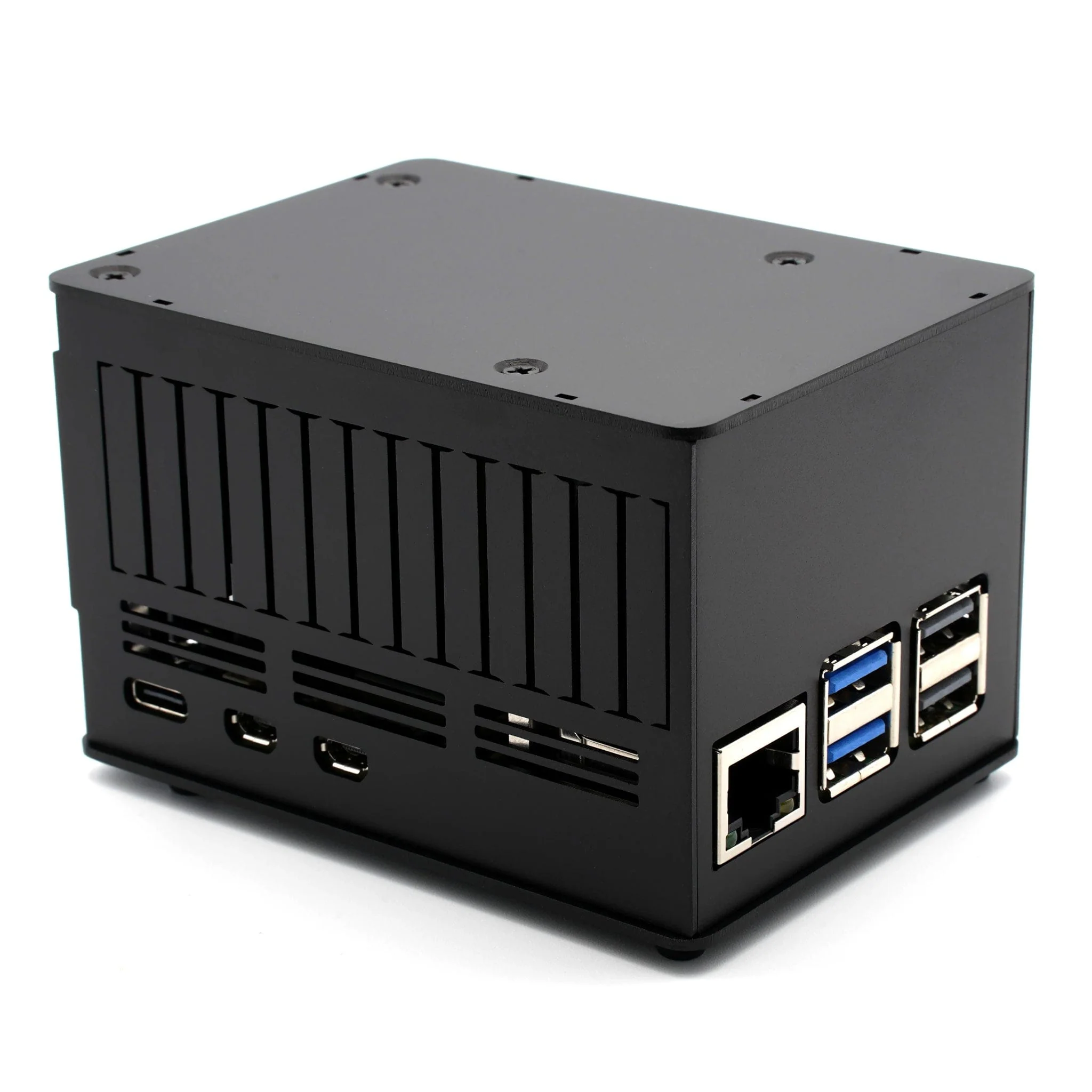

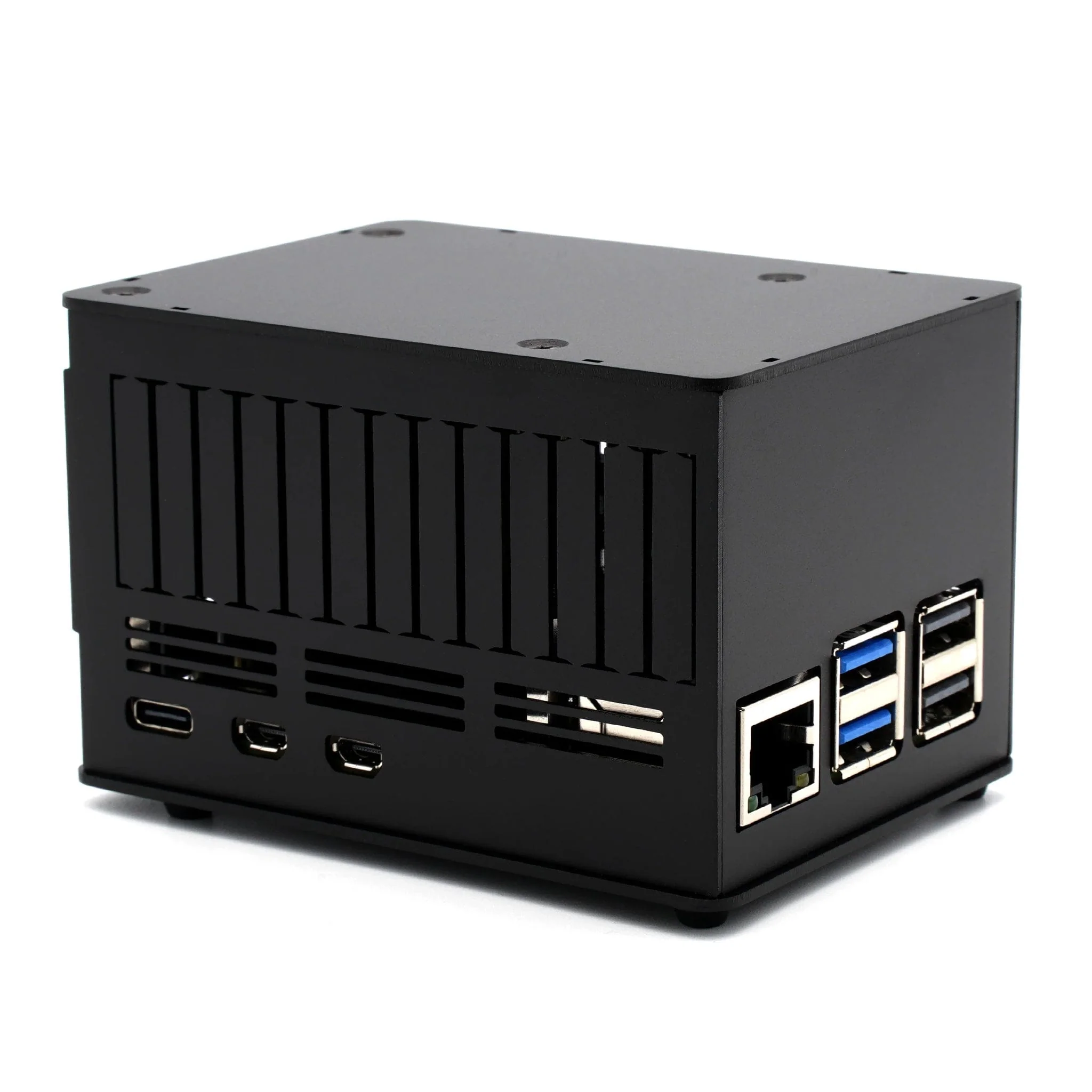

The KKSB HAT Case for Raspberry Pi 5 is constructed from sandblasted black anodised aluminium, providing heat dissipation, dust protection, and physical shielding for embedded and industrial applications.

Ventilation slots allow for airflow, ensuring compatibility with the Raspberry Pi Active Cooler and other low-profile cooling solutions. It includes long and short spacers to accommodate varying GPIO header lengths on HATs.

For HATs with connectors in unique locations, the side panel ventilation slots are easily removable, offering optimal access without compromising functionality.

Additional features include rubber feet for stability, wall mounting keyholes, and a cutout for common interfaces. The external power button provides convenient power access, while a dedicated 40-pin GPIO cable access point ensures easy connectivity.

Features

• Sandblasted Black Anodised Aluminium: Provides durability and heat dissipation
• Supports Raspberry Pi 5 HATs: Compatible with most standard and NVMe HATs
• Ventilation Slots: Ensures airflow for cooling solutions
• External Start Button: Allows easy power access
• Rubber Feet: Provides stability on flat surfaces
• Wall Mounting Keyholes: Enables secure installation
• 40-Pin GPIO Cable Access: Simplifies connections

Specifications

Material	Sandblasted Black Anodised Aluminium
Compatibility	Raspberry Pi 5, Standard HATs, NVMe HATs
Cooling Support	Compatible with Raspberry Pi Active Cooler
Mounting Options	Rubber Feet, Wall Mount Keyholes

Resources

• Assembly Instructions

Package Contents

• KKSB Case
• Spacers
• Rubber Feet
• Screws
• Stackable Header

Raspberry Pi 5, NVMe HAT, Cooler, and GPIO Cable are NOT included.
