AtomS3 Lite ESP32-S3 Dev Kit

The ATOMS3 Lite is an atom series programmable controller in the M5Stack development kit series, that uses the ESP32-S3 as the main control.

Popular as a Bluetooth proxy for Home Assistant!

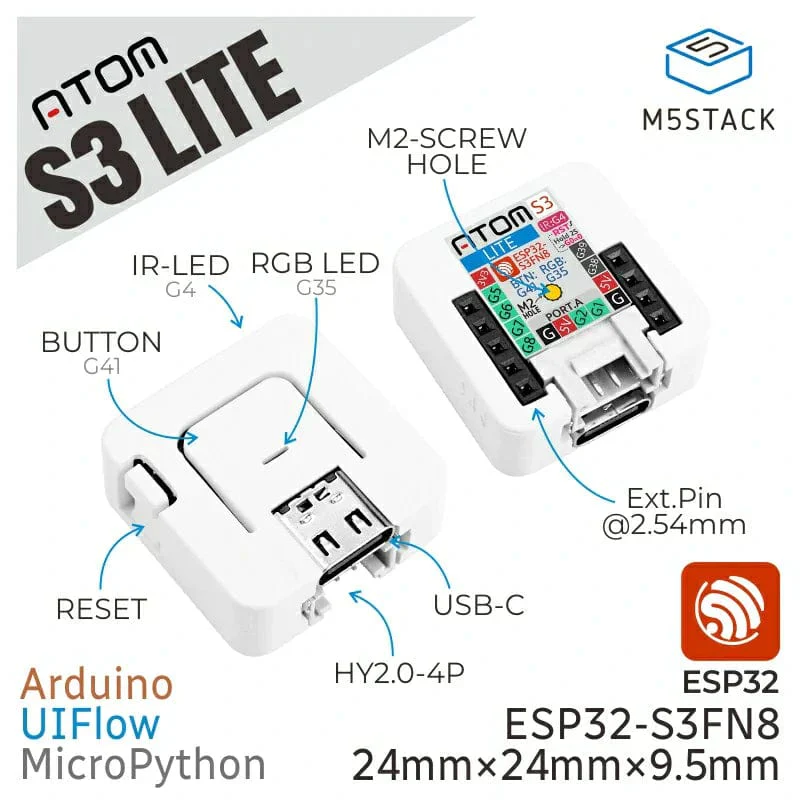

The main control adopts the ESP32-S3FN8 scheme, with 8MB SPI flash memory, integrated Wi-Fi function, built-in 3D antenna, 5V to 3.3V power circuit, infrared emitting light, RGBStatus indicators, and button and GROVE/HY2.0-4 P interfaces.

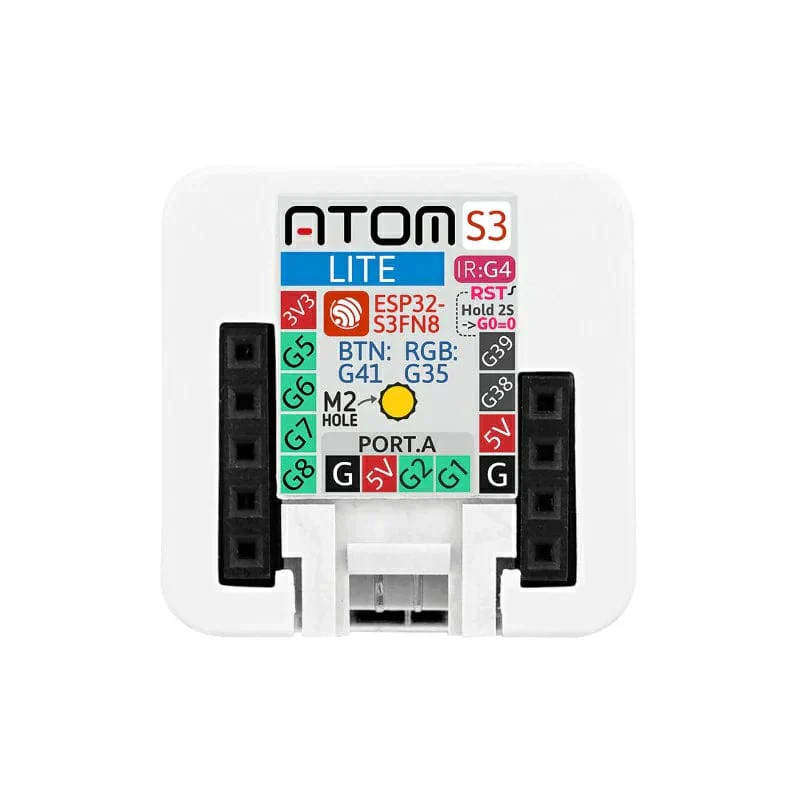

The bottom of the product is equipped with a power supply and 6 GPIO headers, and the onboard Type-C interface has program download and serial port communication functions.

Features

• Developed based on ESP32-S3FN8
• Comes with a USB download function
• Programmable button
• Infrared emission function
• Expandable pins and interfaces
• Development platform: Arduino, UIFlow

Specifications

Resources	Parameters
MCU	ESP32-S3FN8
RGB	WS2812B-2020
DCDC	SY8089
Operating temperature	0°C ~ 40°C
Supply voltage	5V
Power supply mode	TYPE C
Output voltage	3.3V
IO interface × 6	G5/G6/G7/G8/G38/G39

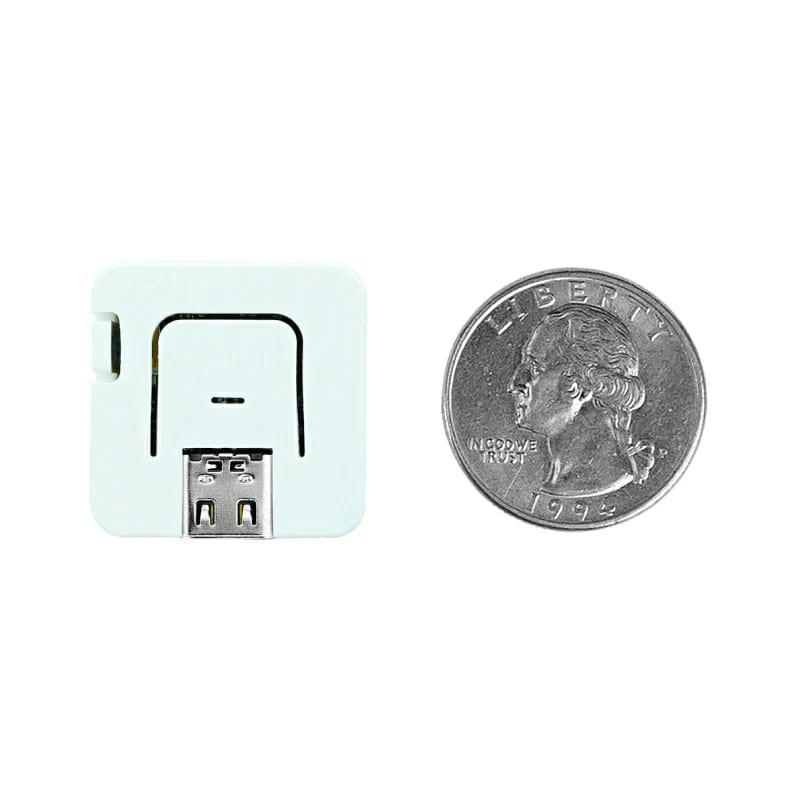

Product Size	24mm × 24mm ×9.5mm
Package Size	65mm × 44.5mm × 14mm
Product Weight	5.3g
Package Weight	9.5g

Resources

• Product Wiki

Package Contents

• 1x AtomS3 Lite
