SupTronics X1206 4-Cell 21700 UPS for Raspberry Pi 5

The SupTronics X1206 is a UPS (Uninterruptible Power Supply) add-on for Raspberry Pi 5, with support for four 21700 cells for up to 20,000mAh (batteries not included). It delivers 5.1V 6A to power your Raspberry Pi and connected devices during power cuts, PSU failure or simply moving from one power supply to another, seamlessly switching over automatically to battery power when needed.

It monitors the Raspberry Pi’s status and shuts off power once the Pi is safely powered down, helping to extend standby life. Auto power-on is supported, so your Raspberry Pi can reboot when power returns. Safe shutdown from software is also available.

The board charges quickly at up to 3A. Power the board using a common barrel jack input (9V-18V) or the USB-C input (27W PSU recommended). An XH2.54-2P connector is also provided as a power input option, as well as 2x XH2.54-2P and 2x USB-A 5V power outputs.

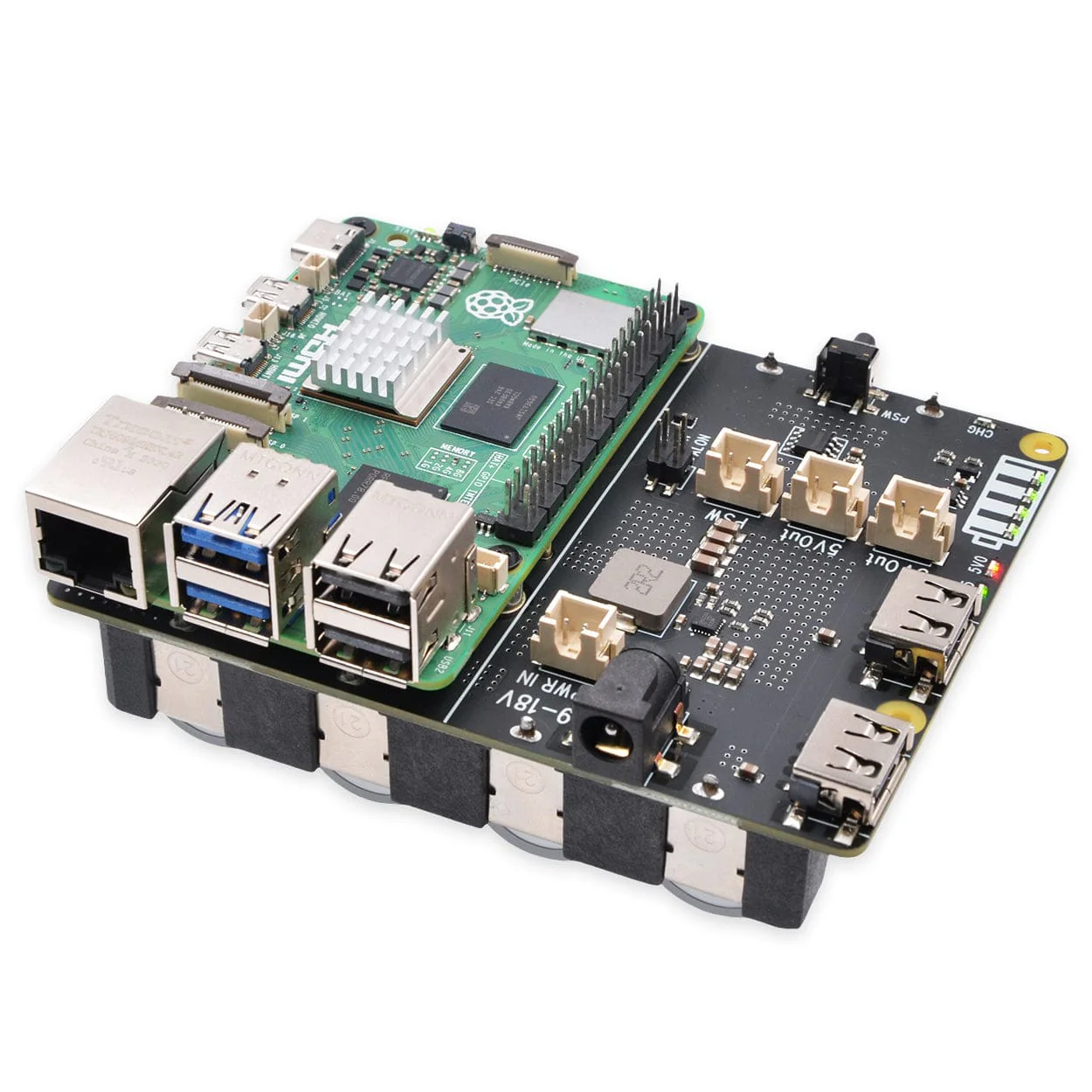

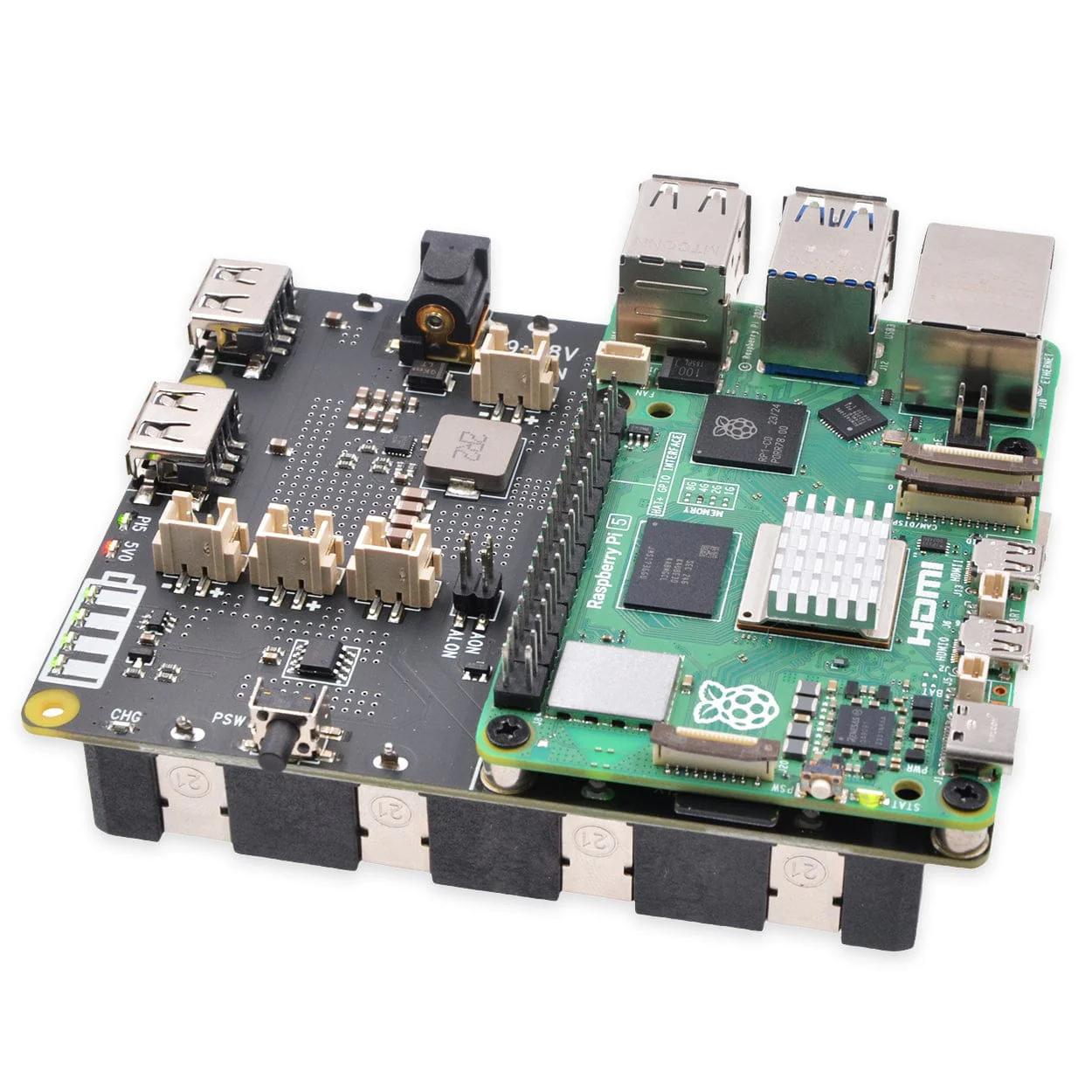

The board mounts beneath the Pi, leaving the 40-pin GPIO free for other accessories such as HATs or coolers. It’s compatible with top-mounted SupTronics storage add-ons for keeping data safe during unexpected power loss.

Raspberry Pi, 21700 batteries and power supply not included.

Safety Warning

Lithium Polymer (LiPo) and Li-ion batteries are volatile by nature. Failure to follow the safety instructions below may result in fire, personal injury, or property damage.

• Never connect the battery with incorrect polarity when charging or discharging. Always double-check that the battery connector's "+" is connected to "+" and "−" to "−".
• Do not mix old batteries with new ones, or use batteries from different brands together.
• Do not use 21700 batteries with built-in protection circuits
• Lithium batteries have a limited cycle life. Replace them when they reach the end of their service life, or after two years — whichever comes first.
• When charging the battery pack, always place it in a fireproof container. Do not leave the UPS shield unattended on flammable surfaces such as wood or carpet.
• Keep the UPS add-on out of reach of children.

Features

• Compatible with: Raspberry Pi 5
• UPS Output:
• Maximum output current of 5.1V 6000mA
• Integrated advanced power MOSFET with 7mΩ RDS (ON) for minimal power loss
• Power supplied via pogo pins – no cabling or soldering required
• Includes XH2.54 and USB-A sockets for 5V power output
• Battery Charging:
• Fast charging supported up to 3000mA
• Battery charge control via GPIO
• Overcurrent and overvoltage protection
• Reverse battery connection protection
• Maxim fuel-gauge system for battery voltage and percentage via I2C
• Battery level LEDs for 25%, 50%, 75%, and 100%

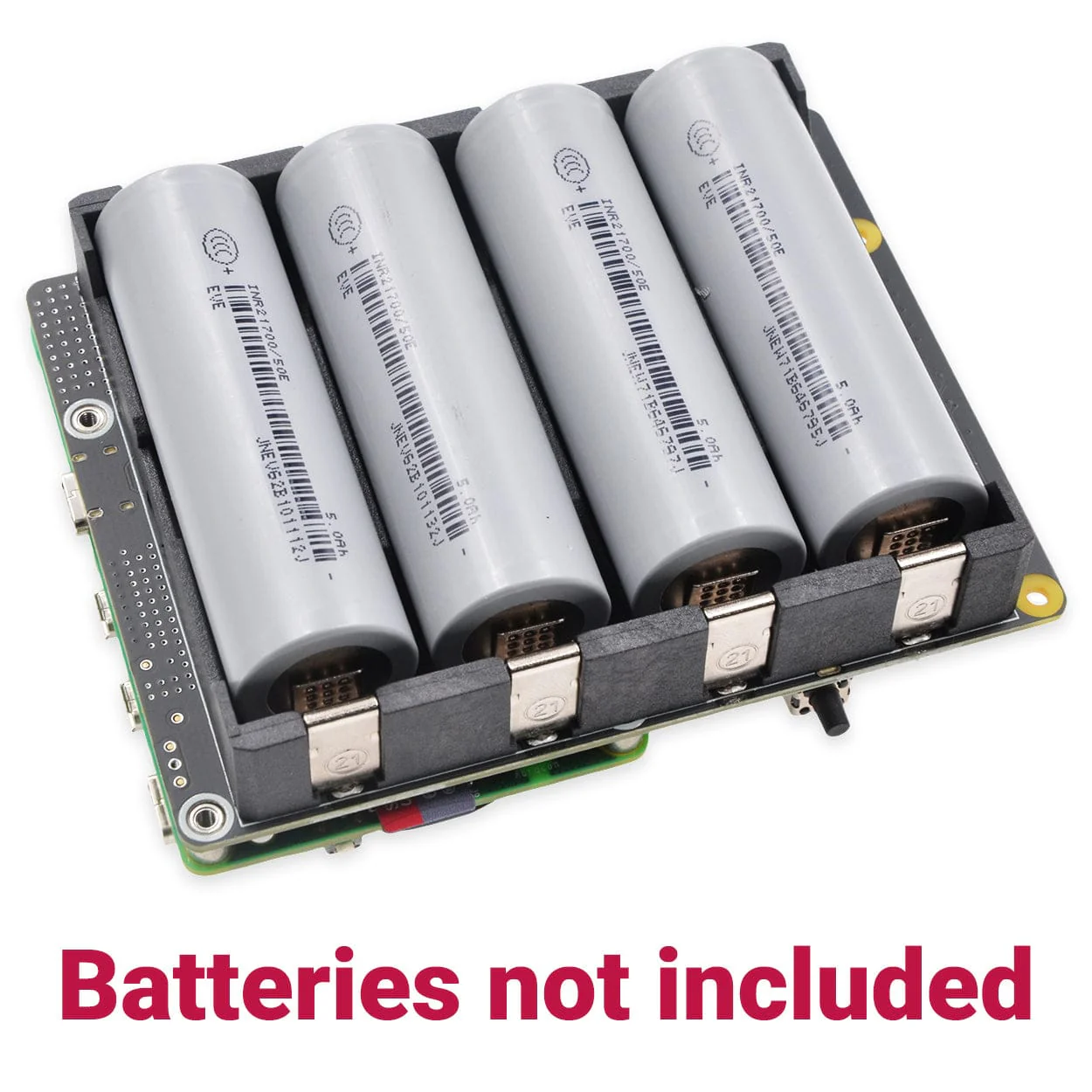

• 4-cell 21700 battery holder, supporting up to 20,000mAh
• Power Input:
• Integrated high-efficiency step-down DC-DC converter
• Wide input range: 9V–18V
• Up to 95% power conversion efficiency
• Delivers up to 10A, enabling 3A fast charging while powering the system
• Accepts input from various sources (e.g. car, solar panel)
• Standard 5.5×2.1mm DC jack
• XH2.54-2P 9V–18V input option also provided
• USB-C input option - compatible with Raspberry Pi 27W USB-C Power Supply
• Enhanced Power Management:
• Automatic switching between mains and battery power
• Onboard push button acts as Pi power button
• Automatically cuts power when the Pi is shut down
• LED indicators for power and Pi status
• GPIO detection for power loss or adapter failure
• Auto power-on when power is restored
• Safe automatic shutdown at low battery voltage (programmable)
• Ultra-low standby current to extend battery life
• Smart power-path control to avoid unnecessary battery cycling
• Miscellaneous:
• Connects via pogo pins – no need for additional wiring
• Mounts underneath the Pi, keeping the 40-pin header free for HATs
• XH2.54 connector for external power button

Specifications

• Power input:
  • 9–18VDC ≥3A (12VDC 3A power adapter recommended)
  • USB-C 5V 5A (27W Raspberry Pi PSU recommended)
• UPS output: 5.1V ±5%, max 6A
• Battery charging current: Max 2.3–3.2A
• Terminal battery voltage: 4.23V
• Battery recharge threshold: 4.1V

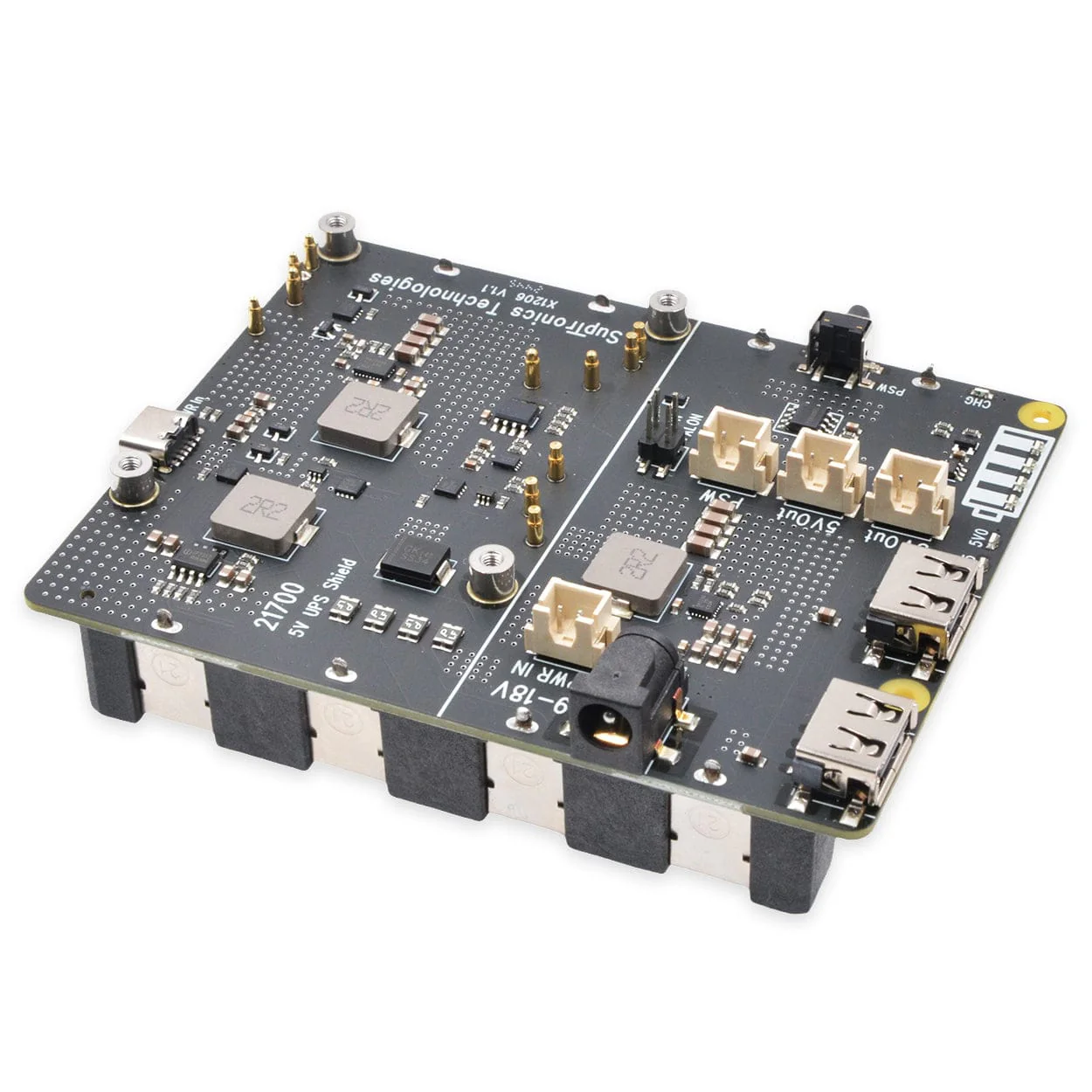

• Ports & connectors:
  • 1x DC power jack – 5.5 × 2.1mm
  • 1x USB-C power input
  • 1x 4-cell 21700 battery socket
  • 2x XH2.54 2-pin 5.1V power output connectors
  • 2x USB-A 5.1V power output connectors
  • 1x XH2.54 2-pin 9-18V power input connector
  • 1x 2.54mm pin External power button connector

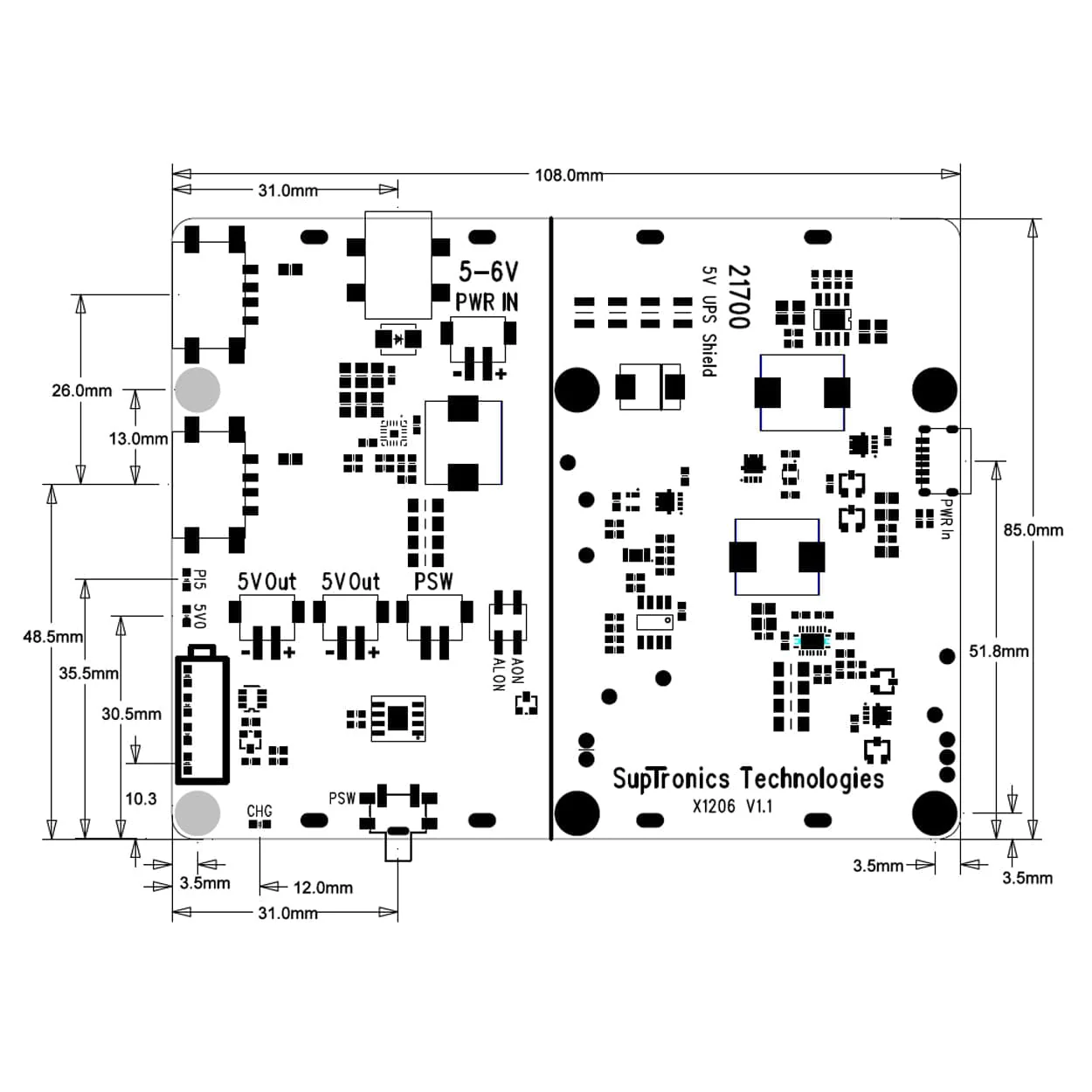

• PCB size: 108mm × 85mm

Resources

• Software setup/tutorials
• Hardware information and assembly

Package Contents

• 1x SupTronics X1206 V1.1 4-Cell 21700 UPS for Raspberry Pi
• 1x Screw/standoff pack

Raspberry Pi, 21700 batteries and power supply not included.
