PoE M.2 HAT+ (C) for Raspberry Pi 5
This PCIe HAT+ from Waveshare gives you an M.2 slot for 2230/2242 NVMe SSDs, 802.3af/at PoE with 5V 5A output and is compatible with the Raspberry Pi Active Cooler. It's essentially a 2-in-1 HAT for your Raspberry Pi 5, giving you a PCIe M.2 HAT combined with a PoE+ HAT!
The M.2 slot is controlled via PCIe and supports 2230 or 2242 M.2 NVMe SSDs, with the option to use this as a boot drive or storage. The PoE capability is PoE+ compliant (802.3af/at), using an efficient planar PoE transformer to provide 5V 5A required by Raspberry Pi 5. A 30W or greater PoE injector or switch is recommended.

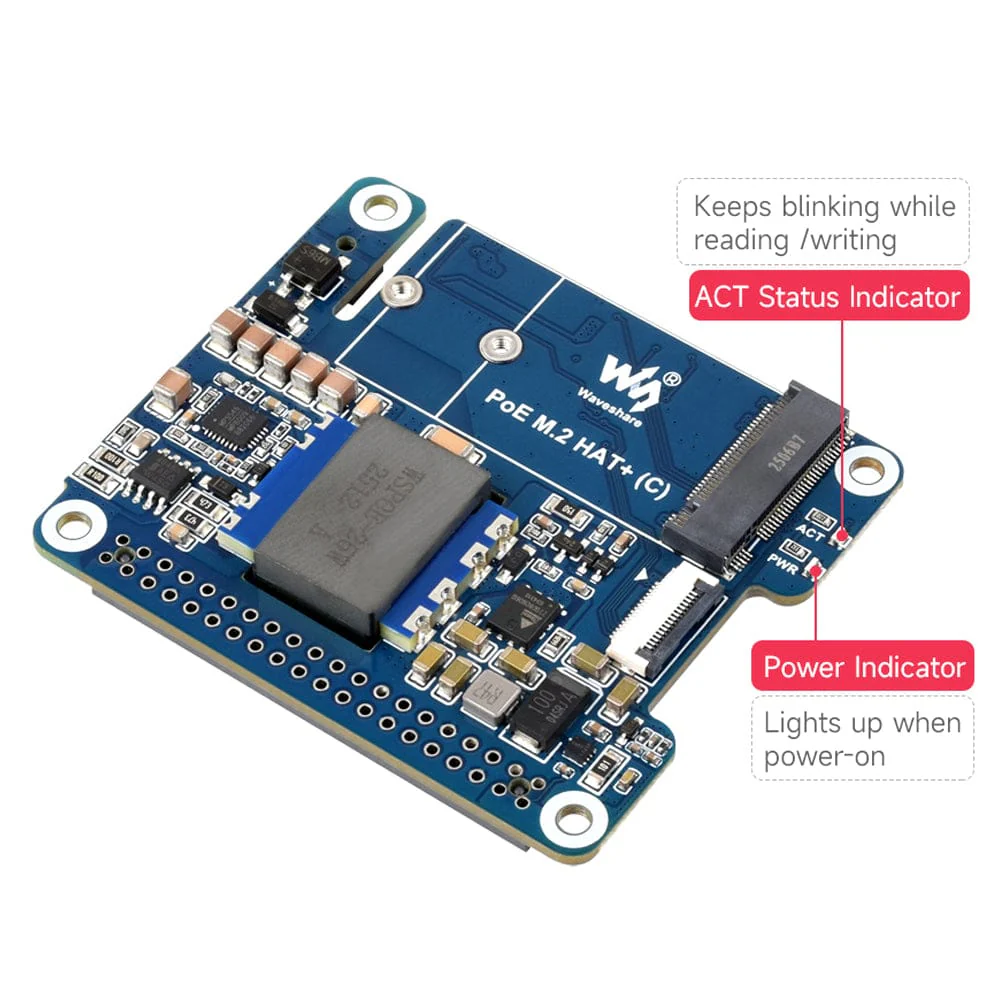

The board also features LED indicators for SSD activity and power, as well as a slot to pass through camera/display (CSI/DSI) cables.
GPIO pins can be accessed once fitted, thanks to the included riser header. The package also contains all other accessories you'll need - M.2 mount screw, PCIe flex cable and metal mounting hardware.
Raspberry Pi 5 not included.
Features
- 2-in-1 PCIe M.2 and PoE+ HAT+ for Raspberry Pi 5
- PCIe-controlled M.2 slot supporting 2230 and 2242 NVMe SSDs
- NVMe SSD can be used for boot or storage
- PoE+ support compliant with IEEE 802.3af/at
- Provides 5V 5A output suitable for Raspberry Pi 5
- Designed for use with a 30W or higher PoE injector or switch
- Compatible with the Raspberry Pi Active Cooler
- LED indicators for power and SSD activity
- CSI/DSI cable pass-through slot for camera or display connections
- GPIO access maintained via included riser header
- Includes M.2 mounting screw, PCIe flex cable, and metal mounting hardware
- Compatible with Raspberry Pi 5 only
Specifications
| PoE power input | 37V ~ 57V DC in |
| Power output | GPIO header: 5V 5A (MAX) |

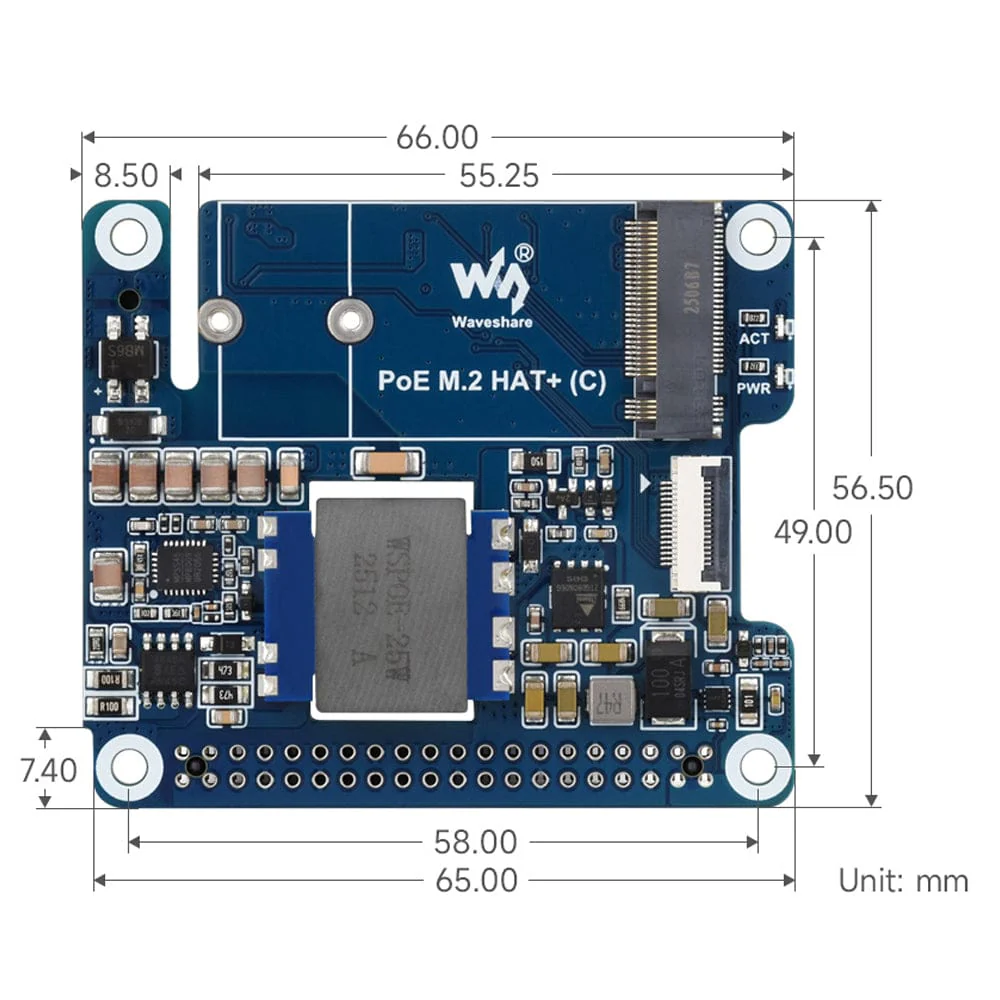

| Dimensions | 56.5 × 66.0 (mm) |
| Network standard | IEEE 802.3af/at PoE |
Resources
Note: If a power supply limitation prompt appears, add usb_max_current_enable=1 to /boot/firmware/config.txt.

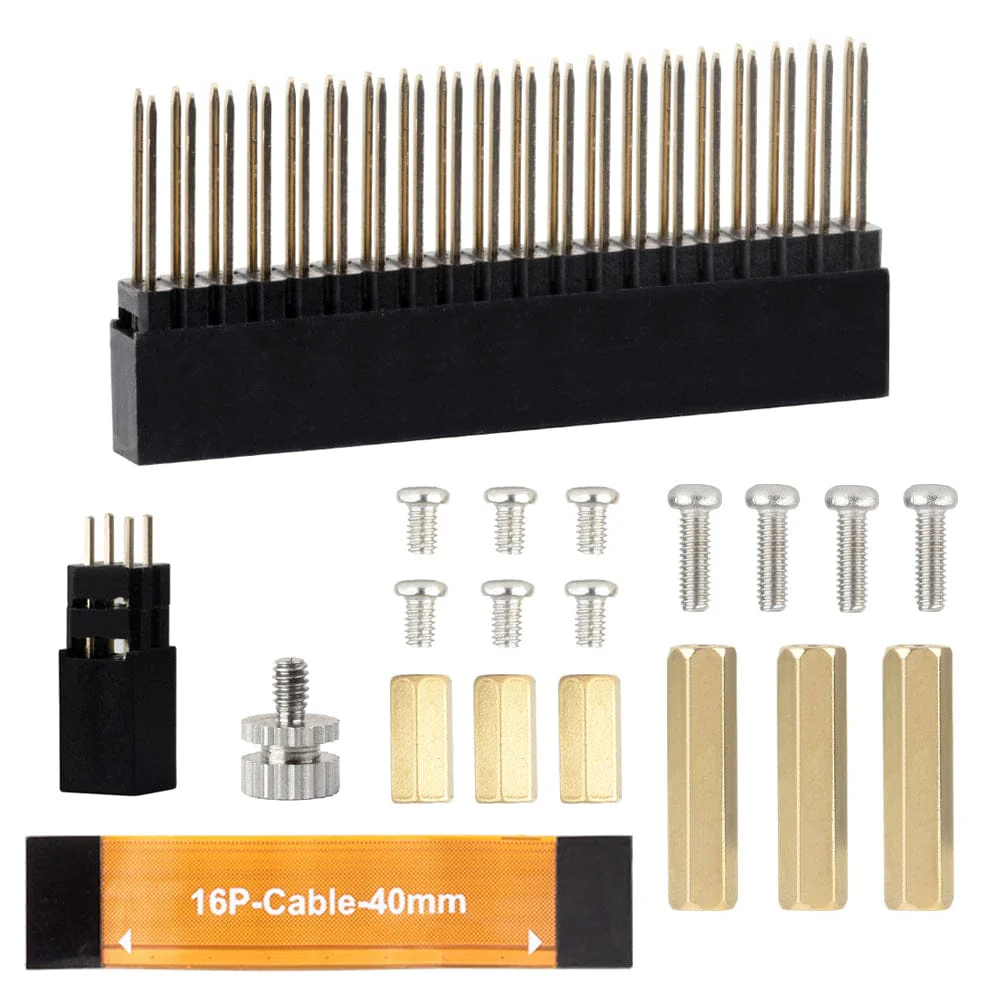

Package Contents
- 1x PCIe to M.2 PoE HAT+ (C) for Raspberry Pi 5
- 1x 40-pin GPIO riser header
- 1x PoE 4-pin riser header
- 1x PCIe flex cable (40mm)
- 1x Fixings/standoff pack
- 1x M.2 Mounting screw
Raspberry Pi 5 not included.
