SupTronics X1507 Fanless Dual NVME IO Board for CM5

The SupTronics X1507 is a high-performance, fanless I/O carrier board designed for the Raspberry Pi Compute Module 5 (CM5), offering dual M.2 NVMe slots and a streamlined layout for effortless integration.

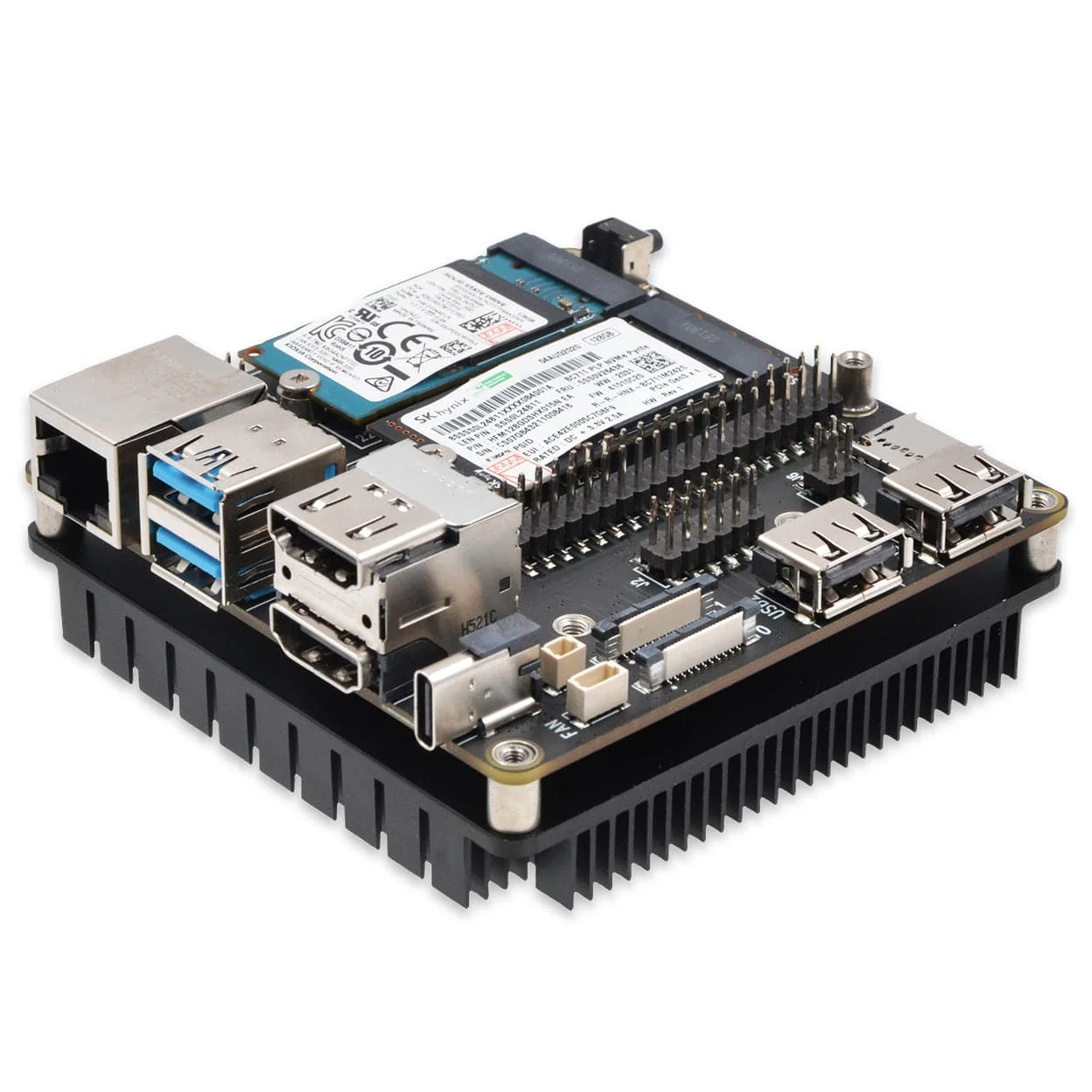

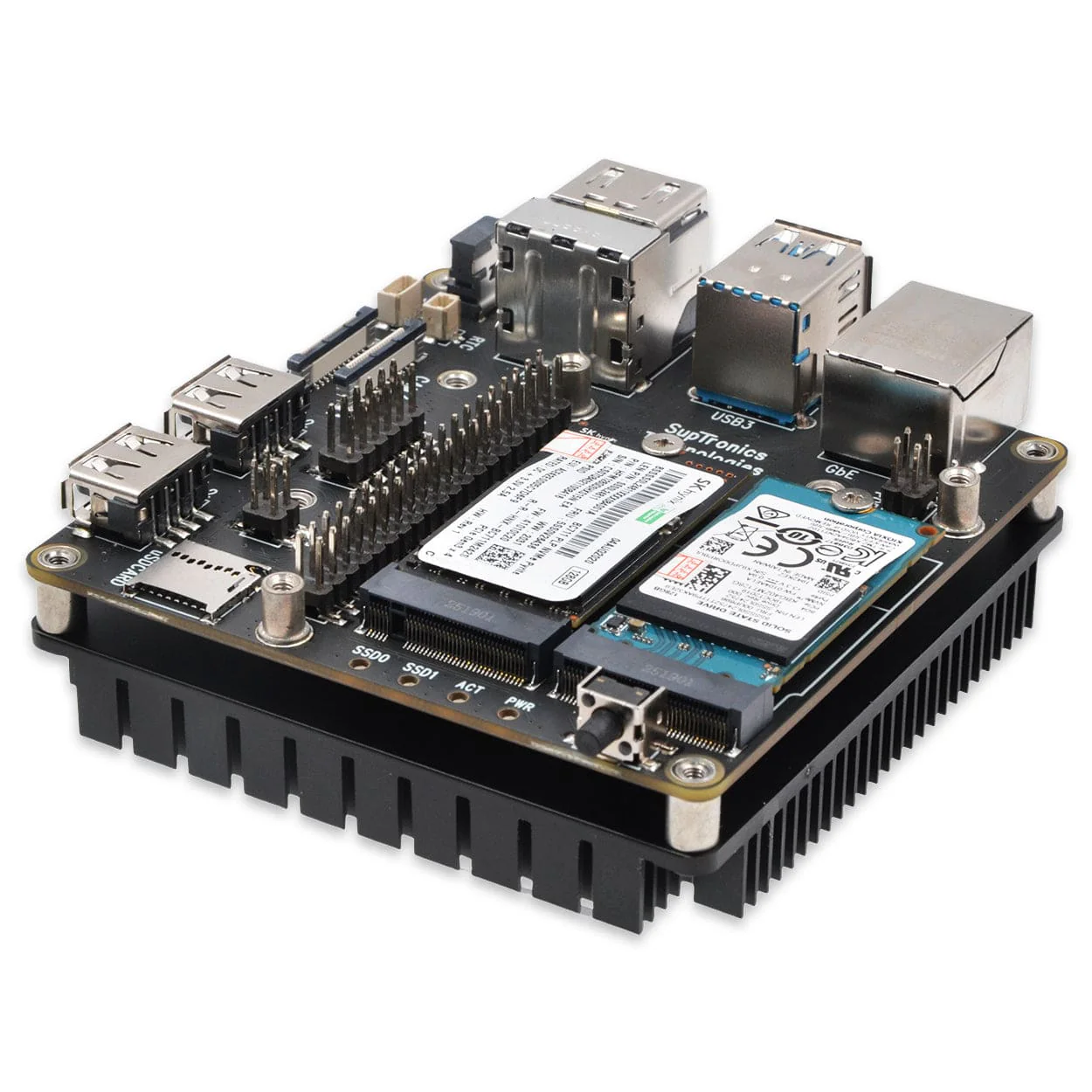

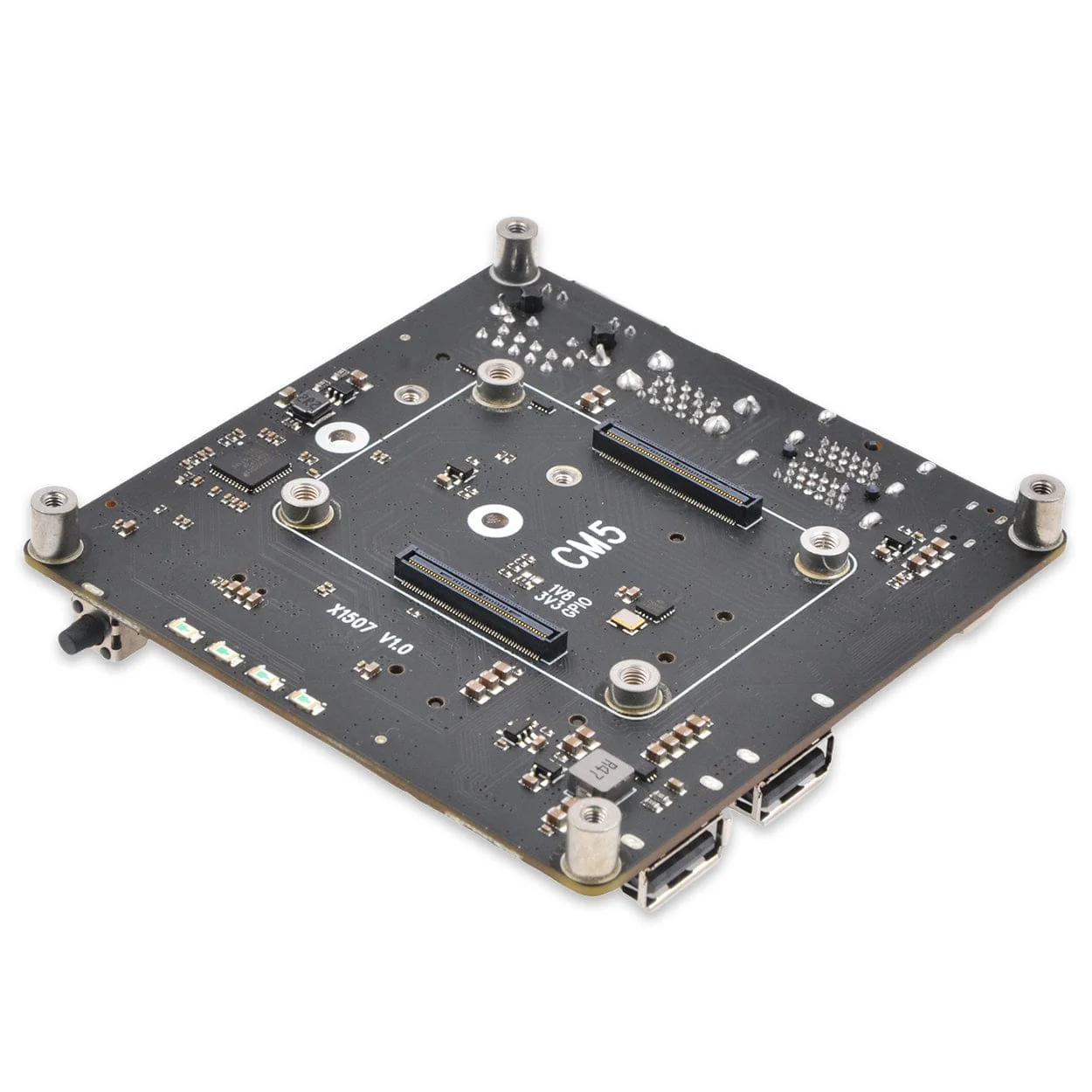

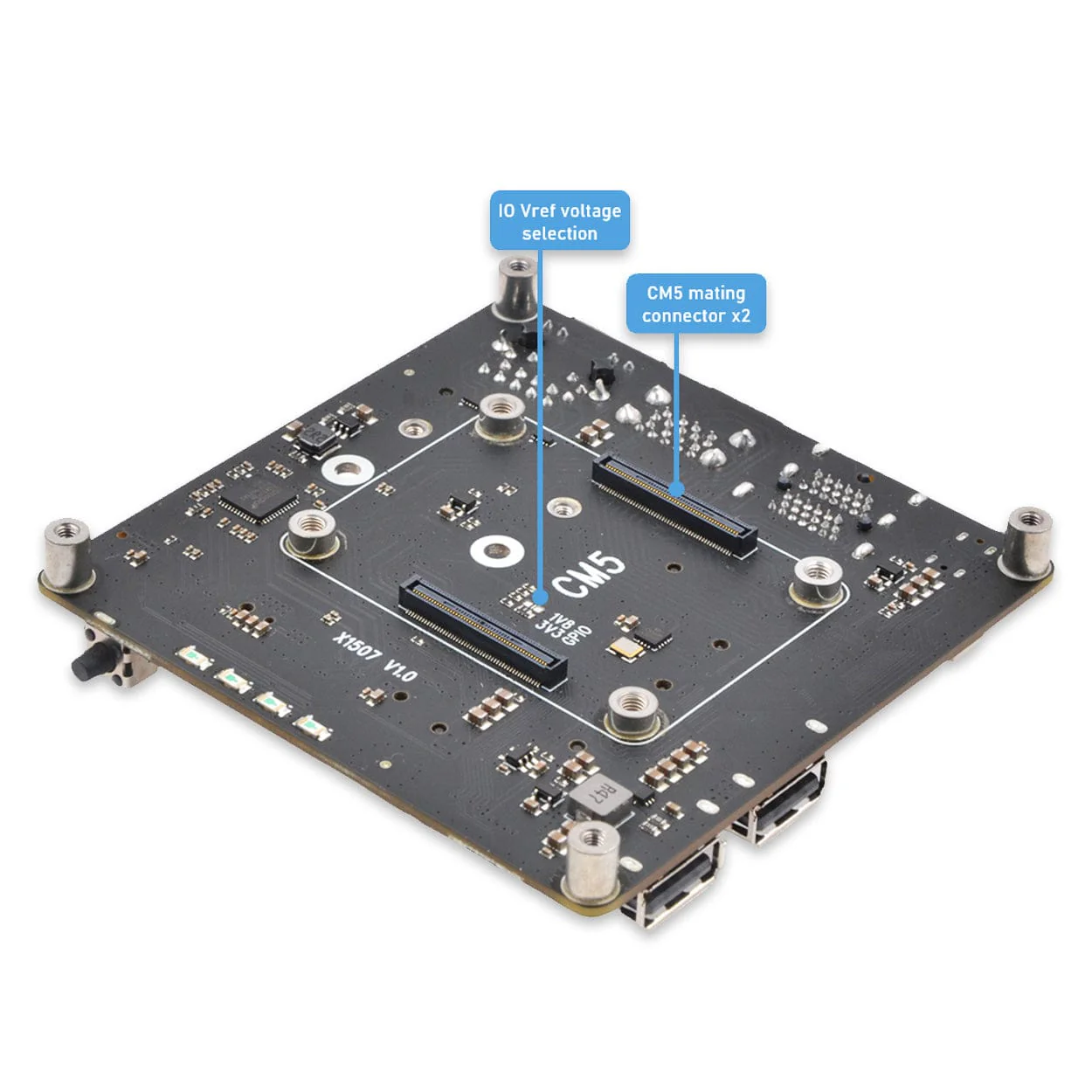

Its ultra-compact, fully passive design positions all user connectors on the top side while housing components and the CM5 underneath, simplifying enclosure design and enabling silent, dust-free operation. The X1507 accelerates development with compatibility for Raspberry Pi HATs and 2230 and 2242-format NVMe SSDs, delivering flexibility, reliability, and high-speed performance in a fanless package.

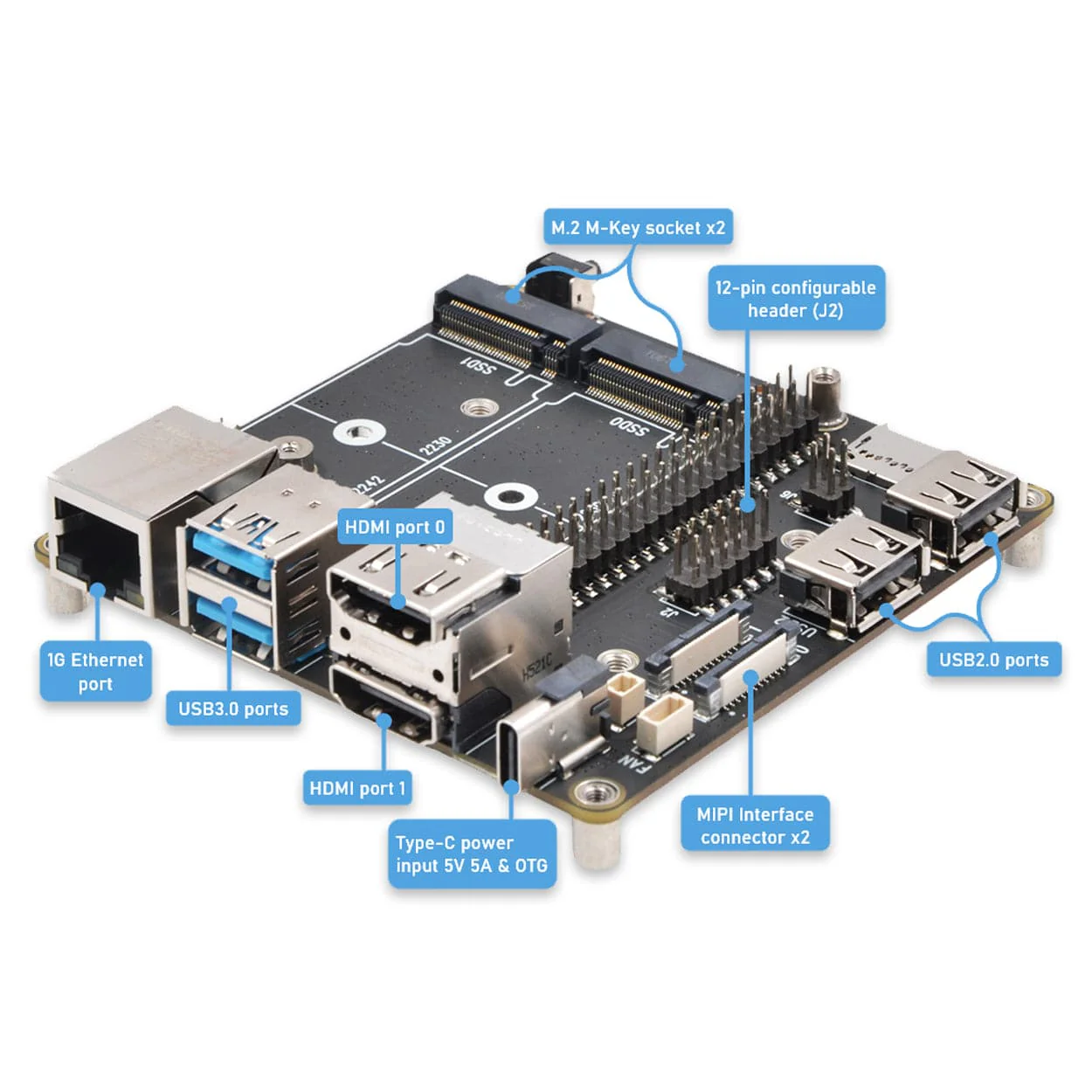

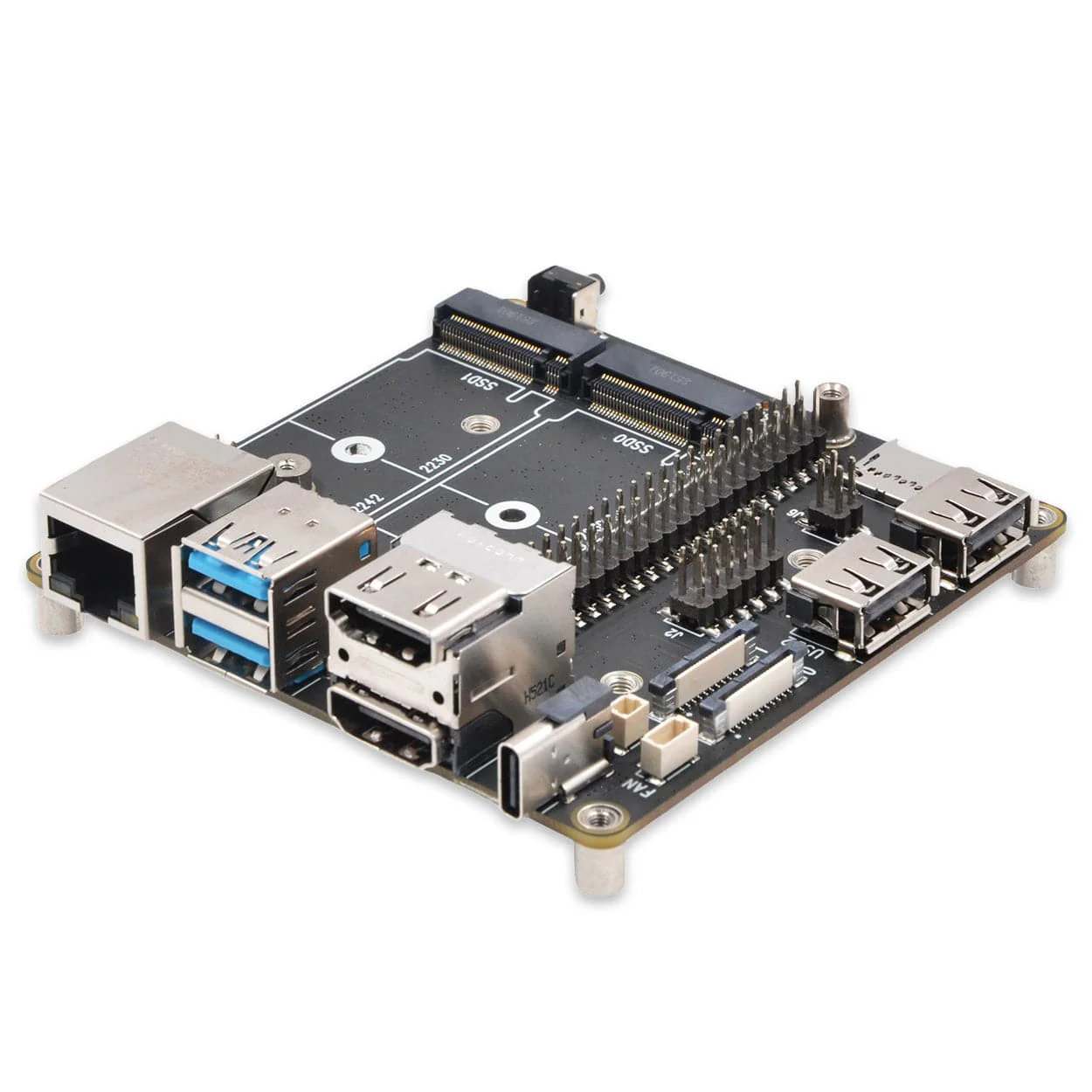

The board features a 1Gb Ethernet port with PoE+ support (separate HAT required, coming soon!), two M.2 NVMe slots (2230/2242) supporting up to 8TB over PCIe 2.0, two full-size HDMI ports for dual 4K output, and two USB 3.2 Gen 1 ports (5Gbps). Two 22-pin MIPI DSI/CSI-2 connectors (0.5mm pitch) support Raspberry Pi 5 cameras and displays.

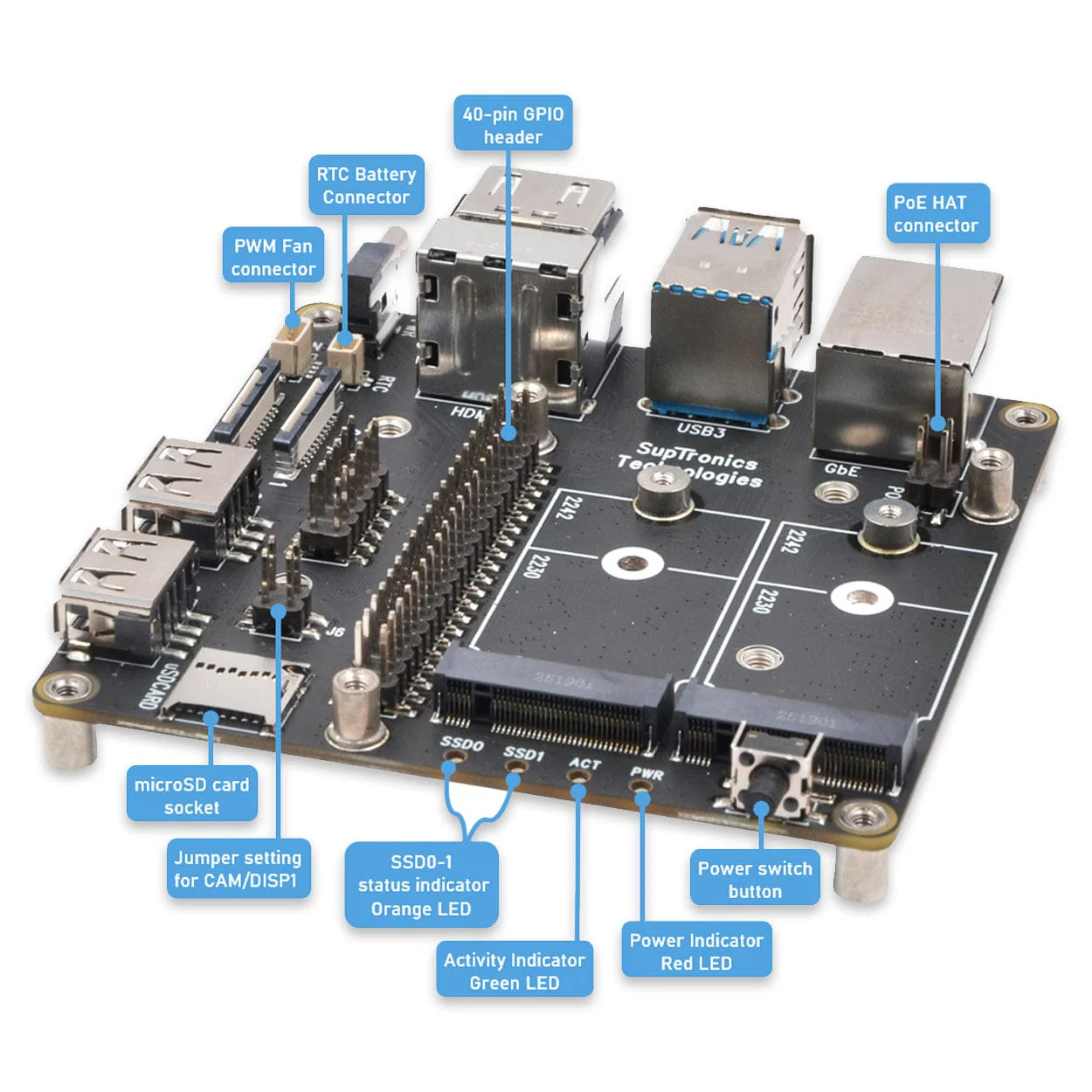

A microSD slot is available for CM5 Lite. It includes a power button, CR1220 RTC socket (battery not included), 4-pin fan connector, USB-C for power and OS loading, and jumpers to disable wireless or EEPROM. All I/O ports are grouped on one edge for clean cable management.

CM5, NVMe SSD, RTC battery and power supply not included.

Features

• Compatible with Raspberry Pi Compute Module 5
• Passive fanless design for silent, dust-free operation
• Thermal test: 38°C at idle, 58°C under 30-min stress
• All connectors on top side for easy enclosure integration
• Dual M.2 NVMe slots (2242/2230) up to 8TB, PCIe 2.0
• 1GbE port with PoE+ support
• Dual full-size HDMI 2.0 ports for dual 4K displays
• Dual USB 3.2 Gen 1 ports (5Gbps)
• Dual 22-pin MIPI DSI/CSI-2 connectors (0.5mm pitch)
• MicroSD slot for CM5 Lite variants
• Power button for CM5 wake/shutdown
• CR1220 RTC battery socket (battery not included)
• 4-pin fan connector
• USB-C for power and OS loading
• Jumper control for Wi-Fi and EEPROM settings
• Ports grouped on one edge for clean cable layout

Specifications

• Power:
  • 5.1Vdc ±5% 5A via USB-C power supply (Raspberry Pi 27W PSU recommended)
• Connectivity:
  • USB-C (Power in and OS image loading)
  • 1GbE RJ45 Ethernet with PoE+ HAT+ support
  • 2 × USB 3.0 Type-A
  • 2 × USB 2.0 Type-A
  • Standard 40-pin GPIO header
  • microSD card socket for CM5 Lite modules
  • 2 × M.2 M key NVMe sockets
  • 4-pin fan connector
  • 2-pin RTC battery connector
  • 2 × MIPI DSI/CSI-2 FPC connectors (22-pin, 0.5mm pitch)
  • Raspberry Pi HAT+ connector
  • RTC battery socket
• Video:
  • 2 × full-size HDMI 2.0 connectors
• Input power:
  • External +5V USB-C PSU
  • Power button to wake and shut down Compute Module 5
• Form factor:

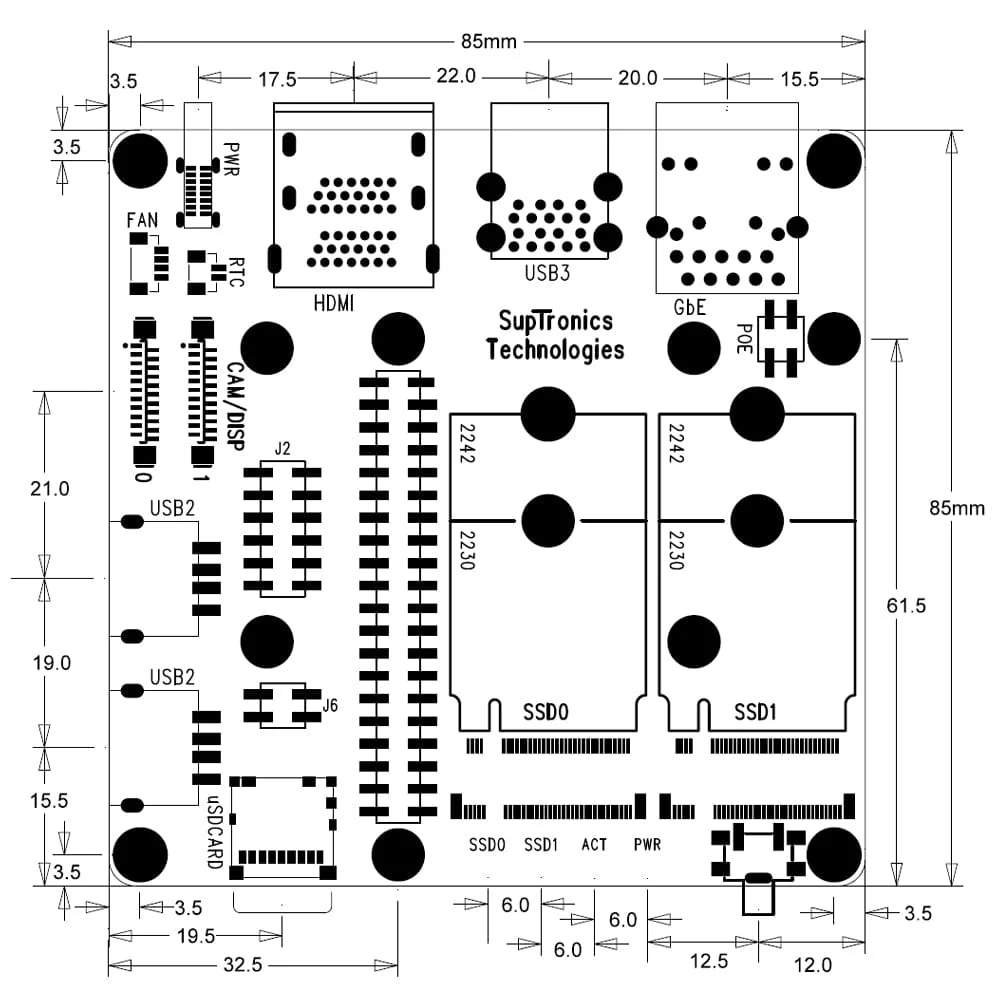

  • 85mm × 85mm
• Heatsink size:
  • 85mm × 85mm × 12mm (L×W×H)

Resources

• Software setup/tutorials
• Hardware information and assembly

Package Contents

• 1x SupTronics X1507 Fanless Dual NVME IO Board for CM5
• 1x Heatsink
• 32 2.54mm Jumper caps
• 1x Screw/Standoff pack

CM5, NVMe SSD, RTC battery and power supply not included.
