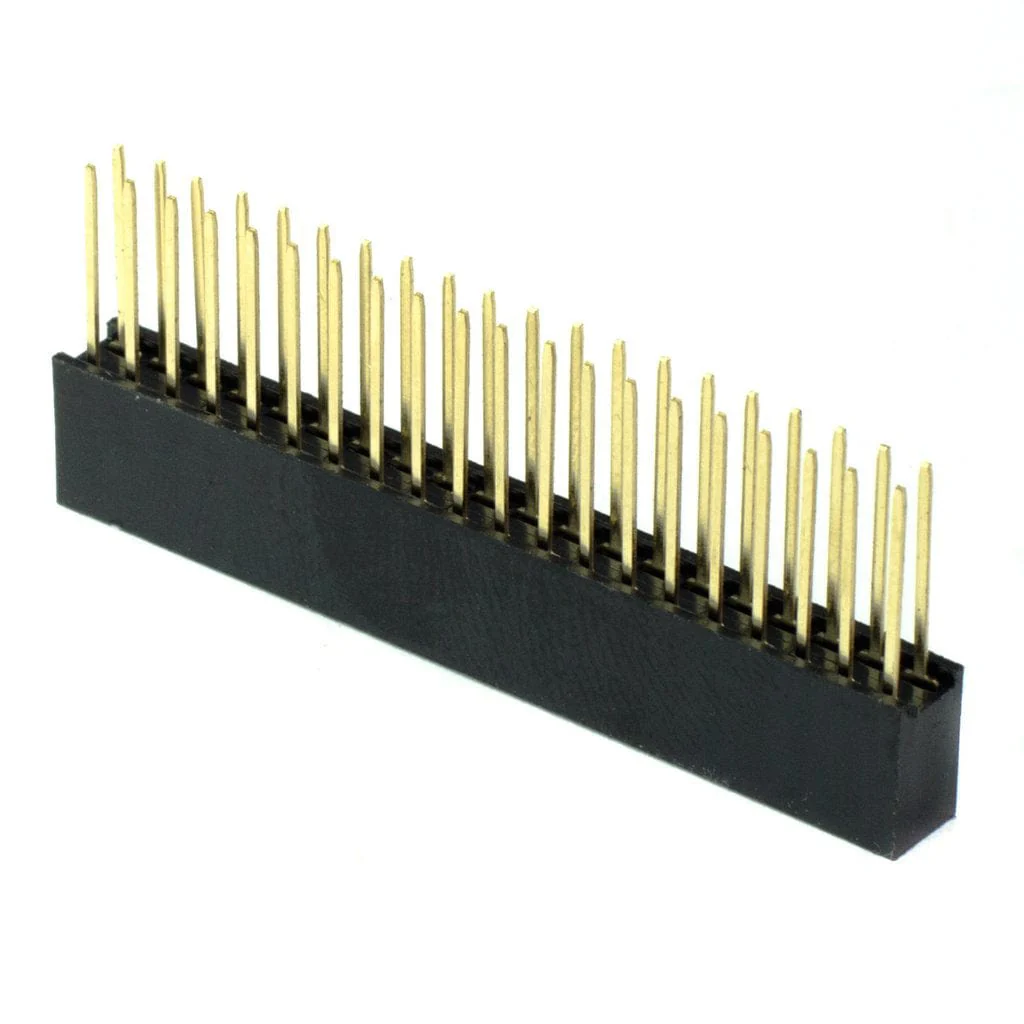

Tall Push-Fit Stacking GPIO Header for Raspberry Pi - No Shroud

Stack multiple HATs & breakouts boards onto your Raspberry Pi with this custom-made tall 2 x 20 pin female header with no shroud!

This is a push fit, no shroud version of our Tall GPIO Header designed to be used with pass-through headers on HATs, such as those found on the Fan Shim. They also match with our Raspberry Pi HAT Socket Headers if you're making your own PCB/HAT.

The pins are extra tall (14.70mm from main body to end of pin), and extra fat (0.65mm x 0.70mm) to ensure a good solid fit with socket headers!

The header features no black spacer/shroud, which makes the body of the header 8.50mm tall when placed on a Pi.

Need to go higher? We have extra-tall versions with either single shroud or double shroud for an even taller setup.

Features

• Gold Plated 40 Pin Double Row (2x20) Socket Connector
• Extension for the Raspberry Pi GPIO Connectors
• Dimensions (L x W x H): 51.5 x 5.0 x 23.20 mm
• Pin Dimensions: 0.65 x 0.70mm
• Pitch 2.54mm
• Compatible with any 40-pin Raspberry Pi
