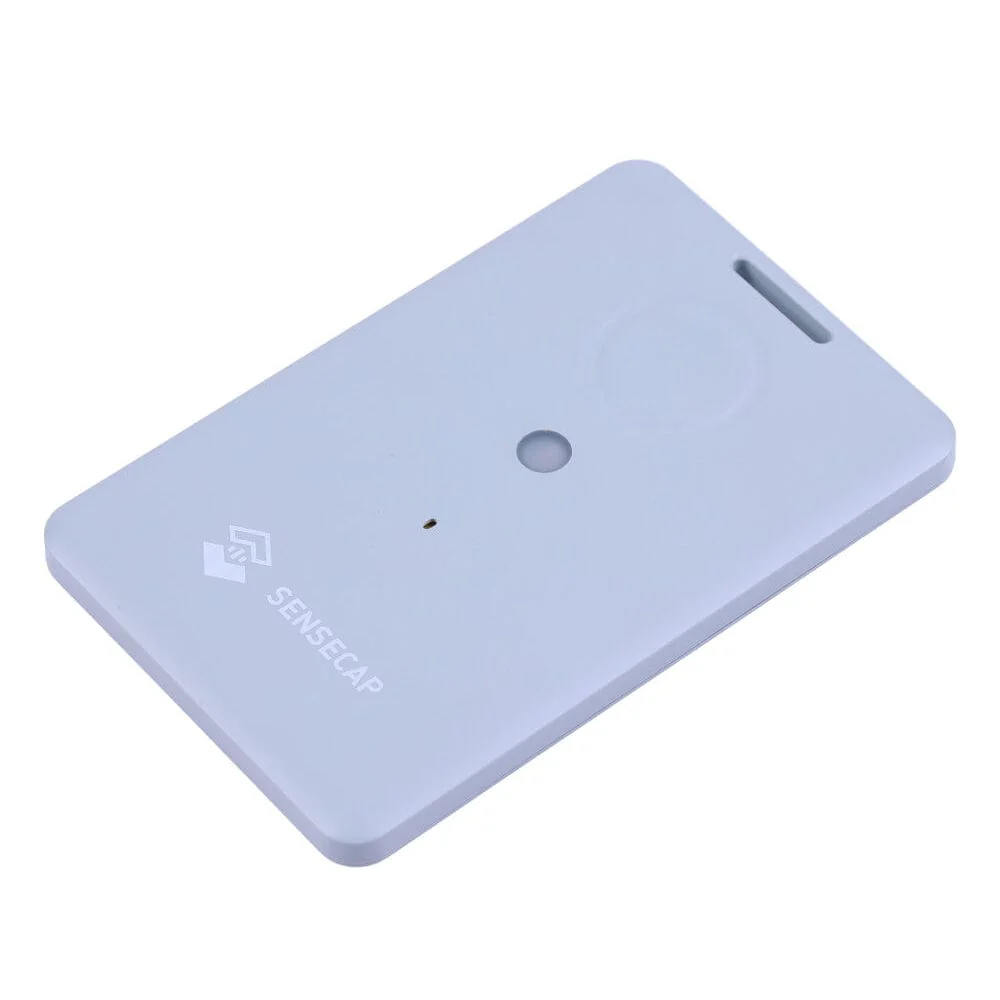

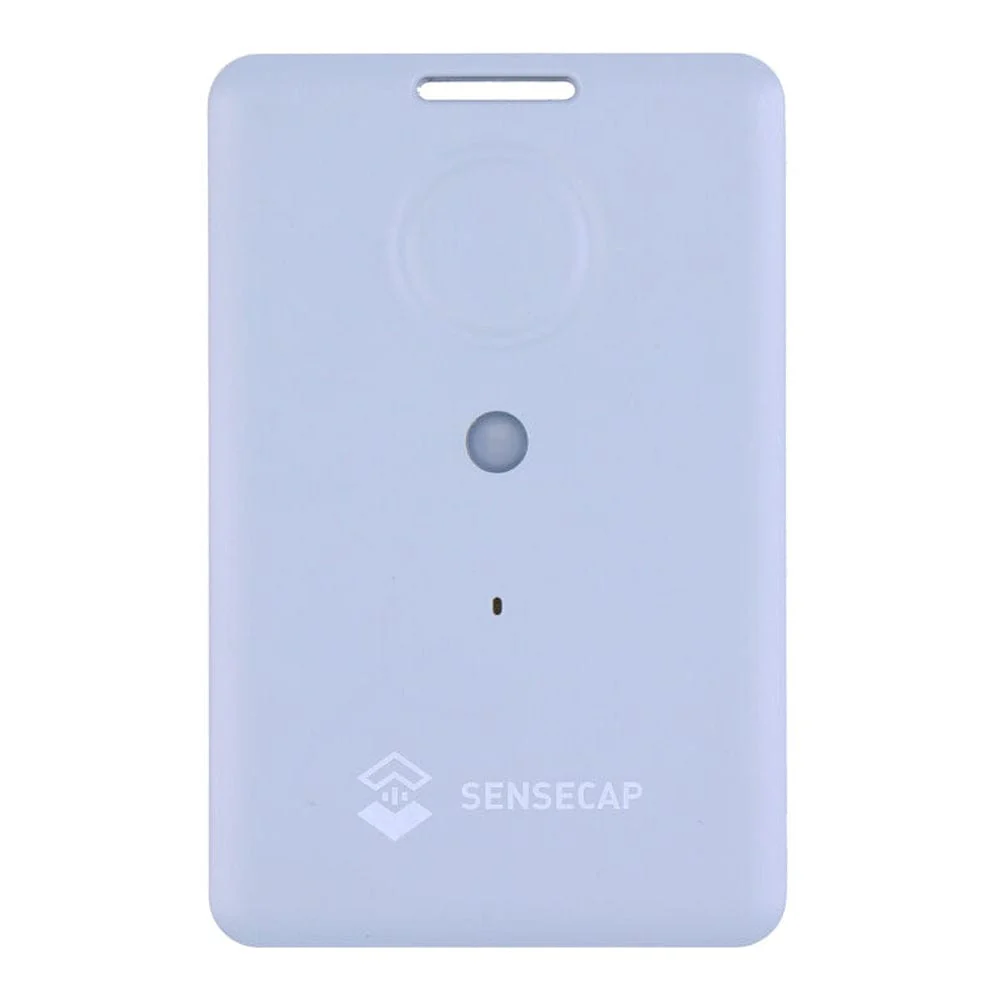

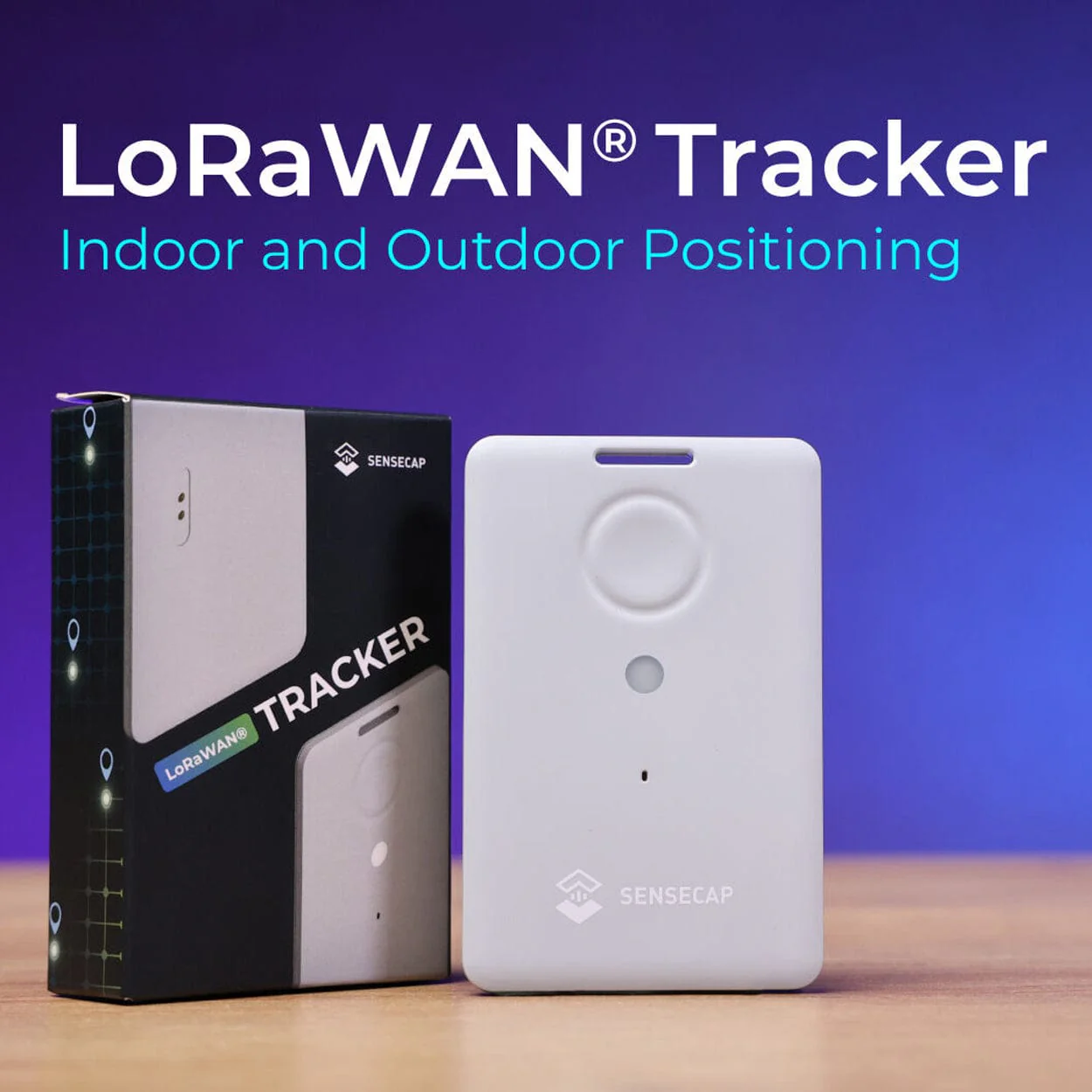

SenseCAP T1000-B LoRaWAN Tracker (no sensors)

The SenseCAP T1000-B is a compact LoRaWAN® tracker designed for precise indoor and outdoor positioning. It combines GNSS (GPS, Beidou, Galileo, GLONASS), Wi-Fi, and Bluetooth to ensure accurate location tracking across various environments. At just 6.5mm thick, it’s slim enough to fit in a wallet or be discreetly attached to assets.

This card-sized device can store 1000+ records locally and uploads them automatically when back in LoRaWAN coverage. The SOS button triggers frequent data uploads and a buzzer alert in emergencies.

Built with IP65-rated protection, the T1000-B is suitable for harsh outdoor conditions with an operating range of -20°C to 60°C. It charges via a magnetic connector and runs for months on a single charge (depending on mode and interval). It’s ideal for logistics, asset tracking, and campus monitoring, where routine movements are expected.

Data costs are minimal compared to cellular alternatives, and the device is compatible with global LoRaWAN networks. Users can configure and monitor the tracker using the SenseCAP Mate App, which includes a free 3-month service plan. Alternatively, it can be integrated into third-party platforms via open API, with no vendor lock-in.

The T1000-B auto-adjusts to regional LoRaWAN frequencies, offering cross-border operation without reconfiguration. It’s a reliable, low-cost option for scalable tracking solutions.

We also offer the T1000-A in the store, which includes built-in temperature, light and motion sensors.

---

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?

---

Video

Please note that onboard sensors are mentioned in the video, however these are only found on the T1000-A model.

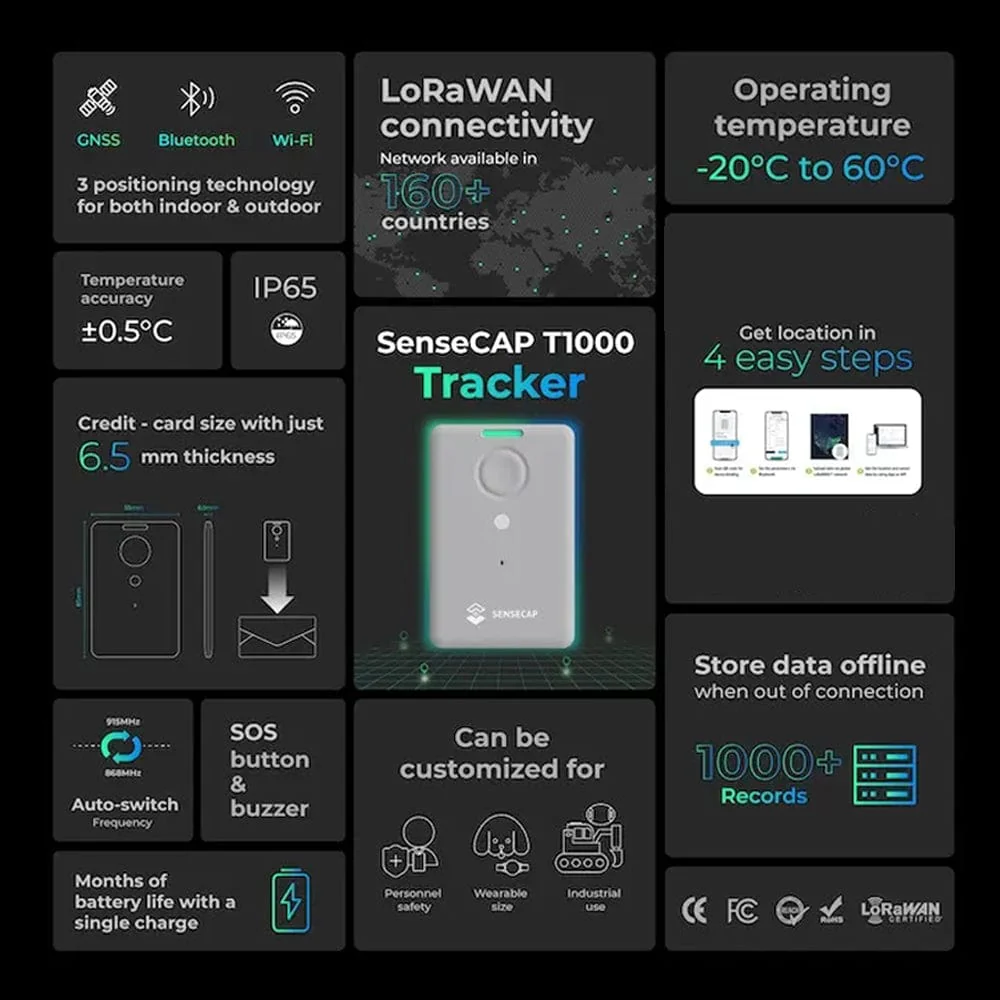

Features

• Compact LoRaWAN® tracker with GNSS, Wi-Fi, and Bluetooth positioning
• Supports GPS, Beidou, Galileo, and GLONASS for outdoor tracking
• Wi-Fi and BLE-based indoor positioning
• Credit card size (6.5mm thick), fits in wallets or tight spaces
• Equipped with temperature, light, and motion sensors
• Motion detection includes shock, movement start/end, and motion timeout
• SOS button with buzzer for emergency alerts
• Offline data storage of 1000+ records with auto-upload when back in range
• Up to 3 months of battery life (1-hour interval, GPS-only mode)

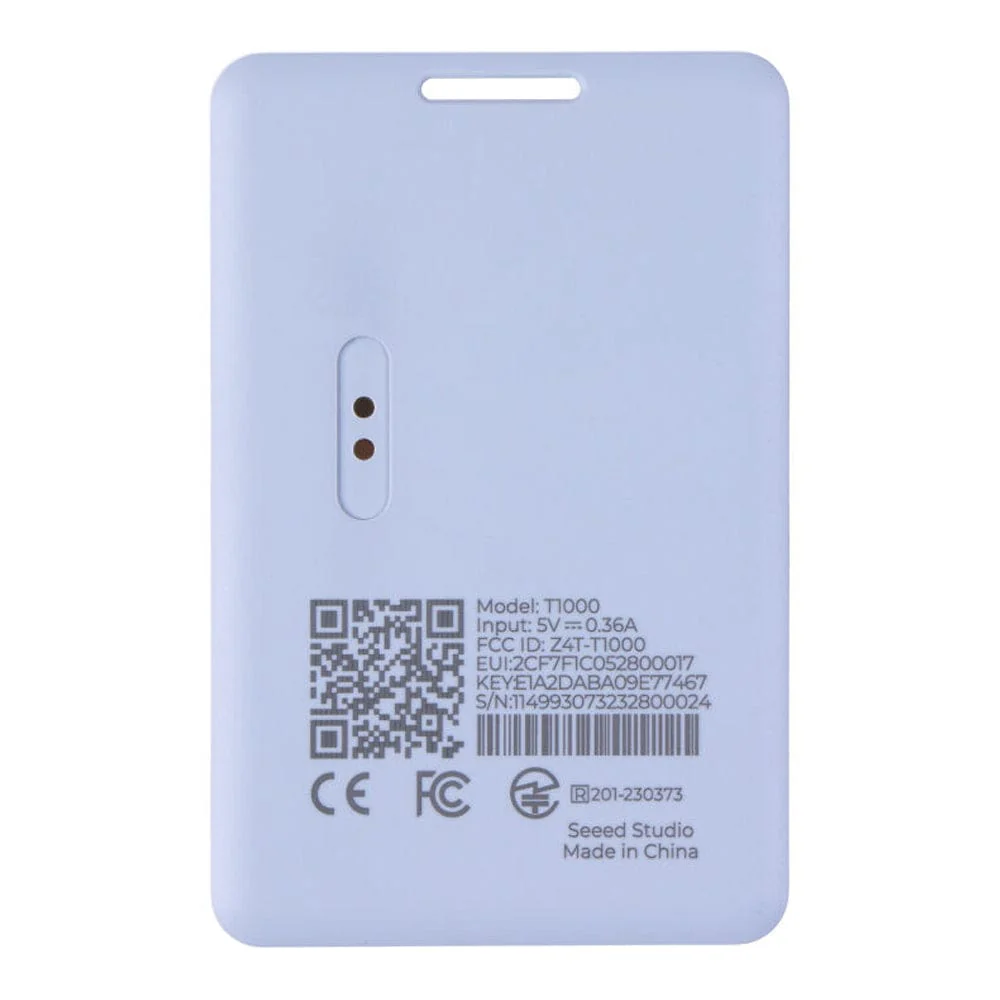

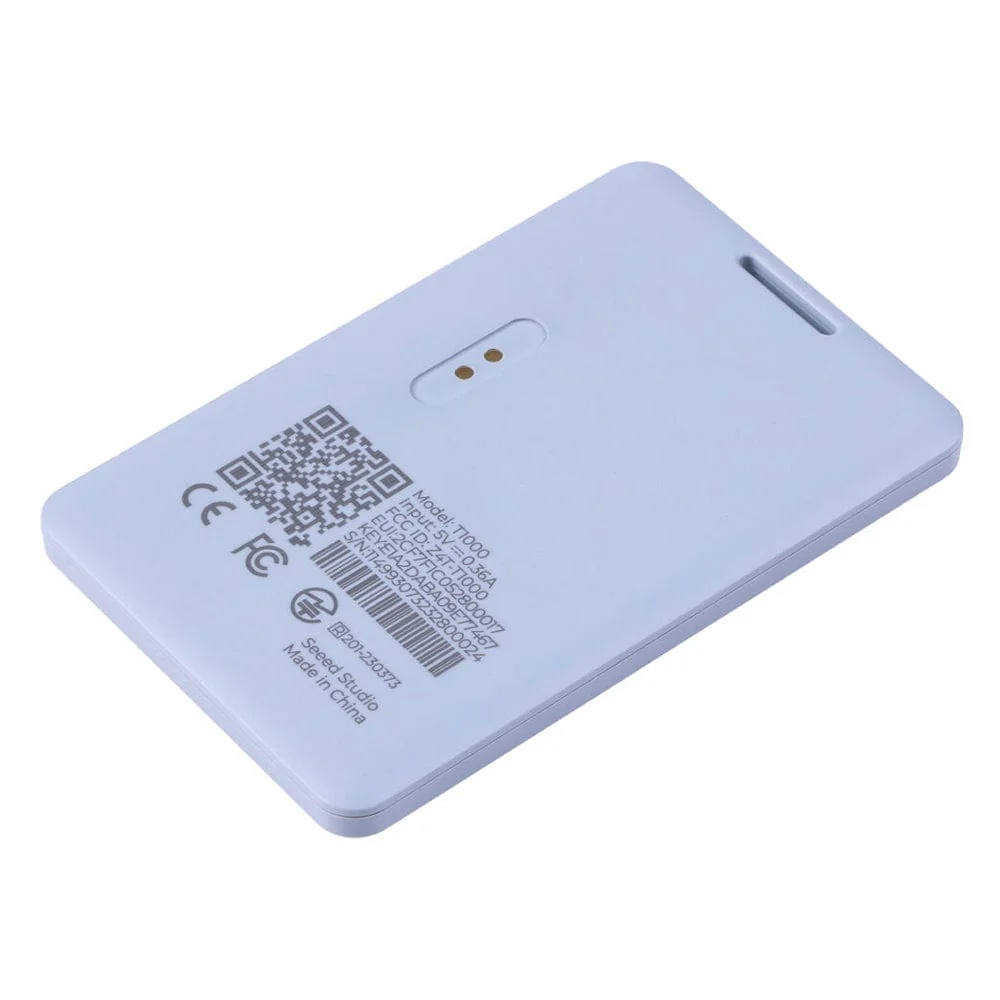

• Magnetic charging for improved water resistance
• IP65-rated enclosure, -20°C to +60°C operating temperature
• Cross-regional LoRaWAN® frequency auto-switching
• Low-cost LoRaWAN® communication (e.g. $0.05 vs $3 on cellular)
• Compatible with global LoRaWAN® networks and open API for integration

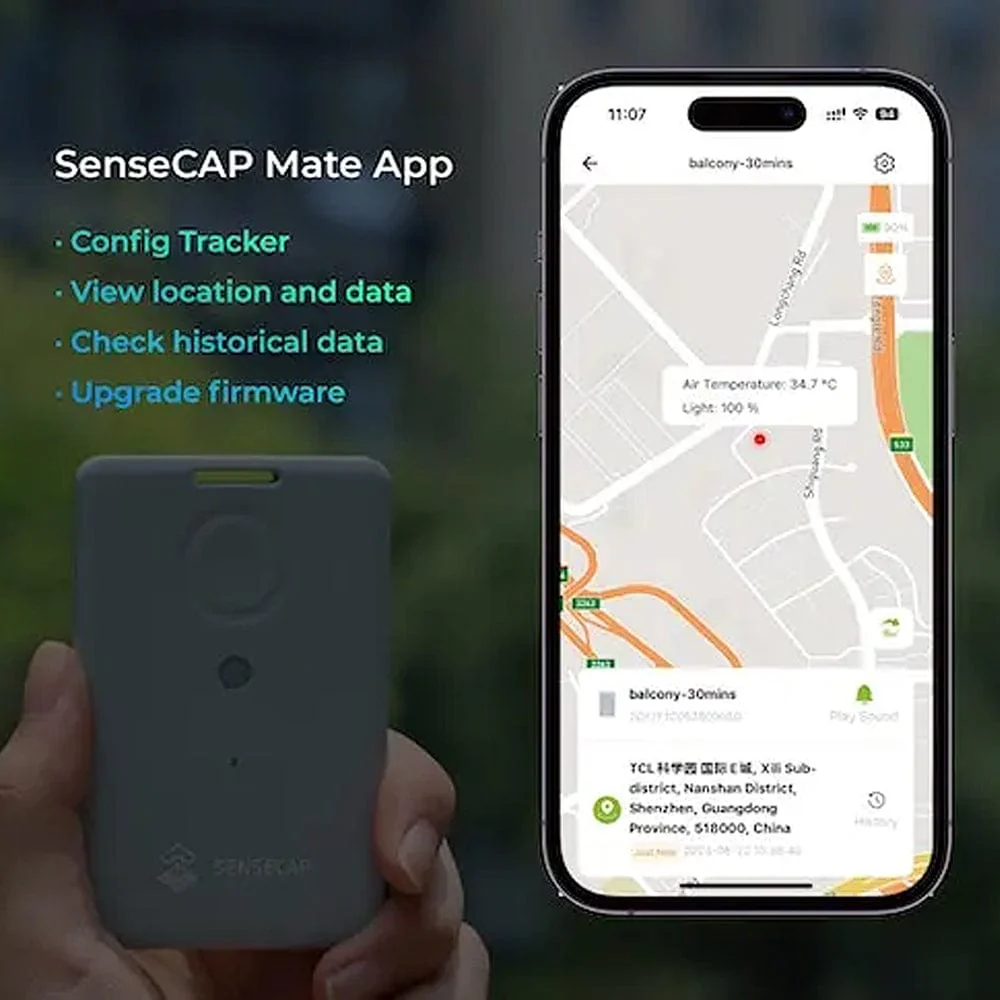

• Easy setup and configuration via SenseCAP Mate App
• 3-month free SenseCAP Mate App plan included

SenseCap T1000 Tracker Model Comparison

Product Model	T1000-A	T1000-B	T1000-E for Meshtastic	T1000-E for LoRaWAN
MCU	Goodix SoC		Nordic nRF52840
Backhaul	LoRaWAN®	LoRaWAN®	Meshtastic	LoRaWAN®
Built-in Sensor	Temperature Light 3-axis accelerometer	None	Temperature Light 3-axis accelerometer
Used App	SenseCraft	SenseCraft	Meshtastic	SenseCraft
Usage Methods	- Within the LoRaWAN Coverage Area - Indoor and Outdoor Positioning (GNSS, Wi-Fi, Bluetooth) - Environmental Monitoring		- Self-organising Network Communication - Location Sharing - Message Transmission	- Open-source Software - Within the LoRaWAN Coverage Area - Indoor and Outdoor Positioning (GNSS, Wi-Fi, Bluetooth) - Environmental Monitoring
Application Scenarios	Asset Tracking Logistics Management		Outdoor Exploration Community Communication Emergency Rescue	Asset Tracking Logistics Management

Specifications

Product Model	T1000-B (no built-in sensors)
Backhaul	LoRaWAN® (v1.0.4 Class A)
Bluetooth	Bluetooth v5.1, setting via App
LoRaWAN Channel Plan	IN865 / EU868 / US915 / AU915 / AS923 / KR920 / RU864
LED and Buzzer	1× LED and 1× buzzer to indicate status

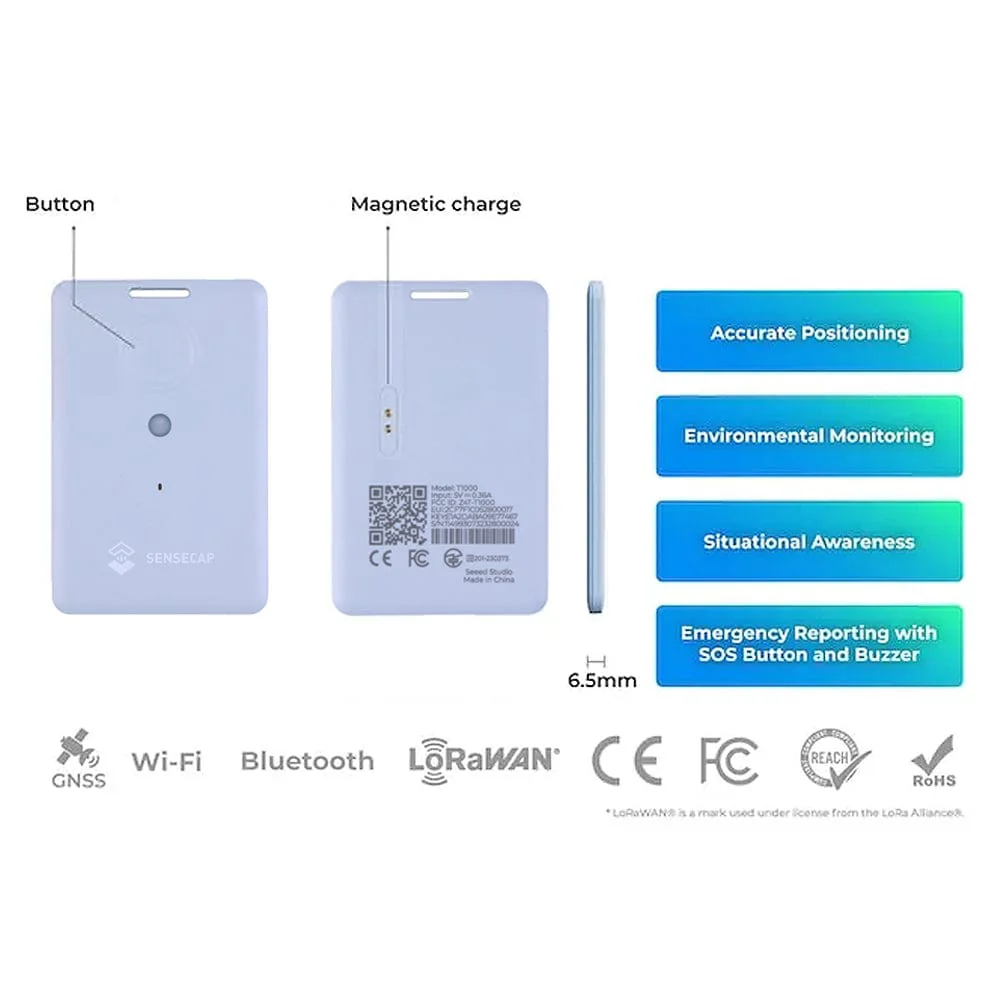

Button	1× button to operate and trigger events (SOS)
Antenna	Internal (GNSS / LoRa / Wi-Fi / BLE)
Communication Distance	2 to 5km (depending on gateway antenna, installation, and environments)
IP Rating	IP65
Dimensions	85 × 55 × 6.5 mm
Device Weight	32g
Operating Temperature	-20℃ to +60℃
Operating Humidity	5% – 95% (no condensation)
GNSS Constellation	GPS / GLONASS / Galileo / BeiDou / QZSS
GNSS Sensitivity	-145dBm cold start / -160 dBm tracking
GNSS Location Accuracy	~1m CEP, GPS, -130dBm
Wi-Fi Positioning	Passive scanning, uploads the scanned 4 MAC addresses
Bluetooth Positioning	Uploads the scanned 3 best signal MAC addresses of beacon
Data Cache	Cache 1000 data when there is no LoRaWAN network
Battery Capacity	Rechargeable lithium battery, 700mAh
Battery Life Estimates	4 months on a single charge (uplink every 1 hour, only GNSS data)
Battery Life Monitoring	Periodic uplink battery level
Charge Cable	USB magnetic charging cable, 1 meter
Power Input Voltage	4.7 to 5.5V DC
Charging Temperature	0 to +45℃ (charging limited and LED blinks quickly if outside range)
Work Mode	Standby: only heartbeat uplink; Periodic: upload location in intervals; Event: modify the interval based on status
Data Storage	Over 1000 location data records stored when there is no LoRaWAN® coverage
App	Configuration via Bluetooth App

Resources

• Product Wiki
• Product Number: Seeed 114993106

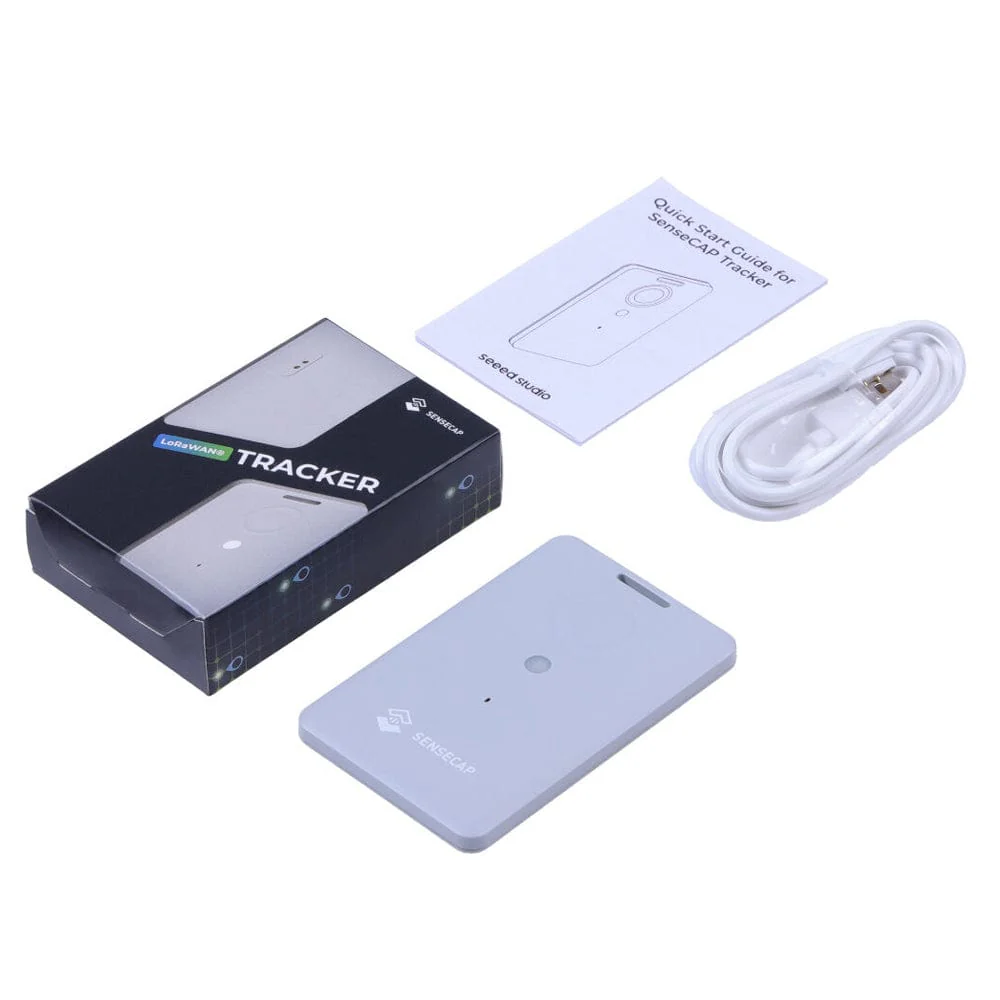

Package Contents

• 1x SenseCAP T1000-B LoRaWAN Tracker
• 1x USB charging cable
• 1x Quick Start guide
