SenseCAP Card Tracker T1000-E for Meshtastic

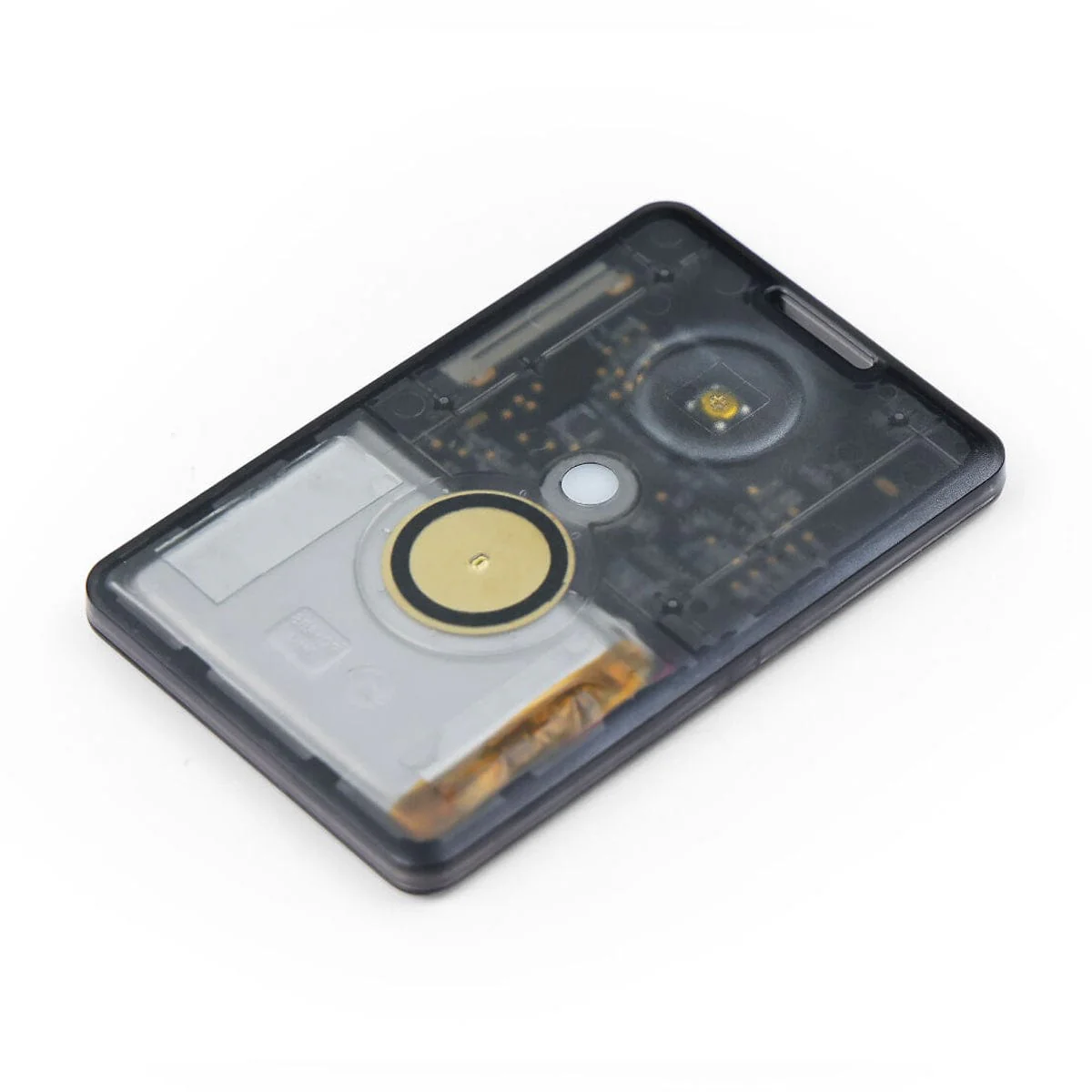

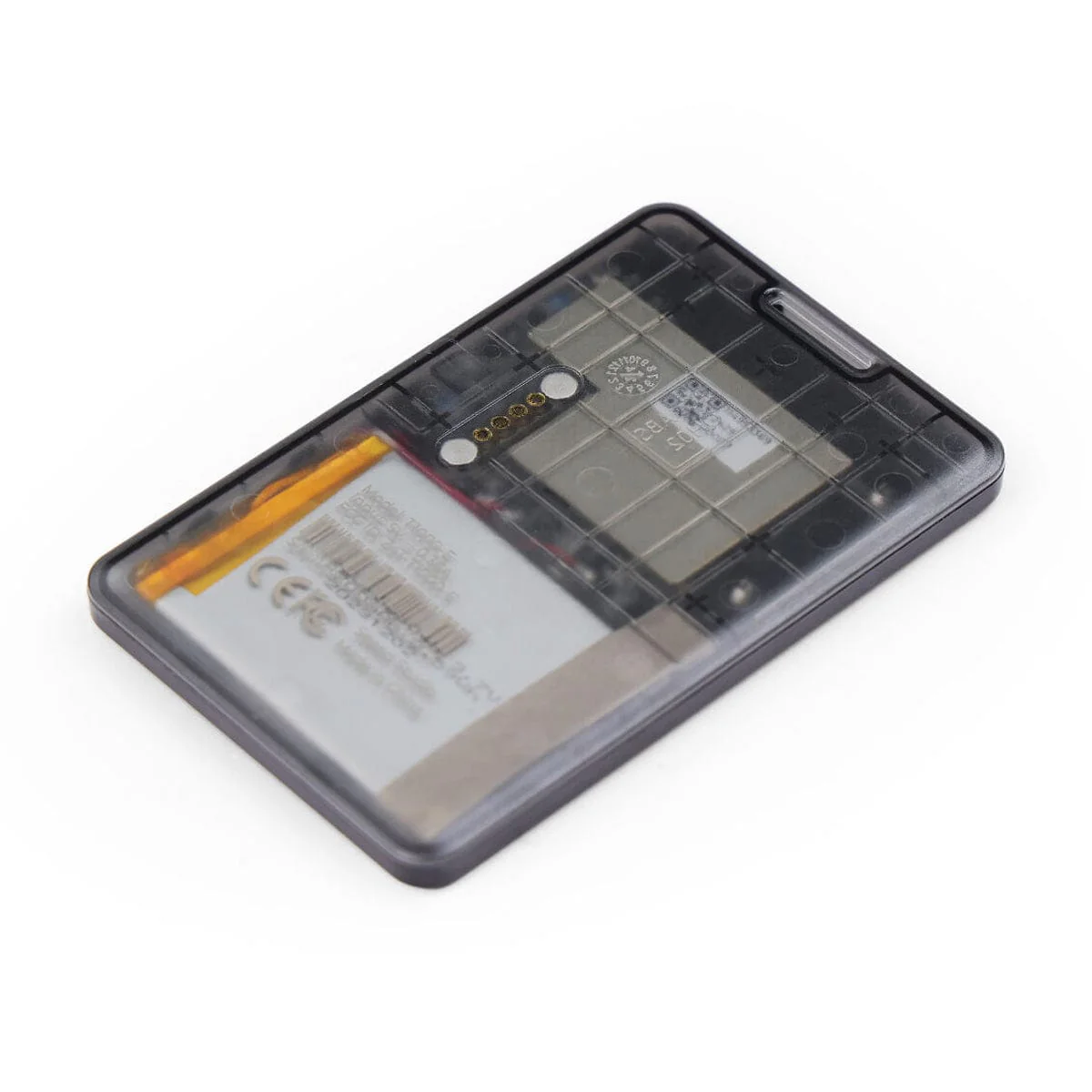

This Tracker T1000-E is an ultra-compact GPS tracker designed for Meshtastic projects. As small as a credit card, it fits nicely into your pocket or attaches to assets, making it ideal for on-the-go or asset tracking. With Semtech's LR1110 (supporting 863-928 MHz range), Nordic's nRF52840, and MediaTek's AG3335 GPS module, the T1000-E provides high-precision, low-power positioning and communication for Meshtastic users.
It supports multi-protocol connectivity through nRF52840 and LR1110, enabling LoRa to work across global ISM bands (863-928 MHz). When you set it up, you can select your preferred region in the Meshtastic app, tailoring the device to your specific location. Additional protocol support for Bluetooth 5.0, Thread, and Zigbee provides broad compatibility with a wide range of devices and networks.
With the Mediatek AG3335 GPS chip inside, the T1000-E provides accurate positioning, which is ideal for tracking across various environments. It also includes four pogo pins for charging and expandable interfaces, supporting a USB interface for DFU (Device Firmware Upgrade), serial logging, and an API interface, making device management and debugging easier. With open-source support for the Meshtastic mesh networking protocol, the T1000-E is an excellent choice for your tracking and positioning needs.
We now also stock the Seeed Snap Hook for T1000.
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?
Features
- Multi-protocol support: Featuring nRF52840 and LR1110, it supports LoRa (global ISM bands in the 863-928 MHz range). After purchasing the T1000-E, you can freely choose your region in the Meshtastic app. It also supports Bluetooth 5.0, Thread, and Zigbee, providing compatibility with a wide range of devices and networks.
- Strong Positioning Capabilities: Integrated with Mediatek‘s AG3335 GPS chip, it provides high-precision positioning services.
- Expandable Interfaces: Designed with four Pogo pins, it supports a USB interface for DFU (Device Firmware Upgrade), serial logging, and API interface, simplifying device management and debugging.
- Open Source Support: Compatible with the Meshtastic open-source mesh networking protocol, suitable for long-range and low-power communication needs.
- Product Number - Seeed 114993369
SenseCap T1000 Tracker Model Comparison
| Product Model | T1000-A | T1000-B | T1000-E for Meshtastic | T1000-E for LoRaWAN |
|---|---|---|---|---|
| MCU | Goodix SoC | Nordic nRF52840 | ||
| Backhaul | LoRaWAN® | LoRaWAN® | Meshtastic | LoRaWAN® |
| Built-in Sensor | Temperature Light 3-axis accelerometer |
None | Temperature Light 3-axis accelerometer |
|
| Used App | SenseCraft | SenseCraft | Meshtastic | SenseCraft |
| Usage Methods | - Within the LoRaWAN Coverage Area - Indoor and Outdoor Positioning (GNSS, Wi-Fi, Bluetooth) - Environmental Monitoring |
- Self-organising Network Communication - Location Sharing - Message Transmission |
- Open-source Software - Within the LoRaWAN Coverage Area - Indoor and Outdoor Positioning (GNSS, Wi-Fi, Bluetooth) - Environmental Monitoring |
|
| Application Scenarios | Asset Tracking Logistics Management |
Outdoor Exploration Community Communication Emergency Rescue |
Asset Tracking Logistics Management |
|
What's on Board
Specifications
| Network protocol | LoRa (Supports 863-928 MHz range) Bluetooth v5.1 |
| Temperature | Range: -20 to 60℃; |
| Accuracy: ± 1℃ (min ±0.5℃, max ±1℃) | |
| Resolution: 0.1℃ | |
| Light | 0 to 100% (0% is dark, 100% is brightest) |
| 3-Axis Accelerometer | 3-Axis Accelerometer to detect movement |
| (Not currently used in the Meshtastic firmware) | |
| LED and Buzzer | 1x LED and 1x buzzer to indicate status |
| Button | 1x Button to operate |
| Antenna | Internal (GNSS/LoRa/Wi-Fi/BLE) |
| Communication Distance | 2 to 5km (depending on antenna, installation, and environment) |
| IP Rating | IP65 |

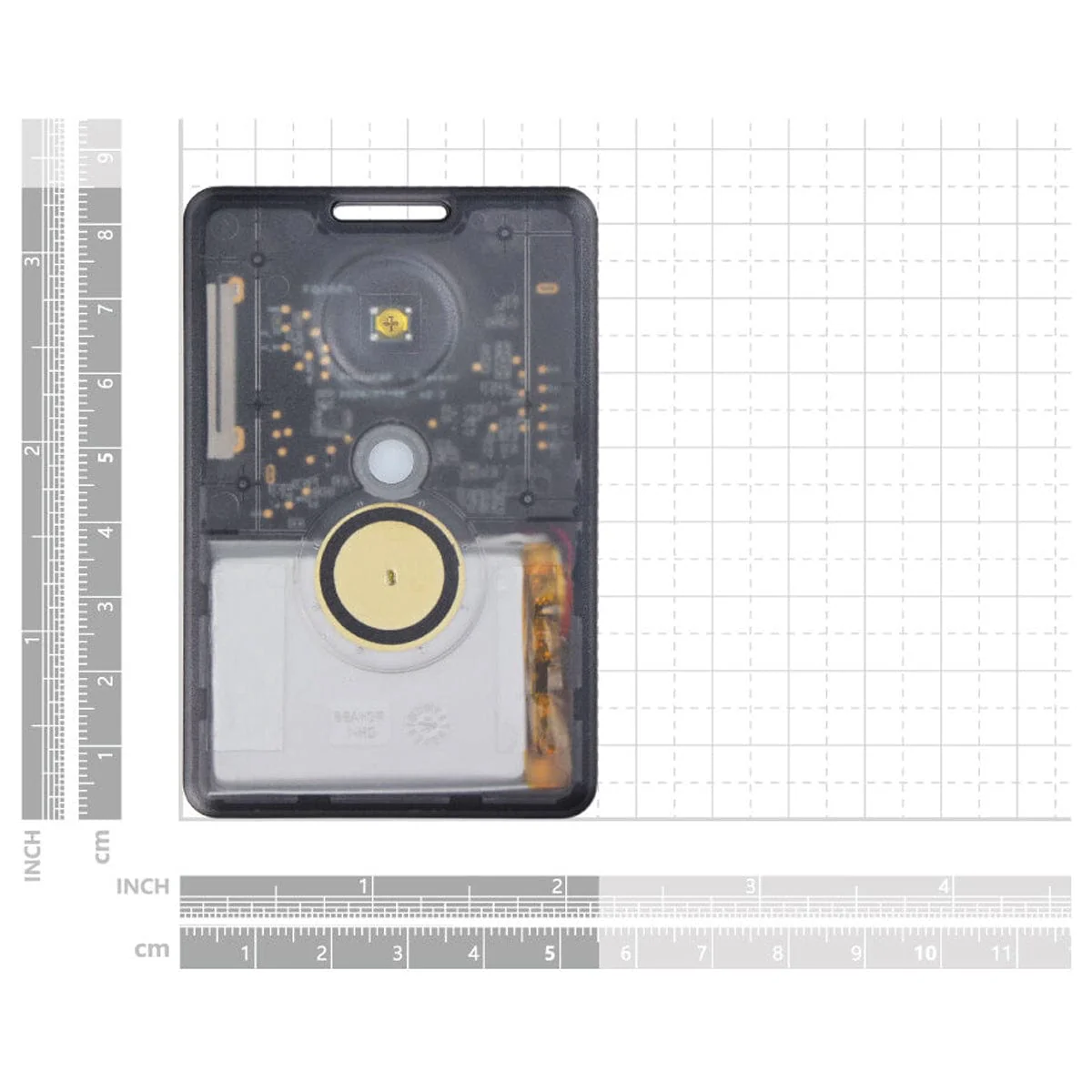

| Dimensions | 85 x 55 x 6.5 mm |
| Device Weight | 32g |
| Operating Temperature | -20℃ to +60℃ |
| Operating Humidity | 5% - 95% (No condensation) |
| Certification | CE /FCC |
Resources

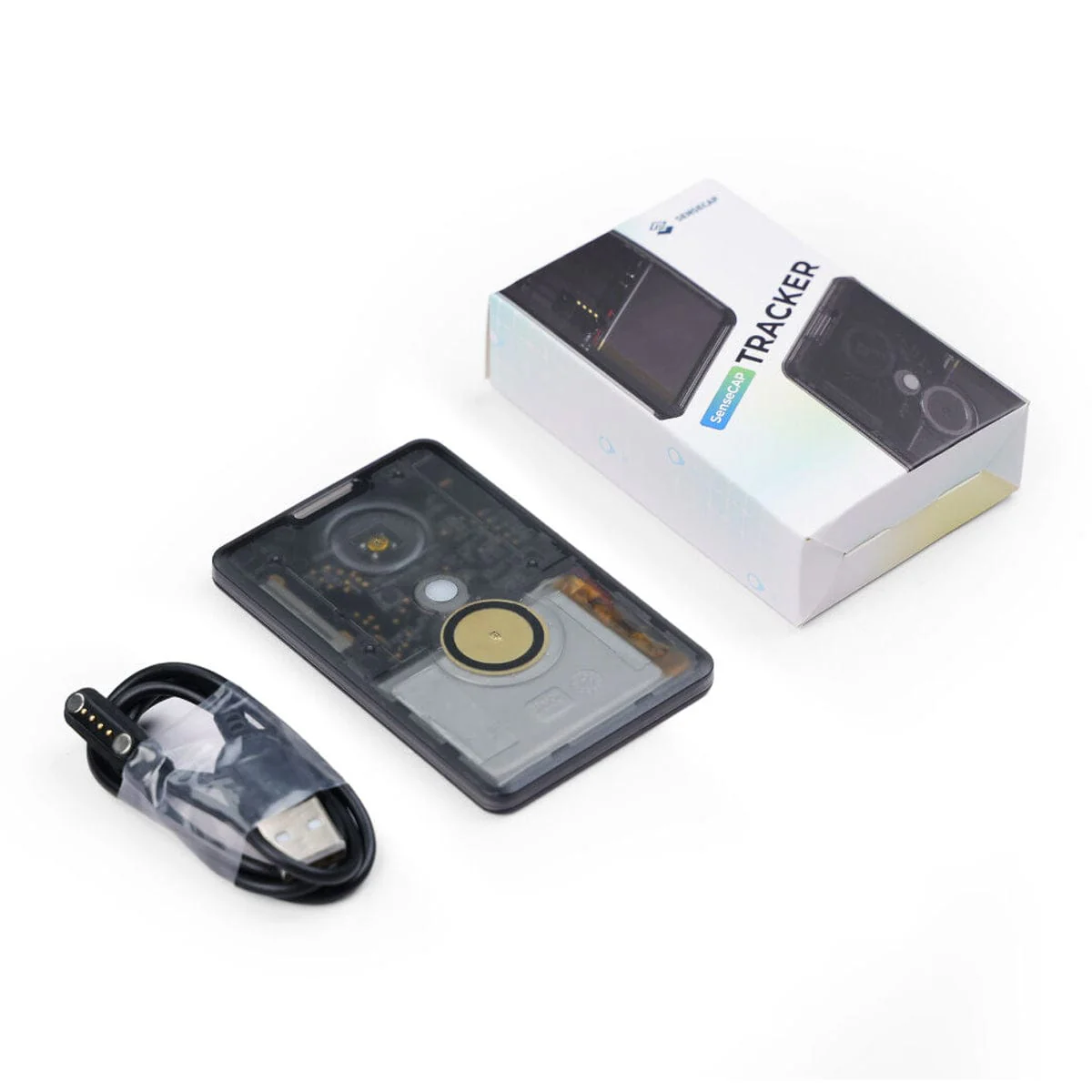

Package Contents
- 1x Tracker T1000-E
- 1x USB Cable (Adapter not included)
